Vehicle Surveillance Video Solutions for Fleet Management | AlwayCare

Dual-SIM 4G

Carrier Auto-Failover

Dual-SIM cellular connectivity can support carrier failover for telematics and remote live video transmission, subject to network coverage and system configuration.

1080P HD

H.265 Dual-Stream Telematics

Sony STARVIS sensors capture crisp low-light details while efficient H.265 compression optimizes bandwidth.

Low Latency

Live Video Streaming

Responsive live video streaming supports incident dispatch verification and remote fleet oversight, subject to network and system conditions.

IP69K

Hermetic Ingress Sealing

Cast-alloy aviation-lock cameras withstand heavy vehicle vibration, high-pressure washdowns, and wide temperatures.

INTELLIGENT SURVEILLANCE ECOSYSTEM

360° Real-Time Visibility, Edge AI & Cloud Telematics

Commercial fleets face operational road risks, liability disputes, and cargo-security challenges. AlwayCare mobile CCTV systems combine rugged in-vehicle recording, in-cab driver monitoring, event video protection, and cloud telematics to help improve visibility, support incident review, and strengthen day-to-day fleet safety operations.

01

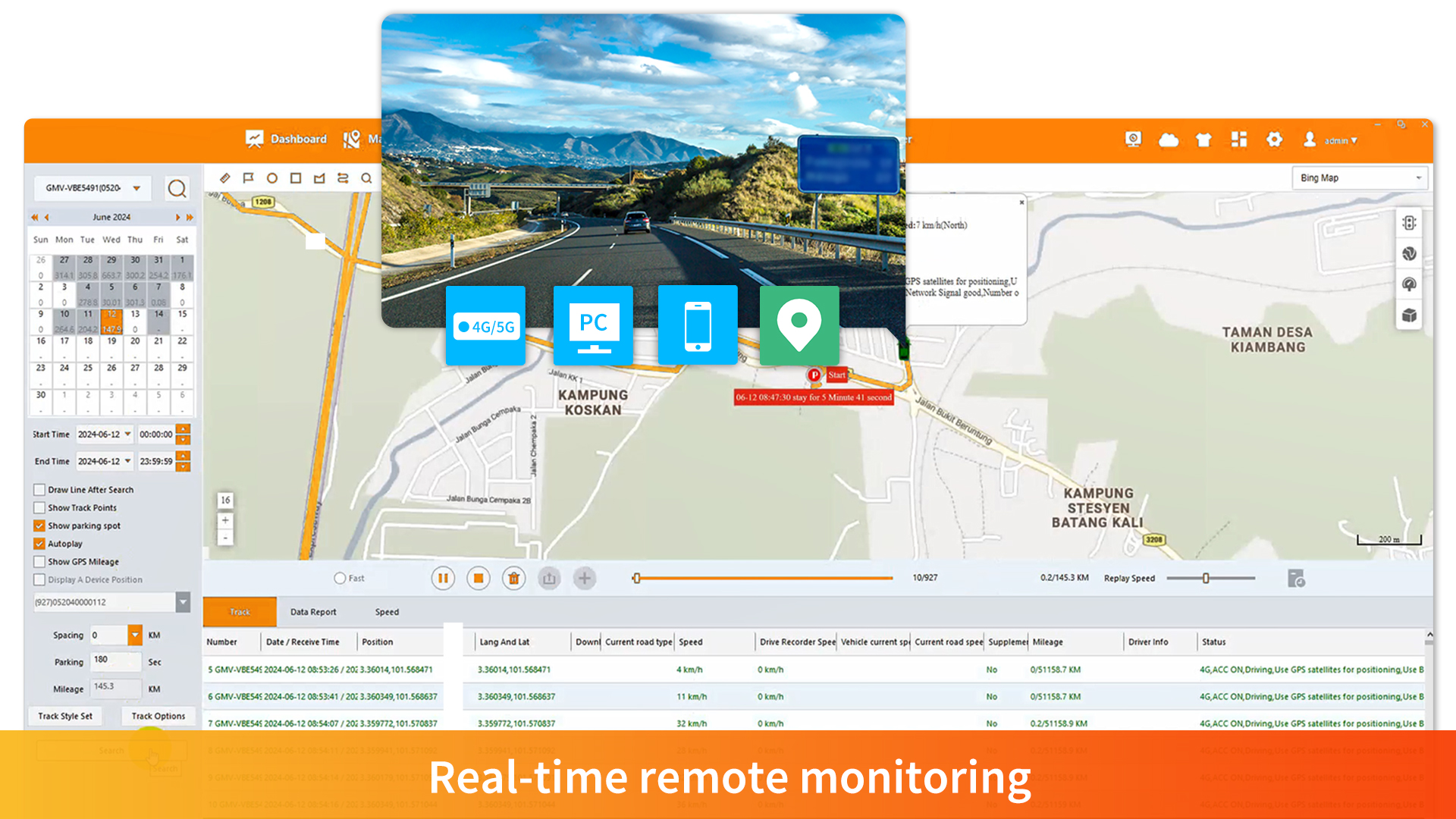

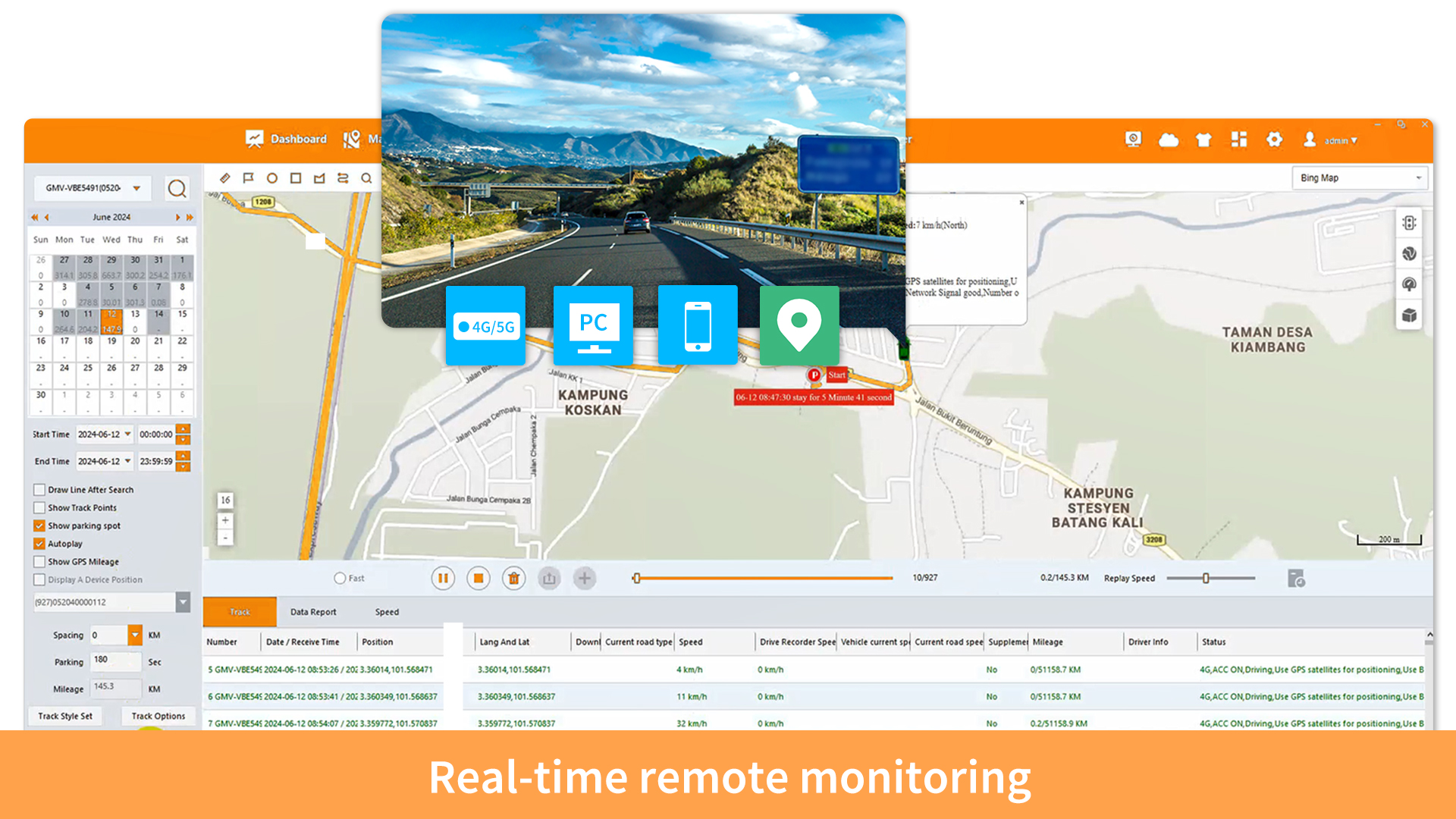

Real-Time Remote Monitoring

Near-real-time multi-channel live streaming, GPS track playback, and remote two-way intercom across web, desktop, and mobile CMS platforms.

02

Driver Monitoring System (DMS)

AI-based driver monitoring can identify configurable fatigue, distraction, phone-use, smoking, and seatbelt-related events in real time.

03

Intelligent Accident Evidence Collection

G-sensor shock triggers and emergency panic inputs can lock pre- and post-impact video clips into protected storage partitions for incident review.

04

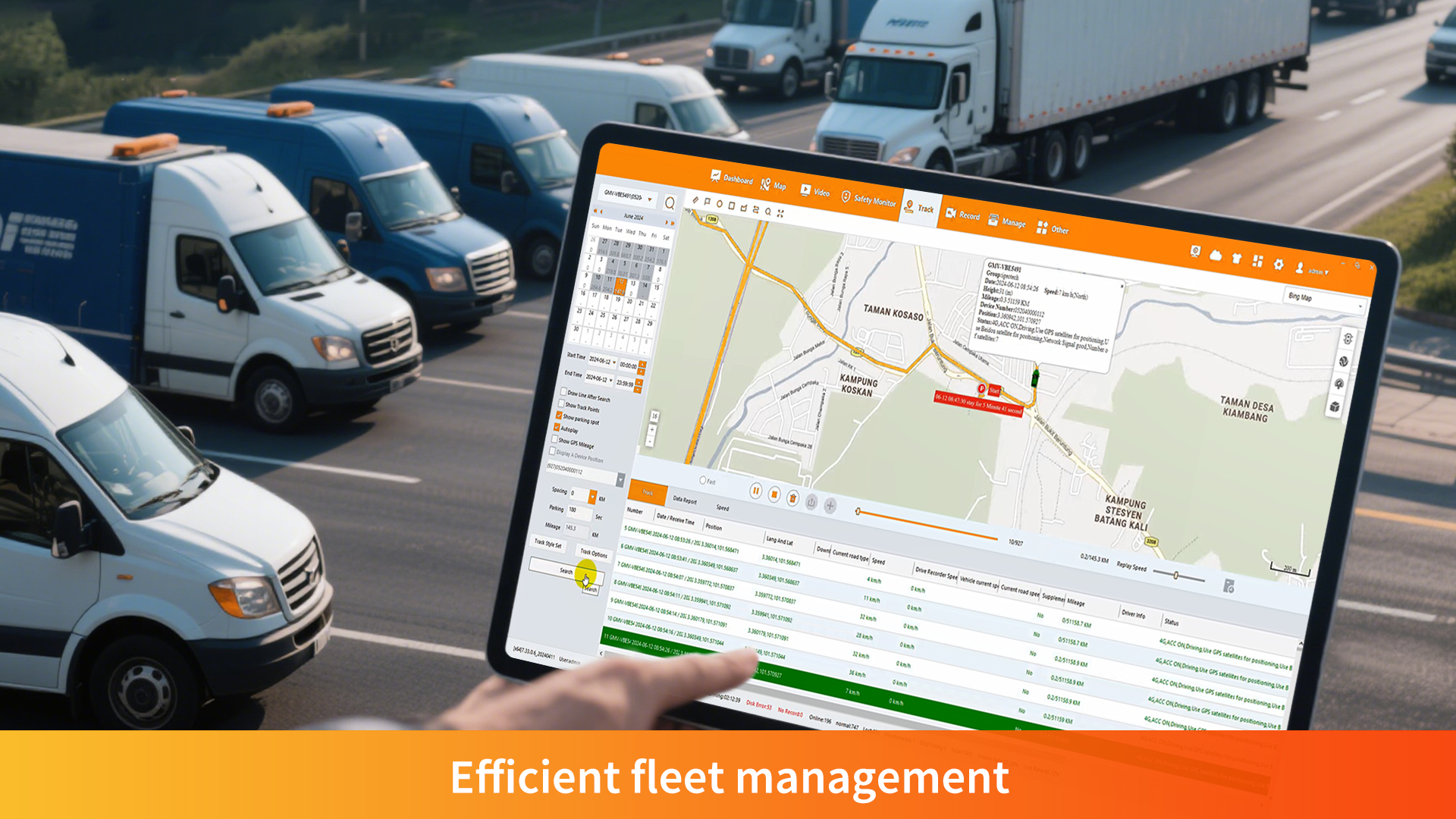

Efficient Fleet Telematics & Management

Automated telematics reports provide fuel consumption metrics, harsh braking analysis, geofence compliance, and scheduled maintenance alerts.

Real-Time Remote Vehicle Video Monitoring

Near-Real-Time Live Video

Continuous Cellular Streaming with Dual-SIM Carrier Failover

Fleet managers can monitor multiple live camera channels per vehicle, inspect interior cargo compartments, verify route compliance, and trigger two-way audio talkback with drivers from the operations dispatch center, subject to the selected MDVR and CMS configuration.

Active In-Cab Safety

Instant In-Cab Voice Coaching & Cloud Fatigue Escalation

A dedicated DMS camera with 940nm infrared illumination supports driver monitoring in low-light conditions and can provide in-cab voice warnings when fatigue-alert functions are enabled in the selected configuration.

Intelligent Accident Evidence Collection and Video Lock

Incident Review

Protected Storage & Automated Depot Wi-Fi Offloading

Storage and encryption options depend on the selected MDVR configuration. Event video can include UTC time, GPS coordinates, vehicle speed, and G-force telemetry to support incident review and fleet documentation.

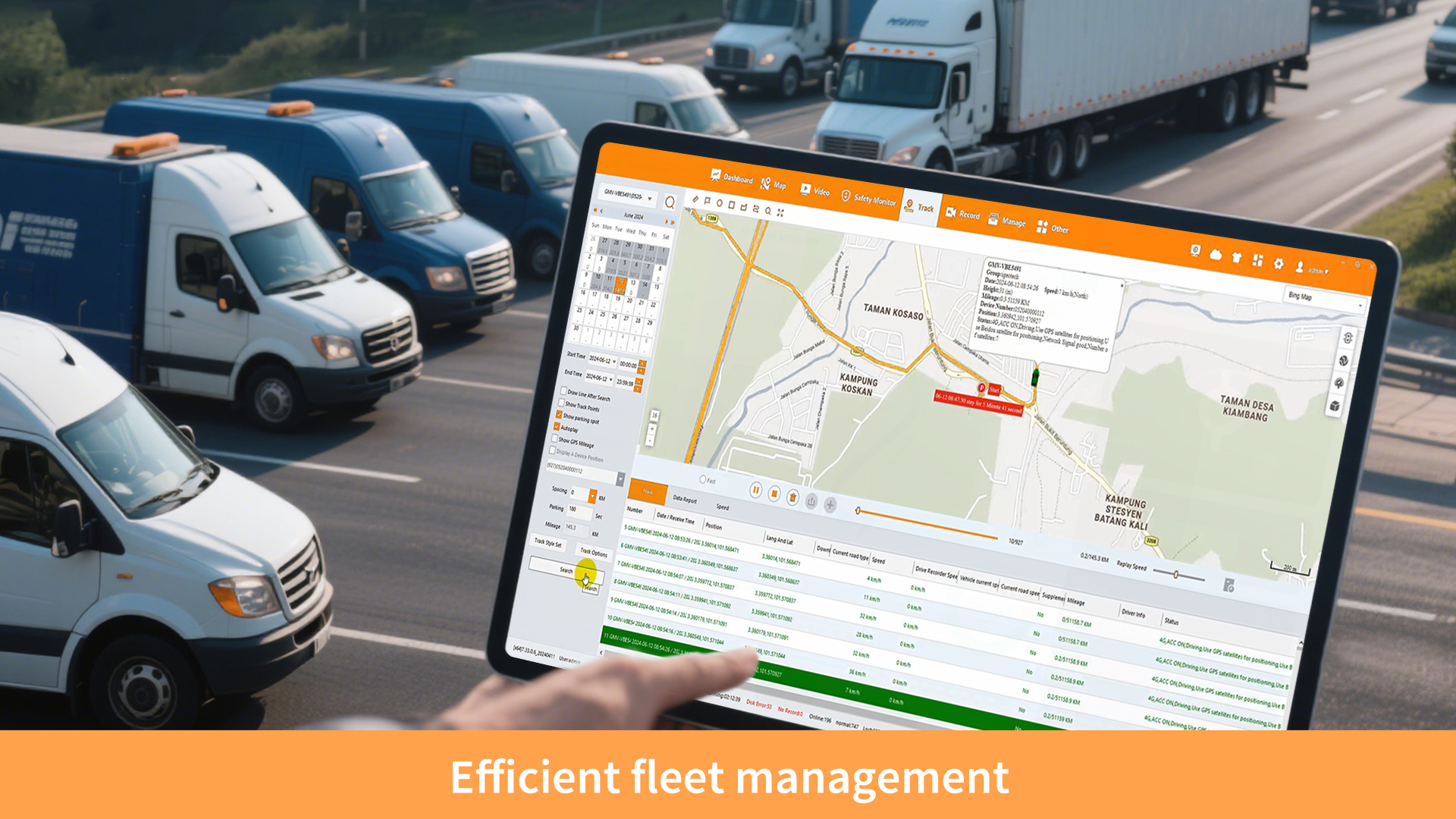

Efficient Fleet Telematics and Driver Behavior Analytics

Actionable Telematics

Driver Behavior Scoring & Automated Preventive Maintenance

Transform multi-channel video telemetry into actionable fleet insights. Automated driver scorecards can help identify speeding, idling, and harsh cornering patterns and support fleet safety and maintenance workflows.

EQUIPMENT MATRIX & APPLICATION SCENARIOS

Tailored Video Surveillance Architectures for Commercial Fleets

Different commercial vehicle classes encounter distinct blind spots, operational risk factors, and wiring topologies. Select a fleet category below to examine the specialized camera placements, in-cab displays, and edge AI recording architectures.

Commercial Freight & Semi-TrailersUrban Box Trucks & Delivery FleetsPublic Transit & Passenger BusesHazardous Cargo Tankers & Heavy Haulers

Commercial Freight Tractor-Trailer Video Surveillance Architecture

LONG-HAUL INTERSTATE LOGISTICS

Heavy Tractor-Trailer 360° Surveillance & Trailer Link

Interstate articulated freight trucks require expansive field-of-view monitoring, cargo bay surveillance, and heavy-duty detachable coil cabling. AlwayCare equips freight fleets with multi-angle cameras, cabin DMS, and cloud GPS telematics designed to minimize blind zones and help deter cargo theft during cross-country transits.

Forward Road-View ADAS Camera (1080P WDR)
In-Cab DMS Fatigue Sensor with 940nm IR
Side AI Blind-Spot Cameras (BSIS / UN ECE R151)
Heavy-Duty Rear Reversing Camera (IP69K, 18 IR LEDs)
High-Capacity 8-CH/9-CH AI MDVR with 4G/GPS/Wi-Fi
Spring-Coil Quick-Disconnect Trailer Cable (GX12)

Request Freight Surveillance BOM & Quote

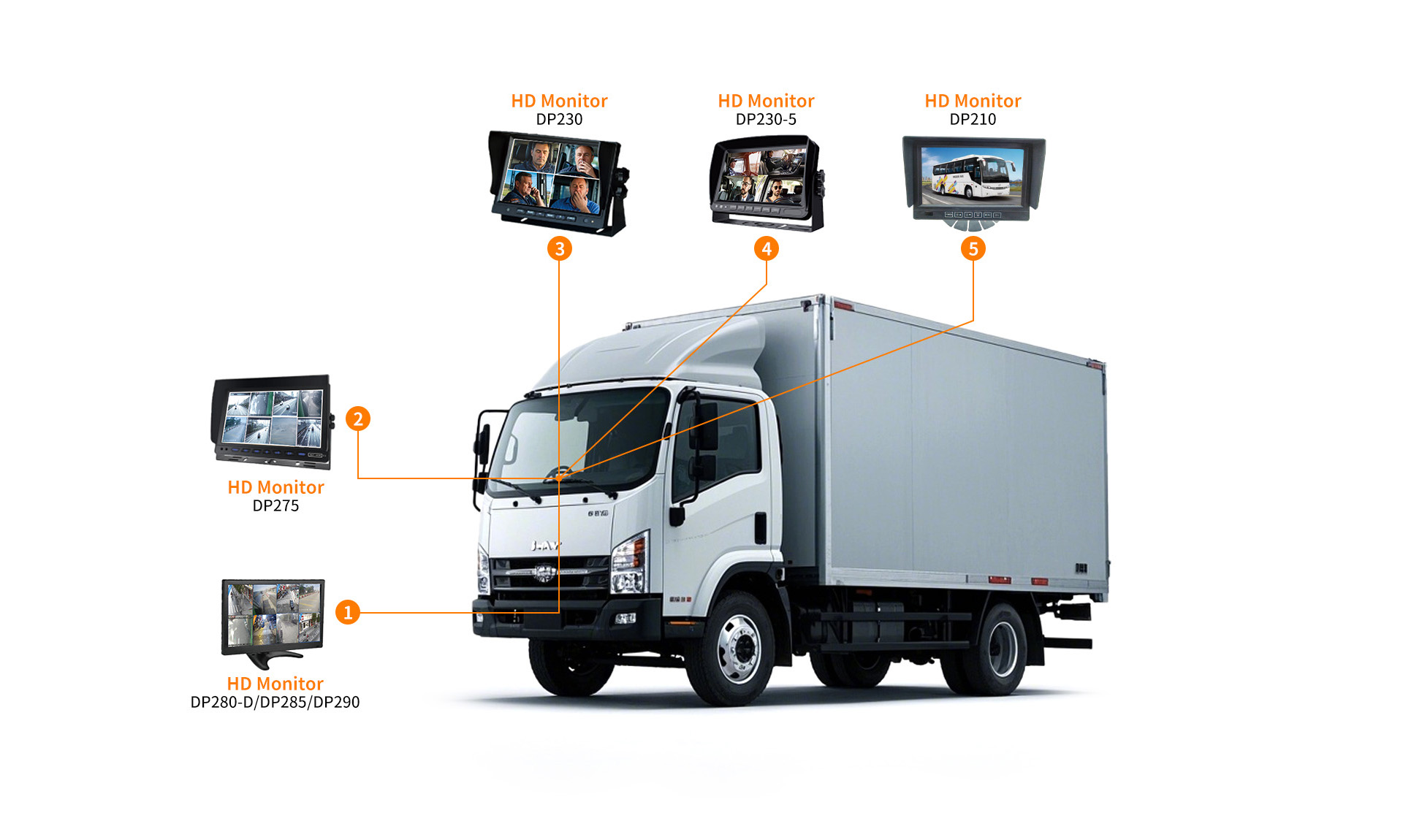

Urban Box Truck Multi-Angle Video Surveillance Setup

LAST-MILE LOGISTICS & DISTRIBUTION

Urban Box Truck Multi-Angle In-Cab & Cargo Protection

Dense city delivery routes involve frequent backing maneuvers, tight loading bays, and vulnerable pedestrians. Our urban delivery system pairs in-cab sunlight displays with exterior blind-spot cameras and cargo box domes to help protect cargo and pedestrians.

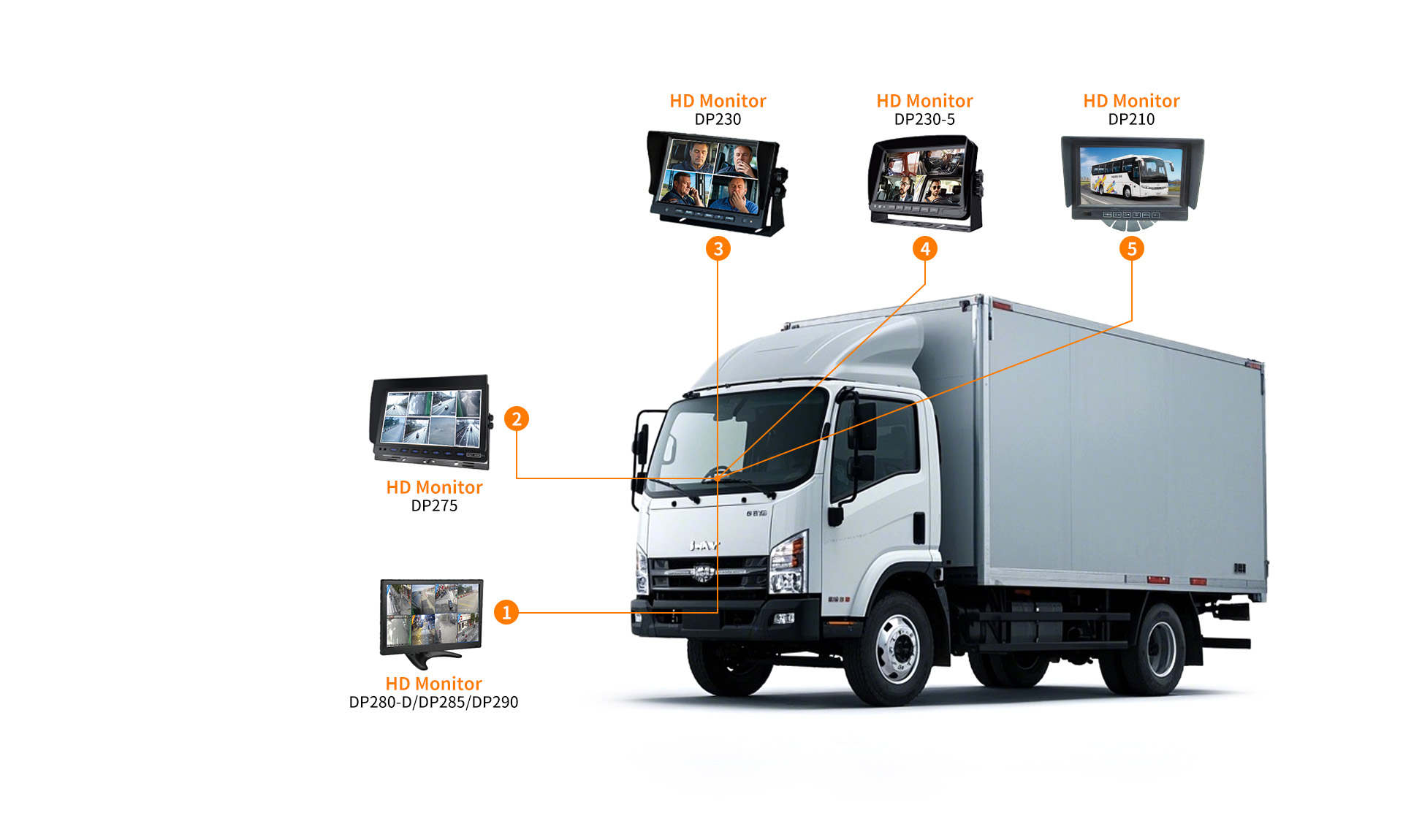

In-Cab 7-Inch High-Brightness Quad Display (800cd/m²)
Internal Cargo Bay Security Vandal Dome Camera
Rear Wide-Angle Reversing Camera with Parking Guidelines
AI Pedestrian & Cyclist Detection (Side Sounder)
Compact 4-CH / 5-CH AI Mobile DVR with Wi-Fi Offload
Automated Reverse Trigger with Single-Camera View

Request Delivery Fleet Surveillance Quote

BRT Articulated Public Transit Bus Interior and Exterior Surveillance Suite

MUNICIPAL TRANSIT & COACH FLEETS

Public Bus Comprehensive Interior & Road Surveillance

Municipal transit authorities and coach operators need practical cabin visibility to help protect passengers, support incident review, and strengthen driver safety procedures. The system can synchronize multiple camera channels with interior audio and depot Wi-Fi data offloading when configured for the fleet.

Front Windshield Traffic & Incident Recording
Driver Station A/V Security Dome & Panic SOS Trigger
Dual Saloon Wide-Angle Vandal-Proof Cameras (IK10)
Boarding Door Passenger Flow & Farebox Inspection
Exterior Left/Right Turn Blind-Spot Assist Cameras
Automated Depot Wi-Fi Video Offloading System

Request Public Transit Surveillance Quote

Hazmat Tanker Explosion-Proof Mobile CCTV Architecture

HAZMAT & INDUSTRIAL HEAVY FLEETS

Explosion-Proof Heavy Tanker & Fuel Transport Telematics

Transporting volatile fuel and hazardous chemicals requires hardware, cabling, and monitoring functions selected for the installation environment. The solution can combine multi-point perimeter cameras with in-cab fatigue alerts and cloud SOS notifications for hazardous industrial operations.

Environment-Suitable Stainless Steel Camera Housings
Discharge Valve Box & Vapor Recovery Area Monitoring
Radar Perimeter & AI Blind-Spot Warning Sounders
In-Cab Emergency Panic Button with Cloud SOS Notification
Shock-Isolated Storage for Demanding Environments
Aviation GX12 Screw-Lock Cables with Shielded Anti-EMI

Request Hazmat Tanker Solution Specs

HARDWARE ARCHITECTURE & SYSTEM INTEGRATION

End-to-End Fleet Surveillance Topology & Engineering BOM

AlwayCare commercial mobile CCTV systems utilize high-bandwidth aviation-grade cabling and centralized edge computing to synchronize video feeds, AI alerts, and cloud telemetry across extreme vehicle vibrations and operating conditions.

Commercial Fleet Mobile CCTV System Wiring Topology Diagram

Component	Model Code	Core Technical Specifications	Installation Location	Operational Function
AI Mobile Digital Video Recorder	`MR920 Series`	8-CH AHD 1080P + 1-CH IPC, H.265 compression, 4G/5G, GPS, Wi-Fi, and configurable dual SD/SSD storage	Behind driver partition / under passenger seat	Centralized edge processing, 1080P multi-stream recording, real-time 4G cloud telematics streaming
Heavy-Duty Vehicle Camera	`CC995-AHD20`	1080P Sony STARVIS sensor, IP69K hermetic seal, 18 IR LEDs, 120° FOV, cast alloy enclosure	External vehicle rear, left, and right sides	High-definition reversing assist, exterior blind-spot monitoring, night-vision perimeter surveillance
Driver Fatigue Monitoring Sensor	`MR830-DMS`	Deep learning AI NPU, 940nm invisible IR illumination, voice buzzer, sunglasses-compatible tracking	A-pillar / dashboard facing driver face	Real-time detection of drowsiness, yawning, eye closure, smartphone usage, smoking, and distraction
Forward Collision ADAS Camera	`AWS302-ADAS`	1080P HDR optical sensor, multi-lane tracking, forward vehicle recognition, TTC calculation	Windshield top interior centerline	Forward Collision Warning (FCW), Lane Departure Warning (LDW), and Headway Monitoring (HMW)
In-Cab Sunlight-Readable Monitor	`DP230`	7.0-inch IPS LCD, 800cd/m² high brightness, 1024×600 resolution, multi-split view, reverse trigger	Dashboard / overhead console bracket	Real-time multi-angle driver visual assist, reversing view auto-expansion, in-cab visual warning prompts
Vandal-Proof Interior Dome Camera	`CC620-AHD`	1080P WDR, IK10 vandal-resistant metal shell, 130° wide-angle lens, built-in high-gain audio mic	Bus saloon ceiling / truck cargo box interior	Cabin passenger surveillance, fare dispute resolution, cargo security, and interior theft prevention
Armored Aviation Cabling Kit	`AC-4PIN-HD`	4-pin GX12 screw-lock aviation connectors, IP68 waterproof, multi-shielded copper anti-EMI wiring	Vehicle chassis and interior wire channels	Heavy-duty vibration-proof transmission of DC 12V/24V power, analog HD video, and two-way audio

INTEGRATED COMMERCIAL FLEET SOLUTIONS

Explore Other AlwayCare Fleet Safety Applications

AlwayCare brings together configurable video telematics and active-safety architectures for commercial vehicle sectors, helping teams improve visibility from urban streets to remote surface mines.

Logistics Fleet Telematics and Safety Solutions

Logistics & Cold Chain Fleets

End-to-end freight visibility, continuous temperature telemetry, cargo door sensors, and route tracking for commercial freight carriers.

Learn More

Public Transit and Passenger Bus Safety Systems

Public Transit & Passenger Buses

Passenger counting, interior cabin audio-video recording, driver behavior monitoring, and automatic depot Wi-Fi download systems.

Learn More

Mining and Heavy Construction Machinery Telematics

Mining & Construction Machinery

Extreme-duty IP69K collision avoidance, thermal night imaging, and UWB proximity detection for heavy quarry and open-pit haulers.

Learn More

Active Anti-Collision and Radar Detection Systems

Active Anti-Collision & Radar

Millimeter-wave 77GHz radar, forward vision ADAS collision alarms, AI blind spot detection, and dynamic pedestrian safety bubbles.

Learn More

FIELD APPLICATION PROFILES

Fleet Video Surveillance & Telematics Deployment Scenarios

Examine how commercial logistics fleets and municipal passenger transit operators deploy AlwayCare multi-channel mobile CCTV and cloud telematics hardware.

COMMERCIAL FREIGHT LOGISTICS

Articulated Freight Fleet Multi-Camera Recording & Evidence Architecture

Commercial transport carriers operating articulated semi-trailers can deploy AlwayCare MR920 AI MDVRs with forward ADAS and flank BSD cameras. High-definition multi-channel recording combined with G-sensor event clipping can support objective video review during transit incident investigations.

1080PMulti-Channel AHD Recording

Event ClipsG-Sensor Incident Review

Dual-SIM4G Cellular Live Streaming

MUNICIPAL PASSENGER TRANSIT

Urban Bus Fleet Passenger Cabin Surveillance & Depot Wi-Fi Offload

Municipal transit authorities can deploy multi-channel mobile CCTV systems with vandal-resistant audio dome cameras across passenger cabins. When configured with depot Wi-Fi offloading, stored surveillance records can be transferred on return to maintenance facilities, reducing reliance on cellular data.

IK10Vandal-Proof Saloon Domes

Depot Wi-FiConfigured Video Offload

Protocol SupportVideo Streaming Integration

MISSION-CRITICAL HARDWARE

Core Video Surveillance & AI Edge Telematics Hardware

Automotive-grade hardware engineered for heavy commercial vibration, extreme operating temperatures, and continuous 24/7 video recording in grueling road and industrial environments.

AI Mobile Digital Recorder

MR920 Heavy AI MDVR (8+1 CH)

8-CH 1080P AHD + 1-CH IPC 1080P input
H.265 compression helps optimize cellular bandwidth usage
Integrated 4G/5G, GPS, Wi-Fi & G-Sensor
Configurable dual-storage options for local video retention

Inquire Product

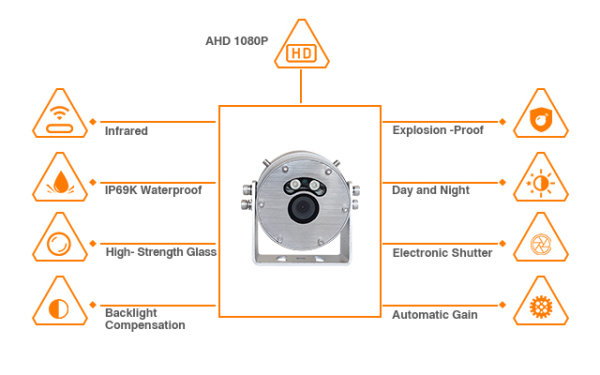

CC995-AHD20 IP69K Explosion-Proof Vehicle Camera

Exterior Waterproof Camera

CC995-AHD20 IP69K Heavy Camera

1080P Sony STARVIS low-light sensor
IP69K hermetic cast alloy sealed housing
18 high-power IR LEDs (15m night vision)
GX12 4-pin vibration-proof aviation lock

Inquire Product

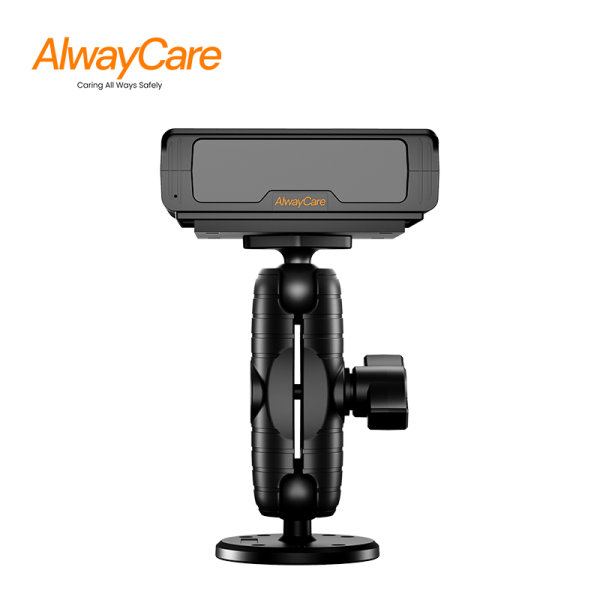

MR830 All-in-One DMS with ADAS and Driver Fatigue Alerts

Driver Monitoring Sensor

MR830 Heavy DMS AI Sensor

Dedicated deep-learning NPU neural processor
940nm invisible IR for night illumination
Designed for driver monitoring with polarized sunglasses and masks
Real-time in-cab voice warnings & cloud push

Inquire Product

In-Cab High-Bright Display

DP230 7" Sunlight Quad Monitor

800cd/m² ultra-bright sunlight-readable panel
1024×600 IPS wide viewing angle display
Single, dual, tri, and quad-split views
Auto reverse gear trigger full-screen switch

Inquire Product

FREQUENTLY ASKED QUESTIONS

Frequently Asked Questions About Vehicle Video Telematics

Technical details, operational connectivity, evidence integrity, and software integration guidelines for AlwayCare commercial fleet mobile CCTV systems.

How does the system handle video recording when driving through areas with poor cellular reception?

The MDVR can continue recording to local SD or SSD storage when cellular coverage is temporarily unavailable. Telemetry logs and event triggers may be cached locally, and selected configurations can synchronize important clips to the CMS after the connection is restored. Actual recording, storage, and synchronization behavior depends on the installed hardware and system configuration.

How does automated depot Wi-Fi video offloading work, and does it incur cellular data fees?

When depot Wi-Fi offloading is enabled, the MDVR can transfer stored recordings to a local server after the vehicle returns to the depot, reducing reliance on cellular data. Transfer speed, supported Wi-Fi bands, authentication, and storage workflow depend on the installed hardware, network, and CMS configuration.

How does the system support video integrity for incident review or insurance documentation?

Selected MDVR configurations can provide protected local storage, encryption, timestamps, and vehicle or event metadata such as GPS position, speed, and G-sensor data. These features help teams review incidents and organize supporting documentation. Legal admissibility depends on local law, evidence-handling procedures, and the requirements of each specific case.

What features can help deter camera disconnection or storage tampering?

Depending on the selected hardware, the system may include a secured storage compartment, threaded camera connectors, video-loss detection, local buzzer alerts, and cloud notifications. These features can help deter unauthorized access and draw attention to a disconnected camera, but the exact behavior depends on the installed MDVR, camera, wiring, and CMS configuration.

Can AlwayCare vehicle surveillance systems integrate with our existing third-party FMS or TMS platforms?

Depending on the selected CMS and integration scope, AlwayCare systems can support standard telematics protocols and provide API or SDK options for third-party integration. The available protocols, endpoints, live-stream functions, GPS data, and driver reports should be confirmed against the target MDVR and software configuration before deployment.

IMPROVE VISIBILITY • SUPPORT DRIVER SAFETY • STRENGTHEN INCIDENT REVIEW

Equip Your Fleet with Enterprise Video Surveillance Telematics

Whether piloting an evaluation kit on 5 long-haul trucks or retrofitting thousands of municipal transit buses, our engineering team delivers turnkey MDVR sensor topologies, wiring schematics, CMS cloud configurations, and fast-track evaluation hardware.

Quick Quote Detailed Quote
