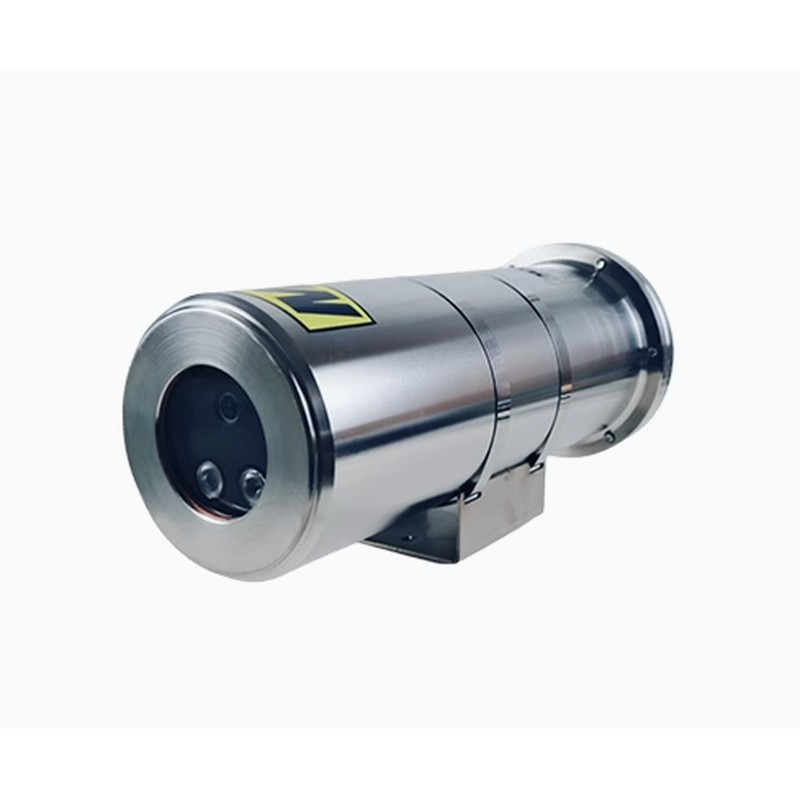

CC961-AHD20 Stainless Steel Network Camera with Varifocal Lens
| Share | |
|---|---|
| Categories | IP Camera |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Product Specifications | CC961-AHD20 |
| Definition | 2560x1440 maximum |
| Image Sensor | 1/3" progressive scan CMOS |
| Lens | 2.7-12mm varifocal |
| Field of View | H 96.7°-29.7°, V 51.7°-16.7° |
| Minimum Illumination | 0.005 Lux (color) |
| Night Vision | 850nm IR, up to 50m |
| Adjustment Angle | H -100° to 100°, V -20° to 45° |
| Housing | 304 stainless steel |
| Network Interface | 1 x RJ45 10M/100M |
| Protocol | ISAPI, SDK, GB28181 |
| Storage | SD card up to 256GB |
| Power | DC 12V ±25%, PoE 802.3af Class 3 |
| Protection | IP66 |
| Size / Weight | 197.1 x 105 x 225.4mm, 910g |
| Warranty | 15 Months |
CC961-AHD20 Stainless Steel Network Camera with Varifocal Lens
CC961-AHD20 is a stainless steel network camera with a 2.7-12mm varifocal lens, IR to 50m and IP66 protection.
Technical Specifications
Your quotation confirms the exact configuration.
| Model | CC961-AHD20 |
|---|---|
| Definition | 2560x1440 maximum |
| Image Sensor | 1/3" progressive scan CMOS |
| Lens | 2.7-12mm varifocal |
| Field of View | H 96.7°-29.7°, V 51.7°-16.7° |
| Minimum Illumination | 0.005 Lux (color) |
| Night Vision | 850nm IR, up to 50m |
| Adjustment Angle | H -100° to 100°, V -20° to 45° |
| Housing | 304 stainless steel |
| Network Interface | 1 x RJ45 10M/100M |
| Protocol | ISAPI, SDK, GB28181 |
| Storage | SD card up to 256GB |
| Power | DC 12V ±25%, PoE 802.3af Class 3 |
| Protection | IP66 |
| Size / Weight | 197.1 x 105 x 225.4mm, 910g |
| Warranty | 15 Months |
IP Camera Models
Compare CC961-AHD20 with other AlwayCare models in this category.
| Model | Resolution | Voltage | Size |
|---|---|---|---|
| CC806-IPC400 | — | — | — |
| CC806-IPC200 | 2.0MP | — | — |
| CC670-IPC | 2.0MP / 4.0MP | — | — |
| CC961-AHD20 (this page) | 2560x1440 maximum | — | — |
Frequently Asked Questions
Can't find your answer? Our engineers reply within one business day — email safety@alwaycare.com or send an inquiry.
How far can the network cable run?
Beyond 20km a fiber transceiver is needed. Ask us for the right model for your camera count.
What power does it accept?
DC 12V ±25% with reverse-connection protection, or PoE 802.3af Class 3.
Which warranty applies?
CC961-AHD20 ships with a 15-month manufacturer warranty. Confirm final terms and regional service coverage in your quotation.
