Mini form factor
The structured housing size is 23×23×23mm.

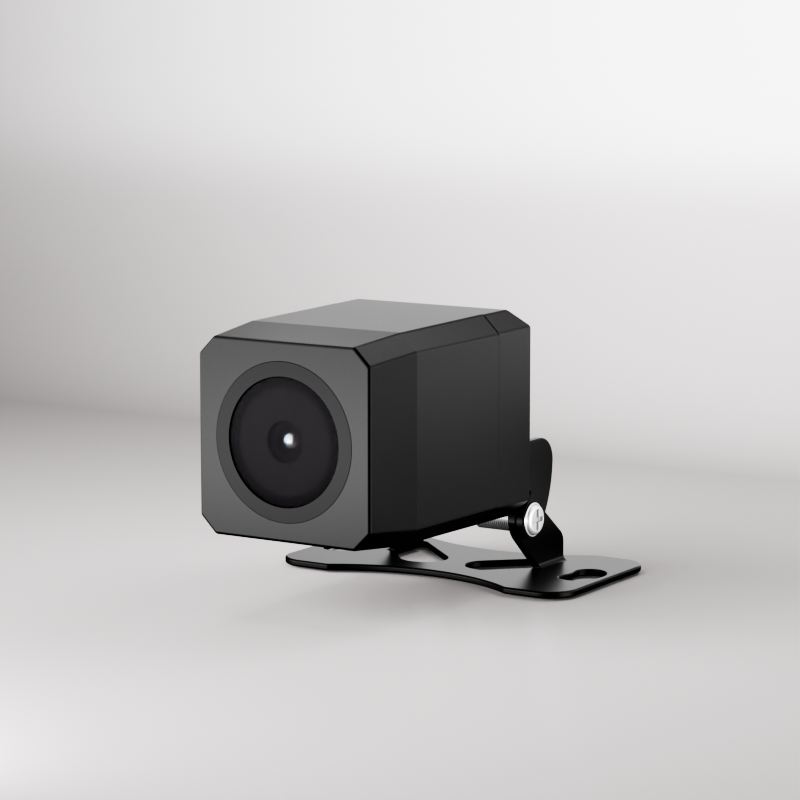

CC980-AHD20 Mini Reversing Camera for Fleets
Detail Information
CC980-AHD20 · Vehicle camera
What is CC980-AHD20?
CC980-AHD20 is a compact 12V, 1080p metal vehicle camera intended for reversing and other space-constrained views. Its structured size is 23×23×23mm, while the existing body lists a 120° view and IP68 protection that should be confirmed for the supplied version.
Buyer overview
Four points to evaluate first
1080p definition
The structured record lists 1920×1080.
Metal housing
Material is listed as metal.
Reversing application
The existing record positions it as a mini reversing camera with a listed 120° view.
System fit
Match lens, signal and receiving device
Confirm view, signal, connector, monitor or recorder, power, storage and cable length before installation.
Viewing decision
Define target zone, distance, lens view, night conditions, mounting height and obstruction.
Integration decision
Confirm output channels, video format, connector pinout, power range and compatible equipment.
Current structured record

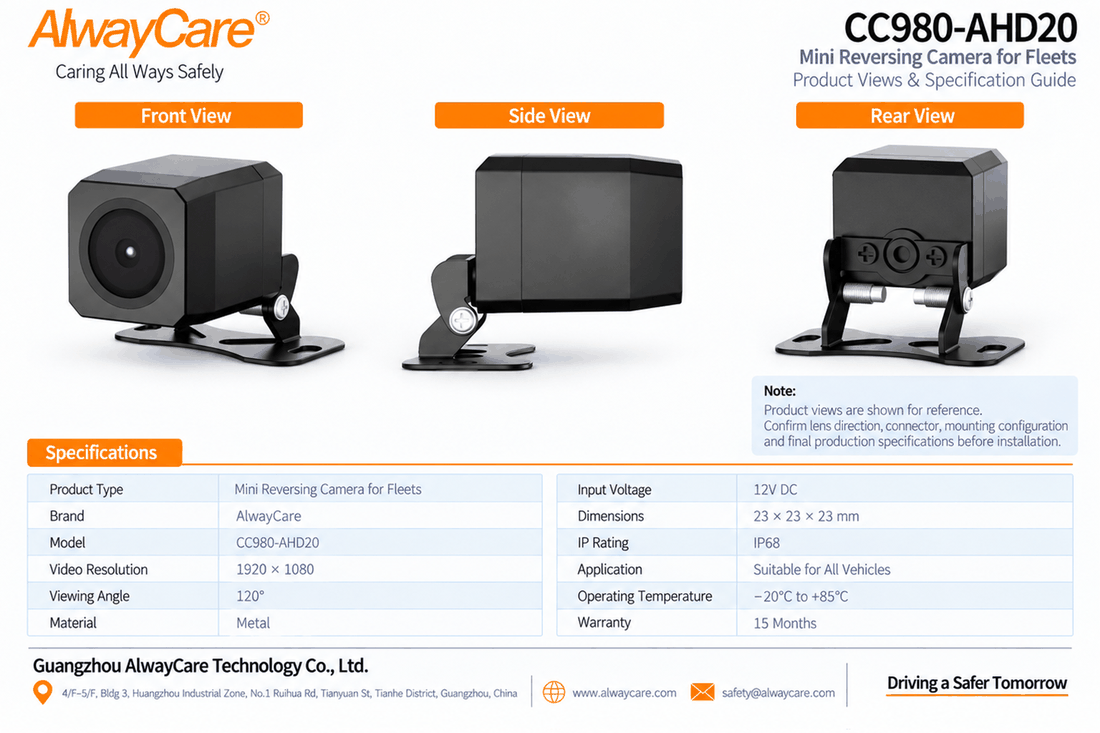

Technical specifications
| Voltage | 12V |
|---|---|
| Definition | 1920x1080 |
| Size | 23*23*23mm |
| Material | Metal |
| Application | Suitable for All Vehicles |

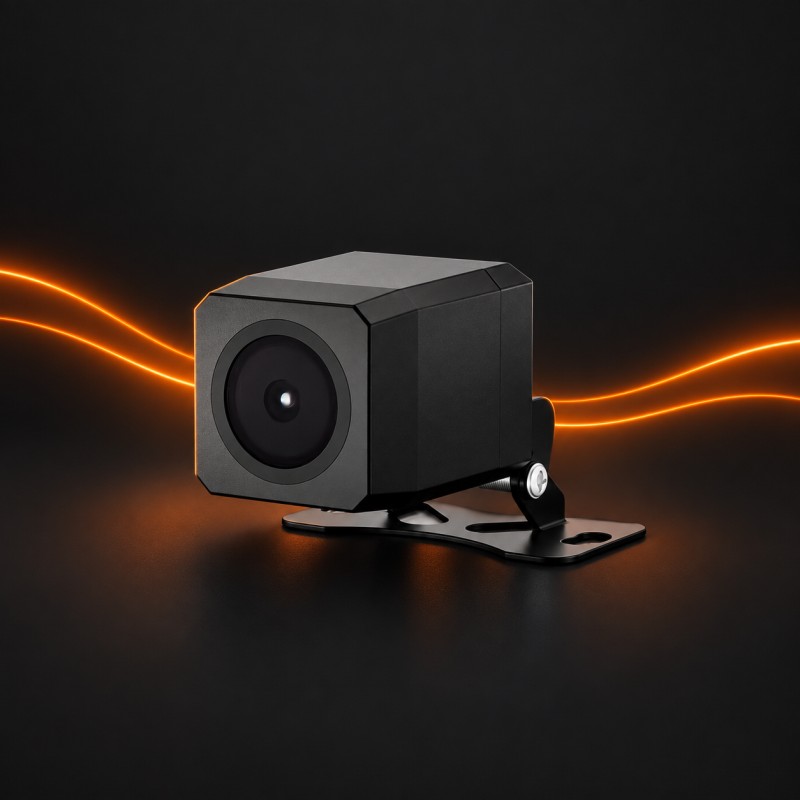

| Operating Temperature | -20℃ ~ 85℃ |

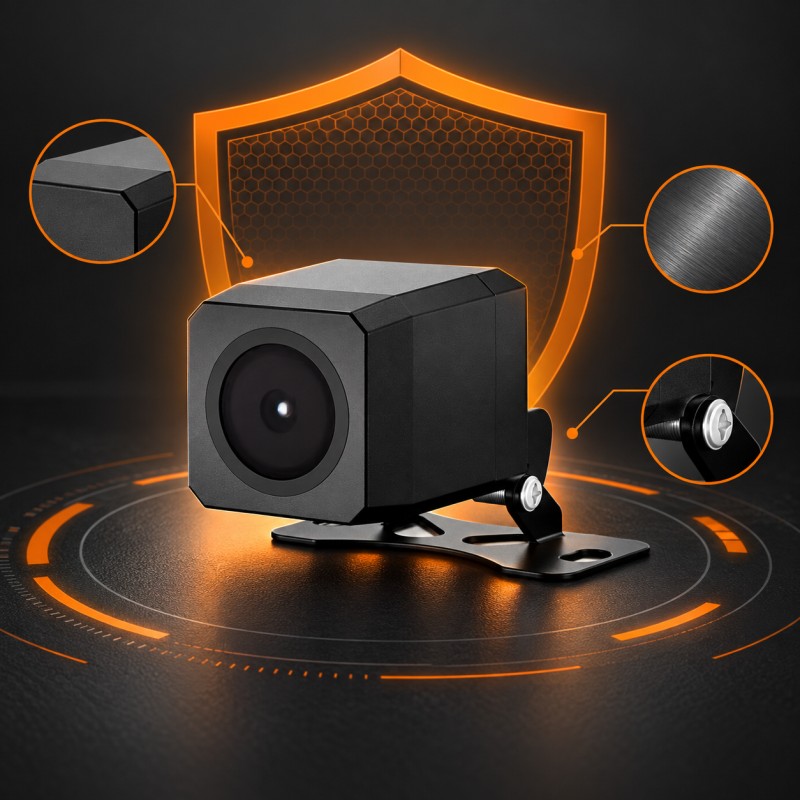

| Warranty | 15 Months |
Use the structured record as the current baseline. Conflicts with older body copy are disclosed below.
Preserved from the original page

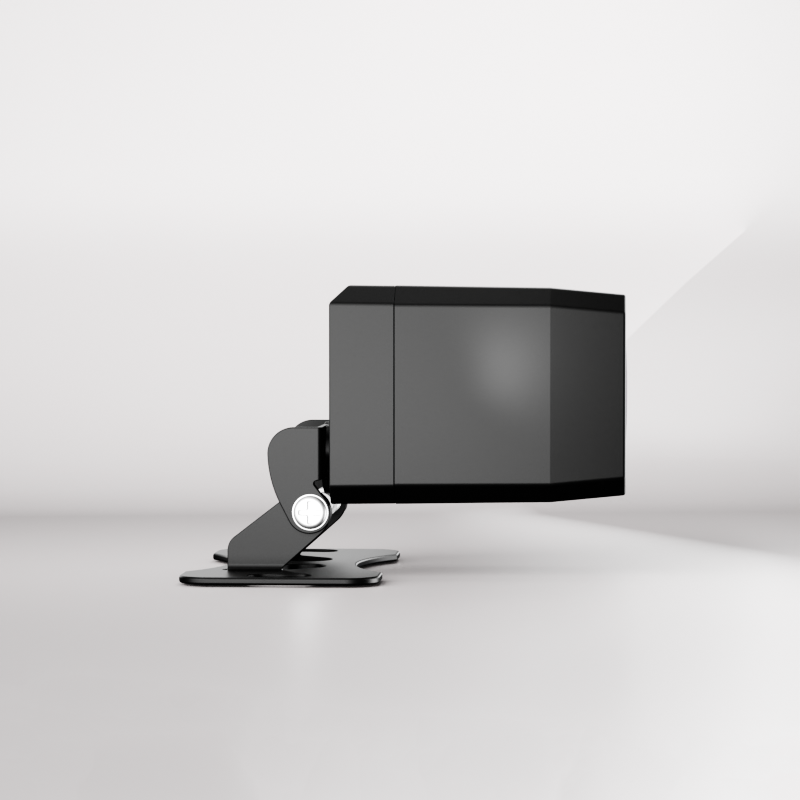

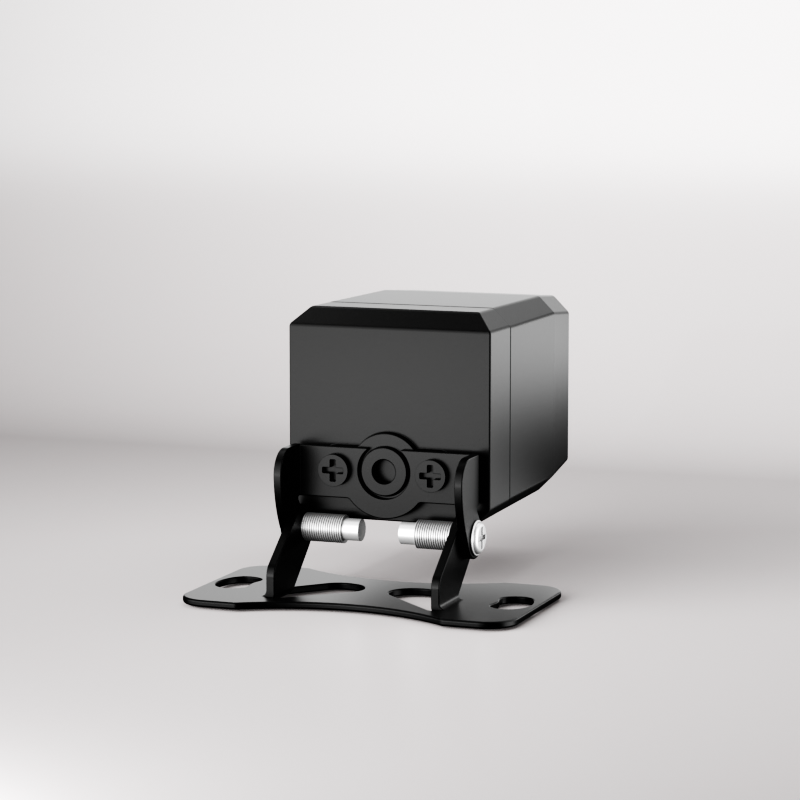

Existing Product and Deployment Views
Installation planning
Validate the real camera view
Test lens coverage, target distance, glare, night illumination, vibration, cable routing and receiving-device image.
Example applications
Where CC980-AHD20 may fit

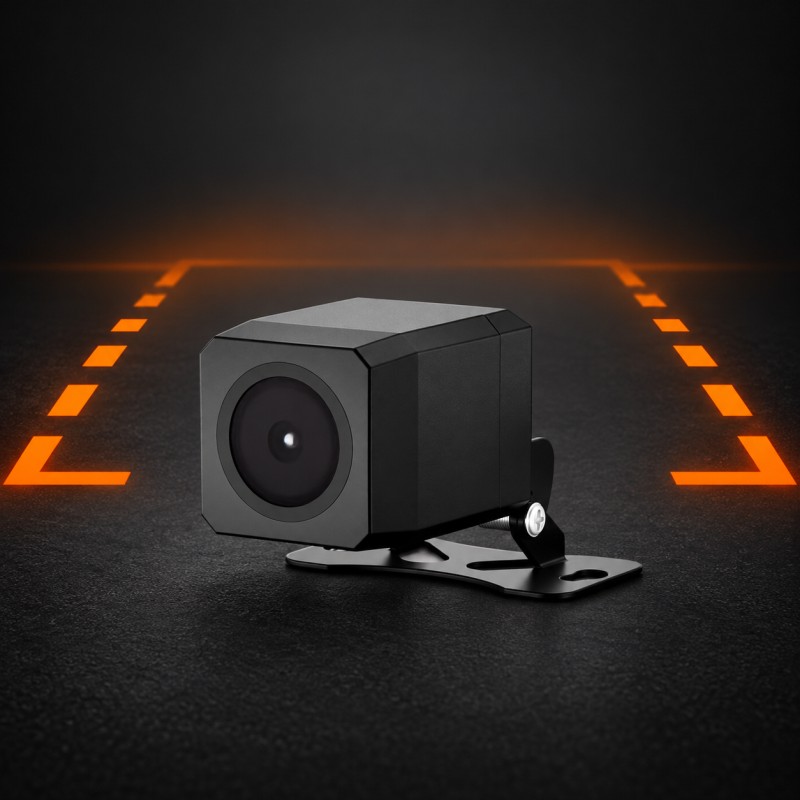

Rear reversing zone
Plan the view around bumper position, vehicle width and target distance.
Compact exterior mounting
Use where installation space is limited, subject to sealing and connector checks.
Commercial vehicle retrofits
Confirm 12V power, receiving-device format, cable length and final field of view.
Specification and performance boundary
The 120° view and IP68 rating appear in the existing name/body but not in structured attributes. Do not treat the camera as a complete reversing-safety system or assume compatibility from the model name alone. Confirm ingress documentation, actual field of view, signal, connector and installation method.
Buyer questions
CC980-AHD20 FAQ
How small is CC980-AHD20?
The structured record lists 23×23×23mm.
What resolution is listed?
The structured definition is 1920×1080.
Is the viewing angle confirmed?
The existing body lists 120°, but the value is not in structured attributes. Confirm the supplied lens.
What power input is listed?
The current structured record lists 12V.
Is it compatible with every reversing monitor?
No. Confirm signal format, connector, pinout, power and monitor or recorder support.
Does the camera replace safe reversing procedures?
No. It supports visibility only; drivers and operators remain responsible for safe operation and site procedures.
Confirm the complete camera system
Share your vehicle, monitored zone and receiving equipment
AlwayCare can review view, placement, signal, power, recorder or monitor compatibility and cabling.
