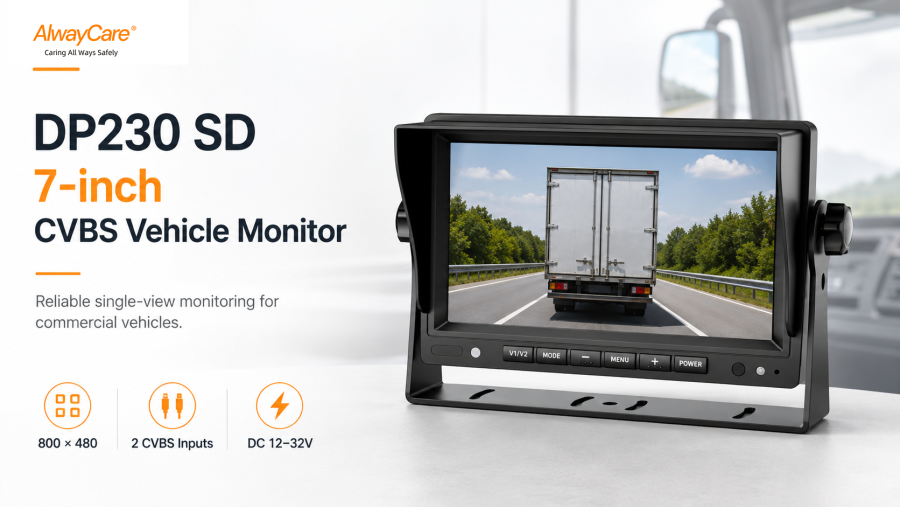

DP230-SD 7" Standard Definition Commercial Vehicle Monitor
| Share | |
|---|---|
| Categories | Vehicle Monitor |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Model | DP230-SD |
| Display size | 7.0 inch |
| Display ratio | 16:9 Widescreen |
| Resolution | 800x480 |
| Brightness | 500 cd/m2 Anti-Glare |
| Operating Voltage | DC 9V - 36V Wide Voltage |
| Video Inputs | 1/2 Channels (Reversing Priority) |
| Video system | PAL / NTSC Auto-Adaptation |
| Enclosure Material | Flame-Retardant PC + ABS |
| Operating Temperature | -20℃ ~ +70℃ |
DP230-SD 7" Standard Definition Commercial Vehicle Monitor
7-inch standard definition commercial monitor with 1024×600 resolution and automatic reversing priority.
Technical Specifications
Values follow the factory engineering datasheet — your quotation confirms the exact configuration.
| Model | DP230-SD (DP230 Series) |
|---|---|
| Display Screen | 7.0 Inch Digital TFT-LCD Panel |
| Aspect Ratio & Resolution | 16:9 Widescreen | 1024 × 600 HD |
| Backlight Brightness | 500 cd/m² (Sunlight Readable Anti-Glare) |
| Video Input Channels | 2-Channel Video Inputs (AV1 / AV2 with Reversing Priority) |
| Video Signal Compatibility | Supports CVBS and AHD video inputs (PAL / NTSC Auto-Detection) |
| Reverse Auto-Switching | Reverse trigger wire automatically switches to rear camera with parking guide lines |
| Operating Voltage | DC 9V – 36V Wide Input (Automotive Grade; 12V/24V Fleet Compatible) |
| Electrical Safeguards | Built-in over-voltage, reverse polarity, and transient spike protection |
| Power Consumption | ≤ 6.0 Watts (Low Heat Build) |
| Enclosure Material | Flame-Retardant PC + ABS Housing with Fine Textured Finish |
| Operating Temperature | -20°C ~ +65°C (-4°F ~ +149°F) |
| Storage Temperature | -25°C ~ +70°C (-13°F ~ +158°F) |
| Connectors | Threaded 4-Pin Aviation Connectors (Video In + Camera Power Out) |
| Mounting Hardware | Heavy-Duty Metal U-Bracket with Dual Rotary Side Lock Knobs |
| Quality Warranty | 18 Months Manufacturer Warranty |

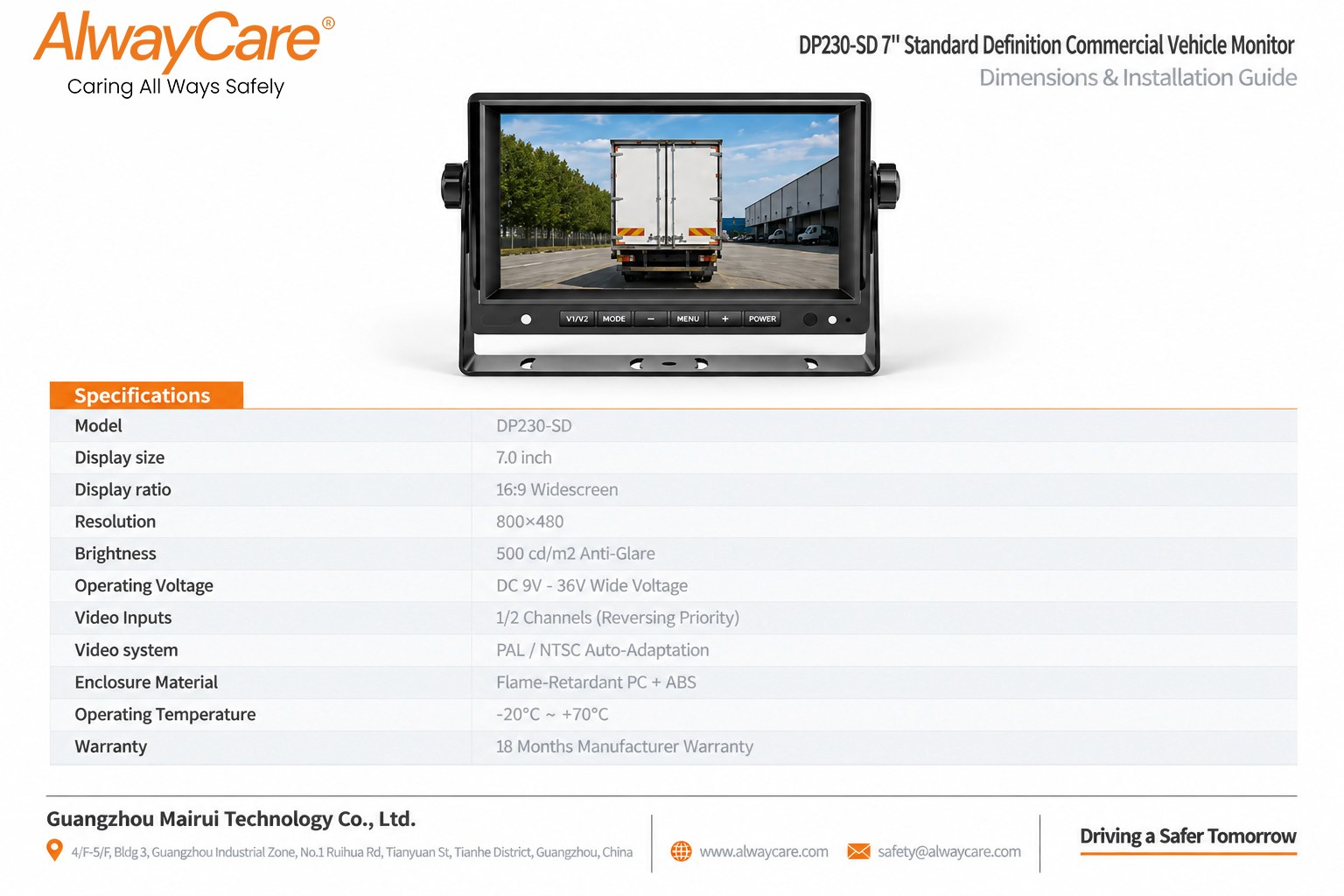

Technical Diagram & Specifications Overview
Factory engineering drawing, wiring pinout, and mechanical form factor for DP230-SD.
Wired Fleet Monitor Series Matrix
| DP230-D / SD (This Model) | 7" High / Standard Definition Commercial Monitor — Cost-effective single-view in-cab display supporting AHD/CVBS inputs with reverse auto-switching. Designed for standard delivery vans and light trucks. | 7" Single-View | PC+ABS Housing | DC 9-36V |
|---|---|---|
| DP230-B | 7" 2-Split Monitor with SD Recording — Dual-channel AHD/CVBS input, auto display on reverse, onboard SD card recording up to 256GB. Ideal for box trucks and urban buses. | 7" Dual-Split + Recording | DC 9-36V |
| DP230-5 / A | 7" 4-Split Quad-View Monitor with Recording — 4-channel AHD video inputs, simultaneous 4-channel cyclic recording up to 256GB, light sensor auto-dimming. Designed for 360° blind spot camera integration. | 7" Quad-Split + 4-Ch Rec | DC 12-36V |
| DP230-7 | 7" High-Voltage Custom Monitor (15V–90V) — Wide 15V–90V input range, 4-channel recording, date/time memory retention, 90V turn/reverse trigger inputs. Specially engineered for electric forklifts and high-voltage industrial equipment. | 7" Quad-Split | 15V-90V Input | Forklifts |
| DP210-B | 7" IP69K Waterproof Heavy-Duty Monitor — All-metal enclosure, 5.9G vibration resistance, 2-channel video + VGA input, reverse trigger, 40V surge protection. Engineered for mining haulers and open-cab equipment. | 7" Dual-Split | IP69K All-Metal | DC 12-36V |
| DP210-C | 7" IP68 Waterproof Dual-Channel Monitor — Sealed metal frame, 2-channel aviation inputs, reverse trigger line. Suitable for municipal sweepers and outdoor utility vehicles. | 7" Dual-Split | IP68 Metal | DC 12-36V |
| DP270 / 270-A | 10.1" Single-View High-Clarity IPS Monitor — 1280×800 HD resolution, 160° full viewing angle, VGA port for seamless pairing with MDVR systems and mobile DVR CMS terminals. | 10.1" Single IPS + VGA | DC 12-36V |
| DP285-A | 10.1" Large-Format Quad-Split Fleet Monitor — 4-channel AHD input, large display format, reverse auto-trigger, onboard SD card storage up to 256GB. Engineered for heavy semi-trucks, articulated buses, and multi-camera fleet surveillance. | 10.1" Quad-Split + SD Rec | DC 9-36V |
| DP1016 | 10.1" 8-Split Flagship Fleet Monitor — 8-channel simultaneous recording merged into unified files, removable backup battery, clock memory, -30°C to +80°C wide temperature range. Engineered for multi-trailer heavy transports. | 10.1" 8-Split + 8-Ch Rec + Battery | DC 9-36V |
What DP230-SD Delivers
Reliable in-cab reversing and commercial fleet visual assistance verified against factory engineering specifications.

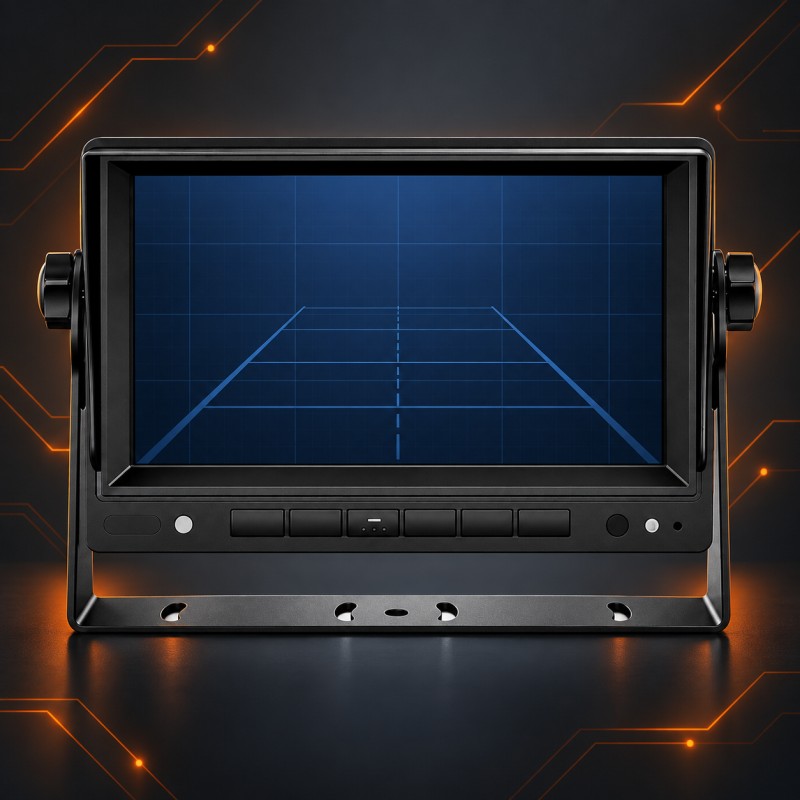

7" High-Clarity Reversing Display & Dynamic Guidelines
1024×600 Resolution & Reverse Auto-Trigger
- 1024×600 Screen: 7-inch 16:9 widescreen delivers clear real-time feed for in-cab maneuvering.
- Auto Reverse Trigger: Automatically switches to rear camera view with parking guidelines in reverse.
- Tactile Front Keys: Physical buttons provide instant brightness and channel adjustments.

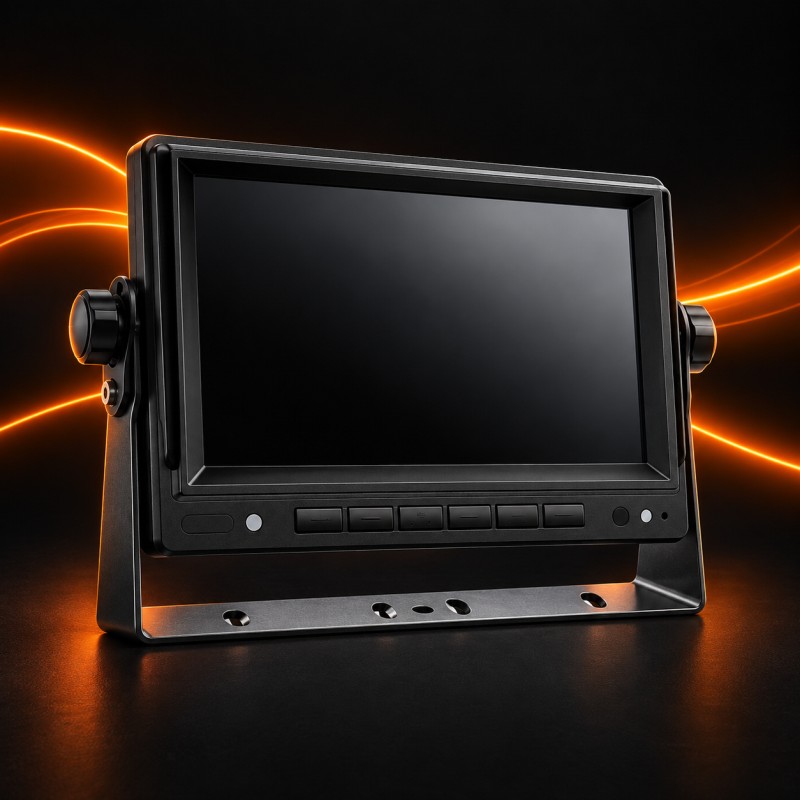

Commercial Anti-Glare Screen & Flame-Retardant PC+ABS
500 cd/m² Anti-Glare & Wide Temperature Duty
- 500 cd/m² Sunlight Readable: High-brightness anti-glare screen with sunshade prevents cabin reflections.
- Flame-Retardant Housing: Robust PC+ABS casing operates stably across -20°C to +65°C fleet duty.
- Compact Dash Fit: Low-profile footprint mounts cleanly without obstructing forward driver vision.

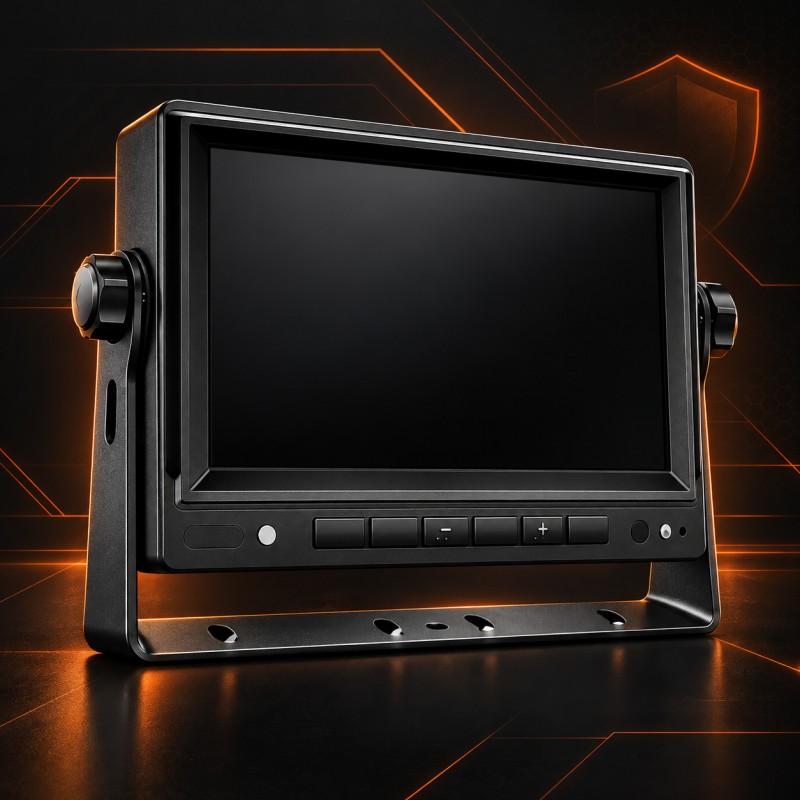

Heavy-Duty Metal U-Bracket & Wide-Voltage Fleet Circuit
DC 9V-36V Wide Input & Locking Aviation Ports
- Reinforced Metal U-Bracket: Heavy-gauge bracket with knurled lock knobs resists roadway vibrations.
- 9V-36V Protection: Wide operating voltage with built-in surge, spike, and reverse-polarity defense.
- Locking Aviation Ports: Threaded 4-pin connectors eliminate loose cables and signal loss.
Built for Long-Term Fleet Programs
Factory Direct Supply
Devices ship from our own production line, with engineering support from the team that builds them.
Certified & Lab Tested
CE, UKCA, RoHS and ISO 9001 — every platform is backed by third-party laboratory test reports.
15-Month Warranty
Coverage that goes beyond the standard 12-month term, honored through your dedicated account manager.
OEM & Firmware Support
Logo, packaging, firmware behavior and interface customization for your market and fleet platform.
From Inquiry to Delivery in Four Steps
A clear path from first contact to units running in your fleet — no obligation at the evaluation stage.
Share Your Requirements
Send fleet size, vehicle models and target functions through the inquiry form or to your account manager.
Version & Quotation
Our engineers map your needs to the right DP230-SD version and issue a formal quotation within one business day.
Sample Evaluation
Sample units are available for road testing before you commit to a bulk order — evaluate first, decide later.
Production & Delivery
Bulk orders ship with factory QC reports, export documents and the 15-month warranty from dispatch.
Documents & Downloads
Everything your engineering and procurement teams need for evaluation.
Product Datasheet
Full specifications and ordering information — request the current DP230-SD datasheet.
Request DatasheetCertificates & Test Reports
Certification and third-party laboratory reports for the selected version and target market.
Request CertificatesUser Manual & Installation Guide
Wiring, mounting and configuration instructions — provided with sample orders.
Request ManualCMS Software & Demo
Platform access for evaluation — connect supported configurations to a live demo fleet.
Request Demo AccessComplete the In-Vehicle Safety Stack
Product families commonly deployed alongside DP230-SD in the same fleet stack.
DP400 AI Mirror Monitor for Extreme Temperatures
Model DP400 — Vehicle Monitor for commercial fleets.
DP230 7-Inch Automatic Vehicle Monitor for Buses
Model DP230 — Vehicle Monitor for commercial fleets.
Frequently Asked Questions
Can't find your answer? Our engineers reply within one business day — email safety@alwaycare.com or send an inquiry.
Which connectivity options are available?
DP230-SD supports vehicle-grade connectivity. Map the interfaces to your onboard systems before ordering.
Which warranty applies?
DP230-SD ships with a 18 Months Manufacturer Warranty warranty. Confirm the final terms and regional service coverage in your quotation.
What vehicles does it fit?
Suitable for commercial vehicles — mounting positions and camera coverage must be designed for the specific vehicle layout.
Are all listed features standard on every unit?
No. Detection coverage, connectivity and camera options are configuration-dependent. Confirm the exact scope in the quotation — our engineers will recommend the right version for your vehicles.
