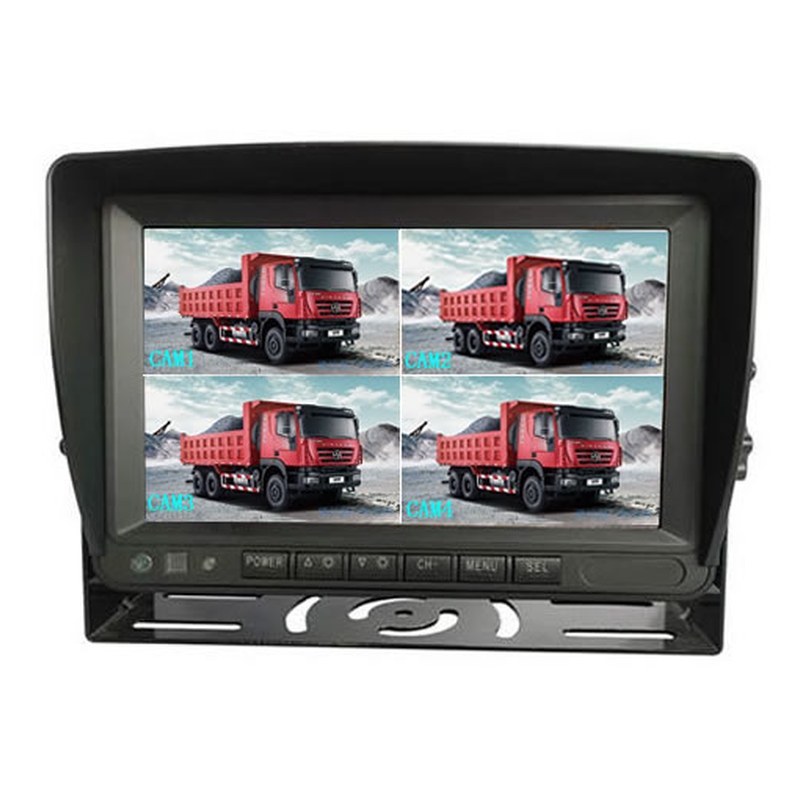

DP230-7 7" Quad-Split Vehicle Monitor, 15-90V Input
| Share | |
|---|---|
| Categories | Vehicle Monitor |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Product Specifications | DP230-7 |
| Display size | 7.0 inch |
| Display ratio | 16:9 |
| Resolution | 1024x600 IPS full view |
| Brightness | 500 cd/m2 LED |
| Video Inputs | 4 Channels (Quad-Split) |
| Operating Voltage | DC 15V - 90V (custom wide voltage) |
| Enclosure Material | PC + ABS, textured |
| Operating Temperature | -20℃ ~ 65℃ |
| Power | <5W, <800mA |
| Recording | TF card up to 128GB, 4 channels at the same time |
| Triggers | Left turn, right turn and reversing signals up to 90V |
| Clock | Date and time kept after the main power is off |
| Connector | 4-pin aviation |
| Screen | Dual IC |
| Warranty | 15 Months |
DP230-7 7" Quad-Split Vehicle Monitor, 15-90V Input
DP230-7 is a 7-inch quad-split vehicle monitor with a 15-90V input range, 4 video inputs and TF card recording to 128GB.
Technical Specifications
Your quotation confirms the exact configuration.
| Model | DP230-7 |
|---|---|
| Display size | 7.0 inch |
| Display ratio | 16:9 |
| Resolution | 1024x600 IPS full view |
| Brightness | 500 cd/m2 LED |
| Video Inputs | 4 Channels (Quad-Split) |
| Operating Voltage | DC 15V - 90V (custom wide voltage) |
| Enclosure Material | PC + ABS, textured |
| Operating Temperature | -20℃ ~ 65℃ |
| Power | <5W, <800mA |
| Recording | TF card up to 128GB, 4 channels at the same time |
| Triggers | Left turn, right turn and reversing signals up to 90V |
| Clock | Date and time kept after the main power is off |
| Connector | 4-pin aviation |
| Screen | Dual IC |
| Warranty | 15 Months |
Vehicle Monitor Models
Compare DP230-7 with other AlwayCare models in this category.
| Model | Display | Resolution | Voltage |
|---|---|---|---|
| DP230-A | 7.0 inch | 1024x600 HD | DC 9V - 36V Wide Voltage |
| DP230-SD | 7.0 inch | 800x480 | DC 9V - 36V Wide Voltage |
| DP312 | 7.0 inch | 1024x600 HD | DC 9V - 36V Wide Voltage |
| DP270-A | 10.1 inch | 1024x600 HD | DC 9V - 36V Wide Voltage |
| DP285-A | 10.1 inch | 1024x600 HD | DC 9V - 36V Wide Voltage |
| DP1016 | 10.1 inch | 1280x800 IPS | DC 9V - 36V Wide Voltage |
| DP210-B | 7.0 inch | 1024x600 HD | DC 9V - 36V Wide Voltage |
| DP230-B | 7.0 inch | 1024x600 | DC 9V - 36V Wide Voltage |
| DP230-D | 7.0 inch | 1024x600 | DC 12V - 24V Wide Voltage |
| DP230-7 (this page) | 7.0 inch | 1024x600 IPS full view | DC 15V - 90V (custom wide voltage) |
| DP270 | 10.1 inch IPS full view | 1280x800 | DC 12V - 36V Wide Voltage |
Frequently Asked Questions
Can't find your answer? Our engineers reply within one business day — email safety@alwaycare.com or send an inquiry.
What input voltage does it accept?
DC 15V-90V. The turn-signal and reversing triggers also accept up to 90V.
Does it record?
Yes. It records 4 channels at the same time to a TF card up to 128GB.
Which warranty applies?
DP230-7 ships with a 15-month manufacturer warranty. Confirm final terms and regional service coverage in your quotation.
