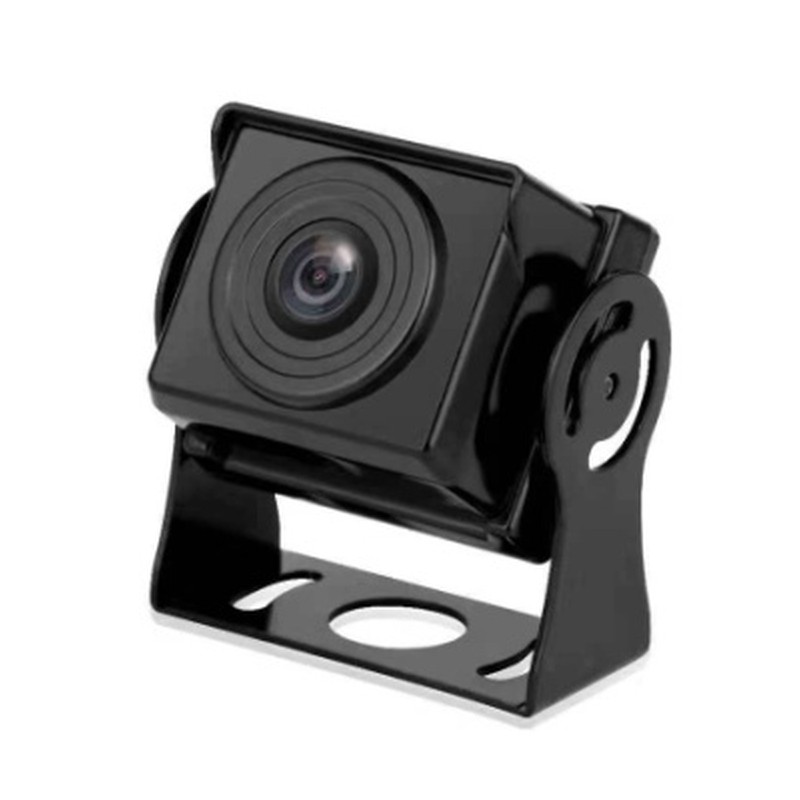

CC1003B-BSD 1080P Starlight AI Blind Spot Camera

CC1003B-BSD 1080P Starlight AI Blind Spot Camera
Share
CategoriesBSD (Blind Spot Detection System)
BrandAlwayCare Commercial Fleet Safety Manufacturer
Product SpecificationsCC1003B-BSD
Definition1080P
Image Sensor1/2.9" 2.9MP CMOS
Lens2.8mm
Horizontal Angle100°
Night VisionStarlight night viewing
VoltageDC 12V ±6%
Working Current50-110mA (IR off), 180-280mA (IR on)
Operating Temperature-20℃ ~ 70℃
Connector4-pin aviation connector
DetectionPedestrians (walking, cycling, e-bike) and vehicles
Alarm Output1 I/O, connects to a buzzer, monitor or speaker device
Optional AccessoriesRemote with receiver, buzzer, metal alarm, extension cables
Warranty15 Months
CC1003B-BSD is a 1080P AI blind spot camera for pedestrians and vehicles, with starlight night viewing and alarm I/O.
Detail Information
CC1003B-BSD image 1
BSD (Blind Spot Detection System)

CC1003B-BSD 1080P Starlight AI Blind Spot Camera

CC1003B-BSD

CC1003B-BSD is a 1080P AI blind spot camera for pedestrians and vehicles, with starlight night viewing and alarm I/O.

Recording1080P
PowerDC 12V ±6%
Operating temp.-20℃ ~ 70℃
Image Sensor1/2.9" 2.9MP CMOS
Lens2.8mm
Horizontal Angle100°
↓ Request datasheet
  • 15-month warranty
  • IATF 16949 certified factory
  • OEM / ODM customization
  • Suitable for all vehicles

Final configuration is confirmed in your quotation.

Overview

What CC1003B-BSD Delivers

CC1003B-BSD is a 1080P AI blind spot camera for pedestrians and vehicles, with starlight night viewing and alarm I/O.

CC1003B-BSD unit
Overview

CC1003B-BSD 1080P Starlight AI Blind Spot Camera

CC1003B-BSD is a 1080P AI blind spot camera for pedestrians and vehicles, with starlight night viewing and alarm I/O.

  • Definition: 1080P
  • Image Sensor: 1/2.9" 2.9MP CMOS
  • Lens: 2.8mm
  • Horizontal Angle: 100°
Models

BSD (Blind Spot Detection System) Models

Compare CC1003B-BSD with other models in this category. Each model has its own page.

ModelProductKey specVoltage
CC1003B-BSDthis pageCC1003B-BSD 1080P Starlight AI Blind Spot Camera1080PDC 12V ±6%
CC1002-BSDCC1002-BSD 1080P AI Blind Spot Detection Camera with Pedestrian Warning1080P Full HDDC 12V ± 6%
CC1003A-BSDCC1003A-BSD 1080P Infrared AI Blind Spot Camera1080PDC 12V ±6%
MR910-BSDMR910-BSD 4-Channel MDVR with Blind Spot Detection1920x1080—
Specifications

Technical Specifications

Values follow the product page. Your quotation confirms the exact configuration.

Video and display

Definition
1080P
Image Sensor
1/2.9" 2.9MP CMOS
Lens
2.8mm
Horizontal Angle
100°
Night Vision
Starlight night viewing

Connectivity and interfaces

Connector
4-pin aviation connector
Detection
Pedestrians (walking, cycling, e-bike) and vehicles
Alarm Output
1 I/O, connects to a buzzer, monitor or speaker device
Optional Accessories
Remote with receiver, buzzer, metal alarm, extension cables

Power and hardware

Voltage
DC 12V ±6%
Operating Temperature
-20℃ ~ 70℃
Warranty
15 Months

Other specifications

Working Current
50-110mA (IR off), 180-280mA (IR on)
Need the full engineering datasheet?Request the datasheet →
Downloads

Documents

Files that exist for this model can be downloaded. The others are available from our engineers on request.

Product datasheetOn request
Request
Certificates and test reportsOn request
Request
User manual and installation guideOn request · provided with sample orders
Request
FAQ

Frequently Asked Questions

Need technical clarification? Email safety@alwaycare.com or send an inquiry.

How is it different from CC1003A-BSD?

CC1003B-BSD uses starlight night viewing and CC1003A-BSD uses infrared night vision.

Is the system alert only?

Yes. It alerts the driver and does not control the vehicle.

Which warranty applies?

CC1003B-BSD ships with a 15-month manufacturer warranty. Confirm final terms and regional service coverage in your quotation.
