Home / All / APC (AI Passenger Counter) / PC35-4 AI Passenger Counter with 8CH MDVR, DSM, ADAS and 4-Channel BSD

PC35-4 AI Passenger Counter with 8CH MDVR, DSM, ADAS and 4-Channel BSD

PC35-4 AI Passenger Counter with 8CH MDVR, DSM, ADAS and 4-Channel BSD
Share
CategoriesAPC (AI Passenger Counter)
BrandAlwayCare Commercial Fleet Safety Manufacturer
Product SpecificationsPC35-4
Passenger Counting1-channel, PFM-135R-D 720P people-counting camera included
Key FunctionsPassenger counting; DSM; ADAS; BSD; intercom; SOS
Additional FunctionsMDVR in one unit (DSM, ADAS and BSD cameras optional)
Video Input8CH 1080P/720P
Video OutputAV and VGA
Video EncodingH.265 / H.264
Storage1 HDD up to 2TB + 1 SD card up to 512GB
PositioningGPS / BD / GLONASS
Network4G, GPS and WiFi
I/O4 inputs (full-screen on reverse or turn), 2 outputs (fuel or power cut)
Serial Ports2 x RS232, 1 x RS485 on request
SensorsRFID reader, fuel, temperature/humidity, load, tire pressure, lift, alcohol
Included8-channel MDVR, people-counting camera, 4G/GPS/WiFi, SOS button
Warranty15 Months
PC35-4 combines passenger counting with DSM, ADAS, 4-channel BSD, an 8-channel hard disk MDVR, 4G and GPS in one unit.
Detail Information
PC35-4 image 1
APC (AI Passenger Counter)

PC35-4 AI Passenger Counter with 8CH MDVR, DSM, ADAS and 4-Channel BSD

PC35-4

PC35-4 combines passenger counting with DSM, ADAS, 4-channel BSD, an 8-channel hard disk MDVR, 4G and GPS in one unit.

PositioningGPS / BD / GLONASS
Storage1 HDD up to 2TB + 1 SD card up to 512GB
Key FunctionsPassenger counting; DSM; ADAS; BSD; intercom; SOS
Video Input8CH 1080P/720P
Video OutputAV and VGA
Video EncodingH.265 / H.264
↓ Request datasheet
  • 15-month warranty
  • IATF 16949 certified factory
  • OEM / ODM customization
  • Suitable for all vehicles

Final configuration is confirmed in your quotation.

Overview

What PC35-4 Delivers

PC35-4 combines passenger counting with DSM, ADAS, 4-channel BSD, an 8-channel hard disk MDVR, 4G and GPS in one unit.

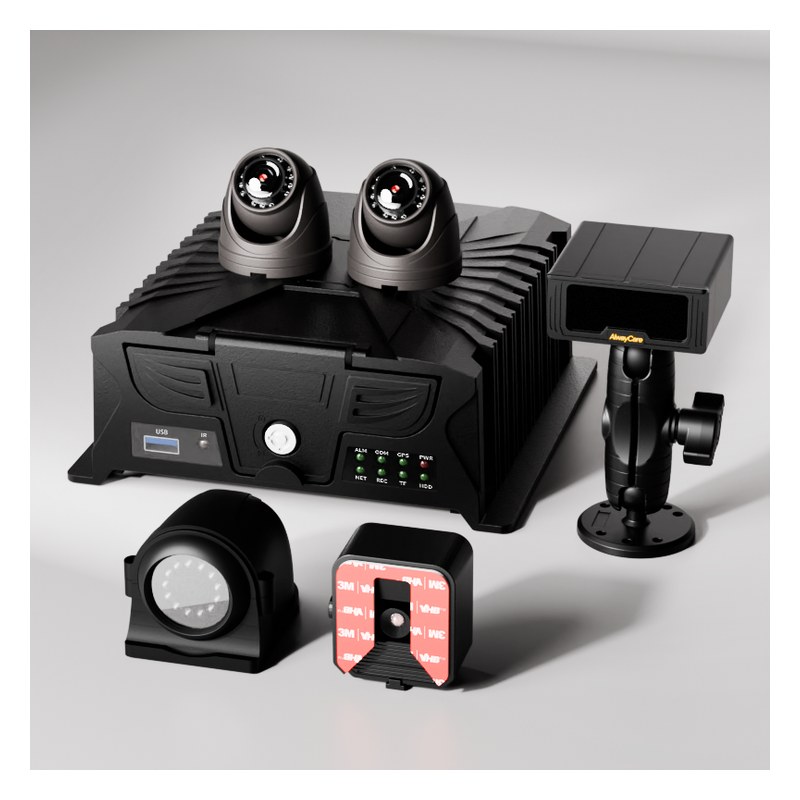

PC35-4 unit
Overview

PC35-4 AI Passenger Counter with 8CH MDVR, DSM, ADAS and 4-Channel BSD

PC35-4 combines passenger counting with DSM, ADAS, 4-channel BSD, an 8-channel hard disk MDVR, 4G and GPS in one unit.

  • Passenger Counting: 1-channel, PFM-135R-D 720P people-counting camera included
  • Key Functions: Passenger counting; DSM; ADAS; BSD; intercom; SOS
  • Additional Functions: MDVR in one unit (DSM, ADAS and BSD cameras optional)
  • Video Input: 8CH 1080P/720P
Models

APC (AI Passenger Counter) Models

Compare PC35-4 with other models in this category. Each model has its own page.

ModelProductKey specVoltage
PC35-4this pagePC35-4 AI Passenger Counter with 8CH MDVR, DSM, ADAS and 4-Channel BSDGPS / BD / GLONASS—
PC15PC15 Single-Channel AI Passenger Counter for Buses4G—
PC16PC16 2-Channel Standalone AI Passenger Counter4G or Wifi—
PC22PC22 AI Passenger Counter with 4CH MDVR4G or Wifi—
PC23PC23 AI Passenger Counter for School Bus Fleets4G or Wifi8-36V
PC25PC25 AI Passenger Counter with 4CH MDVR & DMS4G or Wifi—
PC26PC26 AI Passenger Counter with 4CH MDVR & DMS4G or Wifi—
PC27PC27 AI Passenger Counter with 4CH MDVR & DMS4G or Wifi—
Specifications

Technical Specifications

Values follow the product page. Your quotation confirms the exact configuration.

Video and display

Video Input
8CH 1080P/720P
Video Output
AV and VGA
Video Encoding
H.265 / H.264
Sensors
RFID reader, fuel, temperature/humidity, load, tire pressure, lift, alcohol

Connectivity and interfaces

Positioning
GPS / BD / GLONASS

Power and hardware

Storage
1 HDD up to 2TB + 1 SD card up to 512GB
Warranty
15 Months

Other specifications

Passenger Counting
1-channel, PFM-135R-D 720P people-counting camera included
Key Functions
Passenger counting; DSM; ADAS; BSD; intercom; SOS
Additional Functions
MDVR in one unit (DSM, ADAS and BSD cameras optional)
Network
4G, GPS and WiFi
I/O
4 inputs (full-screen on reverse or turn), 2 outputs (fuel or power cut)
Serial Ports
2 x RS232, 1 x RS485 on request
Included
8-channel MDVR, people-counting camera, 4G/GPS/WiFi, SOS button
Need the full engineering datasheet?Request the datasheet →
Downloads

Documents

Files that exist for this model can be downloaded. The others are available from our engineers on request.

Product datasheetOn request
Request
Certificates and test reportsOn request
Request
User manual and installation guideOn request · provided with sample orders
Request
FAQ

Frequently Asked Questions

Need technical clarification? Email safety@alwaycare.com or send an inquiry.

What does PC35-4 include as standard?

An 8-channel hard disk MDVR, one PFM-135R-D 720P people-counting camera, 4G, GPS and WiFi, and an SOS button. DSM, ADAS and BSD cameras are optional.

How is it different from PC36 and PC37?

PC35-4 adds ADAS and four BSD channels to passenger counting and DSM. Check each model page for its channels and functions.

Which warranty applies?

PC35-4 ships with a 15-month manufacturer warranty. Confirm final terms and regional service coverage in your quotation.
