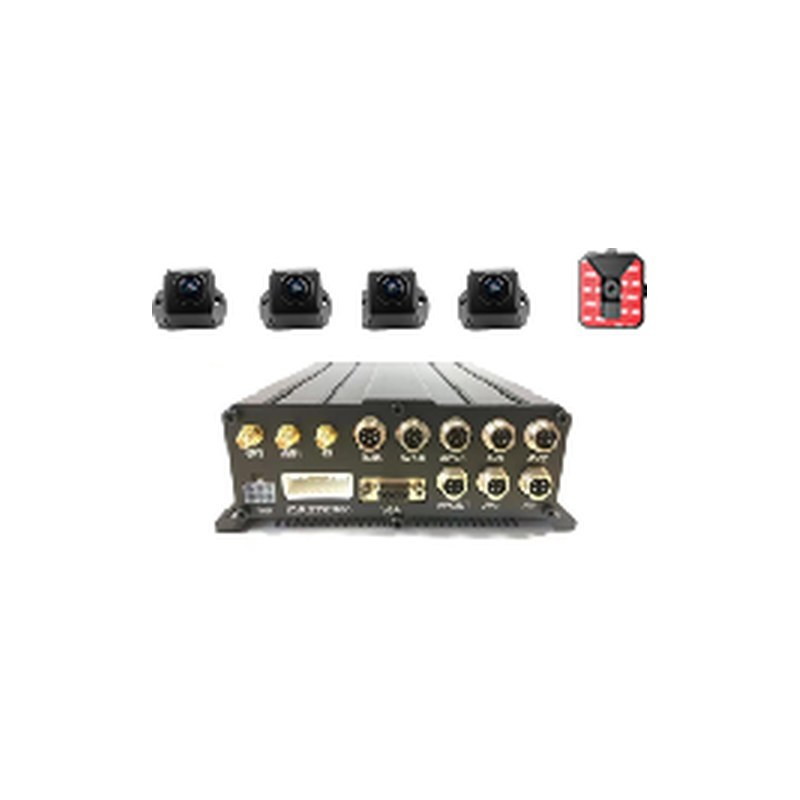

MR920-360EDAB 8-Channel AI MDVR with 360°, ADAS, DSM, EDSM and BSD
| Share | |
|---|---|
| Categories | AI MDVR |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Product Specifications | MR920-360EDAB |
| Channels | 8-channel AHD MDVR |
| Video Input | AHD 1080P, 960P, 720P, D1; H.265 / H.264 encoding |
| Storage | 1 HDD up to 4TB + 1 SD card up to 512GB |
| Video Output | 1 CVBS + 1 VGA |
| Interfaces | 8 IO in, 1 IO out, 1 USB, 1 MIC, 1 RS232, 1 RS485 |
| Networking | GPS and WiFi (4G module optional) |
| AI Functions | 360° around-view recording; the fisheye cameras also cover blind spot monitoring |
| AI Function 2 | ADAS: forward collision (FCW), lane departure (LDW), headway (HMW), pedestrian collision (PCW) |
| AI Function 3 | DSM: fatigue, yawning, distraction, no face, smoking, phone use, overspeed, IR blocking |
| AI Function 3 (2) | camera blocking, camera fault, no mask, driver ID |
| AI Function 4 | EDSM (top-view camera): no seat belt, hands off wheel, phone use |
| AI Function 5 | BSD: alerts for pedestrians and non-motor vehicles entering the blind spot |
| Included Cameras | 4 fisheye, 1 ADAS, 1 DSM and 1 top-view camera |
| Setup | Phone app for installation, recording and alarm settings |
| Warranty | 15 Months |
MR920-360EDAB 8-Channel AI MDVR with 360°, ADAS, DSM, EDSM and BSD
MR920-360EDAB is an 8-channel AI MDVR with 360° view, ADAS, DSM, EDSM and one BSD channel, GPS, WiFi and HDD plus SD.
Technical Specifications
Your quotation confirms the exact configuration.
| Model | MR920-360EDAB |
|---|---|
| Channels | 8-channel AHD MDVR |
| Video Input | AHD 1080P, 960P, 720P, D1; H.265 / H.264 encoding |
| Storage | 1 HDD up to 4TB + 1 SD card up to 512GB |
| Video Output | 1 CVBS + 1 VGA |
| Interfaces | 8 IO in, 1 IO out, 1 USB, 1 MIC, 1 RS232, 1 RS485 |
| Networking | GPS and WiFi (4G module optional) |
| AI Functions | 360° around-view recording; the fisheye cameras also cover blind spot monitoring |
| AI Function 2 | ADAS: forward collision (FCW), lane departure (LDW), headway (HMW), pedestrian collision (PCW) |
| AI Function 3 | DSM: fatigue, yawning, distraction, no face, smoking, phone use, overspeed, IR blocking |
| AI Function 3 (2) | camera blocking, camera fault, no mask, driver ID |
| AI Function 4 | EDSM (top-view camera): no seat belt, hands off wheel, phone use |
| AI Function 5 | BSD: alerts for pedestrians and non-motor vehicles entering the blind spot |
| Included Cameras | 4 fisheye, 1 ADAS, 1 DSM and 1 top-view camera |
| Setup | Phone app for installation, recording and alarm settings |
| Warranty | 15 Months |
AI MDVR Models
Compare MR920-360EDAB with other AlwayCare models in this category.
| Model | Channels | AI Functions | Storage |
|---|---|---|---|
| MR920-360B | — | — | — |
| MR920-360BA | — | — | — |
| MR920-DAB2 | — | — | — |
| MR920-DA | — | — | — |
| 9-CH AI MDVR MR920 | — | — | 512GB SD Card |
| 5-CH AI MDVR MR910 | — | — | 512GB SD Card |
| MR910-DAB1 | 4-channel AHD MDVR | DSM + ADAS + BSD | 2 SD cards, up to 512GB each |
| MR910-DAB2 | 4-channel AHD MDVR | DSM + ADAS + BSD | 2 SD cards, up to 512GB each |
| MR910-360B | 4-channel AHD MDVR | 360° + BSD | 2 SD cards, up to 512GB each |
| MR920-D | 8-channel AHD MDVR | DSM | 1 HDD up to 4TB + 1 SD card up to 512GB |
| MR920-A | 8-channel AHD MDVR | ADAS | 1 HDD up to 4TB + 1 SD card up to 512GB |
| MR920-AB3 | 8-channel AHD MDVR | ADAS + BSD | 1 HDD up to 4TB + 1 SD card up to 512GB |
| MR920-DB4 | 8-channel AHD MDVR | DSM + BSD | 1 HDD up to 4TB + 1 SD card up to 512GB |
| MR920-360D | 8-channel AHD MDVR | 360° + DSM | 1 HDD up to 4TB + 1 SD card up to 512GB |
| MR920-360DA | 8-channel AHD MDVR | 360° + DSM + ADAS | 1 HDD up to 4TB + 1 SD card up to 512GB |
| MR920-360BD | 8-channel AHD MDVR | 360° + BSD + DSM | 1 HDD up to 4TB + 1 SD card up to 512GB |
| MR920-360EDAB (this page) | 8-channel AHD MDVR | 360° + ADAS + DSM + EDSM + BSD | 1 HDD up to 4TB + 1 SD card up to 512GB |
| MR920-360DAB2 | 8-channel AHD MDVR | 360° + ADAS + DSM + BSD | 1 HDD up to 4TB + 1 SD card up to 512GB |
| MR920-BSD | 8-channel AHD MDVR | BSD | 1 HDD up to 4TB + 1 SD card up to 512GB |
Frequently Asked Questions
Can't find your answer? Our engineers reply within one business day — email safety@alwaycare.com or send an inquiry.
What AI functions does MR920-360EDAB include?
360° around-view recording, ADAS, DSM, EDSM (seat belt, hands off wheel, phone use) and one BSD channel.
Does MR920-360EDAB alert only?
Yes. The AI functions alert the driver and do not control the vehicle.
Does it include 4G?
4G is optional. The standard configuration lists GPS and WiFi.
Which warranty applies?
MR920-360EDAB ships with a 15-month manufacturer warranty. Confirm final terms and regional service coverage in your quotation.
