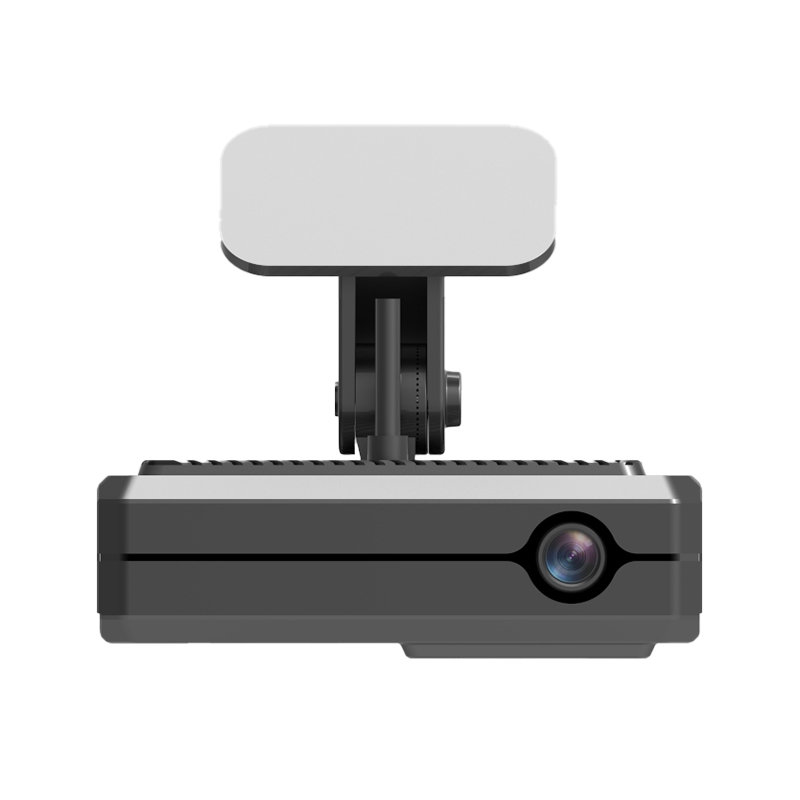

MR750 2K 5-Channel AI Dashcam with ADAS/DMS
| Share | |
|---|---|
| Categories | AI Dashcam |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Model | AI Dashcam-MR750 |
| Voltage | 12/24V |
| Video Record Resolution | 2K |
| Satellite Positioning | Support GPS |
| Optional | I/O or RS232 |
| Wireless Communication | 4G or Wifi |
| Video Encoding | H.264/H.265 |
| Application | Suitable for All Vehicles |
| Operating Temperature | -20℃ ~ 70℃ |
| Warranty | 15 Months |
MR750 2K 5-Channel AI Dashcam with ADAS/DMS
2K 5-channel commercial AI dashcam integrating ADAS, DMS, and dual BSD with 4G/GPS telematics.
Technical Specifications
Values follow the factory datasheet — your quotation confirms the exact configuration.
| Model | AI Dashcam-MR750 |
|---|---|
| Voltage | 12/24V |
| Video Record Resolution | 2K |
| Satellite Positioning | Support GPS |
| Optional | I/O or RS232 |
| Wireless Communication | 4G or Wifi |
| Video Encoding | H.264/H.265 |
| Application | Suitable for All Vehicles |
| Operating Temperature | -20℃ ~ 70℃ |
| Warranty | 15 Months |
What MR750 Delivers
Capability groups verified against the official product record — scope details are confirmed in your quotation.

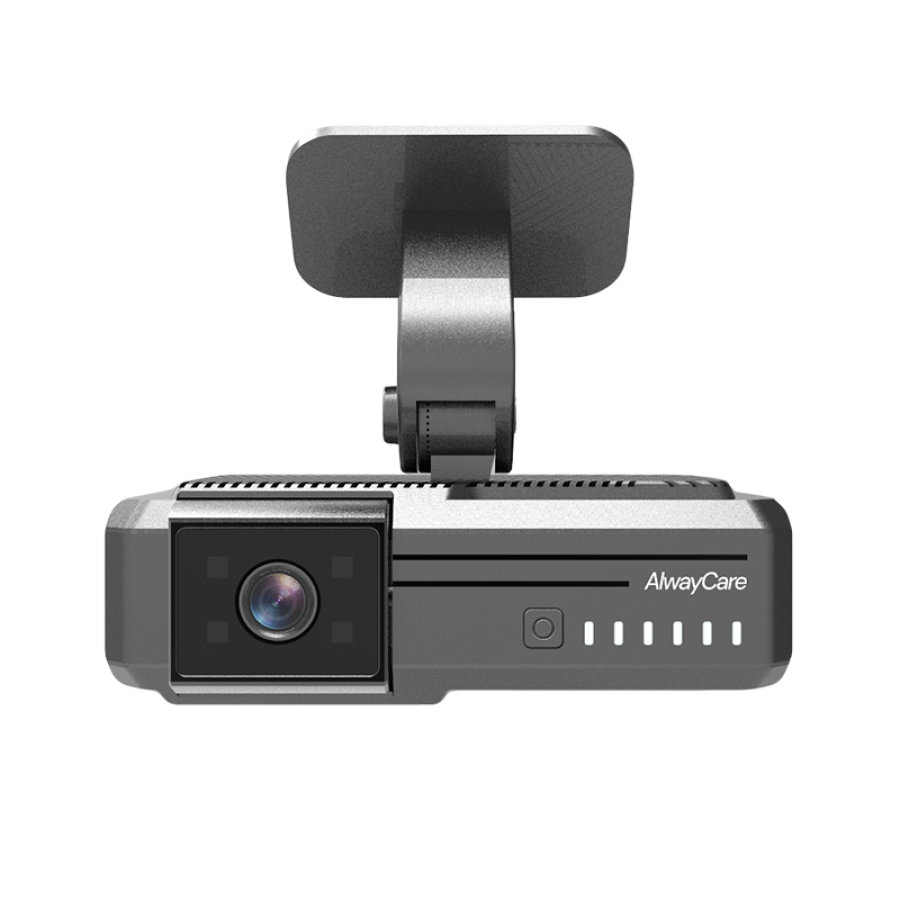

2K Imaging & Detection
H.264/H.265
- 2K QHD Roadway Vision: 2560×1440 forward camera captures high-definition road events and plate details.
- Multi-AI Engine: Concurrent processing of driver fatigue (DMS), forward hazards (ADAS), and blind zones (BSD).
- H.265 Dual-Stream: High-efficiency video encoding maximizes TF card retention and saves cellular data.
4G or Wifi Connectivity & Positioning
Support GPS
- 4G LTE Telematics: Real-time video streaming, breadcrumb GPS positioning, and instant incident alarm upload.
- Multi-Channel Expansion: Supports up to 5 camera channels for complete cabin, side, and rear coverage.
- RS232 / IO Telematics Link: Connects external fuel level sensors, RFID readers, and emergency SOS buttons.
-20℃ ~ 70℃ Power & Operating Range
12/24V
- 12V/24V Commercial Power: Wide voltage compatibility with built-in surge suppression and delayed shutdown.
- -20°C to +70°C Rating: Heavy-duty components endure harsh cabin heat and extreme winter freezes.
15 Months Warranty & Supply
Suitable for All Vehicles
- Compact Dash Fitment: Windshield bracket with precision tilt adjustment fits trucks, buses, and vans.
- 15-Month Warranty: Direct manufacturer quality guarantee and ongoing firmware support.
Built for Long-Term Fleet Programs
Factory Direct Supply
Devices ship from our own production line, with engineering support from the team that builds them.
Certified & Lab Tested
CE, UKCA, RoHS and ISO 9001 — every platform is backed by third-party laboratory test reports.
15-Month Warranty
Coverage that goes beyond the standard 12-month term, honored through your dedicated account manager.
OEM & Firmware Support
Logo, packaging, firmware behavior and interface customization for your market and fleet platform.
From Inquiry to Delivery in Four Steps
A clear path from first contact to units running in your fleet — no obligation at the evaluation stage.
Share Your Requirements
Send fleet size, vehicle models and target functions through the inquiry form or to your account manager.
Version & Quotation
Our engineers map your needs to the right MR750 version and issue a formal quotation within one business day.
Sample Evaluation
Sample units are available for road testing before you commit to a bulk order — evaluate first, decide later.
Production & Delivery
Bulk orders ship with factory QC reports, export documents and the 15-month warranty from dispatch.
Documents & Downloads
Everything your engineering and procurement teams need for evaluation.
Product Datasheet
Full specifications and ordering information — request the current MR750 datasheet.
Request DatasheetCertificates & Test Reports
Certification and third-party laboratory reports for the selected version and target market.
Request CertificatesUser Manual & Installation Guide
Wiring, mounting and configuration instructions — provided with sample orders.
Request ManualCMS Software & Demo
Platform access for evaluation — connect supported configurations to a live demo fleet.
Request Demo AccessComplete the In-Vehicle Safety Stack
Product families commonly deployed alongside MR750 in the same fleet stack.
MR830 All-in-One DMS with ADAS, BSD and Driver Fatig...
Model MR830 — DMS (Driver Monitoring System) for commercial fleets.
Frequently Asked Questions
Can't find your answer? Our engineers reply within one business day — email safety@alwaycare.com or send an inquiry.
Can the MR750 record all 5 camera channels simultaneously in high definition?
Yes. The MR750 is equipped with dual integrated cameras (2K forward-facing road camera and 1080P in-cabin DMS infrared camera) plus three external AHD video inputs supporting up to 1080P cameras (left blind spot, right blind spot, and rear/cargo area), recording all 5 channels concurrently with H.265/H.264 hardware compression.
What driver fatigue and distraction behaviors does the in-cab DMS camera detect?
The DMS camera utilizes 940nm invisible infrared illumination and deep-learning facial vector tracking to detect eye closure (drowsiness), deep yawning, phone usage, smoking, distraction (looking away >3 seconds), lack of seatbelt, and driver absence, operating accurately through sunglasses and in complete darkness.
What storage architecture and recording retention does MR750 provide?
The unit features dual high-speed TF/MicroSD card slots supporting up to 512GB each (1TB total storage). Dual-card recording can be configured for mirror backup (redundancy against card failure) or cyclic extended continuous recording, retaining several weeks of operational fleet footage.
How does 4G LTE telematics and remote live streaming work with fleet software?
The MR750 includes an integrated global 4G LTE cellular module and GPS/BD positioning. It streams multi-channel video in real time, uploads incident video clips upon alarm trigger, provides remote two-way voice intercom, and integrates with standard CMSV6 or custom fleet platforms via JT/T 808 and JT/T 1078 protocols.
What electrical protection and tamper safeguards does the hardware feature?
Built with DC 9V to 36V wide-voltage regulation, the device protects against automotive load dump spikes and reverse polarity. It features a lockable security cover securing the SIM card and dual SD slots against driver tampering, along with a built-in supercapacitor ensuring emergency video finalization if vehicle power is abruptly severed.
