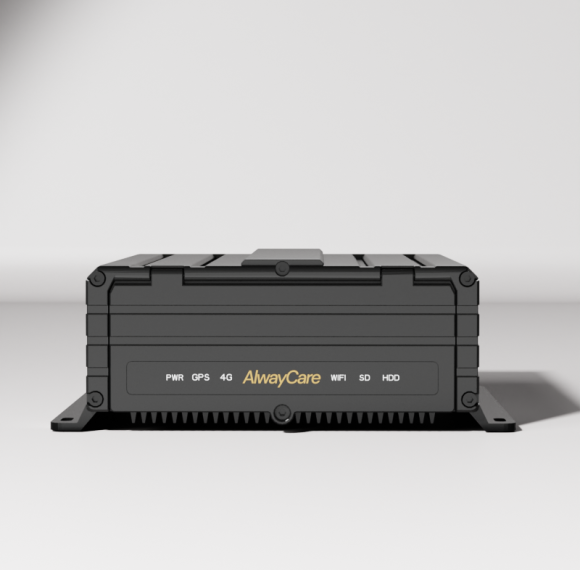

Mobile DVR
Commercial Fleet Mobile Digital Video Recorders (MDVR)
A mobile DVR records video from cameras installed on a vehicle. Start with the views your fleet needs, then compare camera inputs, channel capacity, storage, power requirements and footage access. AlwayCare offers configurations for trucks, buses and other commercial vehicles; GPS, remote access and AI functions depend on the selected model and package.
Compare AlwayCare Mobile DVR Configurations
Direct engineering evaluation across 4-CH, 5-CH, 8-CH, 9-CH, and 12-CH commercial video telematics recorders.
| Specification / Channel Option |
4-CH MDVR
FLEET STANDARD
Vans & Taxis
|
5-CH MDVR
MINING / DUMP
Tractor Units
|
8-CH MDVR
LOGISTICS POPULAR
Rigid & Box Trucks
|
9-CH MDVR
ADVANCED HYBRID
Freight & Cargo
|
12-CH MDVR
TRANSIT FLAGSHIP
City & Coach Buses
|
|---|---|---|---|---|---|
| Simultaneous Channels Video inputs | 4 Channels (1080P AHD) | 5 Channels (AHD + IPC) | 8 Channels Full HD | 8 Channels AHD + 1 IPC | 12 Channels Full HD |
| Storage Capacity Media & drive bays | Dual SD Card (2x 256GB) | Dual SD Card / SSD | 1x 2.5" HDD/SSD (Up to 4TB) + 1x SD | 1x 2.5" HDD/SSD (Up to 4TB) | Dual 2.5" HDD/SSD + SD Backup |
| Network & Telematics Cloud connectivity | 4G LTE, GPS/BDS | 4G LTE, GPS/BDS, Wi-Fi | 4G LTE, GPS, Wi-Fi (Auto Offload) | 4G LTE, GPS, Wi-Fi, RS232 | Dual-SIM 4G, GPS, High-Speed Wi-Fi |
| Operating Voltage Transient protection | 9–36V DC Commercial | 9–36V DC Industrial | 9–36V DC (ISO 7637-2 Certified) | 9–36V DC Heavy Duty | 9–36V DC (Heavy Transit Safe) |
| Typical Deployment Vehicle application | Courier vans, rideshare, light delivery | Construction dumpers, terminal tractors | Long-haul freight, fuel tankers, refrigerated transport | Heavy articulated haulers, container trucks | Double-decker coaches, municipal articulated transit |
| Product Record | View 4-CH | View 5-CH | View 8-CH | View 9-CH | View 12-CH |
Built for Relentless Commercial Road Vibration
Engineered to prevent footage corruption, sudden power loss, and mechanical wear under punishing operating conditions.
Patented Anti-Shock Hard Drive Bay
Multi-axis silicone dampening brackets absorb severe road impacts and high-frequency engine vibrations, ensuring continuous hard disk drive read/write performance.
UPS Supercapacitor Safeguard
In severe collisions where vehicle battery lines are severed, internal supercapacitors supply temporary backup power to safely finalize and lock video evidence files.
Secure Lockable Media Door
Physical key-locked front faceplate prevents unauthorized card removal, tampering, or footage theft by drivers or third parties.
Versatile Deployments Across Commercial Fleets
Scalable recording channels matched to vehicle length and operational risk profiles.
8-CH & 9-CH Long-Haul Semi-Trucks
Complete multi-angle coverage: forward windshield, driver cab, left blind spot, right blind spot, fuel tank lock, and rear trailer loading doors.
12-CH Municipal & Intercity Buses
Monitors front road, driver cabin, front passenger door, rear passenger door, aisle seating, luggage bays, and reversing zone with synchronized playback.
4-CH Courier & Delivery Vans
Compact dual-SD recorder covering road traffic, in-cab courier, rear cargo bay, and rear bumper reversing camera in an unobtrusive footprint.
Commercial Mobile DVR FAQ
Answers regarding storage capacity, wireless offload, and cloud platforms.
How many days of video can be stored on an 8-channel or 12-channel MDVR?
Using efficient H.265 compression, a 2TB hard drive stores approximately 14 to 20 days of continuous 1080P recording across 8 channels (based on 10 hours daily operation). A 4TB drive doubles retention up to 30–40 days.
Does the MDVR support automatic video downloading when returning to the depot?
Yes. With high-speed 5.8GHz Wi-Fi modules installed, MDVRs automatically connect to the fleet depot Wi-Fi network and offload flagged alarm video clips or daily archives to the local server without consuming cellular 4G data.
Can the MDVR connect to third-party telematics or fleet dispatch platforms?
Yes. In addition to AlwayCare's turn-key CMSV6 cloud platform, our MDVR units support standard communication protocols including JT/T 808 and JT/T 1078, as well as RESTful HTTP APIs for custom telematics software integration.
What type of camera connectors are used on the MDVR?
Our MDVR units feature standard aviation 4-pin threaded lock connectors (M12), providing simultaneous video signal, audio, and DC power transmission through a single vibration-proof, weatherproof threaded cable.
Upgrade Your Commercial Fleet with AlwayCare MDVRs
Speak with our commercial vehicle video engineers to select the optimal channel count, storage configuration, and telematics modules for your fleet.
