CC950 Side-View Infrared Vehicle Camera
| Share | |
|---|---|
| Categories | Vehicle Camera |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Product Specifications | CC950 |
| Definition | CVBS / 720P / 1080P |
| Image Sensor | 1/2.9" 2.9MP CMOS |
| Lens | 2.8mm |
| Horizontal Angle | 105° |
| Night Vision | 10 IR LEDs, 10-15m |
| Voltage | DC 12V ±6% |
| Working Current | 50-110mA (IR off), 180-280mA (IR on) |
| Waterproof | IP67, high-strength glass |
| Material | Metal |
| Size | L84 x W62.5 x H57.3mm |
| Operating Temperature | -20℃ ~ 70℃ |
| Connector | 4-pin aviation connector |
| Application | Side-view mounting |
| Warranty | 15 Months |

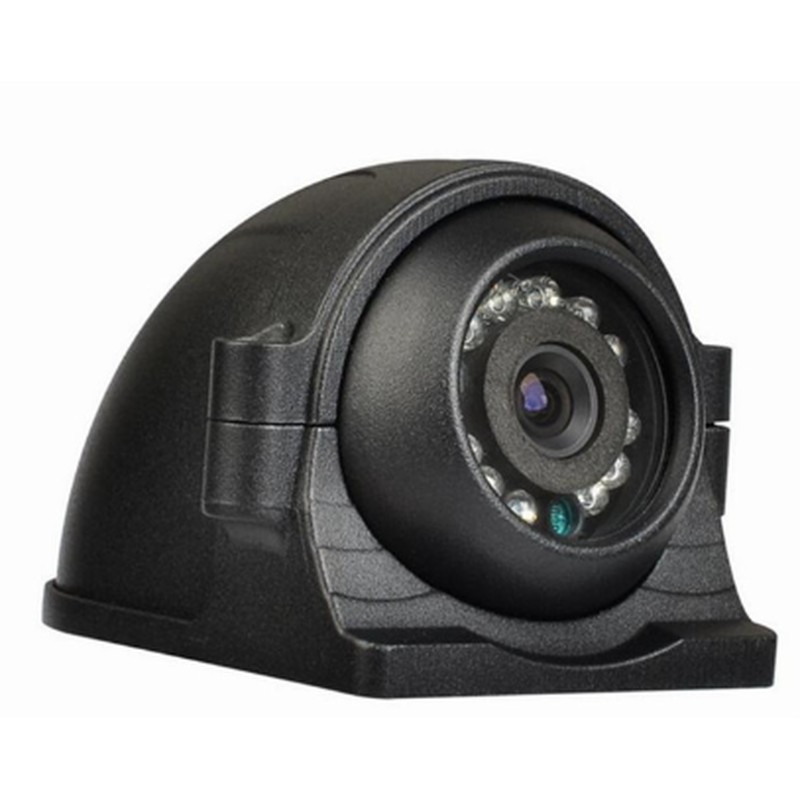

CC950 Side-View Infrared Vehicle Camera
CC950 is an IP67 metal side-view infrared camera with 10-15m night vision, in CVBS, 720P and 1080P versions.
Technical Specifications
Your quotation confirms the exact configuration.
| Model | CC950 |
|---|---|
| Definition | CVBS / 720P / 1080P |
| Image Sensor | 1/2.9" 2.9MP CMOS |
| Lens | 2.8mm |
| Horizontal Angle | 105° |
| Night Vision | 10 IR LEDs, 10-15m |
| Voltage | DC 12V ±6% |
| Working Current | 50-110mA (IR off), 180-280mA (IR on) |
| Waterproof | IP67, high-strength glass |
| Material | Metal |
| Size | L84 x W62.5 x H57.3mm |
| Operating Temperature | -20℃ ~ 70℃ |
| Connector | 4-pin aviation connector |
| Application | Side-view mounting |
| Warranty | 15 Months |
| Version | Resolution |
|---|---|
| CC950-CVBS | CVBS |
| CC950-720 | 720P |
| CC950-AHD20 | 1080P |
Vehicle Camera Models
Compare CC950 with other AlwayCare models in this category.
| Model | Resolution | Voltage | Size |
|---|---|---|---|
| CC670 | 1920x1080 | 12V | 76*69.5*76.7mm |
| CC930 | 1920x1080 | 12V | 60*60*60mm |
| CC950-33V | CVBS | 12-33V | 84*62.5*57.3mm |
| CC805 | 1920x1080 | 12V | 69*69*56mm |
| CC866-AHD20 | 1920x1080 | 12V | 72.6*37.5*58mm |
| CC980-AHD20 | 1920x1080 | 12V | 23*23*23mm |
| CC940 | CVBS / 1920x1080 | DC 12V ±6% | L76 x W47 x H66mm |
| CC950 (this page) | CVBS / 720P / 1080P | DC 12V ±6% | L84 x W62.5 x H57.3mm |
| CC955-33V / CC956-33V | 720P / 1080P | DC 9V-32V | L84 x W62.5 x H57.3mm |
| CC958-33V | 720P | DC 12-33V ±6% | L84 x W62.5 x H57.3mm |
| CC888-AHD20 | 1080P | DC 12V ±6% | L50 x W40 x H60mm |
| CC970-NTSC | 480 (640x480) | DC 12V | L22 x W23 x H22mm |
| CC985-AHD20 | 1080P (1920x1080) | DC 12V | 23 x 32 x 22mm |
| CC986-AHD20 | 1080P (1920x1080) | DC 12V | 43 x 23 x 32mm |
| CC1003-4GPS | 1080P, 30fps | DC 9V-36V | — |
Frequently Asked Questions
Can't find your answer? Our engineers reply within one business day — email safety@alwaycare.com or send an inquiry.
Which resolution suits 4-split or 8-split monitors and the MR830?
720P is recommended for 4-split and 8-split monitors and the MR830. Tell us your display when you order so we can match the version.
Is there a wide-voltage version?
Yes. CC950-33V accepts 9-32V input and has its own product page.
Which warranty applies?
CC950 ships with a 15-month manufacturer warranty. Confirm final terms and regional service coverage in your quotation.
