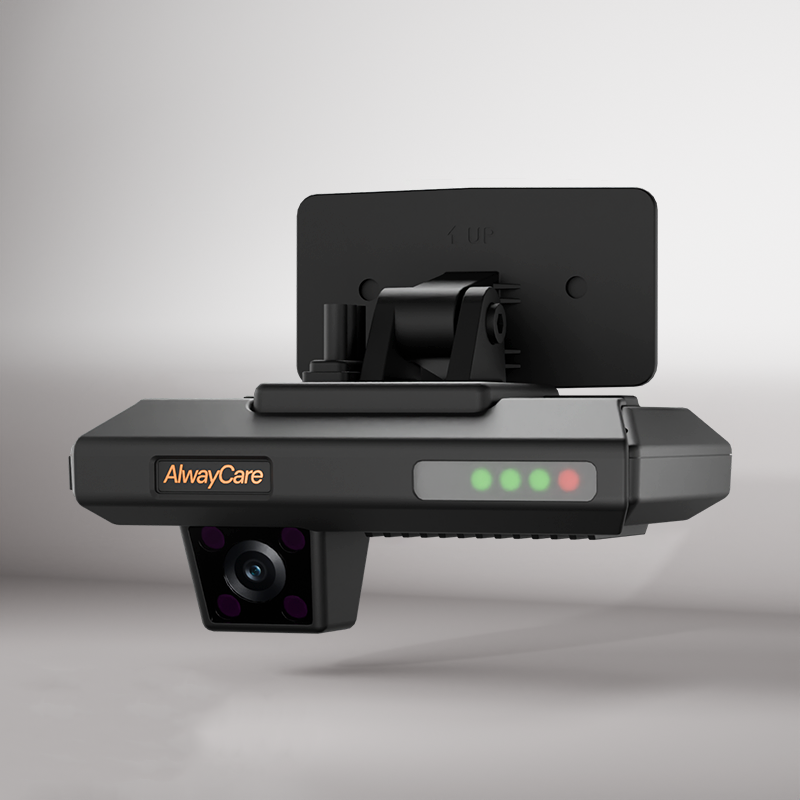

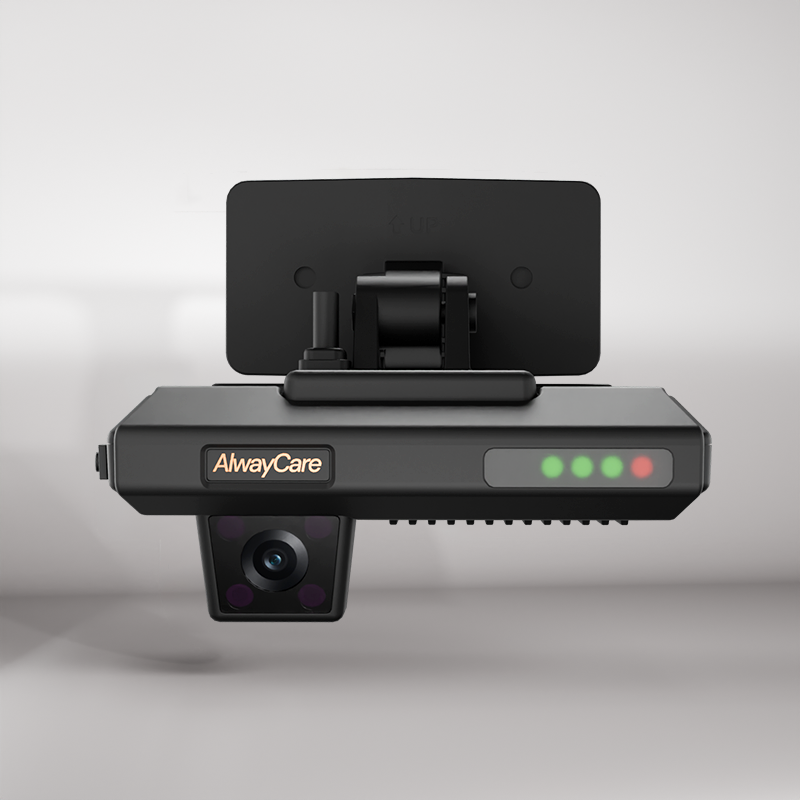

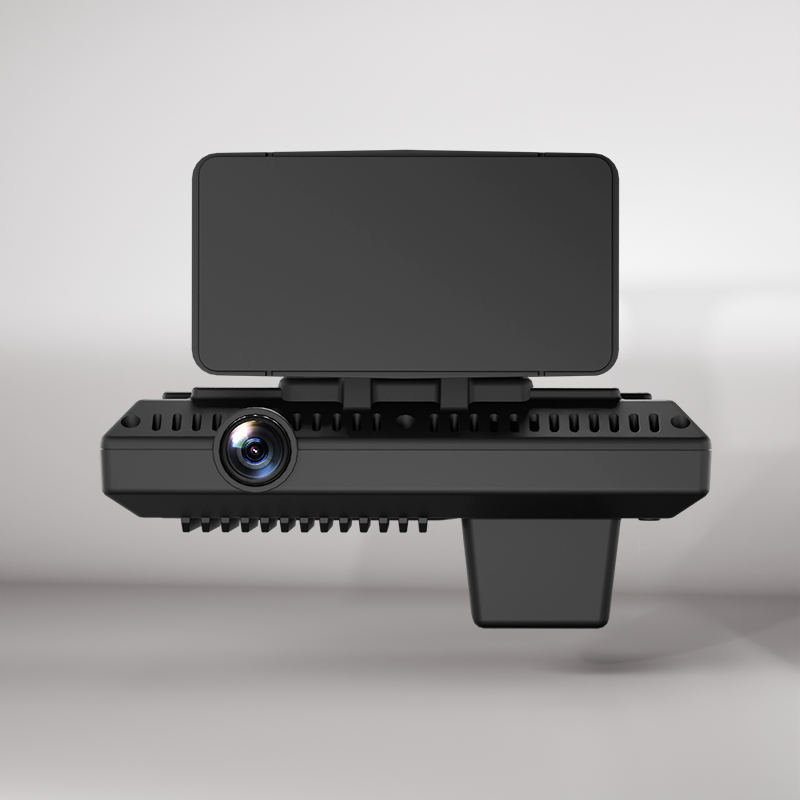

MR700 AI Dashcam with ADAS and DMS for Fleets
| Share | |
|---|---|
| Categories | AI Dashcam |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Model | AI Dashcam-MR700 |
| Voltage | 12/24V |
| Video Record Resolution | 1920x1080 |
| Satellite Positioning | Support GPS |
| Optional | I/O or RS232 |
| Wireless Communication | 4G or Wifi |
| Storage | 512GB TF Card |
| Size | 60*77*123mm |
| Video Encoding | H.264/H.265 |
| Application | Suitable for All Vehicles |
| Operating Temperature | -20℃ ~ 70℃ |
| Warranty | 15 Months |
MR700 AI Dashcam Series with ADAS & DMS for Fleets
Commercial multi-channel AI dashcam hub with active DMS driver monitoring, forward ADAS, and 4G cloud telematics.
MR700-SV (Standard 2-Channel)
Recommended for: Light Commercial Fleets, Taxis, Ride-Hailing & Urban Delivery
- Video Input: 2 Channels (Road-Facing 1080P ADAS + Cabin 1080P DSM)
- Interfaces: 1x IO Signal Output (Buzzer/External alarm sync)
- Connectivity & Cloud: 4G LTE, High-Precision GPS/BDS, Wi-Fi 2.4G & CMS Platform
- Storage: Micro SD Card up to 512GB (H.264 / H.265)
MR700-PV (Professional 2-Channel with Dual RS232)
Recommended for: Telematics Service Providers (TSPs) & Third-Party System Integrators
- Video Input: 2 Channels (Road-Facing 1080P ADAS + Cabin 1080P DSM)
- Interfaces: 2x RS232 Serial Ports + 1x IO Signal Output
- Integration: Directly connects to third-party MDVRs, telematics gateways, or fuel sensors
- Storage & Comms: Micro SD up to 512GB, 4G LTE, GPS/BDS, Wi-Fi & CMS Platform
MR700-V3 (3-Channel with In-Cab Monitor Display Output)
Recommended for: Delivery Trucks, Shuttle Buses & Passenger Vehicles Needing Driver In-Cab Monitor
- Video Input: 3 Channels (Forward 1080P + Cabin 720P DSM + 1x Ext 720P Camera)
- Display Out: 1x CVBS Video Output (Feeds live reversing/blind-spot video to driver screen)
- Vehicle I/O: 3x IO Signal Inputs (Turn signals & reverse gear) + 1x IO Out + 2x RS232
- Auxiliary Power: 12V-out & 5V-out for external cameras & fatigue vibration cushions
MR700-V4 (4-Channel Full Surround Fleet Safety Stack)
Recommended for: Heavy-Duty Trucks, Fuel Tankers, Hazmat & Mining Fleets
- Video Input: 4 Channels (Forward 1080P + Cabin 720P DSM + 2x External 720P Cameras)
- Vehicle I/O: 3x IO Signal Inputs (Turn signals & reverse trigger) + 1x IO Out + 2x RS232
- Auxiliary Power: 12V-out & 5V-out (Powers vibration cushion, oil level sensor & dual cams)
- All-in-One Compact: Eliminates the need for a bulky MDVR box for 4-channel fleet safety
MR700 Series Version Differences Matrix
Comprehensive hardware and capability comparison across all 4 production models — verified against the official AlwayCare factory quotation sheet.
| Parameters & Features |
Standard
MR700-SV
2-Channel DSM + ADAS
|
Professional
MR700-PV
2-CH with Dual RS232
|
Multi-Channel
MR700-V3
3-CH + CVBS Monitor Out
|
MOST POPULAR FLEET CHOICE
Full Stack
MR700-V4
4-CH All-in-One Safety
|
|---|---|---|---|---|
| Video Architecture & Channels | ||||
| Video Input Channels | 2 Channels (Forward ADAS + In-Cabin DSM) |
2 Channels (Forward ADAS + In-Cabin DSM) |
3 Channels (ADAS + DSM + 1 Ext Camera) |
4 Channels (ADAS + DSM + 2 Ext Cameras) |
| Camera Resolution | Road: 1080P | Cabin: 1080P | Road: 1080P | Cabin: 1080P | Road: 1080P | Cabin: 720P Ext Cam 1: 720P |
Road: 1080P | Cabin: 720P Ext Cam 1 & 2: 720P |
| CVBS Video Output (Screen Out) | ✕ None | ✕ None | ✓ 1 Channel (Connects to in-cab driver display) |
✕ None |
| Interfaces, I/O Triggers & Telemetry | ||||
| RS232 Serial Interfaces | ✕ None | ✓ 2 Channels (Integrates with MDVR/GPS/Sensors) |
✓ 2 Channels (Integrates with MDVR/GPS/Sensors) |
✓ 2 Channels (Integrates with MDVR/GPS/Sensors) |
| IO Trigger Inputs | ✕ None | ✕ None | ✓ 3 Channels (Left Turn, Right Turn, Reverse Gear) |
✓ 3 Channels (Left Turn, Right Turn, Reverse Gear) |
| IO Signal Output | ✓ 1 Channel | ✓ 1 Channel | ✓ 1 Channel | ✓ 1 Channel |
| Auxiliary Peripheral Power | ✕ None | ✕ None | ✓ 12V-out & 5V-out (Powers cushion, sensors & cams) |
✓ 12V-out & 5V-out (Powers cushion, sensors & cams) |
| AI Safety Intelligence & Cloud Telematics (All Versions) | ||||
| AI Driver Monitoring (DSM) | ✓ Full Suite | ✓ Full Suite | ✓ Full Suite | ✓ Full Suite |
| AI Road Collision (ADAS) | ✓ FCW / LDW / HMW / PCW | ✓ FCW / LDW / HMW / PCW | ✓ FCW / LDW / HMW / PCW | ✓ FCW / LDW / HMW / PCW |
| G-Sensor & SOS Alarm | ✓ Harsh driving & rollover | ✓ Harsh driving & rollover | ✓ Harsh driving & rollover | ✓ Harsh driving & rollover |
| Audio & Voice Intercom | ✓ Built-in MIC & Speaker | ✓ Built-in MIC & Speaker | ✓ Built-in MIC & Speaker | ✓ Built-in MIC & Speaker |
| Wireless & CMS Cloud | 4G LTE + GPS/BDS + Wi-Fi | 4G LTE + GPS/BDS + Wi-Fi | 4G LTE + GPS/BDS + Wi-Fi | 4G LTE + GPS/BDS + Wi-Fi |
| Local Storage Capacity | Micro SD up to 512GB | Micro SD up to 512GB | Micro SD up to 512GB | Micro SD up to 512GB |
| Fleet Deployment & Procurement | ||||
| Best Suited For | Light commercial vans, taxis, ride-hailing & company cars | Telematics system integrators, TSPs & dual-MDVR setups | Delivery box trucks, shuttle buses requiring in-cab monitor | Heavy haulage, hazardous chemical tankers & mining trucks |
| Official Factory Quotation | Quote MR700-SV | Quote MR700-PV | Quote MR700-V3 | Quote MR700-V4 |
Which MR700 Version Fits Your Fleet?
Select by operational risk level, vehicle chassis dimensions, and peripheral integration requirements.
Taxis, Ride-Hailing & Urban Delivery
When the objective is driver behavior monitoring and road crash liability protection with minimum installation complexity.
- Plug-and-play 2-channel deployment (Forward ADAS + Cabin DSM)
- No external camera cabling or drilling required
- 4G live video streaming and cloud GPS route playback
- Lowest total cost of hardware acquisition
Telematics Providers & Existing Gateways
When integrating AI vision into existing third-party telematics boxes, black boxes, or RFID driver badge networks.
- Dual RS232 serial ports for bidirectional telemetry sync
- Transmits alarm timestamps, driver IDs, and video trigger flags
- Preserves customer's existing GPS/fleet dispatch infrastructure
- Full DMS fatigue + ADAS algorithms running onboard
Delivery Box Trucks & Shuttle Buses
When drivers require real-time reversing video assistance or side blind spot views projected onto an in-cab display monitor.
- 1x CVBS video output connects directly to dashboard display
- 3x IO inputs automatically switch display feed on reverse or turn signals
- Adds 1 external waterproof camera (cargo, passenger, or rear)
- Built-in 12V/5V aux power output eliminates auxiliary power supplies
Heavy Trucks, Hazmat & Mining Fleets
When large commercial vehicles demand full 360-degree blind spot elimination, fuel monitoring, and active fatigue intervention.
- 4-Channel comprehensive coverage (ADAS + DSM + Left & Right Blind Spots / Rear)
- Connects to active fatigue vibration cushions & strobe warning beacons
- Supports ultrasonic fuel level telemetry via RS232
- Compact all-in-one footprint replaces traditional multi-box MDVR setups

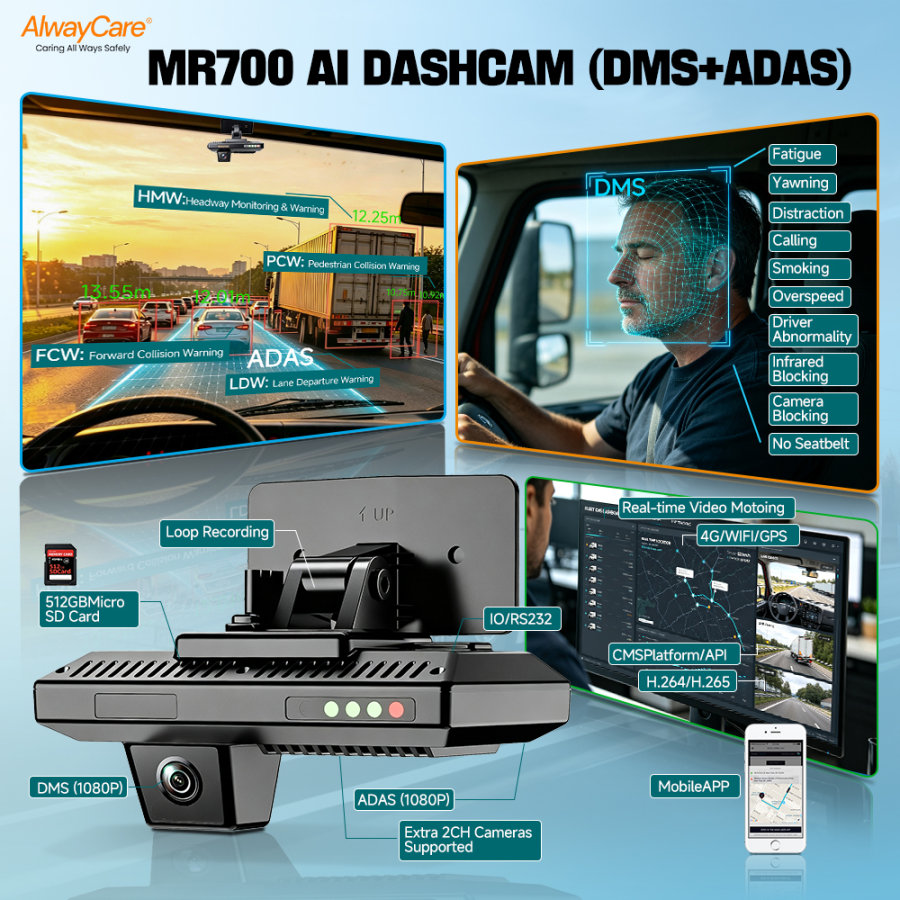

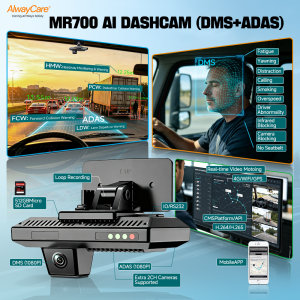

What MR700 Delivers Across All Versions
Core AI vision algorithms, high-reliability automotive engineering, and connected cloud intelligence built standard across every model — fully benchmarked against the Commercial Fleet Safety Engineering Whitepaper & Glossary.
Active Driver & Road Risk Monitoring
Sub-second neural vision processing running onboard the dashcam.
- Driver State Monitoring (DMS): Detects drowsiness, eye closure, yawning, phone use, and distraction.
- Forward ADAS Collision Alerts: Forward Collision (FCW), Lane Departure (LDW), and Headway Monitoring (HMW).
- Driver Face ID: Validates driver identity against cloud database and prevents unauthorized operation.
Real-Time Connected Fleet Operations
High-speed 4G LTE, multi-GNSS tracking, and live CMS telematics.
- 4G LTE Live Streaming: Low-bandwidth cellular streaming and remote snapshots directly to dispatch.
- GNSS Route Tracking: High-precision GPS/BDS breadcrumb history and geofence boundary alerts.
- Automated Incident Evidence: Automatically tags 10s pre/post event video clips to cloud servers on impact.
Harsh Automotive Environment Endurance
Built to withstand heavy truck vibration, thermal extremes, and voltage surges.
- 6-Axis G-Sensor: Immediate detection of harsh braking, rapid acceleration, and vehicle rollover.
- 9V-36V Fleet Power: Wide voltage input with reverse-polarity, over-voltage, and short-circuit protection.
- -20°C to +70°C Operating Range: Rugged metal-alloy casing built for continuous heavy truck duty.
Tested Optional Accessories & Sensors
Expand your MR700 deployment with factory-tested external cameras, active fatigue waking peripherals, and telemetry sensors.
Vibration Cushion (MR700-VC)
Installs directly onto the driver's seat. Vibrates instantaneously when DSM triggers a fatigue alert to physically awaken the driver.
Seat Vibration Motor (MR700-MOT)
Industrial haptic motor mounted underneath the driver's chassis seat frame for high-intensity physical tactile wake-up alerts in mining trucks.
Warning Strobe Beacon (MR700-BC)
Audible buzzer paired with high-intensity flashing LED strobe light. Triggers on critical forward collision or severe drowsiness alerts.
Ultrasonic Fuel Sensor (MR700-OLS)
Non-invasive bottom-mount ultrasonic sensor measuring fuel tank level in real time. Connects to MR700-PV/V3/V4 via RS232.
RFID Card Reader (MR700-CR)
Drivers swipe employee RFID badges to log in and out. Prevents unauthorized operation and triggers alarms upon shift-time violations.
IP68 Waterproof Fleet Cameras
CC805 interior dome camera, CC670 metal rear camera, CC950 side blind spot camera, and CC990 full-color starlight night vision camera.

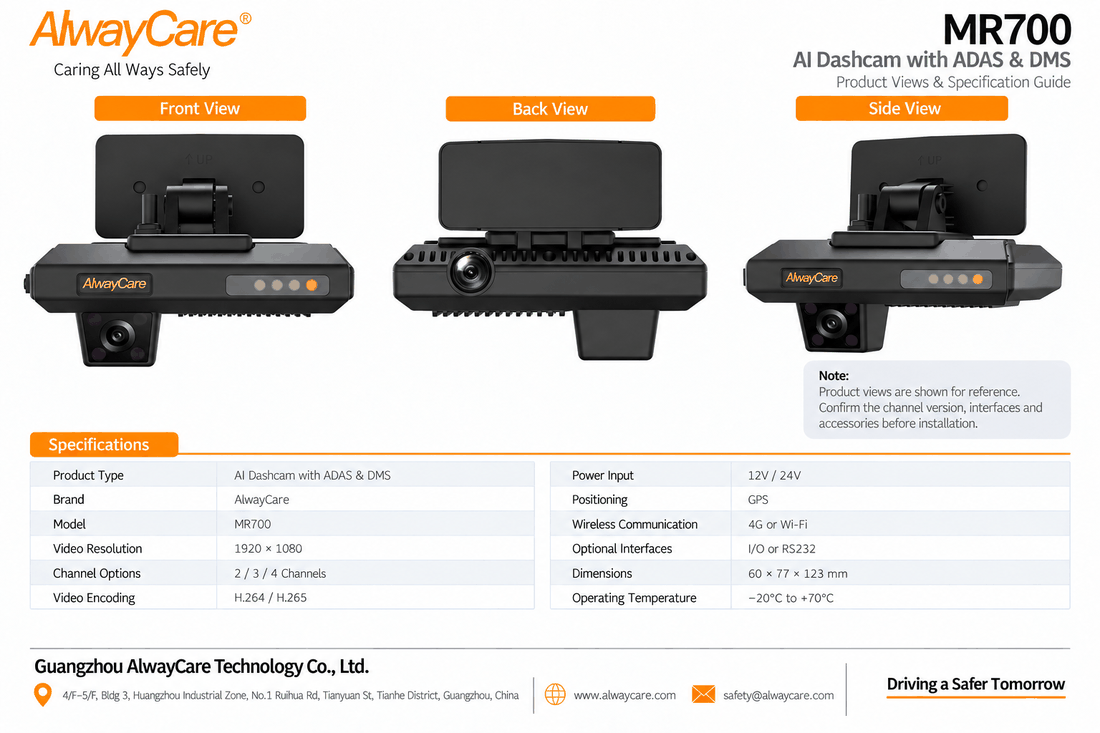

General Technical Specifications
Values follow the factory datasheet — configuration options are validated in your formal commercial quotation.
| Hardware Series | AlwayCare AI Dashcam MR700 Series |
|---|---|
| Available Versions | MR700-SV (2CH) | MR700-PV (2CH + RS232) | MR700-V3 (3CH + Screen Out) | MR700-V4 (4CH Full Stack) |
| Video Recording Resolution | Main Camera: 1920x1080 @ 30fps | DSM Camera: 1080P (SV/PV) or 720P (V3/V4) | External Channels: 720P @ 25fps |
| Video Compression | H.264 / H.265 high-efficiency video coding |
| Satellite Positioning | High-sensitivity GPS / BDS / GLONASS dual-mode positioning |
| Cellular Communication | 4G LTE Cat 4 (Regional modules: EU/Asia/Americas/Global supported) |
| Wi-Fi Connectivity | 802.11 b/g/n (2.4GHz) for mobile APP connection, live preview and calibration |
| Storage Medium | 1x Micro SD (TF) Card slot, supports up to 512GB (Class 10 / U3 recommended) |
| Vehicle Sensor Suite | Built-in 6-axis G-sensor (Acceleration, Braking, Cornering, Collision, Rollover); SOS Panic Button input |
| Audio & Voice Intercom | Built-in high-sensitivity microphone & clear speaker; supports 2-way real-time voice intercom with CMS center |
| Operating Voltage | DC 9V – 36V wide automotive power input |
| Operating Temperature | -20°C to +70°C (-4°F to +158°F) |
| Storage Temperature | -40°C to +85°C |
| Certifications & Standards | CE, FCC, UKCA, RoHS, ISO 9001, IATF 16949 production standards |
See MR700 in Vehicle Operations
Official AlwayCare MR700 demonstration showing dual-channel active driver monitoring and real-time road hazard detection.
Built for Long-Term Fleet Programs
Factory Direct Supply
Devices ship directly from our IATF 16949 certified manufacturing facility with dedicated hardware engineering support.
Certified & Lab Tested
CE, UKCA, FCC and RoHS certified. Every hardware batch undergoes vibration, thermal shock, and EMC chamber testing.
15-Month Warranty
Industry-leading 15-month warranty coverage supported directly by factory engineers and RMA spare unit protocols.
OEM / ODM Customization
Custom packaging, custom boot logos, firmware feature tweaks, API/protocol documentation, and cloud CMS white-labeling.
From Inquiry to Fleet Rollout in Four Steps
Transparent engineering and procurement path — evaluate sample hardware before committing to volume rollout.
Share Fleet Scope
Submit vehicle models, channel requirements, and communication protocols via our inquiry form.
Version Quotation
Our fleet engineers recommend the optimal MR700 version (SV, PV, V3, or V4) and issue a formal quote within 24 hours.
Sample Road Testing
Evaluate sample units on your test vehicles — verify calibration, alarm sensitivity, and CMS data flow.
Volume Production
Dispatched with full QC reports, international customs clearance documentation, and 15 months warranty.
Datasheets & Engineering Documents
Everything your technical evaluation and fleet operations team requires.
Product Datasheet
Full engineering specifications, pinout schematics, and dimension drawings (PDF).
Download DatasheetCertificates & Test Reports
CE, FCC, UKCA, RoHS and third-party laboratory EMC test documentation.
Request CertificatesInstallation & Wiring Manual
Detailed pinout assignments, windshield calibration procedures, and APP setup manual.
Request ManualCMS Software Demo Account
Request live credentials to evaluate fleet location tracking, real-time streaming, and alarm statistics.
Request Demo AccessFrequently Asked Questions
Need engineering clarification? Contact our solution engineers directly at safety@alwaycare.com or send an online inquiry.
What are the primary differences between MR700-SV, PV, V3, and V4?
MR700-SV is the standard 2-channel unit (Forward ADAS + In-Cabin DSM) with 1x IO output. MR700-PV adds 2x RS232 serial interfaces for third-party telematics integration. MR700-V3 supports 3 video channels (with 1 additional external camera), 1x CVBS video output for in-cab driver screens, 3x IO inputs (turn signals/reverse), and 12V/5V aux power output. MR700-V4 provides 4 video channels (with 2 additional external cameras for 360° blind spots) along with 3x IO inputs and 12V/5V aux power.
Can MR700 connect to third-party MDVRs or existing GPS trackers?
Yes. The MR700-PV, MR700-V3, and MR700-V4 versions feature 2 independent RS232 serial ports and 1 IO output. These allow the dashcam to output alarm events, driver IDs, and sensor flags to existing fleet hardware protocols or accept telemetry commands.
Do external cameras on MR700-V3 and V4 require a separate power supply?
No. Both MR700-V3 and MR700-V4 include built-in 12V-out and 5V-out auxiliary power feeds, allowing external cameras (like CC805, CC670, or CC950) and sensors to be powered directly from the dashcam harness without messy extra power wiring.
How does the driver fatigue vibration cushion work?
The optional vibration cushion (MR700-VC) connects to the auxiliary alarm output. When the DSM camera detects signs of drowsiness, yawning, or prolonged micro-sleep, the dashcam sounds an audible voice alert and simultaneously pulses the vibration cushion to physically alert the driver.
What SD card capacity do you recommend for multi-channel recording?
MR700 supports Micro SD cards up to 512GB using high-efficiency H.265 compression. For 2-channel setups (SV/PV), 64GB to 128GB is standard. For 3-channel (V3) and 4-channel (V4) continuous recording, 128GB to 256GB or 512GB high-endurance cards (SanDisk or Kingston dedicated automotive grade) are recommended.
How do I configure 4G cellular frequencies for international deployment?
AlwayCare provides dedicated 4G LTE regional modules covering Europe, North America, Latin America, Southeast Asia, Australia, and the Middle East. Simply share your target deployment countries when submitting an inquiry, and we will equip the corresponding certified frequency module.
Industry Solutions
Fleet Safety Solutions for Every Industry
From logistics and mining to school buses and public transport, AlwayCare delivers intelligent driving safety solutions tailored to the real operating conditions of each fleet type.
School Bus Fleet
Ensure student safety on every route through AI monitoring and real-time video solutions for school bus fleets.
Explore Solutions →
Logistics Fleet
Advanced fleet driver monitoring systems to ensure driver and vehicle safety while optimizing operational efficiency.
Explore Solutions →
Petroleum & Hazardous Chemicals Fleet
Improve driver safety and regulatory compliance for petroleum and hazardous chemical transport with intelligent monitoring systems.
Explore Solutions →
Mining Fleet
Enhance vehicle safety and driver performance in demanding mining environments with AI monitoring and real-time data.
Explore Solutions →
Public Bus Fleet
Enhance the safety and efficiency of public bus fleets with driver monitoring, intelligent dispatch and comprehensive fleet solutions.
Explore Solutions →
Forklift Fleet
Enhance driver and vehicle safety in warehouses with forklift fleet safety management built on over 24 years of experience.
Explore Solutions →Configuration & Quotation
Configure the right system around your vehicles.
A quotation should confirm the coverage, compatibility with your existing equipment, installation environment and platform workflow for the selected vehicle-safety system.
- What the installation needs to cover
- Compatibility with your existing equipment
- The conditions in which the system will be installed and used
- How footage, alarm events and fleet data are reviewed day to day
