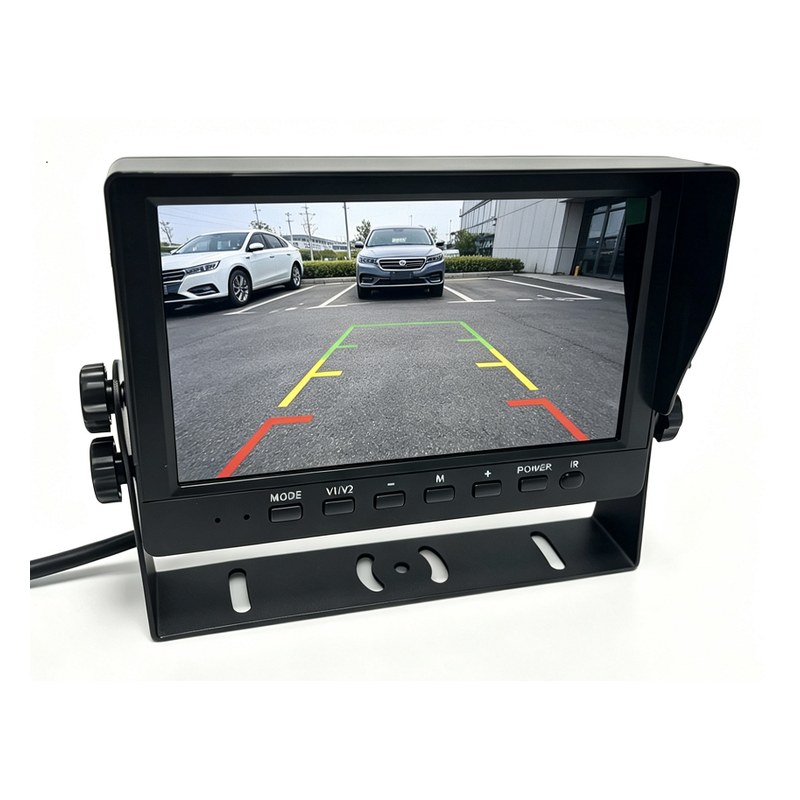

DP230-D 7" Single-View AHD Vehicle Monitor
| Share | |
|---|---|
| Categories | Vehicle Monitor |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Product Specifications | DP230-D |
| Display size | 7.0 inch |
| Display ratio | 16:9 |
| Resolution | 1024x600 |
| Video Inputs | 2 Channels (AHD 720P/960P/1080P and CVBS, same definition) |
| Operating Voltage | DC 12V - 24V Wide Voltage |
| Enclosure Material | PC + ABS, textured |
| Operating Temperature | -20℃ ~ 65℃ |
| Power | 6W |
| Display Mode | Single view |
| Reversing | Automatic display on reverse |
| Connector | 4-pin aviation |
| Screen | Single IC |
| Storage Temperature | -25℃ ~ +70℃ |
| Warranty | 15 Months |
DP230-D 7" Single-View AHD Vehicle Monitor
DP230-D is a 7-inch 1024x600 single-view vehicle monitor that accepts AHD 720P/960P/1080P and CVBS video, with DC 12-24V input.
Technical Specifications
Your quotation confirms the exact configuration.
| Model | DP230-D |
|---|---|
| Display size | 7.0 inch |
| Display ratio | 16:9 |
| Resolution | 1024x600 |
| Video Inputs | 2 Channels (AHD 720P/960P/1080P and CVBS, same definition) |
| Operating Voltage | DC 12V - 24V Wide Voltage |
| Enclosure Material | PC + ABS, textured |
| Operating Temperature | -20℃ ~ 65℃ |
| Power | 6W |
| Display Mode | Single view |
| Reversing | Automatic display on reverse |
| Connector | 4-pin aviation |
| Screen | Single IC |
| Storage Temperature | -25℃ ~ +70℃ |
| Warranty | 15 Months |
Vehicle Monitor Models
Compare DP230-D with other AlwayCare models in this category.
| Model | Display | Resolution | Voltage |
|---|---|---|---|
| DP230-A | 7.0 inch | 1024x600 HD | DC 9V - 36V Wide Voltage |
| DP230-SD | 7.0 inch | 800x480 | DC 9V - 36V Wide Voltage |
| DP312 | 7.0 inch | 1024x600 HD | DC 9V - 36V Wide Voltage |
| DP270-A | 10.1 inch | 1024x600 HD | DC 9V - 36V Wide Voltage |
| DP285-A | 10.1 inch | 1024x600 HD | DC 9V - 36V Wide Voltage |
| DP1016 | 10.1 inch | 1280x800 IPS | DC 9V - 36V Wide Voltage |
| DP210-B | 7.0 inch | 1024x600 HD | DC 9V - 36V Wide Voltage |
| DP230-B | 7.0 inch | 1024x600 | DC 9V - 36V Wide Voltage |
| DP230-D (this page) | 7.0 inch | 1024x600 | DC 12V - 24V Wide Voltage |
| DP230-7 | 7.0 inch | 1024x600 IPS full view | DC 15V - 90V (custom wide voltage) |
| DP270 | 10.1 inch IPS full view | 1280x800 | DC 12V - 36V Wide Voltage |
Frequently Asked Questions
Can't find your answer? Our engineers reply within one business day — email safety@alwaycare.com or send an inquiry.
Which video formats does it accept?
AHD 720P, 960P and 1080P, and CVBS, using the same definition.
What voltage does it accept?
DC 12V-24V.
Which warranty applies?
DP230-D ships with a 15-month manufacturer warranty. Confirm final terms and regional service coverage in your quotation.
