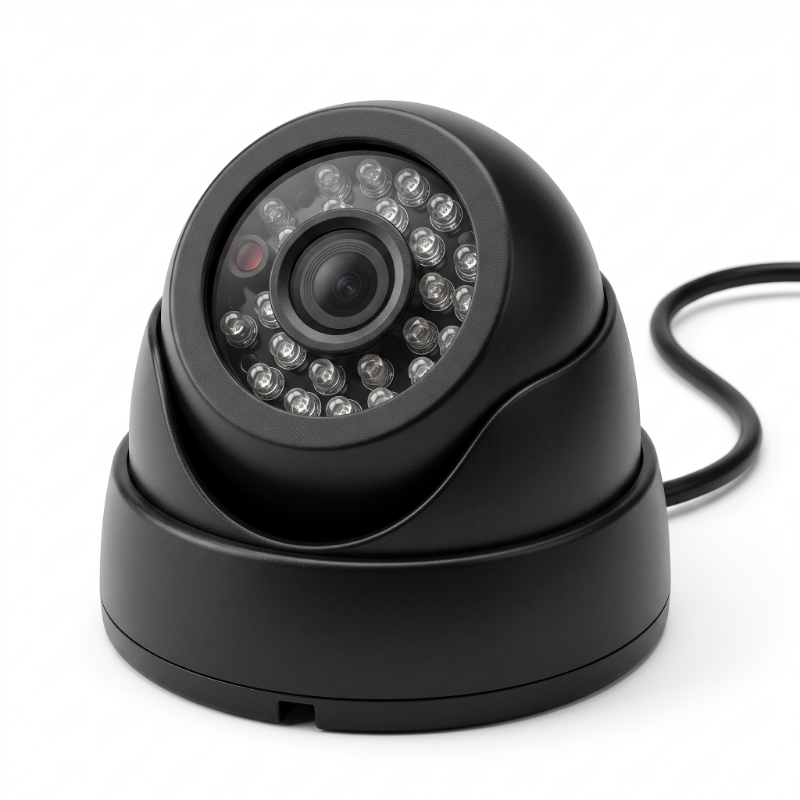

CC806-IPC400 4MP IP Vehicle Camera
| Share | |
|---|---|
| Categories | Vehicle Camera |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Model | CC806-IPC400 |
| Resolution | 4.0MP |
| Image Sensor | 1/2.9-inch low-light CMOS |
| Video Compression | H.265AI / H.265+ compatible with H.265 and H.264 |
| Stream | Dual stream |
| Lens | 2.8mm |
| IR LEDs | 24 |
| Network Interface | RJ45 Ethernet |
| Protocol | ONVIF |
| Monitoring | iOS, Android, Web, CMS and MYEYE platform support |
| Alarm Interface | 1 input / 0 output; supports alarm input, recording and platform linkage |
| Video Format | AVI |
CC806-IPC400 4MP IP Vehicle Camera
4.0MP QHD digital IP camera with ONVIF protocol support, 20m IR night vision, and H.265+ encoding.
Technical Specifications
Values follow the factory engineering datasheet — your quotation confirms the exact configuration.
| Model | CC806-IPC400 (Commercial IP Fleet Series) |
|---|---|
| Effective Resolution | 4.0 Megapixel (2560 × 1440 QHD @ 25 fps) |
| Image Sensor | 1/2.9" Low-Light Progressive Scan CMOS Sensor |
| Video Compression | H.265AI / H.265+ (Backward Compatible with H.265 & H.264) |
| Streaming Architecture | Dual Stream (High-Bitrate Main Stream + Bandwidth-Efficient Sub Stream) |
| Optical Lens | 2.8mm High-Clarity Fixed Board Lens (Expansive Passenger & Cabin FOV) |
| Night Vision System | 24 High-Density Infrared LEDs (15m – 20m Night Illumination Range) |
| Network Interface | RJ45 10/100M Adaptive Ethernet Port |
| Network Protocols | ONVIF, TCP/IP, HTTP, RTSP, UDP, NTP, DHCP |
| Video Format | Standard AVI / MP4 Video Streaming Container |
| Alarm Interface | 1 Alarm Input / 0 Output (Supports Trigger Linkage, Snapshot & Event Recording) |
| Remote Monitoring | Multi-Platform Support (iOS, Android, Web Browser, CMS, MYEYE Client) |
| Enclosure Form Factor | Rugged Anti-Vandal Cast Metal Turret Body (3-Axis Internal Orientation) |
| Operating Voltage | DC 12V ± 10% / Fleet Power Input |
| Operating Temperature | -30°C ~ +70°C (-22°F ~ +158°F) |
| Storage Temperature | -40°C ~ +85°C (-40°F ~ +185°F) |
| MDVR Compatibility | Optimized for Digital IP Mobile DVRs (MDVR) & Centralized Fleet VMS |
| Quality Warranty | 18 Months Manufacturer Warranty |

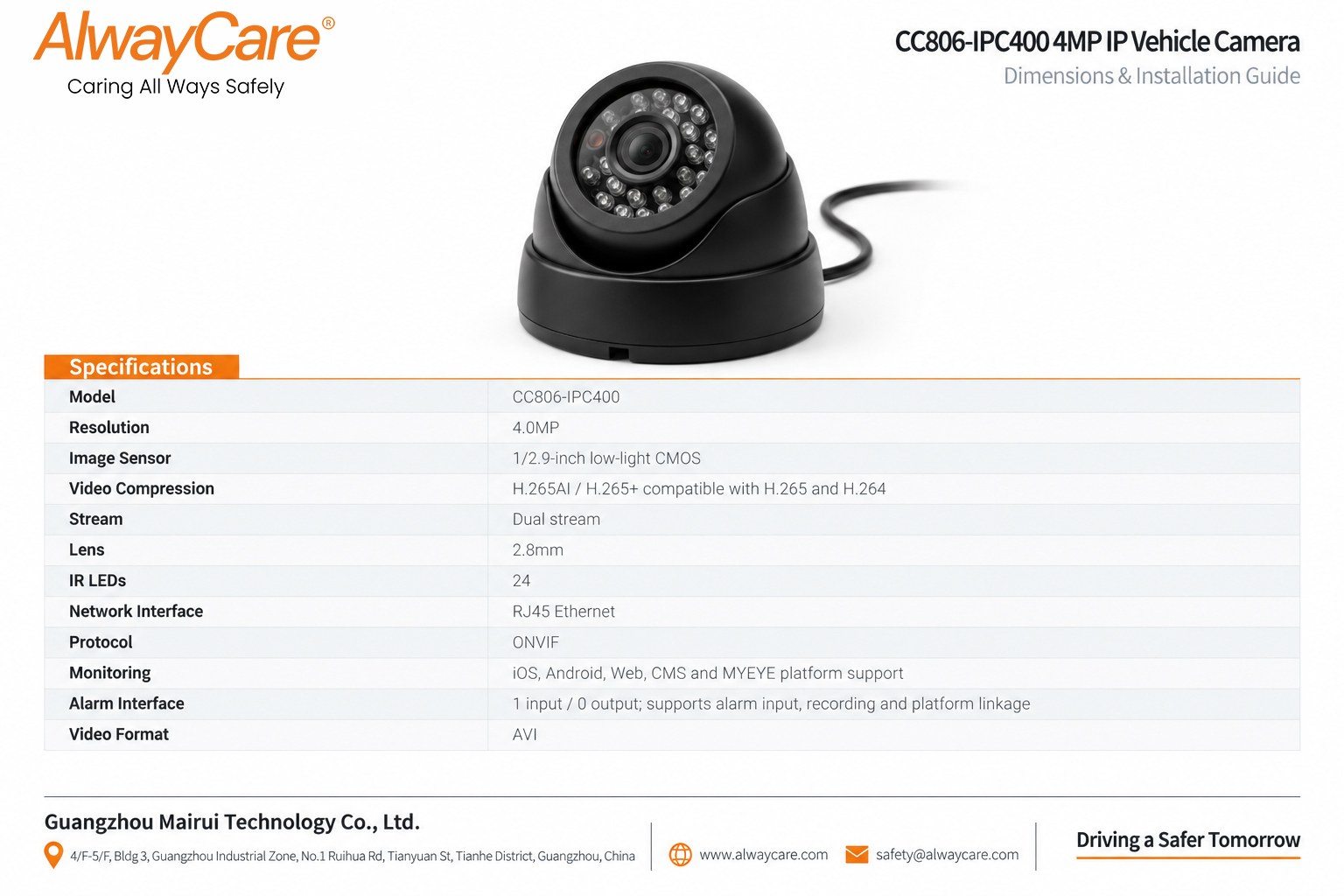

Technical Diagram & Specifications Overview
Factory engineering drawing, wiring pinout, and mechanical form factor for CC806-IPC400.
Commercial Vehicle Camera Series Matrix
| CC806-IPC400 (This Model) | 4.0MP High-Definition IP Vehicle Network Camera — 4MP (2560×1440) resolution, 1/2.9" low-light CMOS, 24 IR LEDs, H.265AI/H.265+ high efficiency, RJ45 ONVIF network interface with alarm I/O. Engineered for digital IP MDVR bus networks. | 4MP IP Network | H.265+ | 24 IR LEDs | RJ45 ONVIF |
|---|---|---|
| CC990 / CC990-AHD20 | 1080P IP68 Starlight Vehicle Camera — 0.01 Lux starlight full-color night vision, FH8536+GC2053 DSP, 2.8mm lens, IP68 cast metal chassis with visor brow. Designed for bus interiors, passenger observation, and rear fleet view. | 1080P Starlight | 2.8mm Lens | IP68 Metal | DC 12V |
| CC877-AHD20 | 1080P IP68 140° Wide-Angle Vehicle Camera — 140° wide horizontal field of view, 10–15m IR night vision with 4 high-output LEDs, FH8536+GC2053 DSP, ultra-compact 53×35×54mm metal enclosure. Engineered for commercial vehicle blind spot surveillance. | 1080P AHD | 140° Wide Angle | 15m IR | IP68 Metal |
| CC866-AHD20 | 1080P IP68 160° Ultra-Wide Angle Starlight Camera — Ultra-wide 160°~170° panoramic coverage, 1.6mm fisheye/wide lens, 0.01 Lux starlight color sensitivity, robust L72.6mm metal body for heavy trucks and trailers. | 1080P Starlight | 160° Ultra-Wide | 1.6mm Lens | IP68 Metal |
| CC998-AHD20 | 1080P Micro IP68 Dual-Mode Vehicle Camera — Ultra-miniature 30×26×30mm cube form factor, 155° diagonal FOV, 30m deep waterproofing, WiFi & AHD dual connectivity, 240mAh internal backup. Ideal for discreet monitoring and tight cab installs. | 1080P Micro Cube | 155° FOV | 30m Waterproof | WiFi/AHD |
What CC806-IPC400 Delivers
4.0MP digital IP surveillance and open network telematics verified against factory datasheets.
4.0MP QHD Clarity & 24 High-Density IR LEDs
1/2.9" Low-Light Sensor & Dual-Stream H.265+ Compression
- 4.0MP QHD Clarity: 2560×1440 resolution provides forensic facial and cabin details.
- 20m IR Illumination: 24 high-density infrared LEDs ensure crisp surveillance in 0 Lux.
- H.265+ Compression: Reduces bandwidth and storage load by up to 50% without quality loss.
RJ45 ONVIF Network Integration & Multi-Platform Management
Open Digital Telematics Architecture with Hardware Alarm Triggering
- ONVIF Compatibility: Connects seamlessly with IP MDVRs, switches, and fleet CMS platforms.
- Alarm I/O Linkage: Triggers automatic event bookmarks from door sensors or panic buttons.
- Cross-Platform CMS: Live access via mobile apps, web browsers, and enterprise VMS.
Built for Long-Term Fleet Programs
Factory Direct Supply
Devices ship from our own production line, with engineering support from the team that builds them.
Certified & Lab Tested
CE, UKCA, RoHS and ISO 9001 — every platform is backed by third-party laboratory test reports.
15-Month Warranty
Coverage that goes beyond the standard 12-month term, honored through your dedicated account manager.
OEM & Firmware Support
Logo, packaging, firmware behavior and interface customization for your market and fleet platform.
From Inquiry to Delivery in Four Steps
A clear path from first contact to units running in your fleet — no obligation at the evaluation stage.
Share Your Requirements
Send fleet size, vehicle models and target functions through the inquiry form or to your account manager.
Version & Quotation
Our engineers map your needs to the right CC806-IPC400 version and issue a formal quotation within one business day.
Sample Evaluation
Sample units are available for road testing before you commit to a bulk order — evaluate first, decide later.
Production & Delivery
Bulk orders ship with factory QC reports, export documents and the 15-month warranty from dispatch.
Documents & Downloads
Everything your engineering and procurement teams need for evaluation.
Product Datasheet
Full specifications and ordering information — request the current CC806-IPC400 datasheet.
Request DatasheetCertificates & Test Reports
Certification and third-party laboratory reports for the selected version and target market.
Request CertificatesUser Manual & Installation Guide
Wiring, mounting and configuration instructions — provided with sample orders.
Request ManualCMS Software & Demo
Platform access for evaluation — connect supported configurations to a live demo fleet.
Request Demo AccessComplete the In-Vehicle Safety Stack
Product families commonly deployed alongside CC806-IPC400 in the same fleet stack.
CC998-AHD20 Waterproof Wi-Fi Vehicle Camera
Model CC998-AHD20 — Vehicle Camera for commercial fleets.
CC995-AHD20 IP69K Explosion-Proof Vehicle Camera
Model CC995-AHD20 — Vehicle Camera for commercial fleets.
CC866-AHD20 Starlight Camera for Commercial Fleets
Model CC866-AHD20 — Vehicle Camera for commercial fleets.
Frequently Asked Questions
Can't find your answer? Our engineers reply within one business day — email safety@alwaycare.com or send an inquiry.
Which connectivity options are available?
CC806-IPC400 supports vehicle-grade connectivity. Map the interfaces to your onboard systems before ordering.
Which warranty applies?
CC806-IPC400 ships with a 15 Months warranty. Confirm the final terms and regional service coverage in your quotation.
What vehicles does it fit?
Suitable for commercial vehicles — mounting positions and camera coverage must be designed for the specific vehicle layout.
Are all listed features standard on every unit?
No. Detection coverage, connectivity and camera options are configuration-dependent. Confirm the exact scope in the quotation — our engineers will recommend the right version for your vehicles.
