MR920-360D 8-Channel AI MDVR with 360° Around View and DSM

MR920-360D 8-Channel AI MDVR with 360° Around View and DSM
Share
CategoriesAI MDVR
BrandAlwayCare Commercial Fleet Safety Manufacturer
Product SpecificationsMR920-360D
Channels8-channel AHD MDVR
Video InputAHD 1080P, 960P, 720P, D1; H.265 / H.264 encoding
Storage1 HDD up to 4TB + 1 SD card up to 512GB
Video Output1 CVBS + 1 VGA
Interfaces8 IO in, 1 IO out, 1 USB, 1 MIC, 1 RS232, 1 RS485
NetworkingGPS and WiFi (4G module optional)
AI Functions360° around-view recording; the fisheye cameras also cover blind spot monitoring
AI Function 2DSM: fatigue, yawning, distraction, no face, smoking, phone use, overspeed, IR blocking
AI Function 2 (2)camera blocking, camera fault, no mask, driver ID
Included Cameras4 fisheye cameras, 1 DSM camera
SetupPhone app for installation, recording and alarm settings
Warranty15 Months
MR920-360D is an 8-channel AI MDVR with 360° around-view recording and DSM, GPS, WiFi, and HDD plus SD card storage.
Detail Information

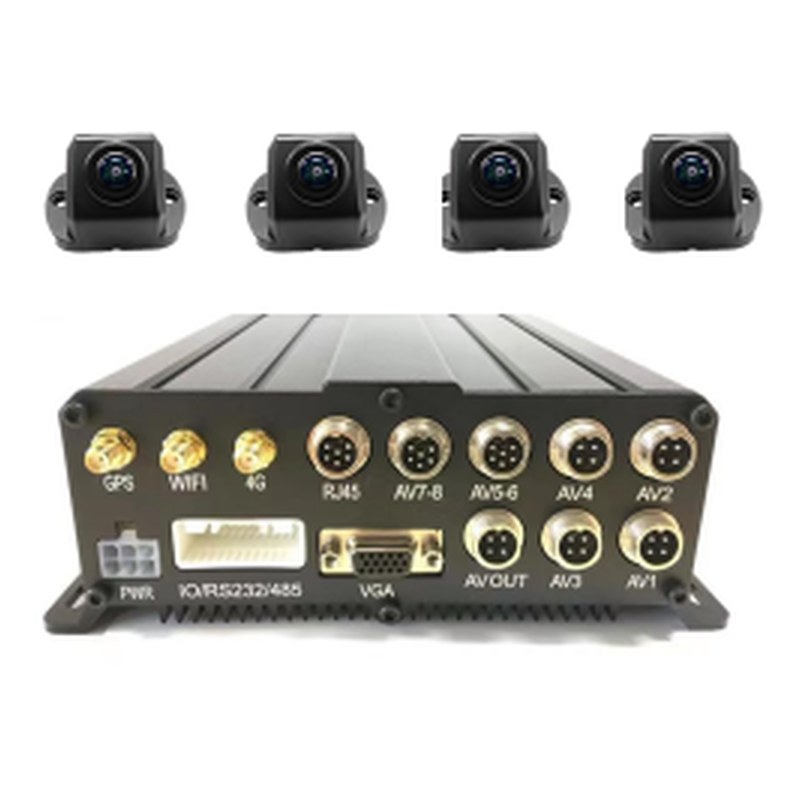

MR920-360D image 1
AI MDVR

MR920-360D 8-Channel AI MDVR with 360° Around View and DSM

MR920-360D

MR920-360D is an 8-channel AI MDVR with 360° around-view recording and DSM, GPS, WiFi, and HDD plus SD card storage.

Storage1 HDD up to 4TB + 1 SD card up to 512GB
Channels8-channel AHD MDVR
Video InputAHD 1080P, 960P, 720P, D1; H.265 / H.264 encoding
Video Output1 CVBS + 1 VGA
Interfaces8 IO in, 1 IO out, 1 USB, 1 MIC, 1 RS232, 1 RS485
NetworkingGPS and WiFi (4G module optional)
↓ Request datasheet
  • 15-month warranty
  • IATF 16949 certified factory
  • OEM / ODM customization
  • Suitable for all vehicles

Final configuration is confirmed in your quotation.

Overview

What MR920-360D Delivers

MR920-360D is an 8-channel AI MDVR with 360° around-view recording and DSM, GPS, WiFi, and HDD plus SD card storage.

MR920-360D unit
Overview

MR920-360D 8-Channel AI MDVR with 360° Around View and DSM

MR920-360D is an 8-channel AI MDVR with 360° around-view recording and DSM, GPS, WiFi, and HDD plus SD card storage.

  • Channels: 8-channel AHD MDVR
  • Video Input: AHD 1080P, 960P, 720P, D1; H.265 / H.264 encoding
  • Storage: 1 HDD up to 4TB + 1 SD card up to 512GB
  • Video Output: 1 CVBS + 1 VGA
Models

AI MDVR Models

Compare MR920-360D with other models in this category. Each model has its own page.

ModelProductKey specVoltage
MR920-360Dthis pageMR920-360D 8-Channel AI MDVR with 360° Around View and DSM1 HDD up to 4TB + 1 SD card up to 512GB—
MR920-360BMR920-360B 9-Channel AI MDVR with 360° Panoramic AVM & BSD Monitoring4G LTE + GPS/BDS + Wi-FiDC 9V - 36V Vehicle Power
MR920-360BAMR920-360BA 9-Channel AI MDVR (360° AVM + BSD)4G LTE + GPS/BDS + Wi-FiDC 9V - 36V Vehicle Power
MR920-360BDMR920-360BD 8-Channel AI MDVR with 360° View, 4-Channel BSD and DSM1 HDD up to 4TB + 1 SD card up to 512GB—
MR920-360DAMR920-360DA 8-Channel AI MDVR with 360° Around View, DSM and ADAS1 HDD up to 4TB + 1 SD card up to 512GB—
MR920-360DAB2MR920-360DAB2 8-Channel AI MDVR with 360°, ADAS, DSM and 2-Channel BSD1 HDD up to 4TB + 1 SD card up to 512GB—
MR920-360EDABMR920-360EDAB 8-Channel AI MDVR with 360°, ADAS, DSM, EDSM and BSD1 HDD up to 4TB + 1 SD card up to 512GB—
MR920-AMR920-A 8-Channel AI MDVR with ADAS1 HDD up to 4TB + 1 SD card up to 512GB—
Specifications

Technical Specifications

Values follow the product page. Your quotation confirms the exact configuration.

Video and display

Channels
8-channel AHD MDVR
Video Input
AHD 1080P, 960P, 720P, D1; H.265 / H.264 encoding
Video Output
1 CVBS + 1 VGA
Included Cameras
4 fisheye cameras, 1 DSM camera

Connectivity and interfaces

Interfaces
8 IO in, 1 IO out, 1 USB, 1 MIC, 1 RS232, 1 RS485

Power and hardware

Storage
1 HDD up to 4TB + 1 SD card up to 512GB
Warranty
15 Months

Other specifications

Networking
GPS and WiFi (4G module optional)
AI Functions
360° around-view recording; the fisheye cameras also cover blind spot monitoring
AI Function 2
DSM: fatigue, yawning, distraction, no face, smoking, phone use, overspeed, IR blocking
AI Function 2 (2)
camera blocking, camera fault, no mask, driver ID
Setup
Phone app for installation, recording and alarm settings
Need the full engineering datasheet?Request the datasheet →
Downloads

Documents

Files that exist for this model can be downloaded. The others are available from our engineers on request.

Product datasheetOn request
Request
Certificates and test reportsOn request
Request
User manual and installation guideOn request · provided with sample orders
Request
FAQ

Frequently Asked Questions

Need technical clarification? Email safety@alwaycare.com or send an inquiry.

What AI functions does MR920-360D include?

360° around-view recording and DSM driver monitoring.

Does MR920-360D alert only?

Yes. The AI functions alert the driver and do not control the vehicle.

Does it include 4G?

4G is optional. The standard configuration lists GPS and WiFi.

Which warranty applies?

MR920-360D ships with a 15-month manufacturer warranty. Confirm final terms and regional service coverage in your quotation.
