Home / All / Vehicle Monitor / DP312 7" HD Commercial Vehicle Monitor with VGA & CVBS Dual Input

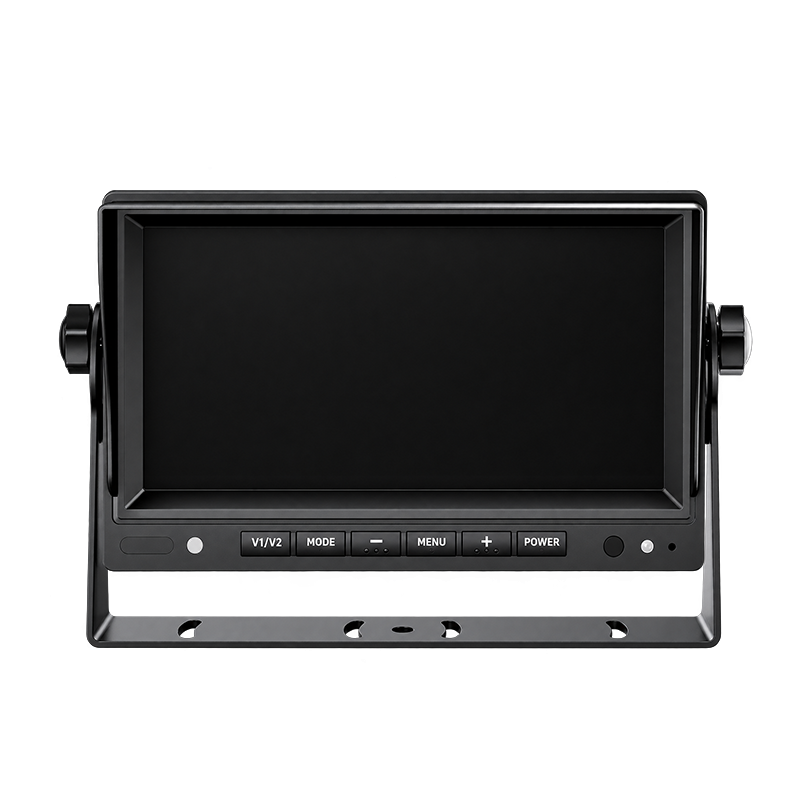

DP312 7" HD Commercial Vehicle Monitor with VGA & CVBS Dual Input

Share
Categories	Vehicle Monitor
Brand	AlwayCare Commercial Fleet Safety Manufacturer
Model	DP312
Display size	7.0 inch
Display ratio	16:9 Widescreen
Resolution	1024x600 HD
Brightness	500 cd/m2 Anti-Glare
Operating Voltage	DC 9V - 36V Wide Voltage
Video Inputs	1/2 Channels (Reversing Priority)
Video system	PAL / NTSC Auto-Adaptation
Enclosure Material	Flame-Retardant PC + ABS

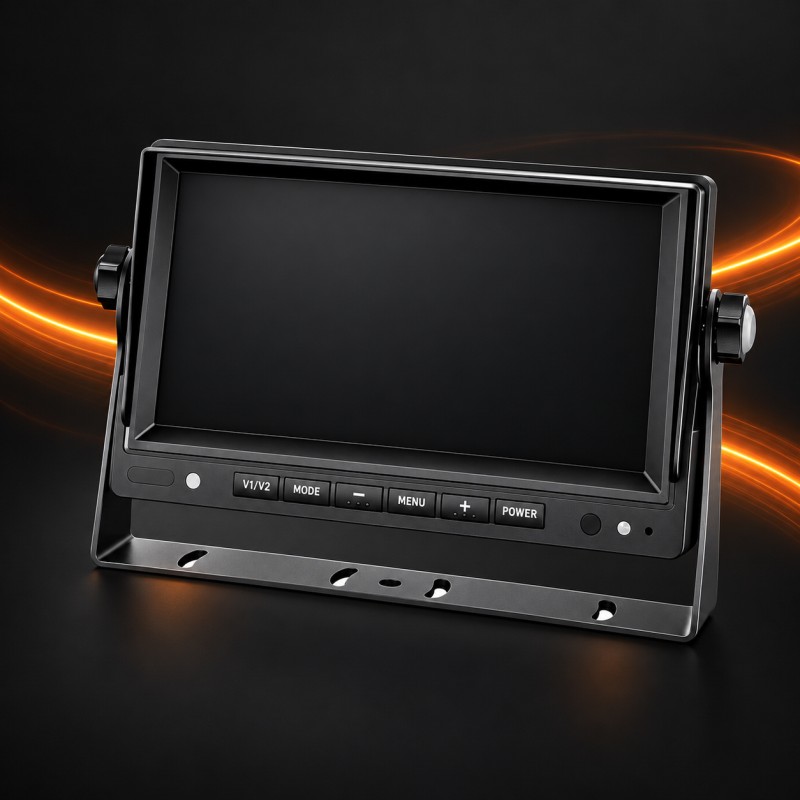

Operating Temperature	-20℃ ~ +70℃

Contact Now

Add to Wishlist

Detail Information

DP312 · Commercial fleet safety

What is DP312?

Industrial 7-inch HD vehicle monitor supporting both VGA and CVBS video inputs, 1024x600 resolution, 500 cd/m² brightness, and DC 9-36V wide voltage for in-cab MDVR and camera display.

Discuss your configuration Compare models

Fast evaluation

Four points to confirm first

Commercial reliability

Engineered for high vibration, wide voltage fluctuations, and continuous fleet duty.

Clear visibility

Delivers crisp video clarity for in-cab reversing, multi-view surveillance, and blind spot awareness.

DC 9-36V wide voltage

Standardized vehicle electrical system compatibility with built-in surge protection.

Locking aviation connector

Threaded 4-pin aviation connection prevents signal dropouts during rugged road operations.

Verified capabilities

How DP312 supports fleet operations

Accident prevention

Provides critical real-time visual support to prevent maneuvering and backing collisions.

Easy in-cab fit

Compact and rugged form factor designed for straightforward dashboard or windshield mounting.

All-weather durability

Withstands severe heat, cold (-20°C to +70°C), and cabin dust without performance degradation.

Turnkey integration

Seamlessly pairs with AlwayCare cameras, MDVR recorders, and power harnesses.

Factory specifications

Technical specifications

Model Designation	DP312
Screen Size & Aspect Ratio	7.0 Inch Digital TFT-LCD \| 16:9
Native Resolution	1024 × 600 HD
Luminance / Brightness	500 cd/m² Anti-Glare
Operating Voltage	DC 9V – 36V Wide Voltage
Power Consumption	≤ 6.0 Watts (Low Heat Build)
Video Input Channels	1/2 Channels (Auto Reversing Priority)
Video Signal System	PAL / NTSC Auto-Detection
Enclosure & Protection	Flame-Retardant PC + ABS
Operating Temperature	-20℃ ~ +70℃ (-4°F ~ +158°F)

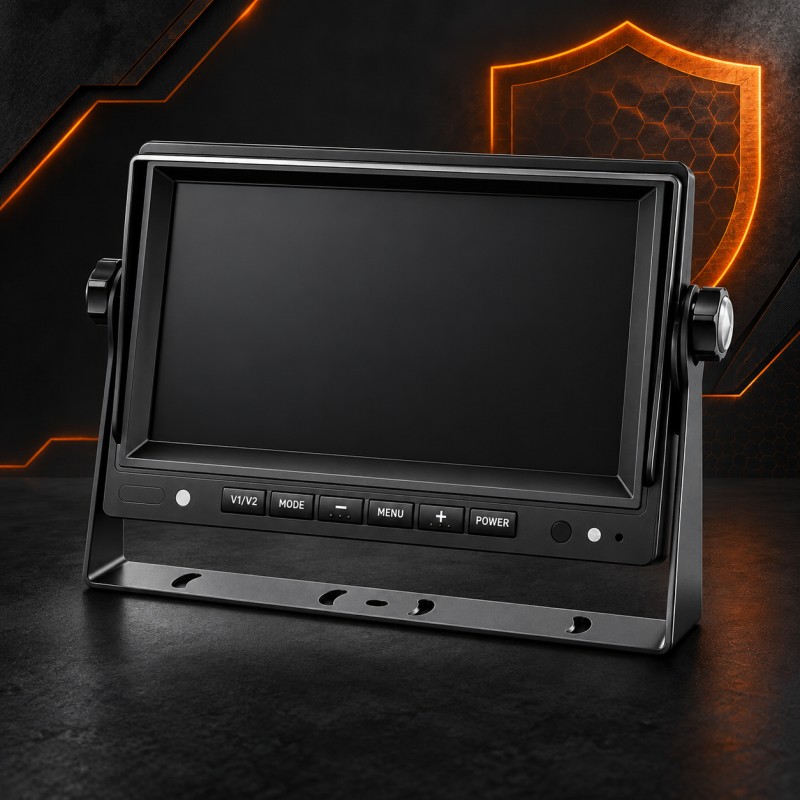

Warranty	18 Months Manufacturer Warranty

Specifications describe standard AlwayCare factory configurations. Custom connectors, cable lengths, and private-label OEM options are fully supported in volume quotations.

Deployment examples

Where DP312 fits

Last-Mile Delivery Vans

Compact 4.3" and 7" in-cab monitors deliver unobstructed reversing clarity in congested alleys.

Refrigerated Box Trucks

Monitor cargo temperature sensors and blind spot pedestrians during urban loading dock stops.

Commercial Utility Vehicles

Wide-angle backup cameras trigger instantly when shifting into reverse for rapid stop-and-go jobs.

Project planning

What should be confirmed before installation?

Use this checklist to align hardware options, interface types, and vehicle layout before deployment.

1
Confirm vehicle operating voltage (12V / 24V / 36V / 90V).
2
Select required camera channels and cable lengths (5M / 10M / 15M / 20M).
3
Determine mounting location (A-pillar, dashboard bracket, or windshield suction mount).
4
Calibrate camera viewing angles and verify reverse trigger line connections.

Safety and configuration boundary

DP312 provides driver visual assistance and active alerts; operators must maintain vigilance and follow standard commercial driving safety protocols.

Buyer questions

DP312 FAQ

Is DP312 compatible with existing fleet electrical systems?

Yes, it supports DC 9V to 36V wide voltage input with built-in surge protection, making it compatible with 12V vans, 24V trucks, and industrial equipment.

What connector type is used?

Standard versions utilize 4-Pin aviation screw-locking connectors for vibration resistance. RCA adapters and custom harnesses are available upon request.

Can I request custom branding or OEM packaging?

Yes. AlwayCare provides complete OEM/ODM solutions including customized startup logos, silkscreen housing branding, and tailored accessory packaging for volume orders.

Build the correct configuration

Share your vehicle and fleet requirements

Tell AlwayCare your vehicle model, fleet size, camera channel preferences, and custom project requirements for a competitive factory quote.
