Vehicle Positioning Solutions for Fleet Management

Q: How does the AlwayCare vehicle positioning system achieve high tracking accuracy in challenging environments?

The system utilizes concurrent multi-constellation GNSS receiver chips supporting GPS, BeiDou (BDS), GLONASS, and Galileo simultaneously. With multi-frequency satellite tracking and advanced dead reckoning (DR) algorithms powered by an internal 6-axis IMU accelerometer and gyroscope, the unit maintains accurate speed and positional trajectory continuity even when satellite signals are temporarily degraded by deep urban canyons, elevated expressways, tunnels, or dense tree canopies.

Q: What happens if a vehicle enters an area with no 4G cellular coverage or underground parking?

When cellular connectivity is lost, the tracking terminal automatically initiates local non-volatile flash memory storage, caching up to 50,000 GPS breadcrumb coordinates, ignition events, and alarm triggers. As soon as the vehicle re-enters an area with 4G LTE coverage, the queued positioning telemetry is systematically uploaded to the cloud server chronologically without data loss, ensuring unbroken historical route logs.

Q: How does the electronic geofencing and anti-theft immobilization feature work in practice?

Fleet managers can configure polygonal or circular virtual geofences through the cloud software. When an unauthorized perimeter breach, route diversion, or towing motion is detected, the device triggers instantaneous SMS and cloud push notifications. Through the platform or mobile application, managers can transmit an authenticated remote immobilization command to actuate the vehicle's electronic fuel pump or starter relay, safely preventing restart once vehicle speed falls below a safe 20 km/h threshold.

Q: Can the positioning data and video telematics integrate with our existing TMS or ERP platforms?

Yes. AlwayCare telematics devices support industry-standard protocols including JT/T808, JT/T1078, MQTT, and HTTP/RESTful APIs. Our engineering team provides comprehensive API documentation and SDKs for rapid bilateral data synchronization with leading third-party fleet platforms such as Wialon, Navixy, Traccar, CMSV6, or custom enterprise transport management software (TMS).

Q: What anti-tampering and power surge protection mechanisms are built into the hardware?

All hardware units are engineered to comply with ISO 7637-2 electrical transient specifications, featuring integrated TVS surge suppressors, reverse polarity diodes, and over-voltage cutoff up to DC 100V. Additionally, the tracking terminal is equipped with a tamper-detection microswitch and internal rechargeable backup lithium battery (450mAh) that continues broadcasting GPS telemetry for up to 6 hours if vehicle power lines are intentionally severed.

Q: Does the system support fuel level monitoring and refrigerated temperature tracking?

Yes. The terminals feature dedicated RS485 / RS232 serial interfaces, analog inputs, and built-in BLE 5.0 wireless connectivity. Fleets can connect external ultrasonic fuel level sensors (mounted non-invasively to the fuel tank exterior) to track fuel volumes and siphoning events with 1mm accuracy, as well as pair wireless BLE temperature and humidity probes for continuous cold-chain reefer monitoring.

25-Year Manufacturer of Commercial Vehicle Safety Solutions

Language:

English

Vehicle Positioning Solutions for Fleet Management | AlwayCare

< 2.5m

High-Precision GNSS

Multi-constellation GPS / BeiDou / GLONASS / Galileo real-time vehicle tracking

4G / 5G

Real-Time Telematics

Sub-second latency route tracking, speed monitoring, and mileage telemetry upload

180-Day

Cloud Trajectory History

Complete route replay, unauthorized stop detection, and historical fuel audit logs

IP67 Rating

Automotive Standard

Anti-tamper enclosure, wide DC 9–36V surge proof, and remote cut-off relay defense

Core Capabilities

Precision Vehicle Positioning & Real-Time Fleet Control

AlwayCare multi-constellation GNSS trackers and AI video telematics terminals deliver continuous visibility, anti-theft defense, and predictive dispatching for heavy commercial transport operations.

01

Multi-Constellation GNSS Real-Time Positioning

→

Harnesses high-sensitivity multi-system satellite engines (GPS + BeiDou + GLONASS + Galileo) to maintain sub-2.5m CEP accuracy. Delivers continuous location, heading, and speed updates even through dense urban street canyons, tunnels, and remote mountain highways.

02

Historical Trajectory Playback & Route Audit

→

Stores up to 180 days of granular driving trajectory logs, stop point timestamps, idling durations, and acceleration profiles. Empowers fleet managers to conduct forensic route verification, audit driver adherence to designated transit lanes, and resolve client delivery disputes.

03

Electronic Geofencing & Anti-Theft Security

→

Enables custom polygonal virtual geofences around logistics hubs, customer yards, and restricted zones. Triggers instant push notifications upon unauthorized perimeter entry/exit, route deviation, external power tampering, or illegal vehicle towing with remote fuel cut-off defense.

04

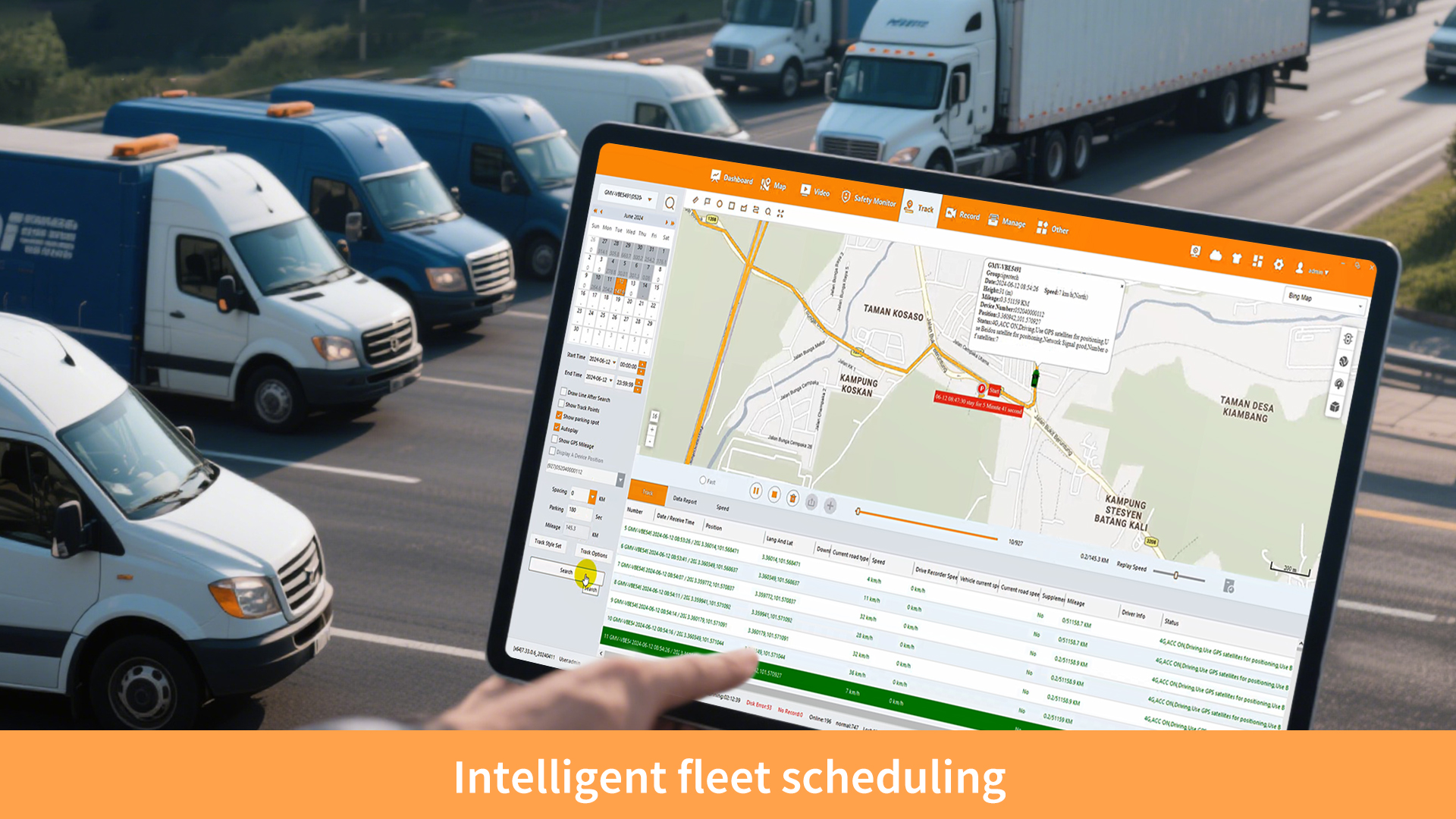

Intelligent Fleet Scheduling & Fuel Telematics

→

Integrates high-precision ultrasonic fuel level sensors and CAN-bus telemetry with real-time positioning. Identifies abnormal fuel siphoning, excessive engine idle, and aggressive driving behaviors, significantly reducing fleet operating costs and carbon emissions.

Commercial vehicle high-precision multi-constellation GNSS positioning

Sub-2.5m Multi-Constellation GNSS PositioningReal-time multi-satellite tracking across GPS, BeiDou, GLONASS, and Galileo constellations.

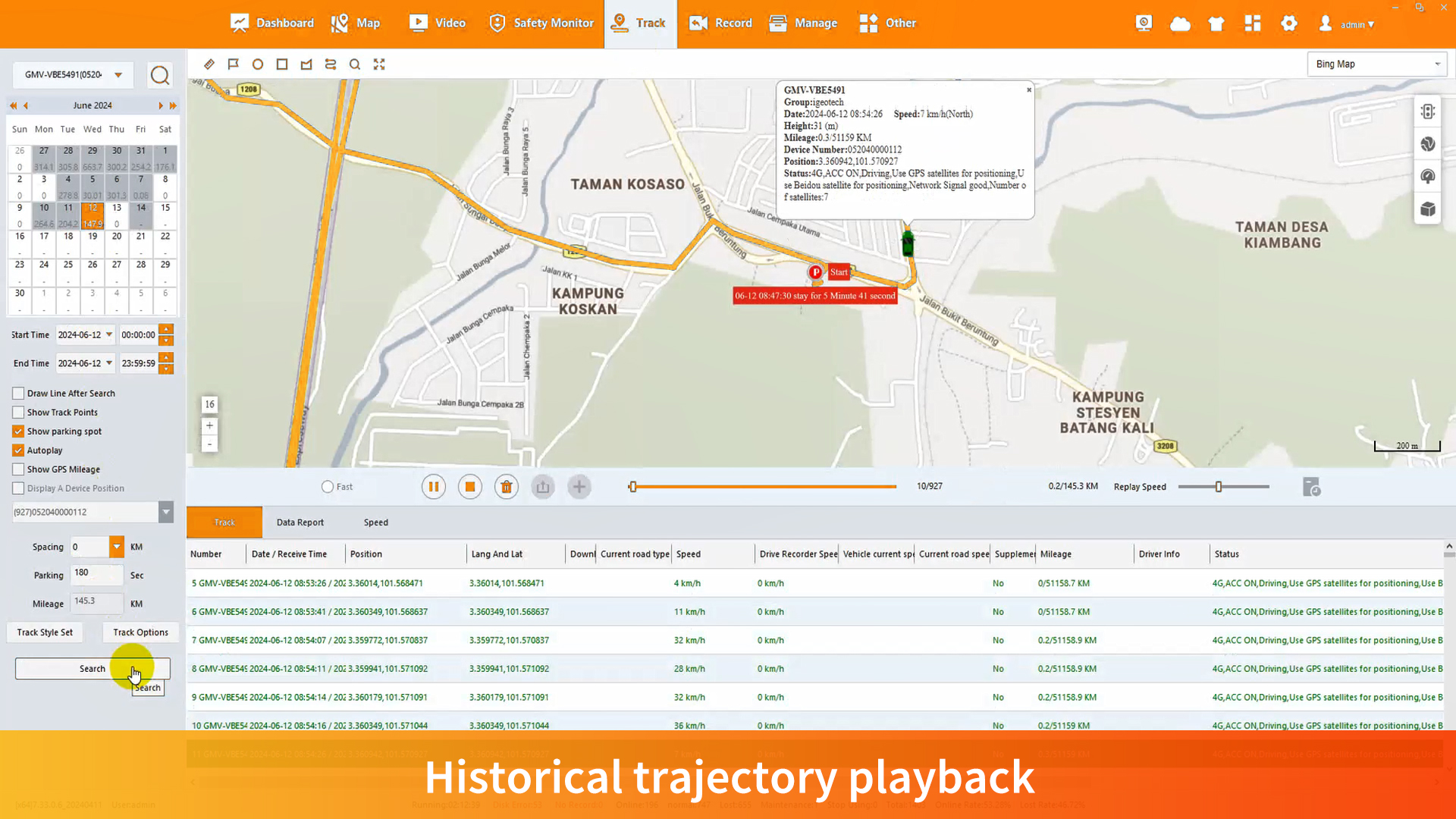

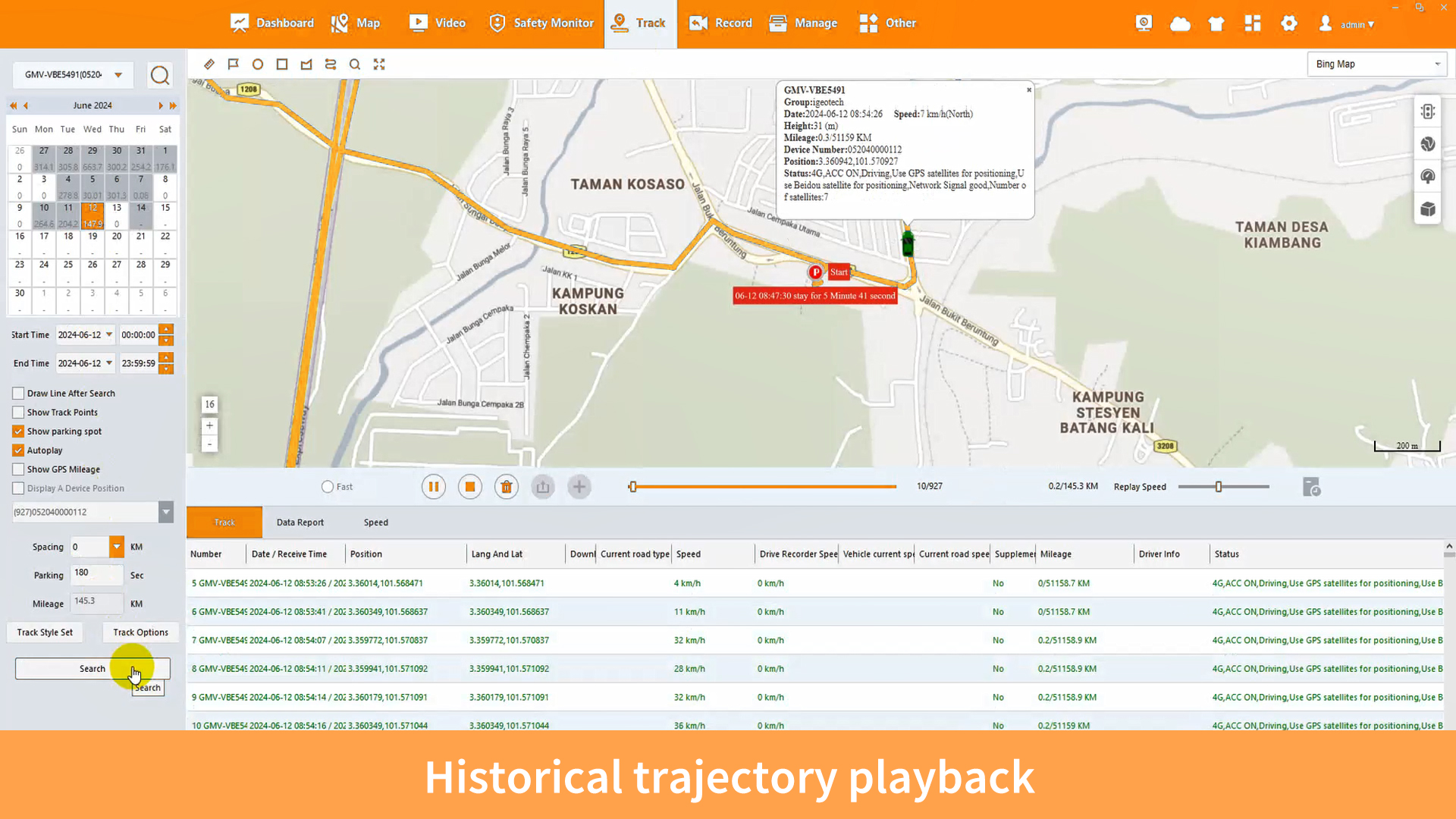

Fleet historical trajectory playback and breadcrumb route audit

Long-Term Route & Waypoint ReconstructionUp to 180 days of granular historical breadcrumbs, idling duration logs, and speed analytics.

Electronic geofencing virtual perimeter and anti-theft security alarm

Polygon Geofencing & Instant Tamper DefenseAutomated alerts upon virtual boundary breach, route diversion, power cut-off, or towing.

Centralized intelligent fleet telematics and fuel dispatch management

Connected Telematics & Fuel OptimizationIntegrates fuel volume monitoring, idle time reduction, and centralized multi-protocol cloud dispatch.

Deployment Architectures

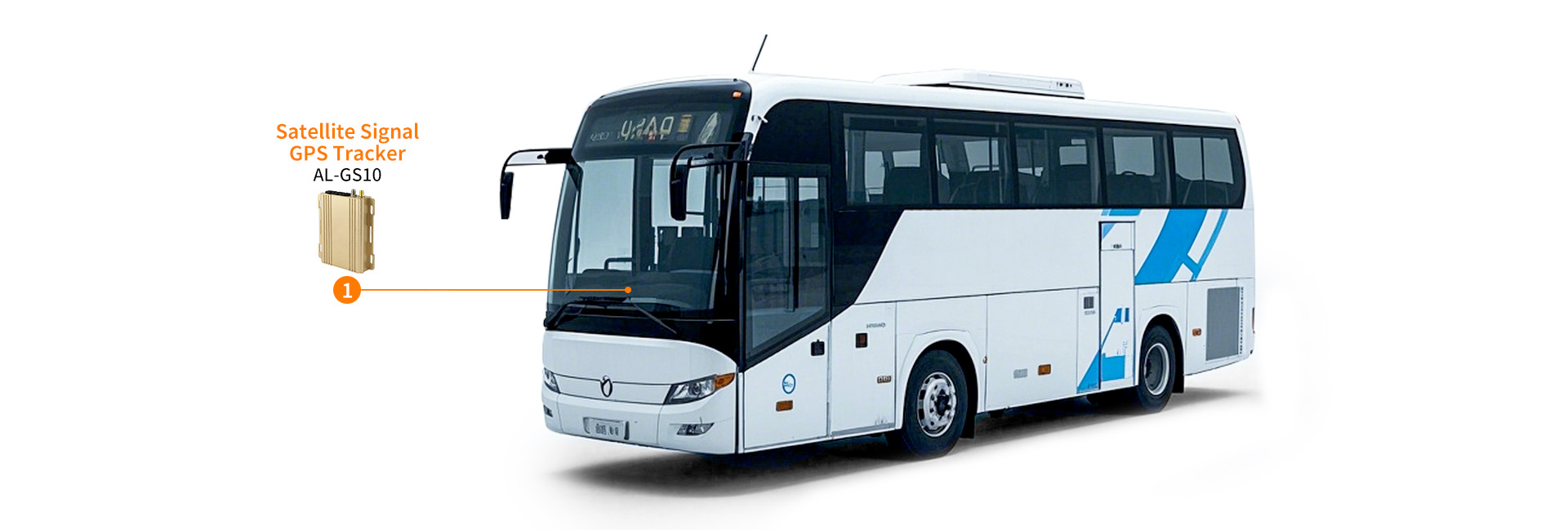

Vehicle Positioning System Wiring Architecture & Hardware BOM

Automotive-grade wiring schematic connecting multi-constellation GNSS antennas, telematics controllers, external sensors, and 4G cloud fleet dispatch. Click the schematic below to inspect the full-resolution architecture.

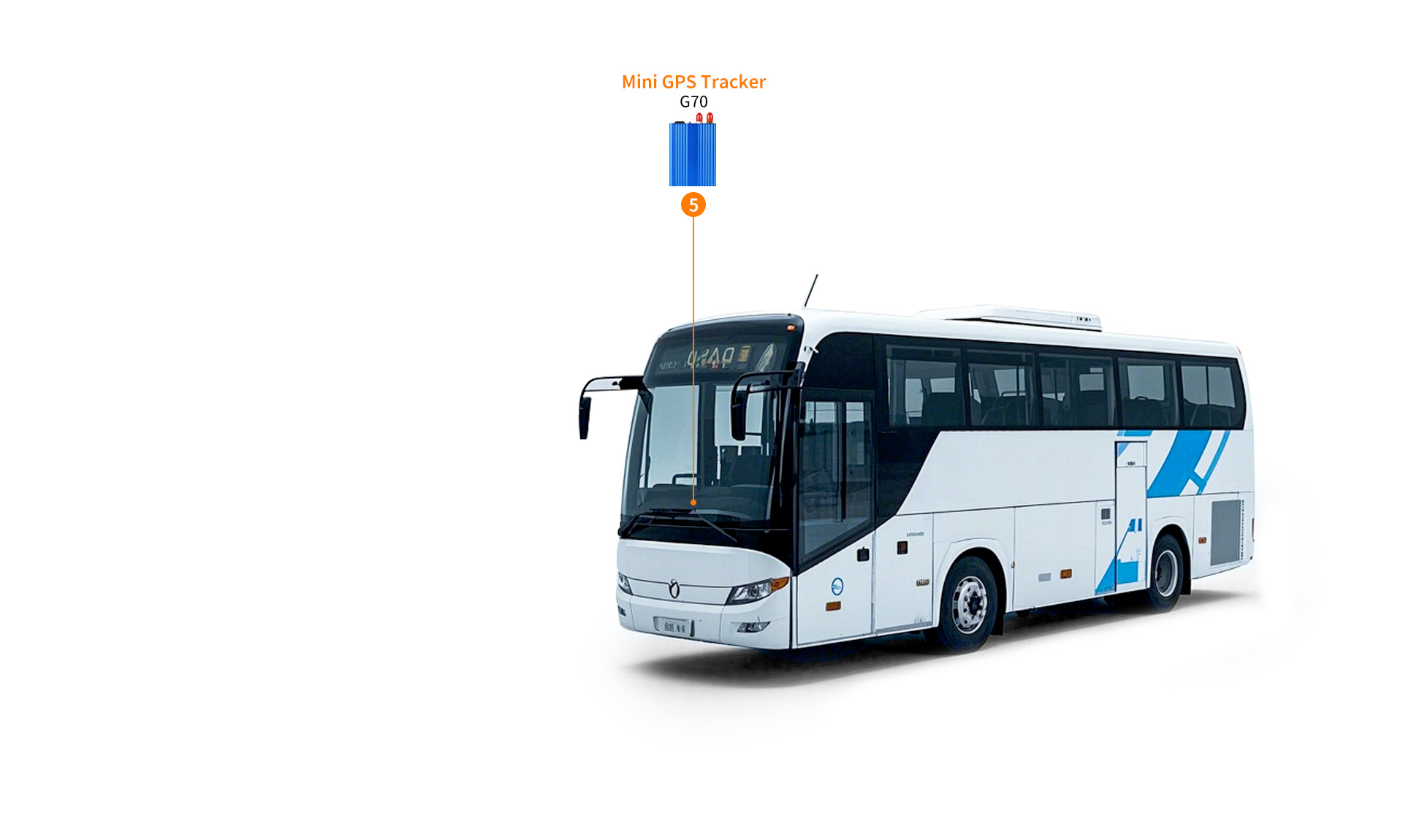

AlwayCare vehicle positioning system wiring architecture and telematics sensor layout

Click to inspect full resolution architecture

No.	System Subsystem	Recommended Model	Key Technical Specifications	Operational Role
01	Positioning Terminal	AL-GS10 / G402 Tracker	Multi-constellation GNSS, 4G LTE-M, 450mAh backup battery, IP67 waterproof	Primary satellite positioning, breadcrumb logging, and cloud data upload
02	AI Video MDVR Host	MR920 8-Channel AI MDVR	8-CH 1080P, Quad-core NPU, 4G/GPS, 2TB SSD + SD redundant storage	Video telematics integration, multi-camera recording, and live streaming
03	High-Gain GNSS Antenna	ANT-GNSS01 Active Antenna	GPS/BeiDou/GLONASS dual-band, LNA 28dB gain, magnetic/screw mount	Rapid satellite acquisition and uninterrupted satellite signal lock
04	Remote Cut-Off Relay	RL-1224 Automotive Relay	12V/24V 40A heavy-duty opto-isolated relay with flyback diode	Remote fuel pump and starter circuit immobilization upon theft alert
05	Ultrasonic Fuel Sensor	FLS-ULT02 Fuel Sensor	Non-invasive external bottom mount, 1mm precision, RS485 / 0–5V output	Real-time fuel volume measurement, fuel consumption analysis, and siphoning alarm
06	Temperature Sensor Probe	TS-BLE01 Wireless Sensor	BLE 5.0 wireless, -40°C to +85°C range, 5-year internal battery	Refrigerated cargo temperature compliance logging and excursion alert
07	Driver In-Cab Display	DP230 7-Inch IPS Monitor	1000 nits high-brightness, quad-split screen, DC 9–36V surge proof	Driver navigation guidance, dispatch messaging, and camera video display
08	Armored Wiring Harness	GX12 & ISO Harness Kit	Flame-retardant automotive shielded cables with inline fuse and surge diode	Stable, vibration-proof power, sensor data, and trigger signal transmission

Cross-Industry Matrix

Explore Other Commercial Fleet Safety Solutions

Comprehensive AI active safety vision and sensor telematics engineered for diverse commercial vehicle fleets.

AlwayCare commercial vehicle AI 360 degree detection solution

Perimeter Vision

AI 360° Around View (AVM)

Eliminate commercial truck blind zones with real-time bird's-eye panoramic surround view and VRU pedestrian alerts.

Explore Solution→

AlwayCare commercial vehicle AI blind spot detection solution

Blind Spot Safety

AI Blind Spot Detection (BSD)

Proactive dual-side and rear pedestrian hazard warnings compliant with UN ECE R151 and London DVS safety mandates.

Explore Solution→

Driver Vigilance

Anti-Fatigue Driving (DSM)

940nm biometric eye-tracking, real-time microsleep and distraction alerts to prevent fatigue-induced collisions.

Explore Solution→

AlwayCare commercial logistics fleet safety solutions

Commercial Freight

Logistics & Freight Fleet

Integrated AI MDVR telematics, dual-side blind spot pedestrian detection, anti-theft fuel sensors, and cloud dispatch.

Explore Solution→

FIELD APPLICATION PROFILES

Vehicle Positioning & Fleet Telematics Deployment Scenarios

Examine how commercial transport fleets, cold-chain distributors, and municipal service operations deploy AlwayCare GNSS tracking and telemetry hardware.

Commercial vehicle fleet GPS tracking and fuel telematics deployment

INTERSTATE LOGISTICS CORRIDORS

Interstate Freight Fleet Route Tracking & Mileage Logging

Long-haul freight operators deploy multi-constellation GNSS trackers paired with CAN bus interfaces. Real-time location feeds combined with automated route deviation alerts support dispatch scheduling and verified mileage tracking across interstate transit corridors.

Dual-Band GNSS • JT/T808 Protocol

Cold chain reefer fleet temperature and GPS positioning tracking

TEMPERATURE-CONTROLLED LOGISTICS

Cold-Chain Distribution Telemetry & Cargo Monitoring

Perishable distribution fleets combine GNSS tracking units with wireless BLE temperature sensors. Continuous temperature and location logging allows fleet operators to track cargo conditions throughout multi-stop urban and regional delivery routes.

BLE Sensor • Real-Time Cloud Sync

Municipal street sweeper sanitation fleet geofencing deployment

MUNICIPAL SERVICE FLEETS

Municipal Service Route Verification & Geofence Management

Municipal utility and sanitation vehicles utilize automated polygonal geofencing and historical trajectory logging. Visual map overlays verify service zone completion and provide structured operating data for municipal fleet administration.

Polygonal Geofence • 180-Day History

Commercial-Grade Hardware

Core Positioning & Telematics Hardware

Automotive-grade GNSS tracking terminals, AI mobile DVRs, starlight cameras, and daylight-readable in-cab monitors built for high-demand fleet environments.

G402 4G GPS and BeiDou vehicle tracking terminal

4G GNSS Terminal

G402 4G GPS Fleet Tracker

Multi-constellation GPS/BeiDou vehicle positioning terminal with IP67 waterproof enclosure, remote cut-off relay, and BLE 5.0 wireless sensor link.

View Product Details

AI Video Telematics

MR920 8-Channel AI MDVR

8-CH Full HD mobile video recording host with high-performance NPU for 360° BSD, ADAS, and DSM. Supports 2.5" SSD/HDD up to 2TB, 4G LTE, and GPS/BDS live tracking.

View Product Details

Starlight AI Camera

CC1004-BSD AI Camera

Automotive 1080P starlight CMOS sensor with embedded deep learning for dynamic pedestrian and blind spot hazard recognition. IP69K waterproof rating.

View Product Details

Driver In-Cab Display

DP230 7-Inch Fleet Monitor

1000 nits daylight-readable IPS screen, split/quad display modes, instant reverse & turn signal trigger, anti-glare casing, and DC 9–36V surge protection.

View Product Details

Frequently Asked Questions

Vehicle Positioning & Telematics Technical FAQs

Direct technical answers for commercial fleet managers, logistics directors, and systems integration engineers.

How does the AlwayCare vehicle positioning system achieve high tracking accuracy in challenging environments?

The system utilizes concurrent multi-constellation GNSS receiver chips supporting GPS, BeiDou (BDS), GLONASS, and Galileo simultaneously. With multi-frequency satellite tracking and advanced dead reckoning (DR) algorithms powered by an internal 6-axis IMU accelerometer and gyroscope, the unit maintains accurate speed and positional trajectory continuity even when satellite signals are temporarily degraded by deep urban canyons, elevated expressways, tunnels, or dense tree canopies.

What happens if a vehicle enters an area with no 4G cellular coverage or underground parking?

When cellular connectivity is lost, the tracking terminal automatically initiates local non-volatile flash memory storage, caching up to 50,000 GPS breadcrumb coordinates, ignition events, and alarm triggers. As soon as the vehicle re-enters an area with 4G LTE coverage, the queued positioning telemetry is systematically uploaded to the cloud server chronologically without data loss, ensuring unbroken historical route logs.

How does the electronic geofencing and anti-theft immobilization feature work in practice?

Fleet managers can configure polygonal or circular virtual geofences through the cloud software. When an unauthorized perimeter breach, route diversion, or towing motion is detected, the device triggers instantaneous SMS and cloud push notifications. Through the platform or mobile application, managers can transmit an authenticated remote immobilization command to actuate the vehicle's electronic fuel pump or starter relay, safely preventing restart once vehicle speed falls below a safe 20 km/h threshold.

Can the positioning data and video telematics integrate with our existing TMS or ERP platforms?

Yes. AlwayCare telematics devices support industry-standard protocols including JT/T808, JT/T1078, MQTT, and HTTP/RESTful APIs. Our engineering team provides comprehensive API documentation and SDKs for rapid bilateral data synchronization with leading third-party fleet platforms such as Wialon, Navixy, Traccar, CMSV6, or custom enterprise transport management software (TMS).

What anti-tampering and power surge protection mechanisms are built into the hardware?

All hardware units are engineered to comply with ISO 7637-2 electrical transient specifications, featuring integrated TVS surge suppressors, reverse polarity diodes, and over-voltage cutoff up to DC 100V. Additionally, the tracking terminal is equipped with a tamper-detection microswitch and internal rechargeable backup lithium battery (450mAh) that continues broadcasting GPS telemetry for up to 6 hours if vehicle power lines are intentionally severed.

Does the system support fuel level monitoring and refrigerated temperature tracking?

Yes. The terminals feature dedicated RS485 / RS232 serial interfaces, analog inputs, and built-in BLE 5.0 wireless connectivity. Fleets can connect external ultrasonic fuel level sensors (mounted non-invasively to the fuel tank exterior) to track fuel volumes and siphoning events with 1mm accuracy, as well as pair wireless BLE temperature and humidity probes for continuous cold-chain reefer monitoring.
