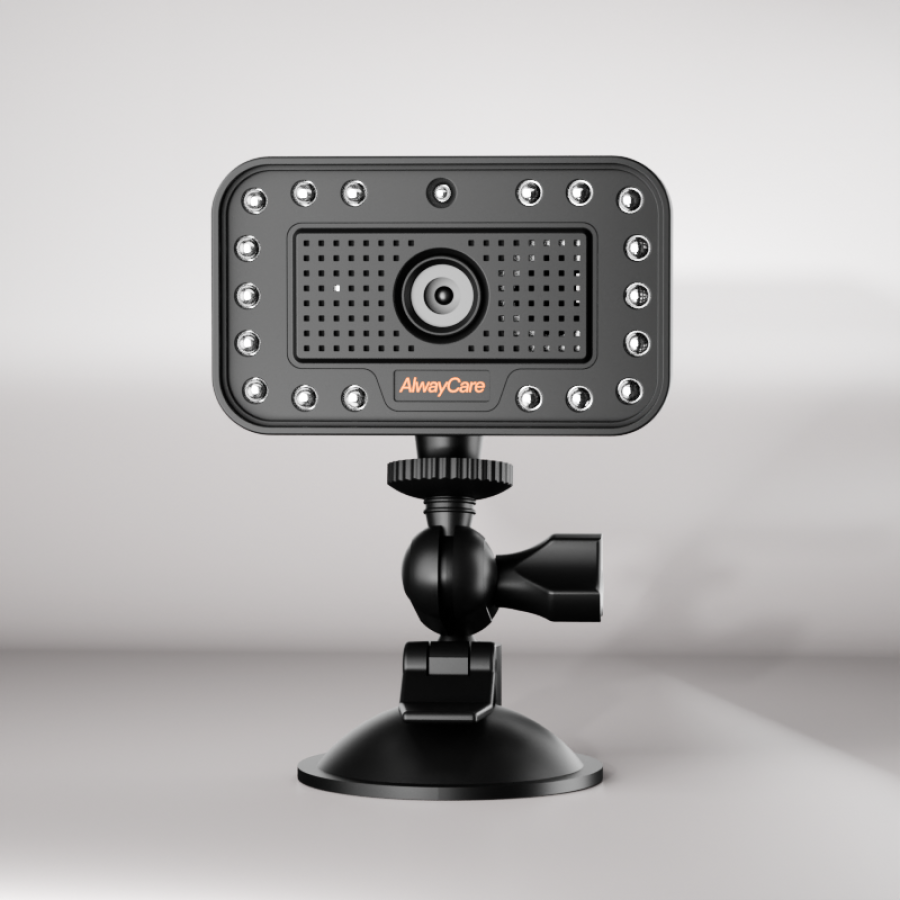

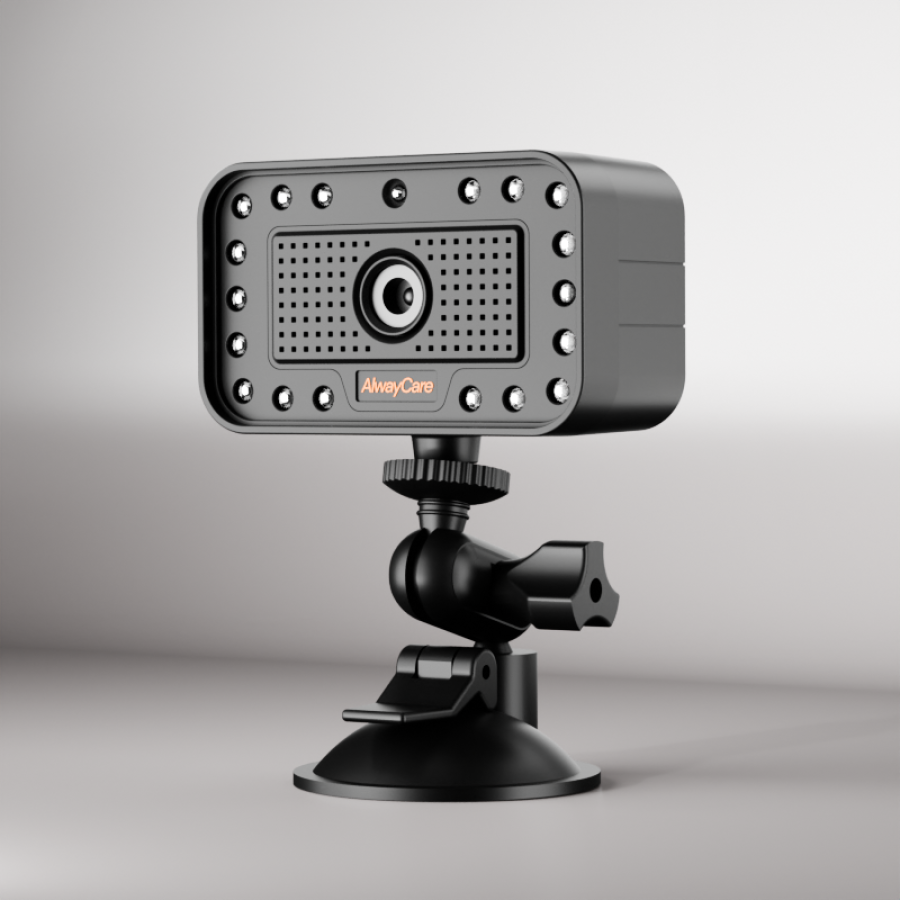

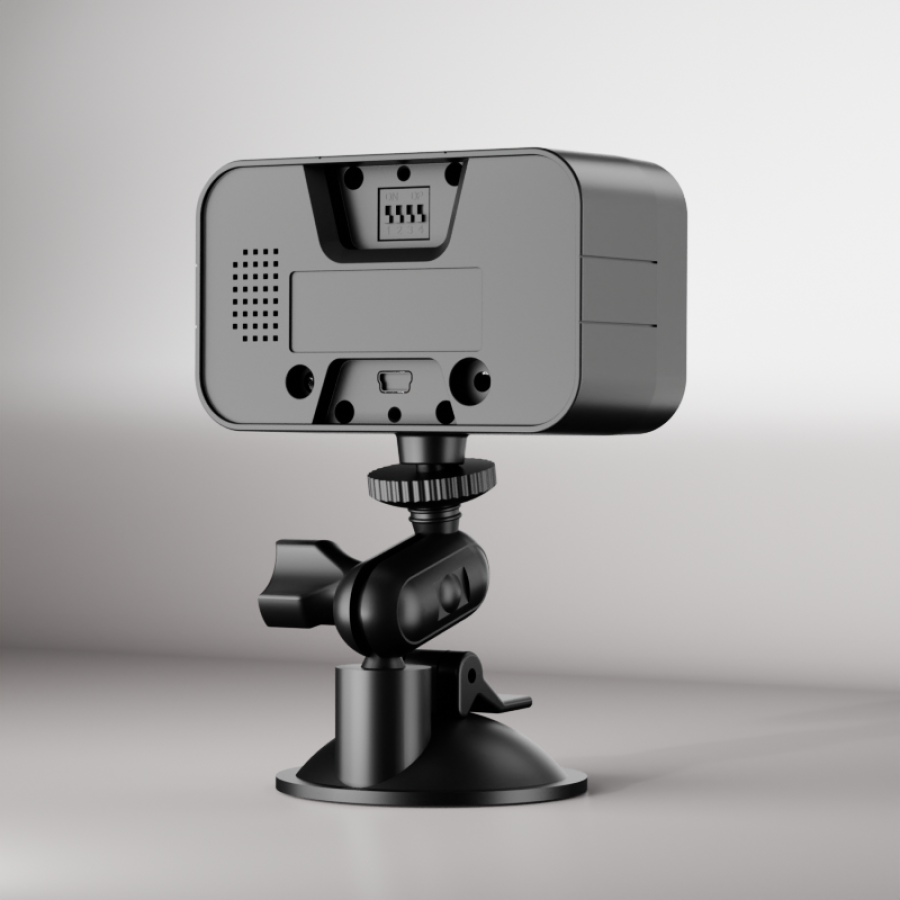

MR688B Standalone Driver Monitoring System
| Share | |
|---|---|
| Categories | DMS (Driver Monitoring System) |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Model | DMS-MR688B |
| Voltage | 12/24V |
| Optional | I/O or RS232 |
| Size | 91.5x42.5x127.5mm |
| Application | Suitable for All Vehicles |
| Operating Temperature | -10℃ ~ 50℃ |
| Warranty | 15 Months |
MR688B Standalone Driver Monitoring System
MR688B offline driver monitoring system provides real-time fatigue and unsafe-behavior alerts and can operate alone or integrate with MDVR systems.

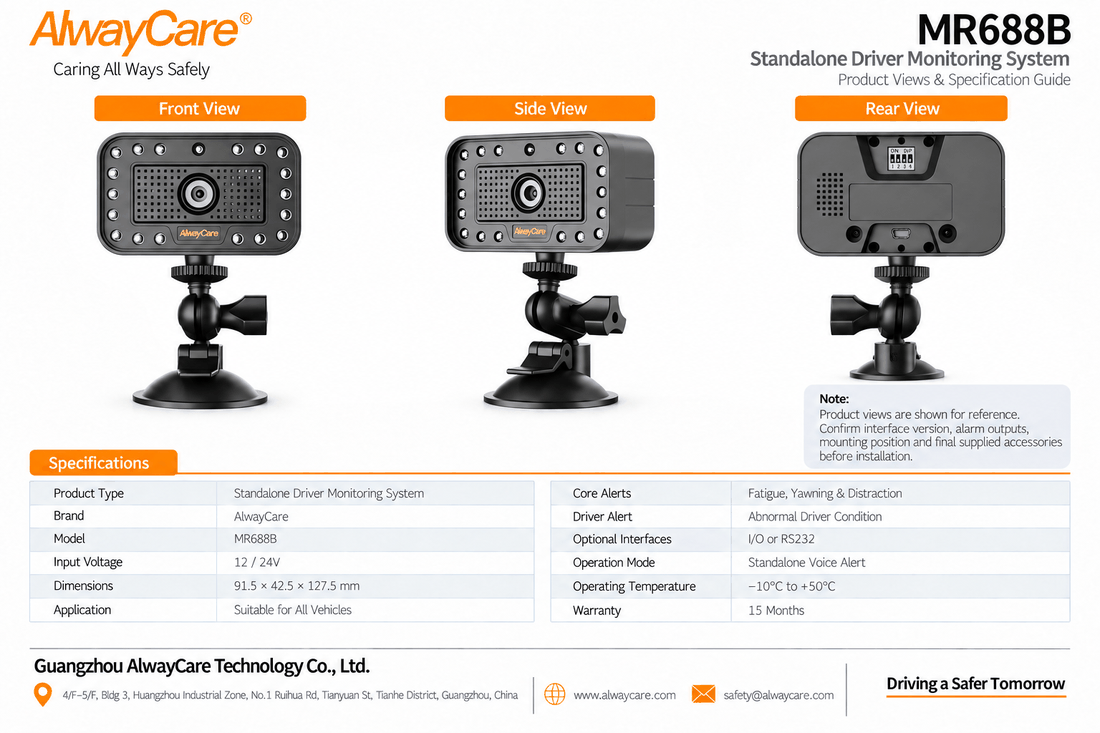

Technical Specifications
Values follow the factory datasheet — your quotation confirms the exact configuration.
| Model Series | MR688B Series (MR688B-SV / MR688B-PV / MR688B-RS232 / MR688B-V4-PV / MR688B-V4-PV-RS232) |
|---|---|
| Detection Technology | Patented non-contact infrared pupil and facial recognition algorithm |
| Alert Triggers | Driver fatigue (micro-sleep, drowsy eye closure), driver distraction (looking away/down), no portrait detected (camera covered/off-seat), over-speed warning |
| Alert Methods | Built-in voice prompts / alert buzzer, visual LED indicator, optional vibration cushion |
| Operating Voltage | 12V / 24V DC (9V ~ 36V wide input range for commercial and passenger fleets) |
| Power Supply Options | Cigarette lighter adapter or 5-pin / 4-pin vehicle hardwire connection |
| Working Distance & Angle | 60 ~ 90 cm working distance; ±20° vertical and horizontal operational angles |
| Dimensions & Weight | 91.5 × 42.5 × 127.5 mm; approx. 190 g (main host unit) |
| Operating Temperature | -10°C ~ +50°C (Storage: -40°C ~ +85°C) |
| Supported Vehicles | Suitable for all commercial fleets, heavy trucks, mining vehicles, buses, and passenger cars |
| Quality Warranty | 15 Months factory warranty |
| Certifications | CE, FCC, RoHS, SGS IR Photobiological Eye Safety, Vibration & High/Low Temp Tested |
Version Matrix
| MR688B-SV Civil Standard | Standalone In-Cab Warning — Designed for passenger cars and light commercial vehicles not requiring telematics integration. Provides independent in-cab voice & LED alerts without external signal output. Powered via cigarette lighter adapter. | Standalone In-Cab Voice Alerts |
|---|---|---|
| MR688B-PV Commercial Pro | Telematics I/O Integration — Engineered for commercial fleets with existing GPS tracking or AVL systems. Outputs high/low level alarm signals (fatigue, distraction, no portrait) via 5-pin vehicle hardwire cable to telematics units. | DMS Voice Alerts + I/O Alarm Output |
| MR688B-RS232 Serial Telemetry | Serial Data & Event Photos — Integrates with advanced fleet telematics platforms. Transmits real-time fatigue telemetry alarm signals and captured event photo snapshots over RS232 serial communication protocol. | DMS Voice Alerts + RS232 Telemetry + Event Snapshots |
| MR688B-V4-PV Commercial Video | Mobile DVR Integration — Designed for vehicles equipped with Mobile DVR (MDVR) systems. Delivers 1-channel analog video stream via 4-pin aviation connector alongside I/O alarm signaling for central recording. | DMS Voice Alerts + 1-Ch Video Out (Aviation) + I/O |
| MR688B-V4-PV-RS232 Flagship Dual-Mode | Full-Function Video & Telemetry — Integrates with both MDVR and GPS tracking systems simultaneously. Provides 1-channel video output to MDVR, RS232 serial telemetry & photo capture to fleet platform, and I/O alarms. | DMS Alerts + 1-Ch Video Out + RS232 Data/Photos + I/O |
Compatible Peripherals & Accessories
| Hand Setting Instrument | Field calibration and parameter programmer. Allows fleet engineers to configure alarm sensitivity, alarm startup speed, volume, overspeed thresholds, test alarm indicators, simulate indoor vehicle speed, and upgrade firmware. |
|---|---|
| Vibration Warning Cushion | Driver seat tactile warning cushion. Vibrates synchronously when the MR688B triggers a fatigue alarm, providing an immediate physical wake-up reminder for drowsy drivers. |
| CareDrive Metal Bracket | Heavy-duty reinforced metal mounting bracket (6.5 × 12.5 cm) engineered for rugged commercial vehicle dashboards, mining trucks, and heavy-duty fleet installations. |
| Dustproof Lens Protector | Protective optical shield designed to prevent airborne dust and grime from accumulating on the infrared sensor and optical lens in mining, construction, and harsh fleet environments. |
| USB-to-RS232 Debug Adapter | Engineering diagnostic cable for connecting RS232-enabled MR688B units directly to a computer for protocol verification, telemetry data validation, and factory testing. |
What MR688B Delivers
Key safety and fleet integration capabilities verified against factory engineering specifications.
Infrared Pupil Tracking & State Detection
Non-Contact Optical Algorithm
- All-Light Pupil Tracking: Non-contact 940nm IR array reliably tracks facial landmarks in total darkness or direct sunlight.
- Sub-Second Fatigue Alert: Immediate spoken warning upon detecting micro-sleep, abnormal blinking, or head nodding.
- Distraction & Absence Warnings: Instantly alerts when driver looks away from road, glances down at phones, or leaves seat.
Multi-Stage Alerts & Physical Wake-Up
Spoken Audio Warning & Tactile Wake-Up
- High-Decibel Voice Warning: Clear spoken alerts provide immediate intervention to refocus driver attention.
- Optional Vibration Cushion: Synchronizes with alarms to deliver physical seat vibration, waking drowsy long-haul drivers.
- Configurable Speed Gate: Adjustable speed activation thresholds eliminate nuisance alarms during parking or low-speed idling.
Fleet Telematics & Video Integration
Standalone, I/O Level, RS232 & CVBS Output
- Flexible Telematics I/O: Standalone buzzer (SV), 5-pin I/O trigger (PV) for GPS trackers, or RS232 serial telemetry.
- Live MDVR Video Feed: Dedicated video versions (V4-PV) output 4-pin aviation CVBS video for multi-channel fleet recording.
- Compact Industrial Fit: Compact 12V/24V chassis with optional heavy-duty metal bracket for harsh truck cabs.
See MR688B in Context
The official AlwayCare MR688B product video showing the system in vehicle-operation use.
Verified Commercial Fleet Deployments
AlwayCare MR688 series driver monitoring systems are deployed across more than 10,000 commercial vehicles worldwide, operating in demanding long-haul, hazardous chemical, and heavy mining environments.
Indonesia Oil & Gas Road Tanker Fleet
Integrated MR688-PV fatigue sensors paired with haptic vibration seat cushions across 800 heavy tankers to alert drivers over noisy diesel cab routes.
South Africa Mining Haul Truck Fleet
Over 2,500 ultra-heavy haulage dump trucks equipped with MR688 Professional units featuring in-cab CVBS video feeds and high-penetration acoustic alerts.
Japan Heavy Freight Logistics Fleet
1,200 Mitsubishi Fuso trucks outfitted with MR688-PV sensors and custom precision-stamped steel brackets meeting Japanese MLIT vehicle inspection standards.
Built for Long-Term Fleet Programs
Factory Direct Supply
Devices ship from our own production line, with engineering support from the team that builds them.
Certified & Lab Tested
CE, UKCA, RoHS and ISO 9001 — every platform is backed by third-party laboratory test reports.
15-Month Warranty
Coverage that goes beyond the standard 12-month term, honored through your dedicated account manager.
OEM & Firmware Support
Logo, packaging, firmware behavior and interface customization for your market and fleet platform.
From Inquiry to Delivery in Four Steps
A clear path from first contact to units running in your fleet — no obligation at the evaluation stage.
Share Your Requirements
Send fleet size, vehicle models and target functions through the inquiry form or to your account manager.
Version & Quotation
Our engineers map your needs to the right MR688B version and issue a formal quotation within one business day.
Sample Evaluation
Sample units are available for road testing before you commit to a bulk order — evaluate first, decide later.
Production & Delivery
Bulk orders ship with factory QC reports, export documents and the 15-month warranty from dispatch.
Documents & Downloads
Everything your engineering and procurement teams need for evaluation.
Product Datasheet
Full specifications and ordering information — download the official MR688B datasheet (PDF).
Download DatasheetCertificates & Test Reports
Certification and third-party laboratory reports for the selected version and target market.
Request CertificatesUser Manual & Installation Guide
Wiring, mounting and configuration instructions — provided with sample orders.
Request ManualCMS Software & Demo
Platform access for evaluation — connect supported configurations to a live demo fleet.
Request Demo AccessComplete the In-Vehicle Safety Stack
Product families commonly deployed alongside MR688B in the same fleet stack.
MR810 Standalone Driver Monitoring System for Buses
Model MR810 — DMS (Driver Monitoring System) for commercial fleets.
MR830 All-in-One DMS with ADAS, BSD and Driver Fatig...
Model MR830 — DMS (Driver Monitoring System) for commercial fleets.
MR910-D DMS with 5-Channel Mobile DVR
Model MR910-D — DMS (Driver Monitoring System) for commercial fleets.
Frequently Asked Questions
Can't find your answer? Our engineers reply within one business day — email safety@alwaycare.com or send an inquiry.
How does the MR688B detect driver fatigue without requiring physical wearables?
The MR688B uses a non-contact automotive optical sensor and patented pupil identification algorithms to continuously analyze eye blink frequency, pupil closure duration, and head nodding patterns. When fatigue indicators exceed safety thresholds, it emits immediate voice and acoustic alarms without requiring driver wearables or contact sensors.
Does the MR688B operate accurately when drivers wear sunglasses or at night?
Yes. The optical sensor integrates specialized infrared illumination that penetrates optical sunglasses and polarized driving lenses, enabling reliable pupil tracking in broad daylight as well as pitch-black night cabins without emitting visible glare.
Can the alarm be silenced when the vehicle is stationary or moving at very low speeds?
Yes. The MR688B supports connection to a GPS speed sensor module or vehicle speed pulse line. Fleet managers can configure an activation speed threshold (such as 20 km/h or 30 km/h), ensuring warnings are suppressed during parking, loading, or low-speed maneuvers.
Can MR688B connect to external fleet management systems and GPS trackers?
Yes. The unit includes RS232 serial communication and digital I/O alarm output lines. When a fatigue or distraction event is detected, it outputs trigger signals to third-party GPS tracking devices or mobile DVRs for immediate remote fleet dispatcher notification.
What is the installation process and recommended mounting location?
Installation requires approximately 15 minutes. The unit is typically mounted on the center dashboard directly facing the driver or on the lower A-pillar, positioned 60 cm to 80 cm from the driver's eyes at an angle of 15° to 20°, powered directly from the vehicle's 12V or 24V electrical circuit.
