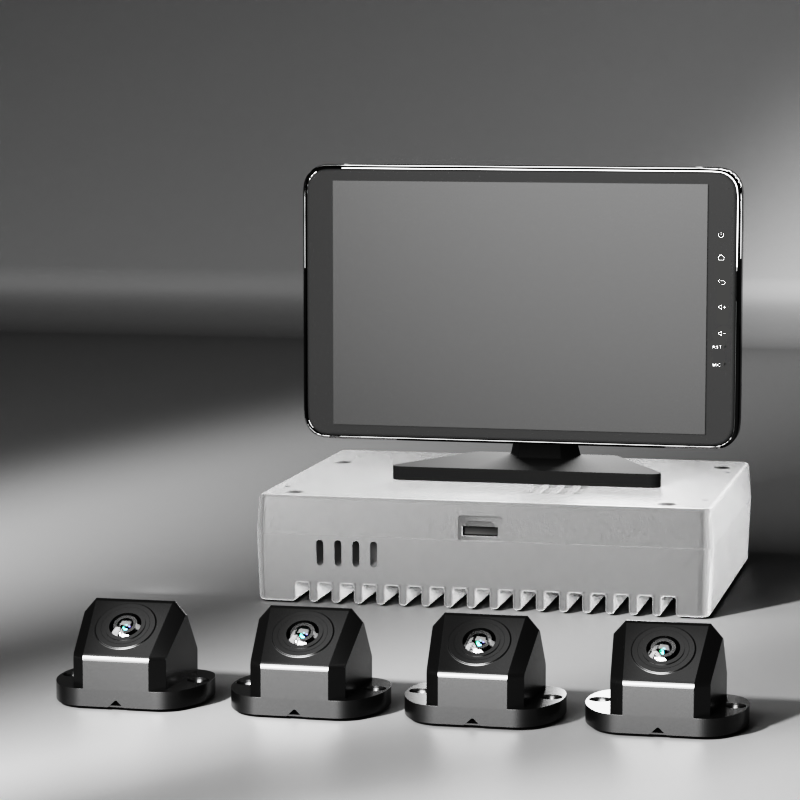

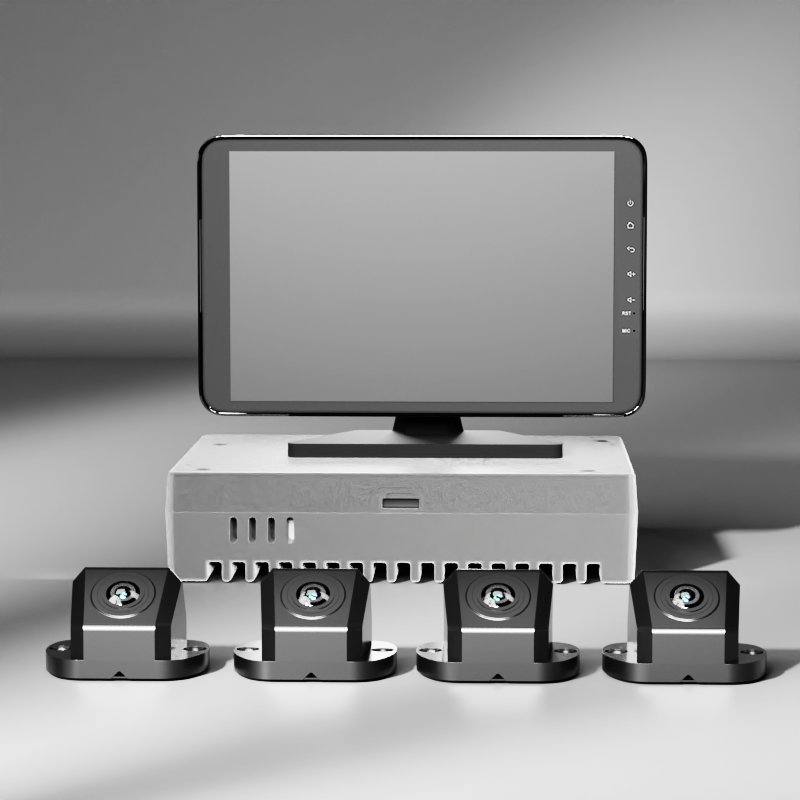

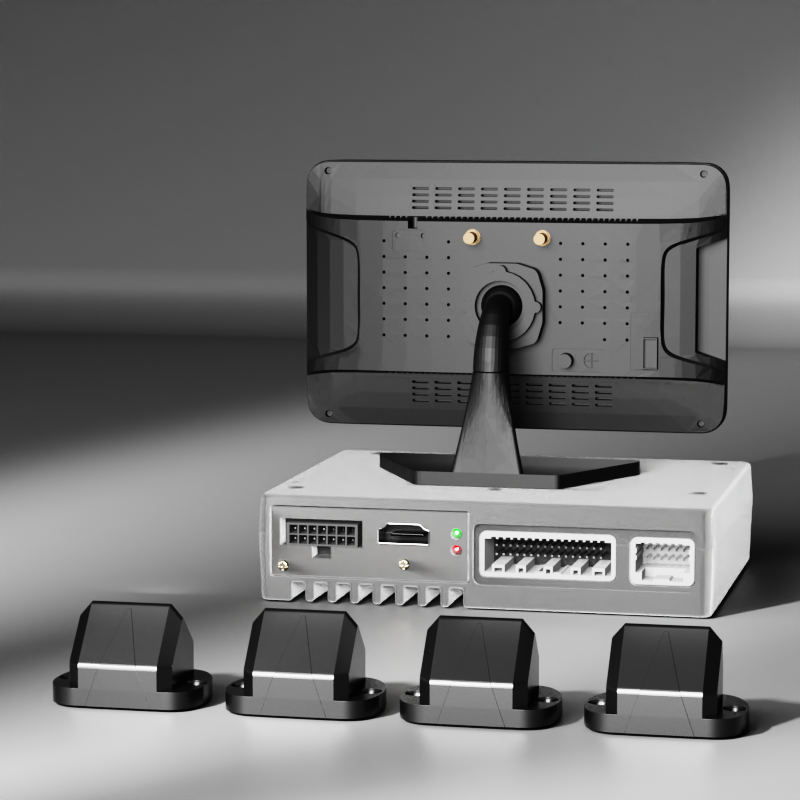

M360-1 4-Channel 3D 360° Around-View System
| Share | |
|---|---|
| Categories | AVM (360° Around View Monitor) |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Model | M360-1 |
| Voltage | 12/24V |
| Video Record Resolution | 1920x1080 |
| Storage | 512GB |
| Application | Suitable for All Vehicles |
| Operating Temperature | -30℃ ~ 70℃ |
| Warranty | 15 Months |
M360-1 4-Channel 3D 360° Around-View System
Hardware-accelerated 4-channel 3D surround-view system with 210° fisheye cameras, eliminating blind zones around commercial trucks, mid-buses, and logistics vans.
AlwayCare 360° AVM Series Matrix
Comprehensive architectural and configuration breakdown across all 8 factory commercial vehicle surround-view systems.
| Parameters / Models |
CURRENT MODEL
M360-6C1
4CH 360 Host + 10" Screen
|
CURRENT MODEL
M360-4C1
150m Digital Wireless
|
6CH 360 + BSD Host
M360-6C2
4x 360 + 2x BSD Cameras
|
6CH Full Fisheye
M360-6C3
6x Fisheye Surround
|
10.1" Integrated BSD
M360-4C3
All-in-One + BSD Buzzer
|
10" Voice Control
M360-4C2
Voice Recognition + Cap
|
6CH T5 Quad-Core
T5
Allwinner T5 + Knob
|
8CH AI Touchscreen
DP-1028
4G LTE + PCIe SSD 2TB
|
|---|---|---|---|---|---|---|---|---|
| System Form Factor | Host + 10" AHD Display | 10.1" IPS All-in-One | Host + 10" AHD Display | Host + 10" AHD Display | 10.1" Display-ECU Unit | 10" IPS Display-ECU | Host + 10.1" HDMI Display | 10.1" Touchscreen Terminal |
| Camera Input Channels | 4-Channel AHD | 4-Channel Digital Wireless | 6-Channel Hybrid AHD | 6-Channel AHD | 4-Channel AHD | 4-Channel Hybrid (3x 360+1x Front) | 6-Channel 720P/1080P | 8-Channel AHD Inputs |
| AI Algorithm Suite | 3D 360 Panoramic View | 3D 360 + Wireless Synch | 3D 360 + Dual-Side BSD AI | 3D 360 (6-Camera Fusion) | 3D 360 + BSD VRU Alert | 3D 360 + Smart Voice Commands | 2D 360 (6-Stream Synthesis) | 360 + BSD (Opt. ADAS/DMS) |
| In-Cab Display Unit | 10" AHD Separate Monitor | 10.1" IPS 1080P Screen | 10" AHD Separate Monitor | 10" AHD Separate Monitor | 10.1" High-Bright (600cd) | 10" IPS (800*1280) | 10.1" HDMI Display (1080P) | 10.1" Capacitive Multi-Touch |
| Camera Package | 4x 1080P Fisheye (210°) | 4x 1080P Fisheye (210°) | 4x Fisheye + 2x BSD Cameras | 6x 1080P Fisheye (210°) | 4x 1080P Fisheye (210°) | 3x 360 + 1x Forward Camera | 4x Fisheye + 2x Rear Cams | Up to 8x AHD Cameras |
| Storage Capacity | Micro SD (Up to 2TB) | SD Card (Up to 128GB) | Micro SD (Up to 2TB) | Micro SD (Up to 2TB) | Micro SD Slot | TF Card (Up to 256GB) | 4GB eMMC + TF Card | PCIe SSD (2TB) + 512GB SD |
| Wireless / Telematics | No (Direct Wired Aviation) | 2.4G Digital Point-to-Point (150m) | No (Direct Wired Aviation) | No (Direct Wired Aviation) | No (Direct Wired Aviation) | Farad Capacitor Backup | RF Encoder Knob / Phone App | 4G LTE (EU/AU) + WiFi + GPS |
| Control Interface | RF Remote / Phone Wi-Fi | Front Panel Buttons | RF Remote / Phone Wi-Fi | RF Remote / Phone Wi-Fi | Acoustic Buzzer / Buttons | Voice Control + Physical Keys | Physical Rotary Knob / App | Full Capacitive Touchscreen |
| Target Fleet Applications | Light/Medium Trucks, Delivery Vans | Semi-Trailers, Articulated Tankers | Heavy Dump Trucks, Concrete Mixers | Extra-Long Mining Trucks, Cranes | Transit Buses, Municipal Sweepers | Motorhomes, Specialty Transport | Coaches, Emergency Vehicles | High-End Fleet Telematics & Bus Fleets |
| Commercial Warranty | 15 Months Factory Standard | 15 Months Factory Standard | 15 Months Factory Standard | 15 Months Factory Standard | 15 Months Factory Standard | 15 Months Factory Standard | 15 Months Factory Standard | 15 Months Factory Standard |
| Inquiry Action | Quote | Quote | Quote | Quote | Quote | Quote | Quote | Quote |
6 Core Panoramic & Vision AI Capabilities
Engineered specifically for heavy commercial transport, providing high-reliability blind spot mitigation and seamless driver situational awareness.
3D Real-Time Dynamic Spherical Engine
Hardware 3D engine stitches 4–6 ultra-wide camera feeds into a seamless 360° bird's-eye view.
- Sub-100ms Latency: Real-time zero-lag video pipeline
- Smooth 3D Roaming: Seamless perspective transitions upon start
- Zero Blind Spots: Complete elimination of A/B/C pillar vehicle blind zones
Dual-Side BSD Pedestrian Detection
Deep-learning neural networks actively track pedestrians and cyclists in turning hazard zones.
- Visual Bounding Boxes: Real-time highlight targets on display
- Audible Alarm: Synchronized cab buzzer alerts
- Side-Collision Prevention: Stops truck side-under-ride accidents
Dynamic Reversing Trajectory Guides
Integrates CAN bus steering signals to project predictive reversing curves and vehicle swing clearance.
- Dynamic Curvature: Real-time trackline matched to wheelbase
- Clearance Markers: Distance guides for heavy trailer docking
- Fleet Compatibility: Rigid trucks, trailers, and articulated buses
Trigger-Activated Split-View Switching
Intelligent vehicle I/O trigger detection automatically expands relevant camera angles.
- Turn Signal Auto-Split: Instant side blind-zone view
- Reverse Fullscreen: Auto-triggers rear ultra-wide view
- Flexible Layouts: Configurable single, dual, and quad grids
150m Point-to-Point Digital Wireless
2.4GHz digital frequency-hopping technology transmits encrypted HD video between tractor and trailer.
- 150m Range: Long-range line-of-sight wireless transmission
- Interference-Free: Resists automotive electrical noise
- Instant Pairing: Zero setup when swapping trailers
Ultra-Low Light Dynamic Range Calibration
Automotive FHD sensors combine with multi-exposure HDR for clear night imaging down to 0.1 Lux.
- 0.1 Lux Starlight: Clear night vision in unlit bays
- Anti-Glare HDR: Suppresses headlight overexposure
- Fast Calibration: One-touch calibration via checkered cloth
Engineered for Demanding Commercial Fleets
Deployment blueprints optimized for diverse vehicle body lengths, specialized municipal equipment, and rugged industrial haulers.
Urban Transit Buses
Eliminates crowded bus stop pedestrian blind zones and curb clearance risks during peak boarding hours in congested city centers.
Heavy Freight Trucks
Protects tractor-trailers during highway lane changes and tight warehouse loading dock reversing maneuvers with dynamic trajectory lines.
Mining & Dump Trucks
Zinc-alloy IP67 waterproof cameras withstand extreme vibration, mud, dust, and pressure washing across open-pit mining environments.
Sanitation & Sweepers
Provides multi-split views covering sweeping brooms, suction nozzles, and rear compactors while protecting workers in residential zones.
Modular Peripherals & Ecosystem
Factory-tested commercial hardware components designed for seamless plug-and-play expansion and optical calibration.
1080P 210° Fisheye Camera
GC2053 FHD CMOS sensor with 1.4mm 210° ultra-wide low-distortion lens, zinc-alloy housing, and IP67 waterproof construction.
Dedicated Side BSD Camera
Specialized side-mount optical profile with calibrated field of view, feeding dedicated video streams to the BSD pedestrian warning engine.
Optical Calibration Cloth Kit
High-contrast metric checkered optical calibration mats enabling automated 3-minute software camera distortion and stitching calibration.
Shielded Aviation Cables
Double-shielded pure copper automotive cables with threaded screw-lock 4-pin aviation connectors, resisting vibration and EMI interference.
10.1" High-Luminance Monitor
Anti-glare industrial display with 600 cd/m² luminance, sun visor, and heavy-duty ball-joint dashboard mount for clear direct-sunlight viewing.
Acoustic Buzzer & RF Remote
High-decibel audible collision alarm buzzer coupled with ergonomic RF wireless remote control for instant perspective toggle while driving.

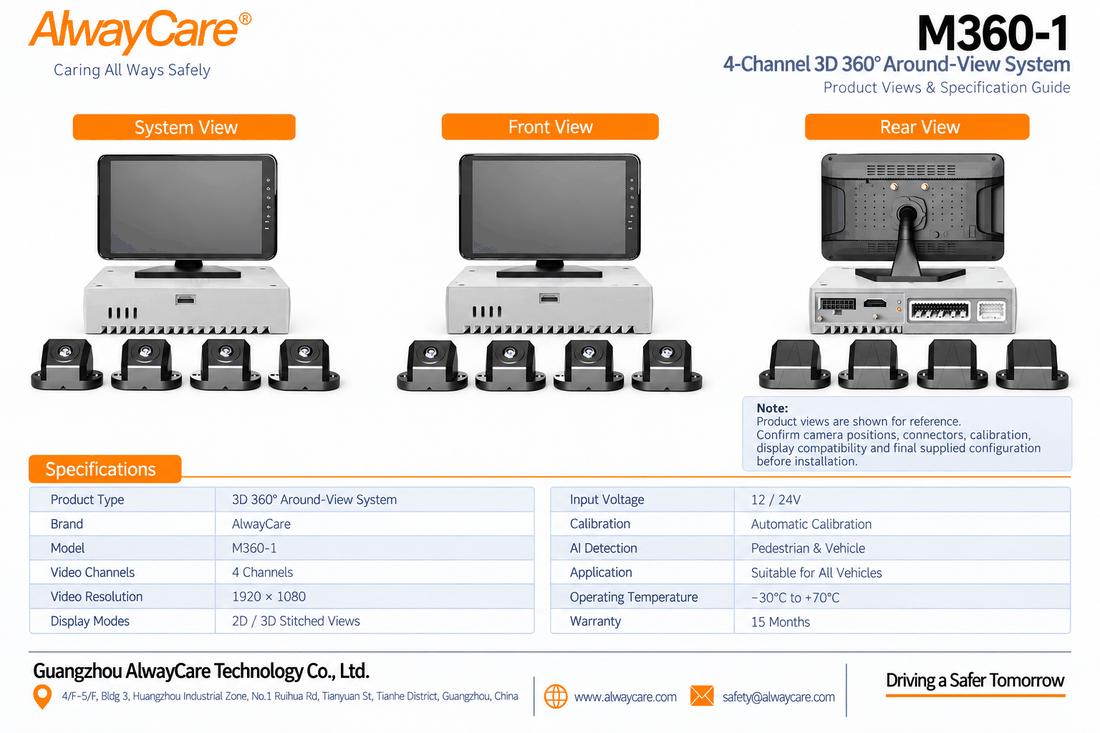

M360-1 Engineering Specifications
Official factory technical parameters verified against AlwayCare quality assurance standards.
| System Architecture | Industrial 4-Channel 360 Host + 10.1" AHD Monitor + 4x Fisheye Cameras |
|---|---|
| Video Channels & Input | 4-Channel AHD 720P / 1080P Commercial Video Inputs |
| Video Output & Resolution | AHD 720P @ 25fps (1920x1080 Display Resolution) |
| Optical Sensors & Lens | GC2053 1/2.9" FHD CMOS Sensor (Focal Length 1.4mm) |
| Field of View (FOV) | Horizontal FOV: 210° | Vertical FOV: 130° | Diagonal FOV: 210° |
| 360 Stitching Algorithm | Real-Time Dynamic 3D Spherical Modeling & 2D Bird's-Eye Perspective |
| AI Safety Alarms | Blind Spot Detection (BSD) Pedestrian & Vehicle Proximity Alert |
| Local Recording & Storage | Micro SD Card Slot (Supports Up to 2TB High-Speed Industrial Storage) |
| Operating Voltage | DC 10V–36V Commercial Automotive Wide Input with Overvoltage Protection |
| Operating Temperature | -30°C to +70°C (-22°F to +158°F); Storage: -40°C to +85°C |
| Enclosure & Waterproofing | Rugged Die-Cast Metal Alloy, IP67 Waterproof & Dustproof Rating |
| Standard Box Packaging | Industrial 360 Image Processing Host x1; 1080P Ultra-Wide 210° Fisheye Cameras x4; 10.1" High-Definition AHD In-Cab Monitor x1; Vehicle Power Harness & 32P Breakout Cable x1; Shielded Aviation Extension Cables (5M x1, 10M x2, 15M x1); Wireless RF Remote Controller x1 |
| Quality Certifications | CE, FCC, RoHS, ISO-7637 Compliant; Manufactured in IATF 16949 Certified Facility |
Compatible Fleet Safety Architecture
Combine your 360° surround-view system with AlwayCare's broader active safety, driver monitoring, and video telematics hardware.
AI DASHCAM
MR720 Dual AI Dashcam
Integrated 2K ADAS forward collision warning and 1080P DMS driver fatigue monitoring in a sleek windshield chassis.
DMS FATIGUE HUB
MR810 Standalone DMS
Automotive edge AI driver drowsiness and distraction detector with 720P AHD video output and sensory seat vibration support.
MASS RECORDING
Commercial Mobile DVR
Robust 4-channel and 8-channel anti-vibration video telematics recorder supporting high-capacity 2.5" SATA hard drives.
PASSENGER FLOW
AI Passenger Counter
High-precision binocular passenger counting system with 98% accuracy, 4G cellular telemetry, and automated transit dispatch APIs.
Frequently Asked Questions
Direct engineering answers regarding calibration, optical clarity, trailer wireless range, and vehicle integration.
How long does the 360° camera optical calibration process take?
How does the 3D surround view system perform in dark or unlit loading docks?
Can the system be installed on articulated semi-trailers without running coiled cables?
What is the difference between All-in-One Monitor and Separate Host architecture?
What are the sample evaluation lead times and factory warranty terms?
