1080p infrared video
The record lists 1920×1080 video with infrared night viewing.
CC805 IP68 Infrared Vehicle Camera for Fleets
Detail Information
CC805 · Vehicle camera
What is CC805?
CC805 is a 1080p infrared vehicle camera with listed 10–15m night viewing, automatic gain and wide-dynamic-range functions, plus optional audio.
Buyer overview
Four points to evaluate first
10–15m listed night range
The body lists 10–15m; confirm conditions and selected lens.
Automatic gain and WDR
The body describes automatic gain and intelligent wide dynamic range.
Optional audio and lenses
Audio and alternative focal lengths are optional, not standard.
System fit
Match lens, signal and receiving device
Confirm view, signal, connector, monitor or recorder, power, storage and cable length before installation.
Viewing decision
Define target zone, distance, lens view, night conditions, mounting height and obstruction.
Integration decision
Confirm output channels, video format, connector pinout, power range and compatible equipment.
Current structured record
Technical specifications
| Voltage | 12V |
|---|---|
| Definition | 1920x1080 |
| Size | 69*69*56mm |
| Application | Suitable for All Vehicles |
| Operating Temperature | -30℃ ~ 75℃ |
| Warranty | 15 Months |
Use the structured record as the current baseline. Conflicts with older body copy are disclosed below.
Preserved from the original page

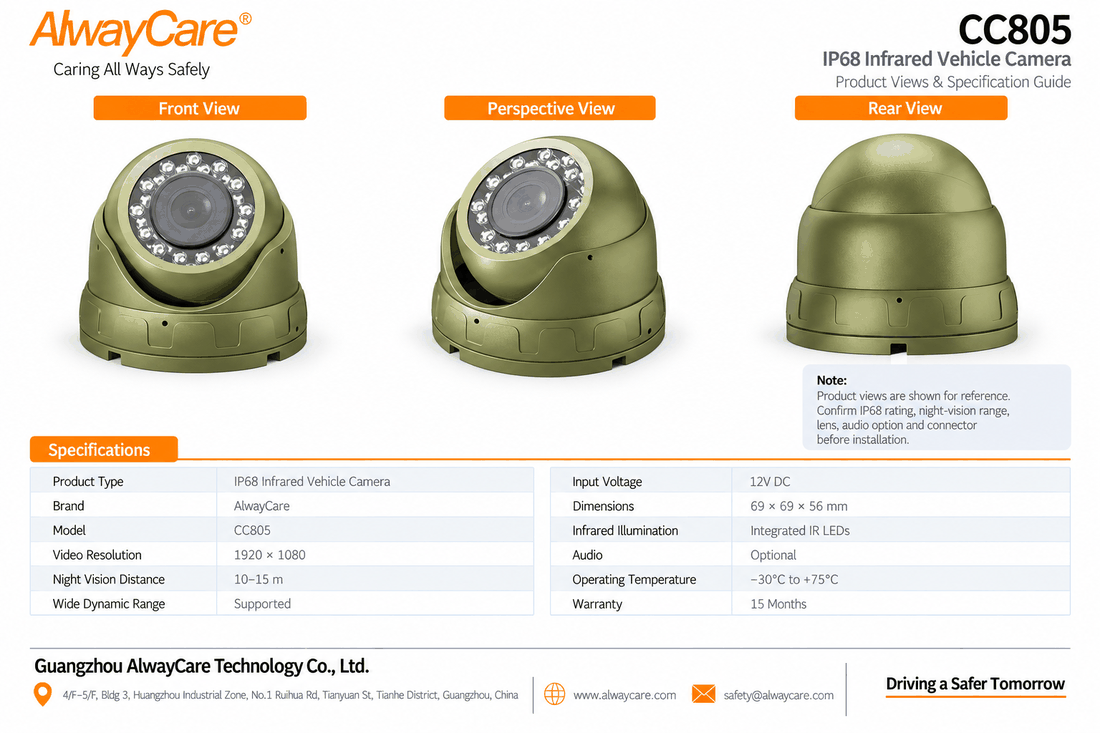

Existing Product and Deployment Views
Installation planning
Validate the real camera view
Test lens coverage, target distance, glare, night illumination, vibration, cable routing and receiving-device image.
Example applications
Where CC805 may fit
Roof-area monitoring
The body describes top-of-vehicle installation after view and height review.
Front or rear fleet views
Use with a compatible monitor or recorder for defined zones.
Changing-light environments
Automatic gain and WDR may support bright-to-dark transitions.
Specification and performance boundary
IP68 and 10–15m night distance appear in the product name/body but not structured attributes. Audio and lens choices are optional. Confirm ingress rating, selected lens, audio wiring, signal, connector, night conditions and receiving-device compatibility.
Buyer questions
CC805 FAQ
What definition is listed?
Structured attributes list 1920×1080. Confirm signal format and compatible equipment.
What night distance is listed?
The body says 10–15m; structured attributes do not list a distance. Confirm the infrared configuration.
Does CC805 include audio?
Audio is optional. Confirm microphone, connector and recorder compatibility.
Is it IP68 rated?
The name/body say IP68, but structured attributes do not. Confirm the test specification.
Can the lens be changed?
The body lists optional focal lengths. Confirm choices and field of view.
What is needed before ordering?
Share mounting zone, target distance, lens view, audio need, signal, connector and receiving device.
Confirm the complete camera system
Share your vehicle, monitored zone and receiving equipment
AlwayCare can review view, placement, signal, power, recorder or monitor compatibility and cabling.
