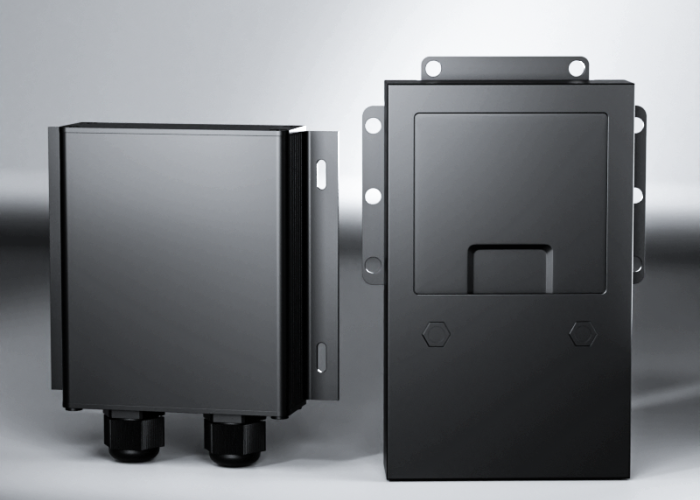

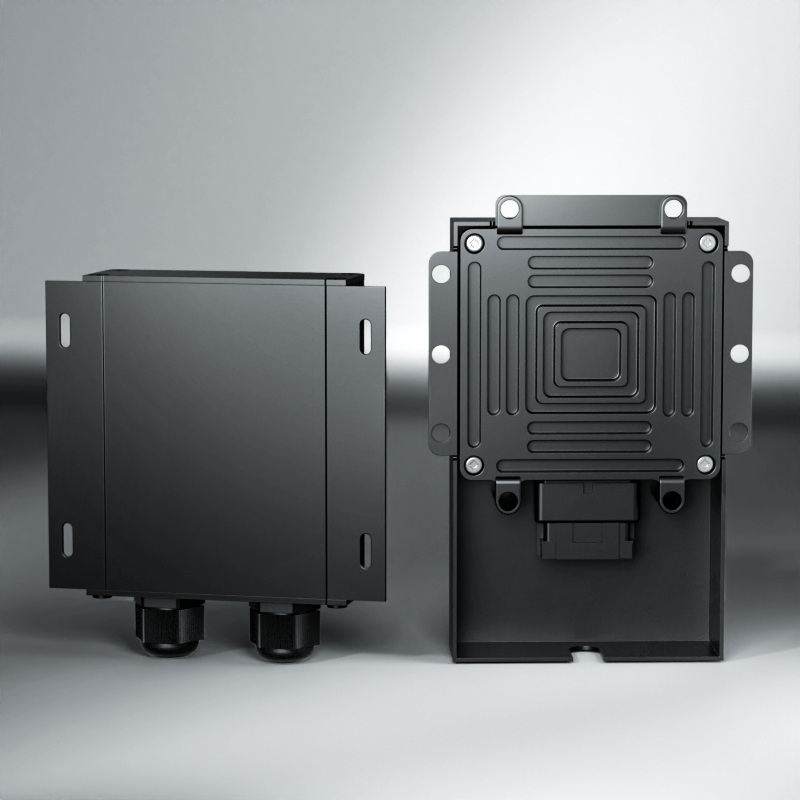

R350 77GHz Radar Collision Warning System for Forklifts
| Share | |
|---|---|
| Categories | Radar Detection System |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Model | R350 |
| Models | R350-1: 1 radar; R350-2: 2 radars |
| Radar Frequency | 77 GHz millimeter wave |
| Detection Range | 0.2–40 m |
| Detection Targets | Walls, shelves, people, vehicles and other obstacles |
| Alarm | 3 distance levels with different flashing-light and sound alerts |
| Control Box | 1 control box supports 1–2 radar sensors; DC 12–24 V |
| Radar Cable | 5 m standard cable; total radar cable length must not exceed 20 m |
| Optional Video Monitoring | Optional 7-inch DP230-5 or 10.1-inch DP10-4 AHD monitor and compatible cameras |
| Suitable Vehicles | Forklifts, mining vehicles, trucks, cars and other commercial vehicles |
| Warranty | 15 months |

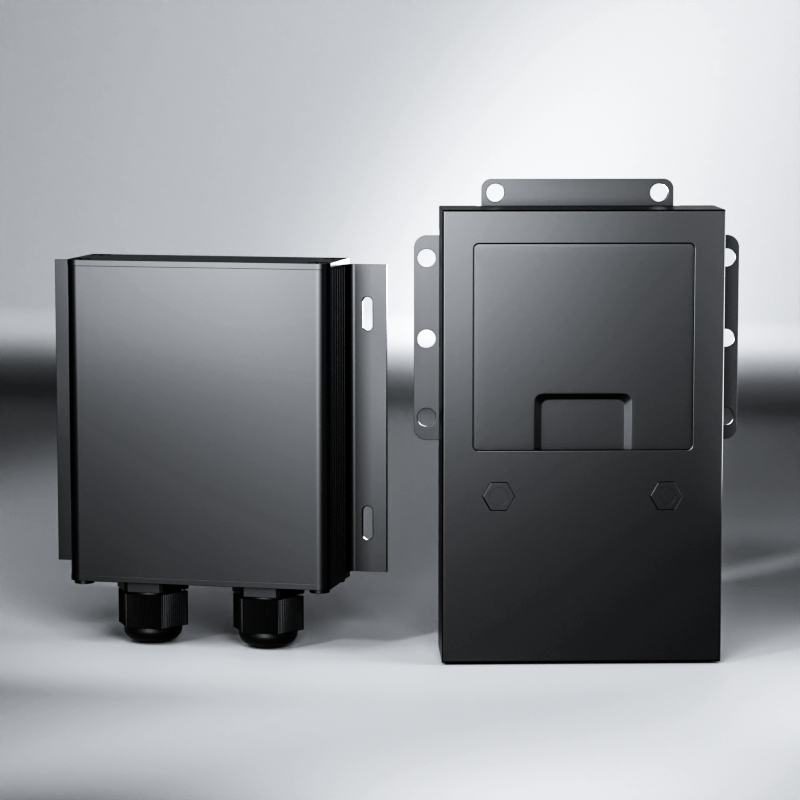

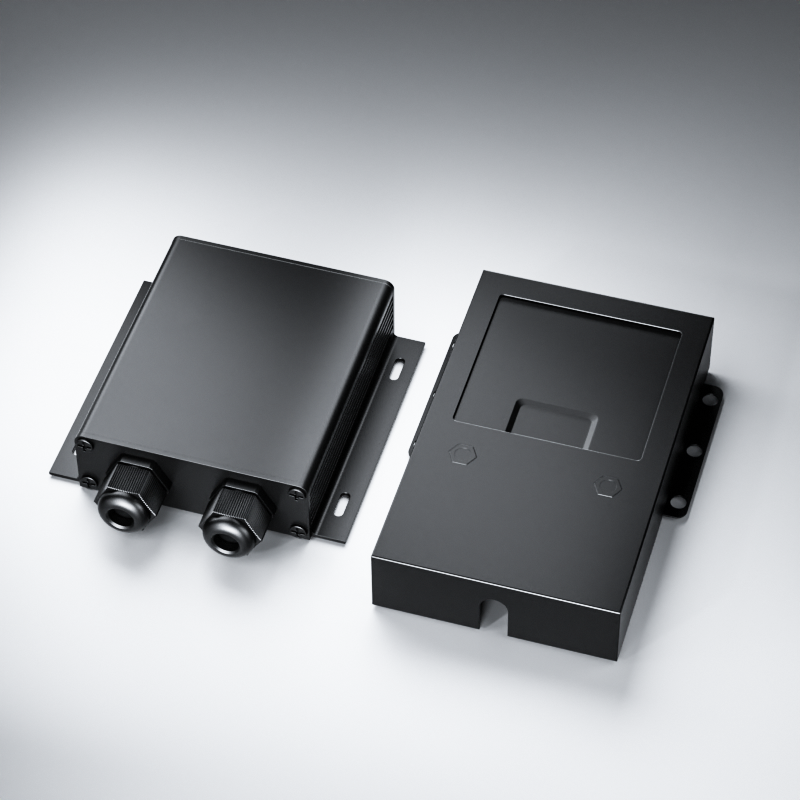

R350 77GHz Radar Collision Warning System for Forklifts
Heavy-duty 77GHz collision avoidance radar delivering 0.2m–40m real-time proximity detection with three-stage audio-visual alerts for forklifts and industrial machinery.

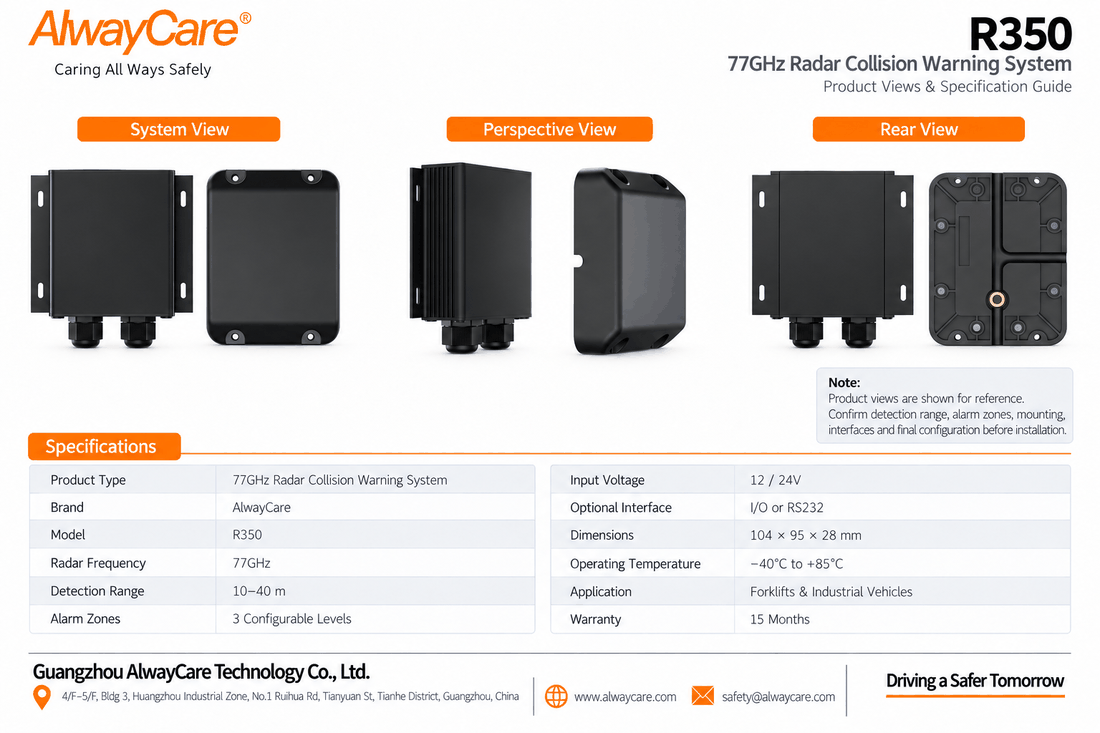

Technical Specifications
Verified factory engineering parameters for the AlwayCare R350 77GHz millimeter-wave radar collision warning system.
| Hardware Platforms | R350-1 (Single-Radar System) · R350-2 (Dual-Radar System) |
|---|---|
| Radar Operating Frequency | 77GHz Millimeter-Wave band with FMCW radar modulation |
| Detection Range | 0.2m ~ 40m (0.65 ft ~ 131 ft) wide-angle perimeter coverage |
| Detection Targets | Walls, storage racks, warehouse shelving, pedestrians, forklifts, vehicles, and stationary obstacles |
| Tiered Alarm Levels | 3-stage distance zones with progressive acoustic buzzer rhythms and high-intensity strobe LED flashing |
| Radar Control Unit | High-speed processing control box supporting simultaneous connection of 1 to 2 radar sensors |
| Operating Voltage & Protection | DC 12V ~ 24V automotive wide voltage with reverse polarity and transient voltage surge suppression |
| Radar Harness & Extension | 5m standard shielded radar cable; scalable with 10m extension cables (maximum total radar harness length ≤ 20m) |
| Peripheral IO Output Trigger | Optional 6-channel level signal IO output (R350-IO) to trigger automatic speed limiters, interlocks, or external beacons |
| Video Surveillance Fusion | Optional integration with 7-inch (DP230-5) or 10.1-inch (DP285 / DP10-4) AHD displays and IP68 cameras |
| Environmental Rating | Radar sensor IP67 waterproof & dustproof; operating temperature -20°C to +70°C (-4°F to +158°F) |
| Manufacturer Warranty | 15 months factory warranty from dispatch date |

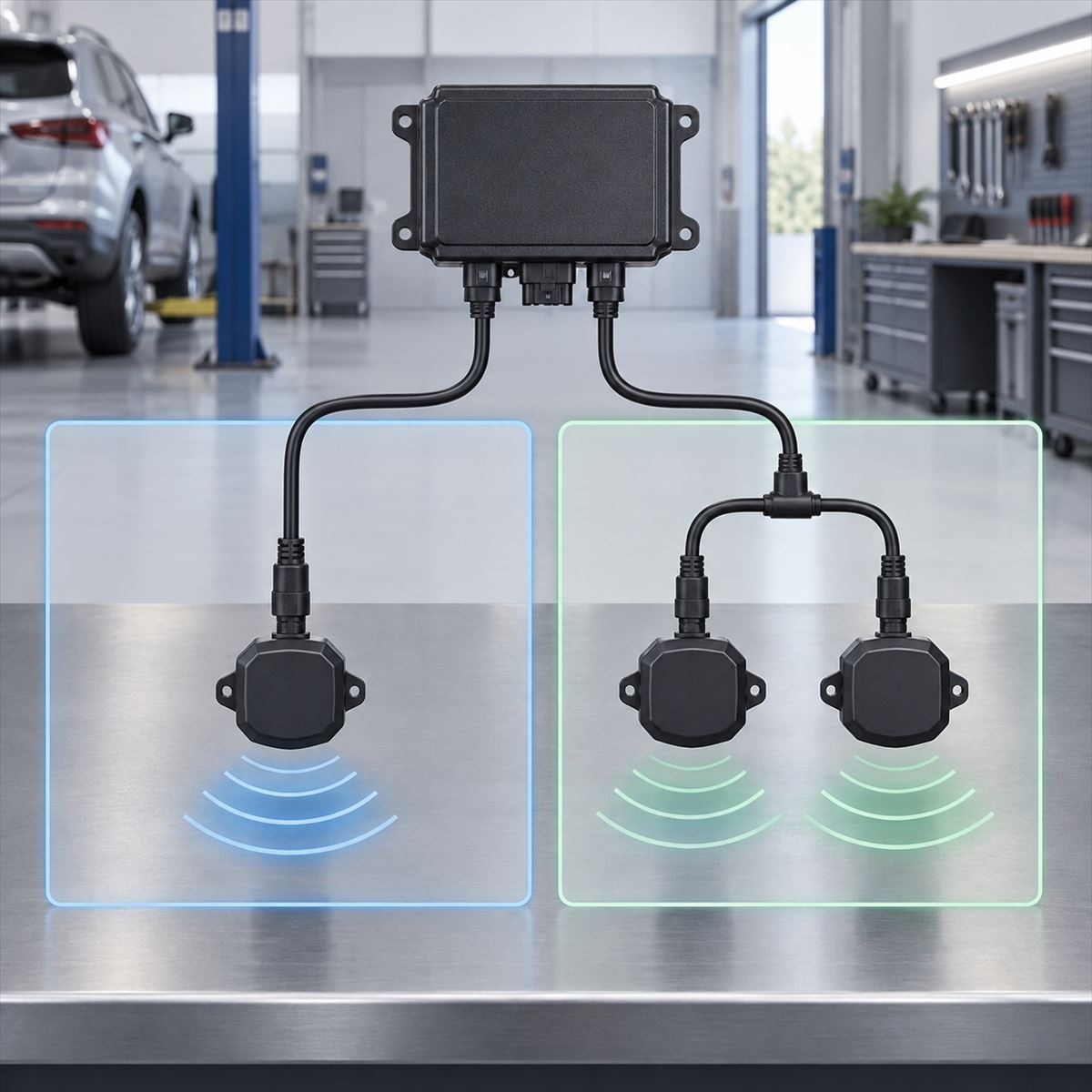

Hardware Architecture Selection
Select the optimal radar sensor count and vehicle zone coverage across the AlwayCare R350 platform family.
| System Model | Radar Sensor Count | Detection Coverage | Harness Specification | Control Box Architecture | Recommended Vehicle Application |
|---|---|---|---|---|---|
| R350-1 (Single-Radar System)Standard Rear or single blind-zone coverage |
1× 77GHz Millimeter Wave Radar | 0.2m ~ 40m Zone Detection Single Zone | 5m Standard Cable (Max length ≤ 20m) | 1× Central Processing Box (DC 12–24V) | Warehouse counterbalance forklifts, reach trucks, compact loaders, and delivery vans |
| R350-2 (Dual-Radar System) Front & rear or dual-side blind zone protection |
2× 77GHz Millimeter Wave Radars | 0.2m ~ 40m Zone Detection Dual Zones | 2× 5m Standard Cables (Combined length ≤ 20m) | 1× Central Processing Box (DC 12–24V) | Mining haul trucks, large wheel loaders, heavy industrial trucks, and articulated machinery |
What R350 Delivers for Industrial Fleets
Millimeter-wave environmental penetration, millisecond collision warning, and flexible single/dual radar fleet integration.

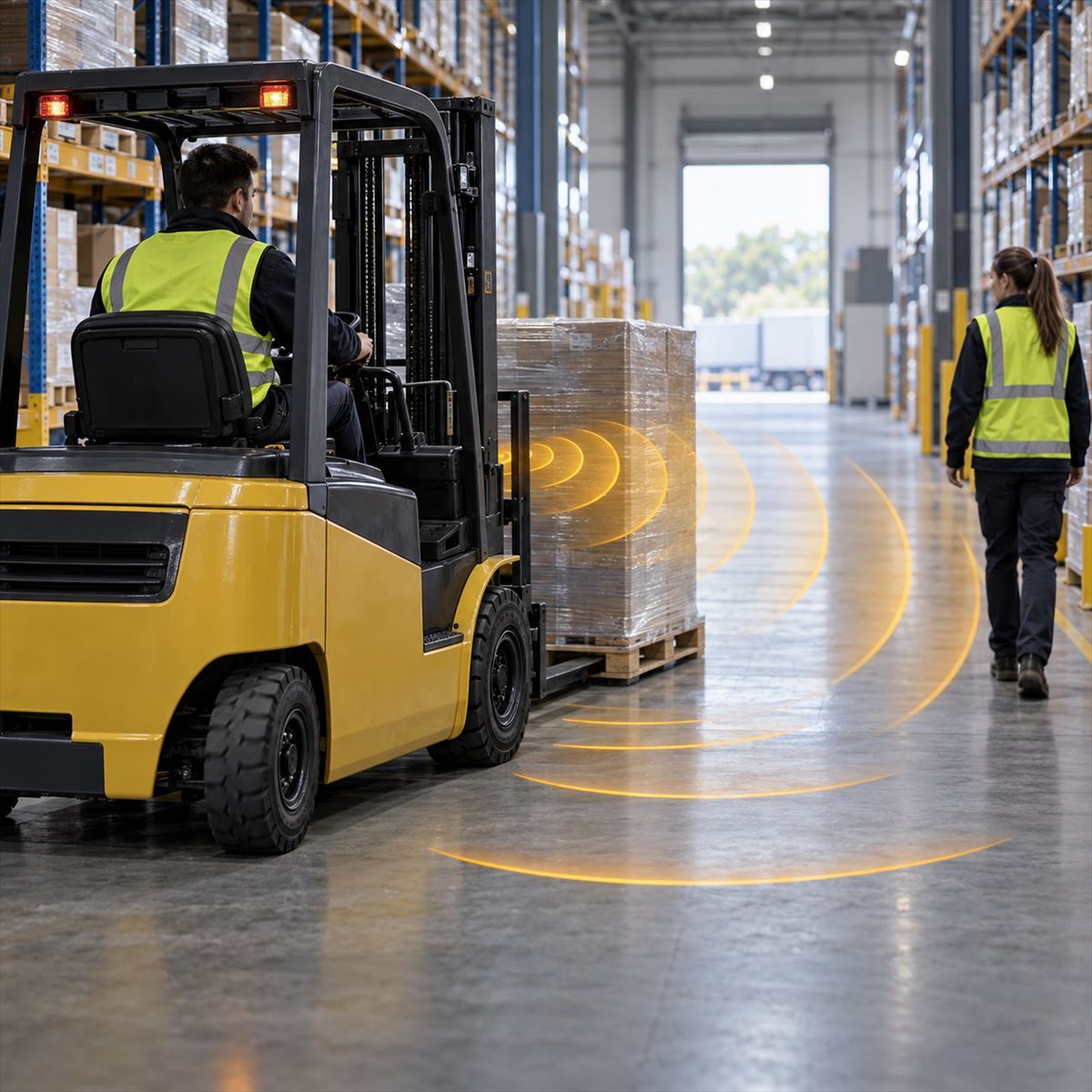

77GHz High-Precision Environmental Penetration
Continuous 0.2m to 40m obstacle tracking impervious to warehouse dust, rain, fog, and total darkness.
- 77GHz All-Weather Radar: Millimeter waves penetrate factory smoke, dust, heavy rain, and glare.
- Broad Detection Zone: Detects moving forklifts, racking, concrete pillars, and personnel up to 40m.
- FMCW False-Alarm Tuning: Advanced modulation isolates targets from complex industrial background noise.

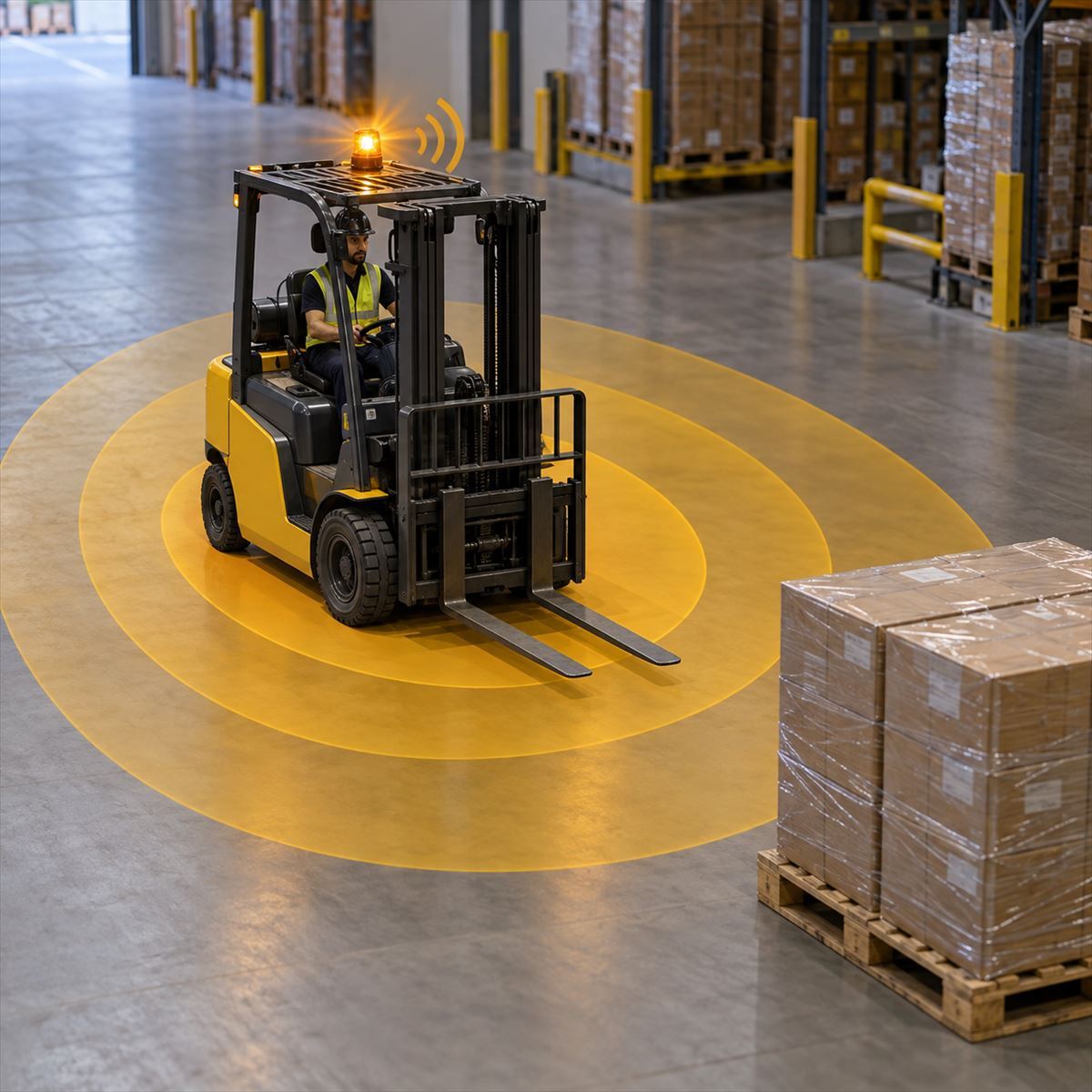

Three-Level Progressive Audible & Visual Warning
Graduated strobe frequency and acoustic rhythm provide immediate cognitive hazard awareness without driver distraction.
- Zone 1 (Far - Awareness): Gentle audio cadence and slow amber strobe warn of approaching obstacles.
- Zone 2 (Mid - Caution): Accelerated acoustic beep and rapid strobe command vehicle deceleration.
- Zone 3 (Near - Stop): Continuous high-decibel alarm and persistent red strobe demand immediate braking.
Single or Dual Radar Deployment Flexibility
One compact control unit handles single rear detection or dual-zone front-and-rear perimeter protection.
- Unified Control Box: Single central ECU supports 1 or 2 radar sensors, cutting fleet parts inventory.
- R350-1 Single Radar: Compact setup for warehouse forklifts safeguarding reversing blind spots.
- R350-2 Dual Radar: Front-and-rear coverage for large terminal loaders and heavy dump trucks.

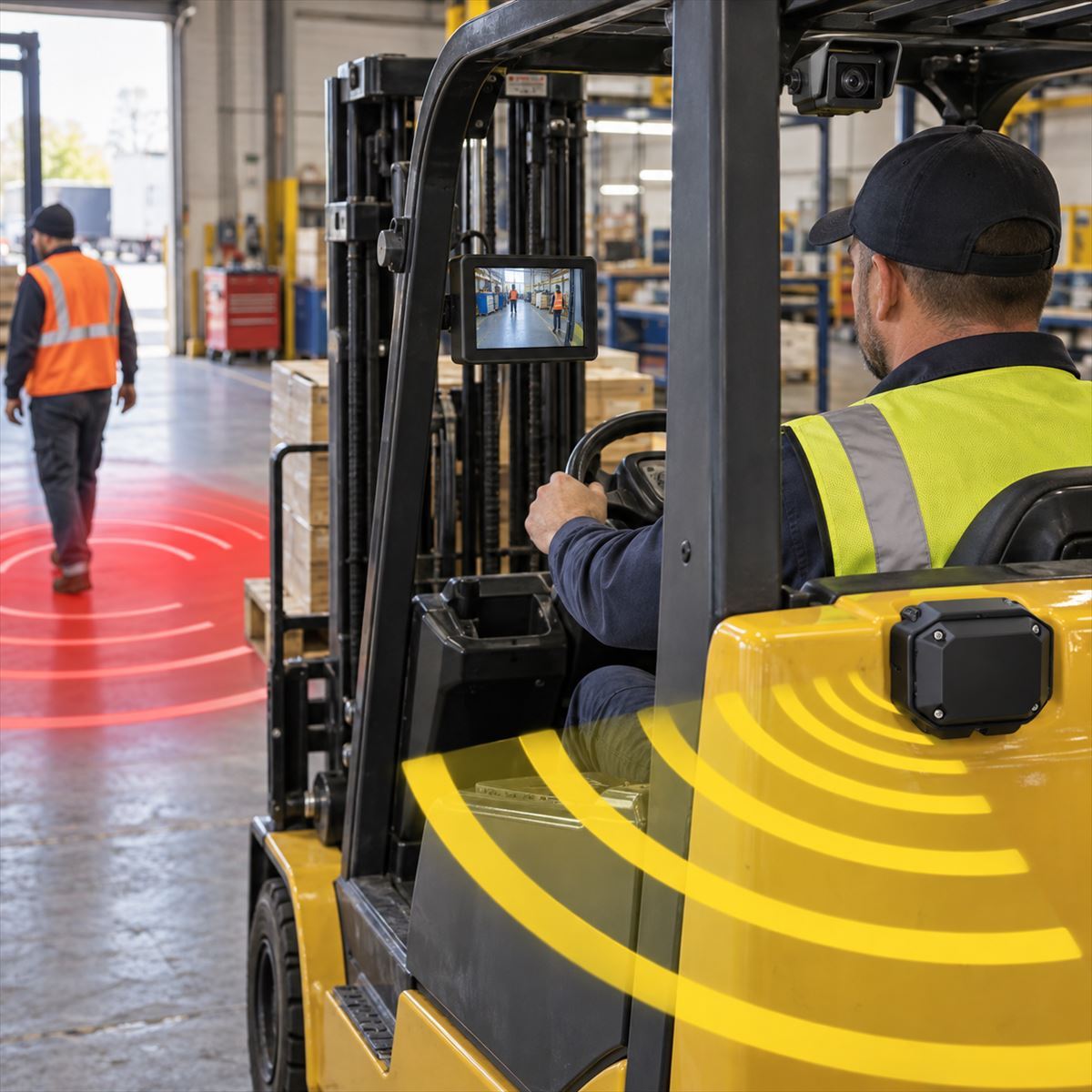

Audio-Visual & Telematics Video Integration
Combine radar precision with live commercial AHD camera feeds for comprehensive situational awareness.
- In-Cab Distance Display: Real-time numerical distance and direction indicators in driver line of sight.
- Monitor Synchronization: Direct hookup with 7-inch DP230-5 or 10.1-inch DP285 displays for split video.
- Speed Governor Interlock: Optional 6-channel I/O harness triggers vehicle speed limiters upon critical alerts.
Compatible Sensors & Peripherals Suite
Turnkey modular vehicle safety components factory-certified with AlwayCare R350 radar platforms.
R350-DP Distance Displayer
Dashboard LED display unit indicating dynamic collision distance in meters and directional arrow warnings directly in the operator field of view.
7" & 10.1" In-Cab AHD Monitors
Heavy-duty anti-glare vehicle displays (DP230-5 / DP285) featuring 4-channel AHD video inputs, auto-dimming sensors, and local SD/TF card recording.
CC670 IP68 Front & Rear Camera
Die-cast metal waterproof camera rated IP68 with 18 IR LEDs for 10~15m night vision, high-strength tempered glass, and aviation screw connectors.
CC990 Starlight Full-Color Camera
Ultra-sensitive starlight optical sensor delivering full-color daytime-like video feeds in dimly lit storage yards and nocturnal transit hubs.
R350-IO 6-Channel Level Output
Hardware IO trigger harness exporting 6 independent alarm level signals to interface with automated forklift deceleration valves, governors, or strobe beacons.
Shielded Industrial Extension Cables
High-flex double-shielded radar extension cables (10m) and 4-pin aviation video cables (2m~30m) resistant to automotive oil, hydraulic fluids, and friction.
See R350 in Operation
Official AlwayCare R350 demonstration showing real-world obstacle detection and driver warning on operational commercial equipment.
Built for Demanding Fleet Operations
Why leading industrial logistics centers, mining operators, and commercial fleet managers specify AlwayCare radar hardware.
Direct Manufacturing Quality
ISO9001 certified production facility with 100% full-batch radar calibration, thermal cycling (-40°C~+85°C), and vibration stress testing.
Certified Automotive Compliance
Certified CE, FCC, RoHS, and UKCA compliance with official electromagnetic compatibility (EMC) reports for industrial equipment.
15-Month Factory Warranty
Extended 15-month warranty from factory dispatch with guaranteed long-term replacement sensor and control box availability.
OEM & Custom IO Integration
Custom bracket designs, specialized wiring harness lengths, branded packaging, and bespoke IO signal logic tailored to vehicle CAN/ECU systems.
From Evaluation to Fleet Deployment in Four Steps
A transparent engineering and procurement path — evaluate hardware on your test vehicles before placing bulk orders.
Share Vehicle Specifications
Provide your fleet equipment types (forklifts, haul trucks, wheel loaders), mounting positions, and desired alarm output logic.
System Architecture & Quote
Our sales engineers configure the optimal R350-1 or R350-2 package and provide an official quotation within one business day.
Trial Unit Field Testing
Sample radar kits are dispatched for on-site vehicle mounting, detection perimeter tuning, and operator workflow validation.
Bulk Manufacturing & Support
Fleet orders ship with rigorous QC test logs, installation schematics, export documents, and dedicated after-sales engineering.
Engineering Documents & Downloads
Comprehensive technical specifications, dimensions, wiring pinouts, and compliance certificates for R350.
Product Datasheet
Complete factory engineering parameters, mechanical dimensions, power draw, and ordering configurations for R350 (PDF).
Download DatasheetCertificates & Lab Reports
Official CE, FCC, RoHS, and industrial environmental vibration / shock test documentation.
Request CertificatesInstallation & Wiring Manual
Detailed radar bracket mounting angles, buzzer/strobe wiring diagram, and IO level trigger pinouts.
Request ManualCustom IO & ECU Integration
Engineering consultation for vehicle speed governor interfacing and automated braking signal integration.
Request Integration SupportComplete the Commercial Fleet Safety Stack
Complementary collision warning and active telematics hardware commonly deployed alongside R350.

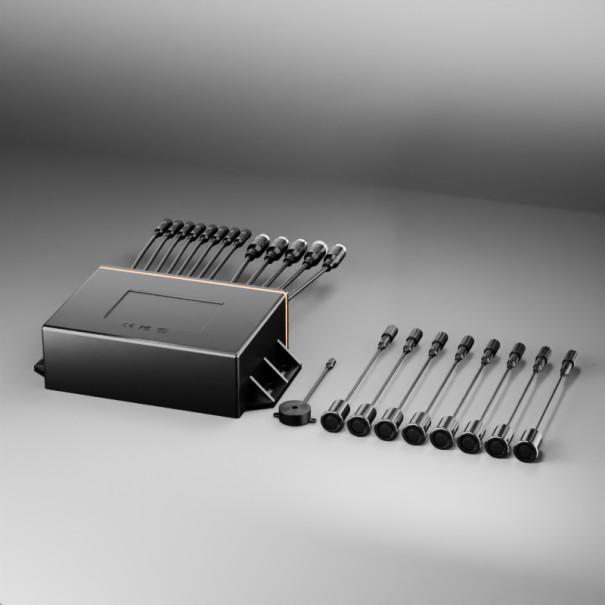

R300 IP67 Ultrasonic Collision Warning Radar
Model R300 — Ultrasonic perimeter obstacle detection for commercial transport fleets.
UA350 UWB Forklift Proximity Warning System
Model UA350 — Ultra-wideband personnel-to-vehicle collision prevention tags and base station.
MR830 All-in-One AI Vision Terminal
Model MR830 — Integrated DMS driver fatigue tracking, ADAS roadway warning, and blind-spot detection.
Frequently Asked Questions
Can't find your answer? Our radar engineers reply within one business day — email safety@alwaycare.com or send an inquiry.
What is the functional difference between R350-1 and R350-2?
R350-1 includes one 77GHz obstacle-detection radar sensor, typically mounted on the vehicle rear to monitor reversing hazards. R350-2 includes two radar sensors, allowing simultaneous coverage of both front and rear zones or dual lateral blind spots. Both versions operate from a single central control processing box supporting up to two radars.
What detection range, field of view, and targets does R350 support?
The system provides a continuous detection range of 0.2m to 40m (0.65 ft to 131 ft). It detects both stationary and moving obstacles, including concrete walls, pallet storage racks, equipment structural posts, pedestrians, forklifts, and motor vehicles.
How does the tiered warning system alert the driver?
R350 features three progressive alarm distance thresholds. As an obstacle enters each zone, the system automatically alters the flash rate of the external strobe light and the rhythmic frequency of the in-cab acoustic buzzer, providing clear cognitive cues of hazard proximity.
Can R350 trigger automatic forklift speed reduction or external interlocks?
Yes. By pairing the control unit with the optional R350-IO 6-channel level output harness, the system can output trigger signals corresponding to alarm distance levels. Fleet operators frequently use this to interface with electronic speed limiters to automatically throttle vehicle speed upon entering the critical danger zone.
Can the radar system be paired with in-cab video monitors?
Yes. R350 integrates seamlessly with optional in-cab hardware, including the R350-DP numerical distance displayer, 7-inch DP230-5 or 10.1-inch DP285 AHD video monitors, and heavy-duty IP68 cameras (CC670/CC990/CC950) for synchronized audio-visual obstacle verification.
What radar cable lengths and extensions are supported?
Each radar includes a 5m industrial shielded cable as standard. If the radar is installed on longer commercial chassis or articulated equipment, optional 10m extension cables are available. Note that the total radar cable length for each sensor should not exceed 20m to ensure optimal high-frequency signal integrity.
What warranty and quality assurance apply to R350?
Every AlwayCare R350 system is manufactured under ISO9001 quality management, holds CE, FCC, and RoHS certifications, and includes a 15-month direct manufacturer warranty from dispatch date.
