M360-6C3 6-Channel AI 3D 360° Around-View System
| Share | |
|---|---|
| Categories | AVM (360° Around View Monitor) |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Product Specifications | M360-6C3 |
| Channels | 6 analog HD camera inputs (AHD 720P/1080P) |
| Output | AHD 720P 25fps, 1080P |
| Key Functions | Phone control; expandable with dual-CAN, HD decoding and multi-function 360° boards |
| Display | 10" AHD display |
| Storage | Micro SD up to 2TB |
| Operating Voltage | DC 10V - 36V, <300mA @12V (host) |
| Operating Temperature | -30℃ ~ 70℃ (host) |
| Camera | 1080P, GC2053 1/2.9" FHD CMOS, HFOV 210°, VFOV 130° |
| Camera Power | 12V DC, 70±5mA, -20℃ ~ 70℃ |

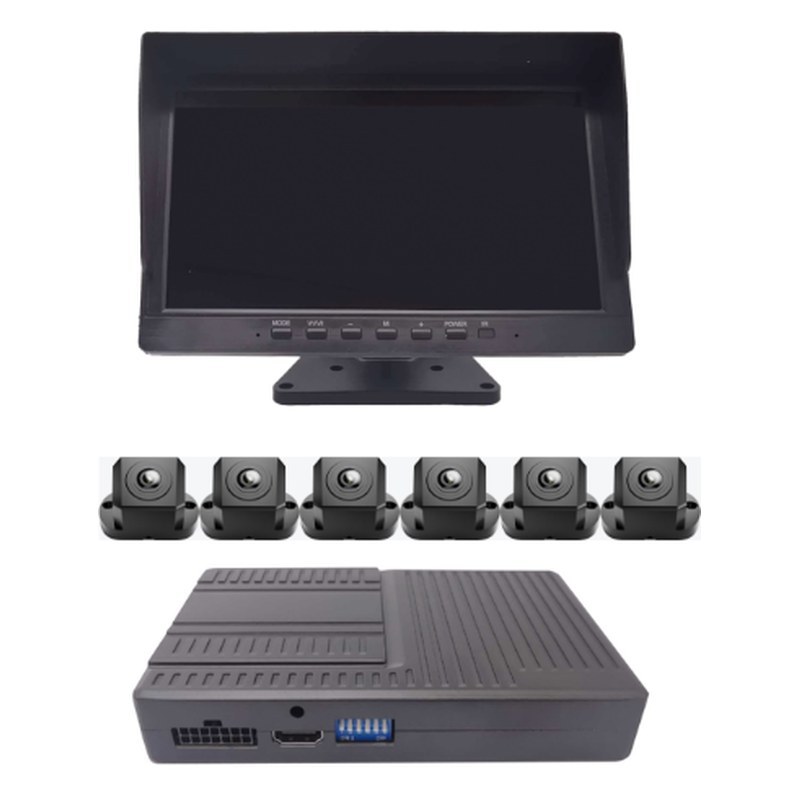

| Included | 360° host, 6 fisheye cameras, 10" AHD display, cables, wireless remote |
| Application | RVs, trucks, trailers and large engineering vehicles |
| Warranty | 15 Months |
M360-6C3 6-Channel AI 3D 360° Around-View System
M360-6C3 is a 6-channel AI 3D 360° around-view system with six 210° fisheye cameras, a 10-inch AHD display and phone control.
Technical Specifications
Your quotation confirms the exact configuration.
| Model | M360-6C3 |
|---|---|
| Channels | 6 analog HD camera inputs (AHD 720P/1080P) |
| Output | AHD 720P 25fps, 1080P |
| Key Functions | Phone control; expandable with dual-CAN, HD decoding and multi-function 360° boards |
| Display | 10" AHD display |
| Storage | Micro SD up to 2TB |
| Operating Voltage | DC 10V - 36V, <300mA @12V (host) |
| Operating Temperature | -30℃ ~ 70℃ (host) |
| Camera | 1080P, GC2053 1/2.9" FHD CMOS, HFOV 210°, VFOV 130° |
| Camera Power | 12V DC, 70±5mA, -20℃ ~ 70℃ |
| Included | 360° host, 6 fisheye cameras, 10" AHD display, cables, wireless remote |
| Application | RVs, trucks, trailers and large engineering vehicles |
| Warranty | 15 Months |
AVM Models
Compare M360-6C3 with other AlwayCare models in this category.
| Model | Channels | Display | Voltage |
|---|---|---|---|
| M360-1 | 4 channels | — | 12/24V |
| M360-2 | 4 + 2 BSD channels | — | 12/24V |
| M360-3 | All-in-one | 10.1 inch | 12/24V |
| M360-4C3 | 4 analog HD camera inputs, 4-camera 360° stitching | 10.1" IPS all-in-one, 1024x600, 600 cd/m2 | DC 12-36V (monitor), power 10-30W |
| M360-4C2 | 4 channels, 720P input, quad-split display | 10" IPS, 800x1280, key and voice control | DC 9-36V |
| M360-6C3 (this page) | 6 analog HD camera inputs (AHD 720P/1080P) | 10" AHD display | DC 10V - 36V, <300mA @12V (host) |
| T5 | 6 analog HD 720P camera inputs, combined into one 1080P TS stream (H.264) | — | DC 10V - 36V |
| DP-1028 | 8 AHD inputs; 4 x 1080P@30fps or 8 x 1080P@15fps encoding | 10.1" touchscreen all-in-one | Input 9-36V, output 12V |
Frequently Asked Questions
Can't find your answer? Our engineers reply within one business day — email safety@alwaycare.com or send an inquiry.
What is included in M360-6C3?
A 360° host, six fisheye cameras, a 10-inch AHD display, extension cables, power and harness cables, and a wireless remote.
What storage does it support?
A Micro SD card up to 2TB.
Which warranty applies?
M360-6C3 ships with a 15-month manufacturer warranty. Confirm final terms and regional service coverage in your quotation.
