Vehicle Monitor
Commercial Fleet In-Cab Vehicle Monitors & Displays
High-definition 7" and 10.1" industrial in-cab displays built for heavy trucks, buses, forklifts, and construction equipment. Featuring sun-readable high-bright panels up to 1000 nits, IP68 fully waterproof housings, multi-channel split-screen viewing, and wide 9-36V DC surge protection.
Commercial Vehicle Monitor Series
Explore anti-glare, shock-resistant monitors designed for heavy truck dashboards, bus driver consoles, and outdoor open-cab industrial machinery.
Commercial Vehicle Monitor Comparison
Compare screen sizes, brightness specifications, ingress protection, and channel split capabilities across AlwayCare commercial monitors.
| Model | Display Size & Panel | Brightness (nits) | Channels & Split Modes | Protection Rating | Ideal Mounting |
|---|---|---|---|---|---|

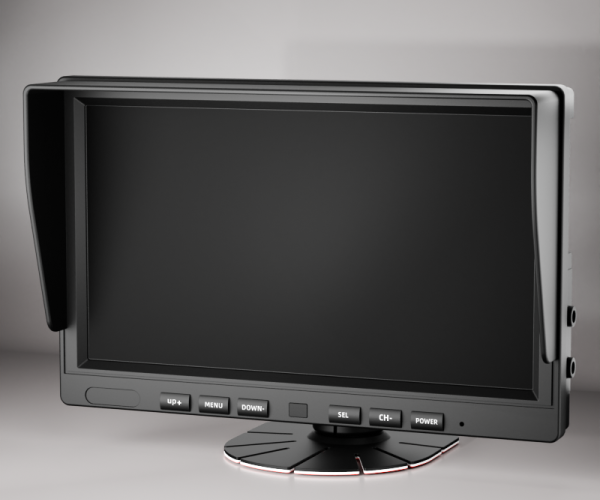

| DP285-A 10.1" Quad-Split | 10.1" High-Def IPS (1024x600) | 500 nits High Brightness | 4-CH AHD (Single, Dual, Quad 4-View) | Commercial In-Cab Heavy-Duty | Heavy Truck Dashboard / Bus Console |
| DP270-A 10.1" Single-View | 10.1" Wide-Viewing IPS | 500 nits Anti-Glare | 2-CH Video Input (Auto Reversing Switch) | Standard Commercial In-Cab | Coach / Transit Bus Dashboard |

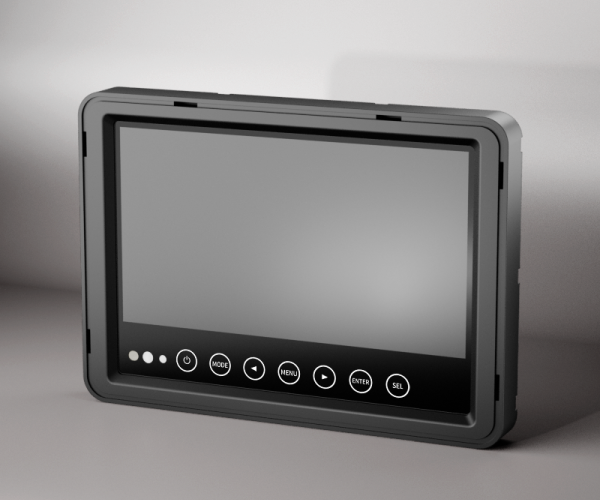

| DP210-B 7" Waterproof | 7" Rugged Sealed Display | 700–1000 nits Sun-Readable | Dual Video Channels | IP68 Waterproof Aluminum Housing | Open-Cab Forklifts, Port Machinery, Marine |
| DP210-C 7" IP68 Dual-CH | 7" High-Contrast Digital TFT | 650 nits High Brightness | 2-CH Video Input (Trigger Wire Auto-Switch) | IP68 Waterproof Housing | Mining Dumpers, Agricultural Sprayers |

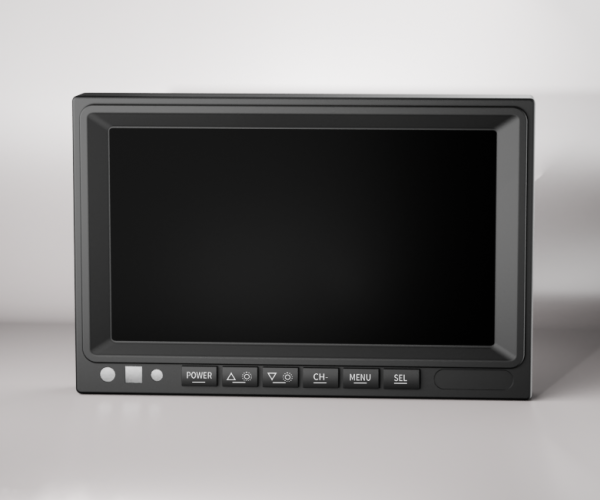

| DP230-SD 7" Standard In-Cab | 7" Compact Digital TFT | 450 nits In-Cab | Dual Channel CVBS / AHD Compatible | Compact Dashboard Housing | Commercial Vans, Light Logistics Trucks |
Sunlight Readable IPS Panels
High-luminance LED backlights delivering 500 to 1000 nits with anti-reflective optical bonding ensure pristine visibility even under direct mid-day sun glare.
IP68 Waterproof Open-Cab Models
Rugged aluminum sealed models (DP210-B/C) withstand rain, pressure washing, and extreme dust, making them suitable for open-station forklifts, port cranes, and marine craft.
Automotive Surge & Wide-Voltage
Integrated DC 9V–36V power supplies feature reverse-polarity protection, load-dump transient suppression, and individual camera power feeds to prevent in-rush failures.
Commercial Vehicle Monitors FAQ
What screen size is recommended for commercial trucks versus passenger vans?
For commercial heavy trucks, articulated haulers, and transit buses with 3 or 4 cameras, 10.1" monitors (like DP285-A) provide the optimal visual area for simultaneous quad-split viewing without straining driver vision. For delivery vans, light trucks, or single-camera reversing systems, compact 7" displays (DP230-SD or DP270) offer unobtrusive dashboard mounting.
How does the monitor switch to the reversing camera automatically?
AlwayCare monitors include dedicated trigger wires (Reverse, Left Turn, Right Turn). When reverse gear is engaged, the trigger wire receives a 12V/24V signal and automatically forces the display to show the full-screen rear reversing camera with adjustable electronic parking guide lines, returning to default view upon shifting back into drive.
Are AlwayCare monitors compatible with third-party cameras?
Yes. Our monitors accept standard 4-pin aviation inputs with multi-format auto-detection supporting 1080P AHD, 720P AHD, and standard CVBS (PAL/NTSC) signals. RCA and BNC adapter harnesses are also readily available for legacy fleet integrations.
What mounting brackets are supplied with the monitors?
Each monitor package includes a heavy-duty U-shaped metal pedestal bracket for solid dashboard or roof console anchoring, as well as a multi-directional butterfly dash-mount bracket. Standard VESA 75x75mm mounting holes are also integrated on the rear panel for third-party RAM mount systems.
Equip Your Drivers with High-Clarity In-Cab Vision
Request detailed technical specifications and fleet sample units from AlwayCare commercial display specialists today.
