12–33V input
Structured wide-voltage support helps match different commercial-vehicle electrical systems.
CC950-33V Wide-Voltage IP68 Vehicle Camera
Detail Information
CC950-33V · Vehicle camera
What is CC950-33V?
CC950-33V is a wide-voltage CVBS vehicle camera with 12–33V input, a metal enclosure and structured infrared night-vision distance of 10–15 metres.
Buyer overview
Four points to evaluate first
CVBS video
The structured record identifies the camera’s video definition or signal as CVBS.
10–15m night vision
Structured attributes list an infrared night-view distance of 10–15 metres.
Metal construction
The structured record lists a metal enclosure for vehicle installation.
System fit
Match lens, signal and mounting zone
Confirm the camera view, video signal, connector, receiving monitor or recorder, power supply and cable length before installation.
Viewing decision
Define target zone, distance, field of view, night conditions, mounting height and possible obstruction.
Integration decision
Confirm signal format, resolution, connector pinout, power range, trigger behavior and compatible equipment.
Current structured record

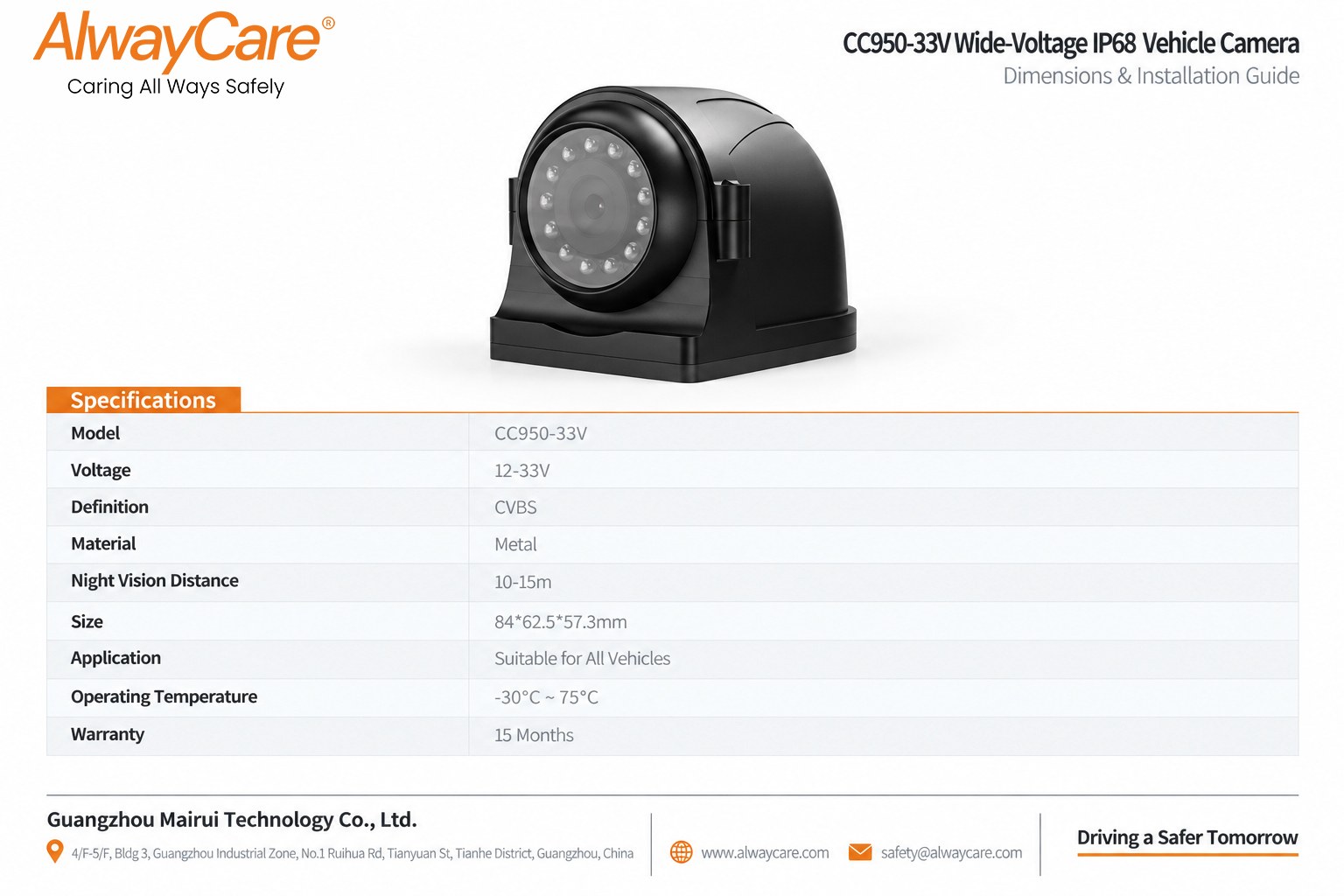

Technical specifications
| Voltage | 12-33V |
|---|---|
| Definition | CVBS |
| Material | Metal |
| Night Vision Distance | 10-15m |
| Size | 84*62.5*57.3mm |
| Application | Suitable for All Vehicles |
| Operating Temperature | -30℃ ~ 75℃ |
| Warranty | 15 Months |
Use the structured record as the current baseline. Conflicts with older body copy are disclosed below.
Preserved from the original page

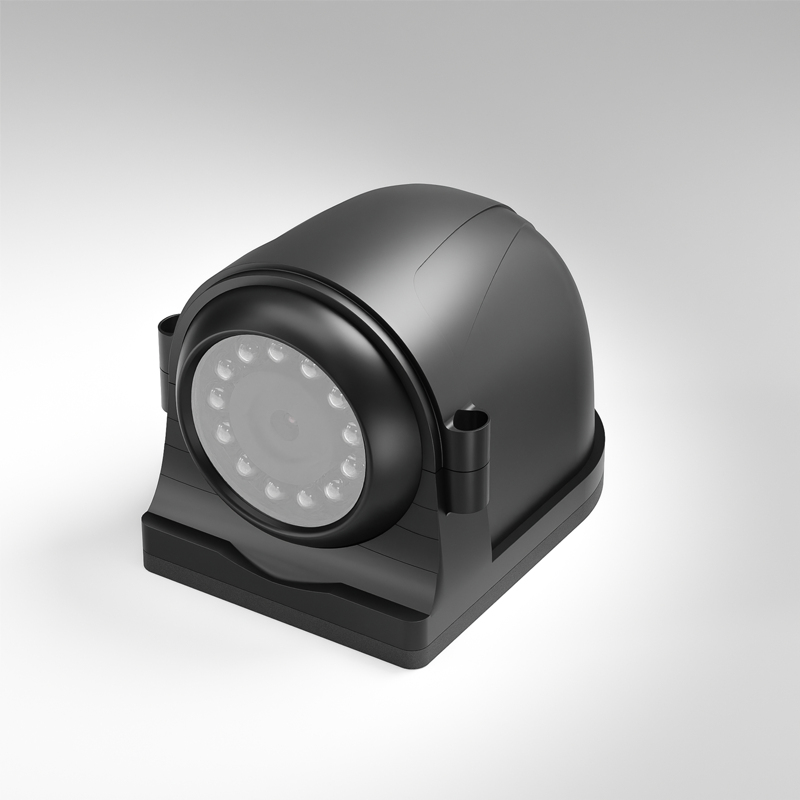

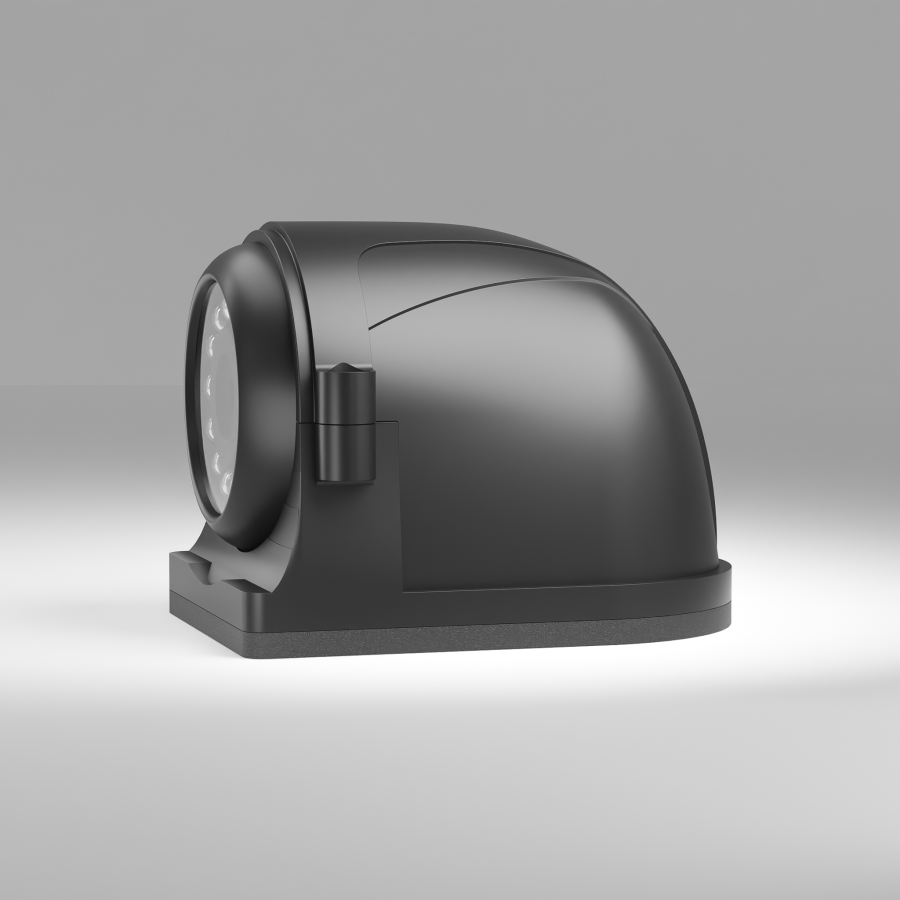

Existing Product and Deployment Views
Installation planning
Validate the real camera view
Test the lens view, target distance, glare, night illumination, vibration, cable routing and receiving-device image before fleet rollout.
Example applications
Where CC950-33V may fit
Mixed-voltage fleets
Use where a compatible camera must operate across the listed 12–33V range.
Side and rear monitoring
Install after confirming CVBS compatibility and the required view.
Night fleet operations
Use infrared illumination for defined short-range monitoring zones.
Specification and performance boundary
IP68 and high-strength glass are stated in the product name/body but not in structured attributes. CVBS is listed under Definition without resolution, frame rate or regional video standard. Confirm ingress rating, PAL/NTSC compatibility, connector, lens angle, infrared conditions and regulated power before ordering.
Buyer questions
CC950-33V FAQ
What voltage range is listed?
The structured attributes list 12–33V. Confirm transient protection and wiring for the actual vehicle.
What video signal does it use?
The structured record says CVBS. Confirm PAL or NTSC, connector and compatibility with the monitor or recorder.
What night-vision distance is listed?
The structured attributes list 10–15m. Actual distance depends on scene reflectivity, mounting and ambient conditions.
Is it IP68 rated?
The product name and body say IP68, while structured attributes do not. Confirm the approved enclosure test.
Does it use high-strength glass?
The old body states high-strength glass, but the structured attributes do not define the window material. Confirm if this matters to the project.
What should be provided for a quotation?
Share vehicle voltage, CVBS standard, connector, mounting side, required field of view, night distance and cable length.
Confirm the complete camera system
Share your vehicle, monitored zone and receiving equipment
AlwayCare can review lens view, camera placement, signal, power, recorder or monitor compatibility and cabling.
