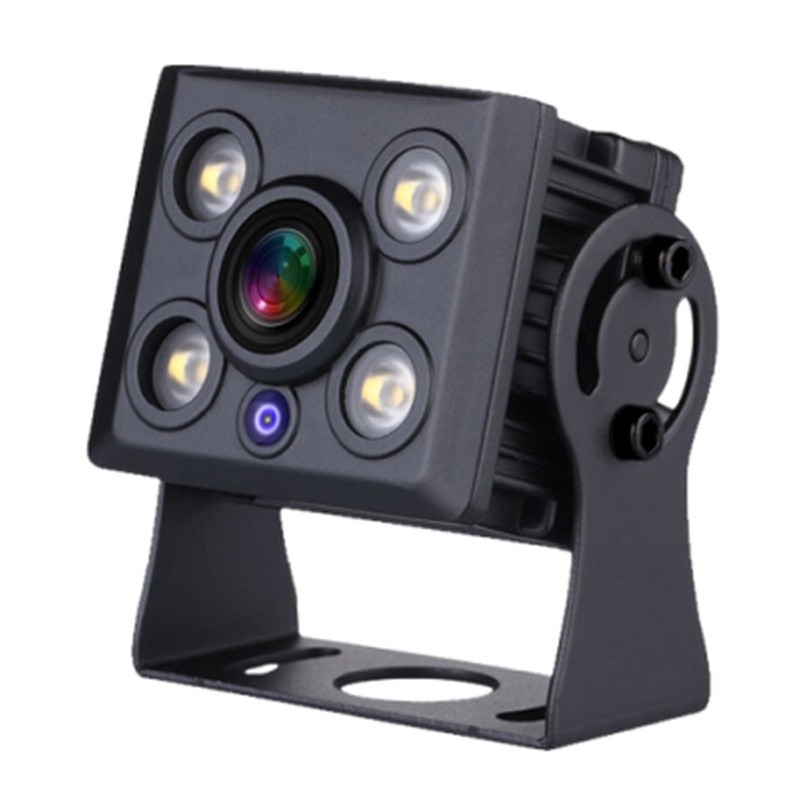

CC1003A-BSD 1080P Infrared AI Blind Spot Camera
| Share | |
|---|---|
| Categories | BSD (Blind Spot Detection System) |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Product Specifications | CC1003A-BSD |
| Definition | 1080P |
| Image Sensor | 1/2.9" 2.9MP CMOS |
| Lens | 2.8mm |
| Horizontal Angle | 100° |
| Night Vision | Infrared night vision |
| Voltage | DC 12V ±6% |
| Working Current | 50-110mA (IR off), 180-280mA (IR on) |
| Operating Temperature | -20℃ ~ 70℃ |
| Connector | 4-pin aviation connector |
| Detection | Pedestrians (walking, cycling, e-bike) and vehicles |
| Alarm Output | 1 I/O, connects to a buzzer, monitor or speaker device |
| Optional Accessories | Remote with receiver, buzzer, metal alarm, extension cables |
| Warranty | 15 Months |
CC1003A-BSD 1080P Infrared AI Blind Spot Camera
CC1003A-BSD is a 1080P AI blind spot camera for pedestrians and vehicles, with infrared night vision and alarm I/O.
Technical Specifications
Your quotation confirms the exact configuration.
| Model | CC1003A-BSD |
|---|---|
| Definition | 1080P |
| Image Sensor | 1/2.9" 2.9MP CMOS |
| Lens | 2.8mm |
| Horizontal Angle | 100° |
| Night Vision | Infrared night vision |
| Voltage | DC 12V ±6% |
| Working Current | 50-110mA (IR off), 180-280mA (IR on) |
| Operating Temperature | -20℃ ~ 70℃ |
| Connector | 4-pin aviation connector |
| Detection | Pedestrians (walking, cycling, e-bike) and vehicles |
| Alarm Output | 1 I/O, connects to a buzzer, monitor or speaker device |
| Optional Accessories | Remote with receiver, buzzer, metal alarm, extension cables |
| Warranty | 15 Months |
BSD Models
Compare CC1003A-BSD with other AlwayCare models in this category.
| Model | Resolution | Voltage | Size |
|---|---|---|---|
| CC1002-BSD | — | — | — |
| CC1003-AHD20 | — | — | — |
| CC1004-BSD | 1920x1080 | 12V | 90x63x65mm |
| CC1005-AH20R | — | 12/24V | — |
| CC1003A-BSD (this page) | 1080P | DC 12V ±6% | — |
| CC1003B-BSD | 1080P | DC 12V ±6% | — |
Frequently Asked Questions
Can't find your answer? Our engineers reply within one business day — email safety@alwaycare.com or send an inquiry.
What does it detect?
Pedestrians, including walking, cycling and e-bike riders, and vehicles, with tracking frames overlaid on the video.
How does it alert the driver?
Through an I/O alarm output to a buzzer, monitor or speaker device. The system alerts only and does not control the vehicle.
Which warranty applies?
CC1003A-BSD ships with a 15-month manufacturer warranty. Confirm final terms and regional service coverage in your quotation.
