T5 6-Channel AI 2D 360° Around-View System

T5 6-Channel AI 2D 360° Around-View System
Share
CategoriesAVM (360° Around View Monitor)
BrandAlwayCare Commercial Fleet Safety Manufacturer
Product SpecificationsT5
Channels6 analog HD 720P camera inputs, combined into one 1080P TS stream (H.264)
OutputAHD 720P 25fps, 1920x1080
Key FunctionsPhone control; RF encoder knob control
ProcessorAllwinner T5 quad-core Cortex-A53, 1.5GHz
GPUG31 MP2
MemoryRAM 512MB, ROM eMMC 4GB
Operating VoltageDC 10V - 36V
Included360° host, harness, 10.1" HDMI monitor, 4 fisheye and 2 rear cameras, 6 extension cables, remote
Warranty15 Months
T5 is a 6-channel AI 2D 360° around-view system on an Allwinner T5 quad-core platform with 1080P output and phone control.
Detail Information

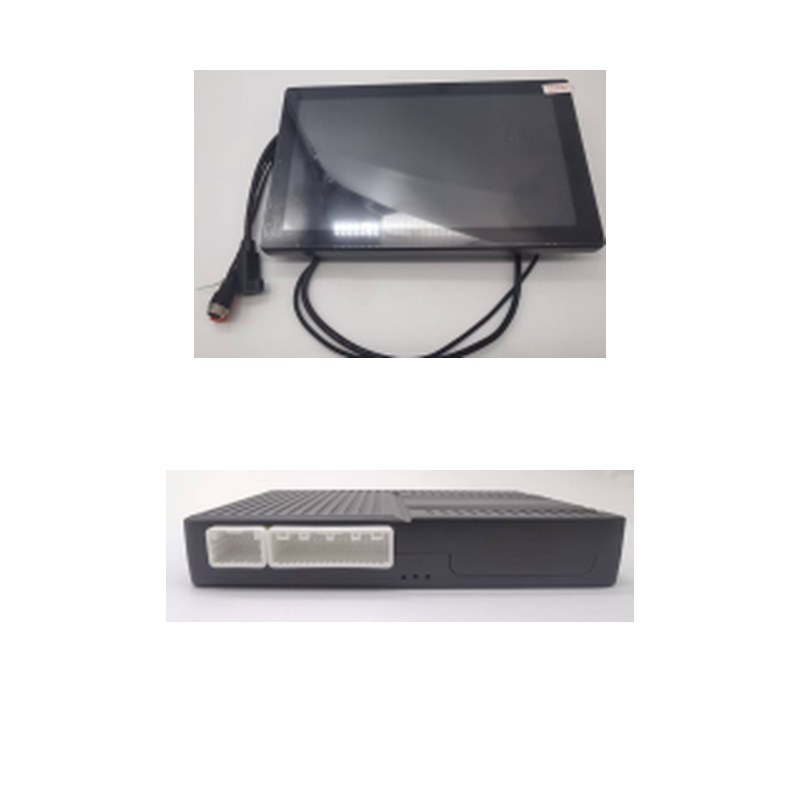

T5 image 1
AVM (360° Around View Monitor)

T5 6-Channel AI 2D 360° Around-View System

T5

T5 is a 6-channel AI 2D 360° around-view system on an Allwinner T5 quad-core platform with 1080P output and phone control.

PowerDC 10V - 36V
OutputAHD 720P 25fps, 1920x1080
Key FunctionsPhone control; RF encoder knob control
ProcessorAllwinner T5 quad-core Cortex-A53, 1.5GHz
GPUG31 MP2
MemoryRAM 512MB, ROM eMMC 4GB
↓ Request datasheet
  • 15-month warranty
  • IATF 16949 certified factory
  • OEM / ODM customization
  • Suitable for all vehicles

Final configuration is confirmed in your quotation.

Overview

What T5 Delivers

T5 is a 6-channel AI 2D 360° around-view system on an Allwinner T5 quad-core platform with 1080P output and phone control.

T5 unit
Overview

T5 6-Channel AI 2D 360° Around-View System

T5 is a 6-channel AI 2D 360° around-view system on an Allwinner T5 quad-core platform with 1080P output and phone control.

  • Output: AHD 720P 25fps, 1920x1080
  • Key Functions: Phone control; RF encoder knob control
  • Processor: Allwinner T5 quad-core Cortex-A53, 1.5GHz
  • GPU: G31 MP2
Models

AVM (360° Around View Monitor) Models

Compare T5 with other models in this category. Each model has its own page.

ModelProductKey specVoltage
T5this pageT5 6-Channel AI 2D 360° Around-View SystemDC 10V - 36VDC 10V - 36V
CC360-AHD20CC360-AHD20 210° Fisheye Vehicle Camera1080PDC 12V ±6%
DP-1028DP-1028 8-Channel AI 360° Around-View System, Touchscreen1080P, 720P, D1, with automatic detectionInput 9-36V, output 12V
M360-1M360-1 4-Channel 3D 360° Around-View System1920x108012/24V
M360-2M360-2 6-Channel 360° Camera System with BSD1920x108012/24V
M360-3M360-3 3D 360° All-in-One Around-View Monitor1920x108012/24V
M360-4C2M360-4C2 4-Channel Voice-Control AI 3D 360° Around-View System, 10"TF/SD card up to 256GB, loop recordingDC 9-36V
M360-4C3M360-4C3 4-Channel AI 3D 360° Around-View System, 10.1" All-in-OneDC 12-36V (monitor), power 10-30WDC 12-36V (monitor), power 10-30W
Specifications

Technical Specifications

Values follow the product page. Your quotation confirms the exact configuration.

Video and display

Channels
6 analog HD 720P camera inputs, combined into one 1080P TS stream (H.264)

Connectivity and interfaces

Output
AHD 720P 25fps, 1920x1080

Power and hardware

Operating Voltage
DC 10V - 36V
Warranty
15 Months

Other specifications

Key Functions
Phone control; RF encoder knob control
Processor
Allwinner T5 quad-core Cortex-A53, 1.5GHz
GPU
G31 MP2
Memory
RAM 512MB, ROM eMMC 4GB
Included
360° host, harness, 10.1" HDMI monitor, 4 fisheye and 2 rear cameras, 6 extension cables, remote
Need the full engineering datasheet?Request the datasheet →
Downloads

Documents

Files that exist for this model can be downloaded. The others are available from our engineers on request.

Product datasheetOn request
Request
Certificates and test reportsOn request
Request
User manual and installation guideOn request · provided with sample orders
Request
FAQ

Frequently Asked Questions

Need technical clarification? Email safety@alwaycare.com or send an inquiry.

What is included in T5?

A 360° host, harness, a 10.1-inch HDMI monitor, four fisheye cameras, two rear cameras, six extension cables (5m, 10m, 10m, 15m, 15m, 20m) and a remote.

How can I control it?

By phone or with the RF encoder knob.

Which warranty applies?

T5 ships with a 15-month manufacturer warranty. Confirm final terms and regional service coverage in your quotation.
