CC990 IP68 Starlight Vehicle Camera for Bus Fleets
| Share | |
|---|---|
| Categories | Vehicle Camera |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Model | CC990 |
| Voltage | 12V |
| Definition | 1920x1080 |
| Lens | 2.8mm |
| Size | 70*60*58mm |
| Application | Suitable for All Vehicles |
| Operating Temperature | -30℃ ~ 75℃ |
| Warranty | 15 Months |
CC990 IP68 Starlight Vehicle Camera for Bus Fleets
IP68 starlight vehicle camera with 0.01 Lux full-color night vision and anti-vibration bracket for bus fleets.
Technical Specifications
Values follow the factory engineering datasheet — your quotation confirms the exact configuration.
| Model | CC990 / CC990-AHD20 (Starlight Fleet Series) |
|---|---|
| Image Sensor | 1/2.9" 2.9 Megapixel Full-Color CMOS Sensor |
| Chipset & ISP Architecture | FH8536 DSP + GC2053 High-Sensitivity Sensor |
| Effective Resolution | 1920 × 1080 Full HD (1080P @ 25/30 fps) |
| Minimum Illumination | 0.01 Lux (Starlight Full-Color in Low-Light without IR Glare) |
| Optical Lens | 2.8mm High-Clarity Optical Lens (Optional 2.1mm / 3.6mm) |
| IR-Cut Filter | Automated Mechanical IR-Cut Filter (True Color Day & Night) |
| Ingress Protection Rating | IP68 Certified Waterproof & Dustproof (High-Strength Glass Face) |
| Video Output Signal | AHD 1080P High-Definition Video (4-Pin Aviation Output) |
| Operating Voltage | DC 12V ± 6% Automotive Fleet Input |
| Operating Current | 50mA – 110mA (Ultra-Low Power Consumption & Low Heat Build) |
| Enclosure Material | Heavy-Duty Cast Metal Housing with Integrated Anti-Glare Brow |
| Dimensions | L70mm × W60mm × H58mm |
| Operating Temperature | -30°C ~ +75°C (-22°F ~ +167°F) |
| Storage Temperature | -40°C ~ +85°C (-40°F ~ +185°F) |
| Connectors | Threaded 4-Pin Aviation Locking Connector (Video + Power + Ground) |
| Mounting Hardware | Heavy-Duty Metal U-Bracket with Dual Side Locking Screws |
| Quality Warranty | 18 Months Manufacturer Warranty |
Commercial Vehicle Camera Series Matrix
| CC990 / CC990-AHD20 (This Model) | 1080P IP68 Starlight Vehicle Camera — 0.01 Lux starlight full-color night vision, FH8536+GC2053 DSP, 2.8mm lens, IP68 metal chassis. Designed for bus interiors, passenger observation, and rear fleet view. | 1080P Starlight | 2.8mm Lens | IP68 Metal | DC 12V |
|---|---|---|
| CC877-AHD20 | 1080P IP68 140° Wide-Angle Vehicle Camera — 140° wide horizontal field of view, 10-15m IR night vision, FH8536+GC2053, compact 53×35×54mm metal enclosure. Engineered for commercial vehicle blind spot surveillance. | 1080P AHD | 140° Wide Angle | 15m IR | IP68 Metal |
| CC866-AHD20 | 1080P IP68 160° Ultra-Wide Angle Starlight Camera — Ultra-wide 160°~170° panoramic coverage, 1.6mm fisheye/wide lens, 0.01 Lux starlight color sensitivity, robust L72.6mm metal body for heavy trucks and trailers. | 1080P Starlight | 160° Ultra-Wide | 1.6mm Lens | IP68 Metal |
| CC998-AHD20 | 1080P Micro IP68 Dual-Mode Vehicle Camera — Ultra-miniature 30×26×30mm cube form factor, 155° diagonal FOV, 30m deep waterproofing, WiFi & AHD dual connectivity, 240mAh internal backup. Ideal for discreet monitoring and tight cab installs. | 1080P Micro Cube | 155° FOV | 30m Waterproof | WiFi/AHD |
| CC806-IPC400 | 4.0MP High-Definition IP Vehicle Network Camera — 4MP (2560×1440) resolution, 1/2.9" low-light CMOS, 24 IR LEDs, H.265AI/H.265+ high efficiency, RJ45 ONVIF network interface with alarm I/O. Engineered for digital IP MDVR bus networks. | 4MP IP Network | H.265+ | 24 IR LEDs | RJ45 ONVIF |
What CC990 Delivers
Starlight optical engineering and rugged commercial vehicle monitoring verified against factory datasheets.

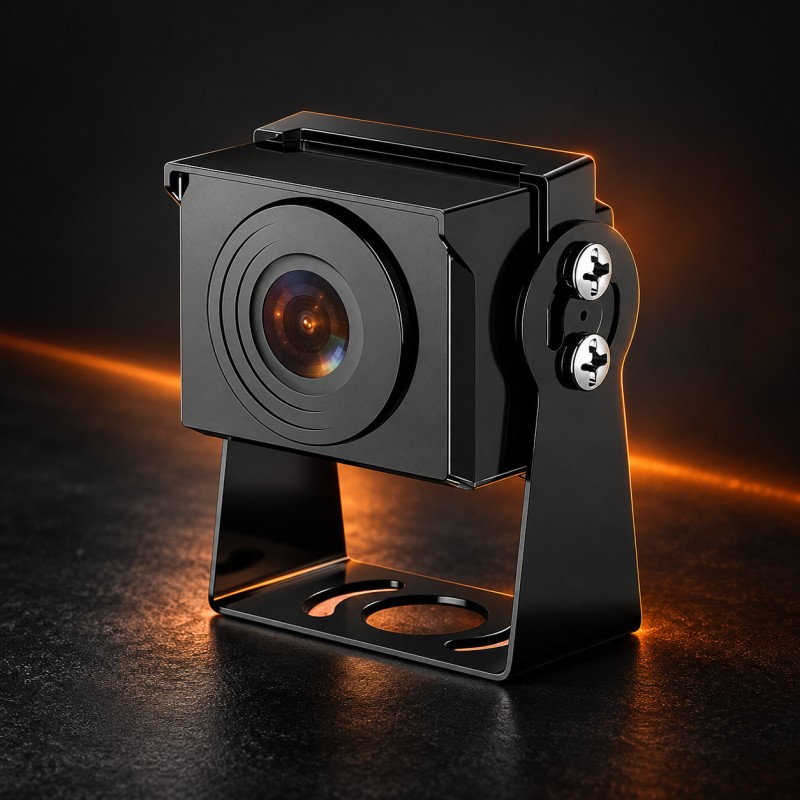

0.01 Lux Starlight Full-Color Night Vision
FH8536+GC2053 Architecture & Automated IR-Cut Filter
- 0.01 Lux Starlight Vision: Full-color imaging in near darkness without infrared glare.
- 2.8mm Multi-Coated Lens: 105° balanced field of view ideal for bus aisles and cabins.
- Auto IR-Cut Filter: Seamless transition between daylight colors and night sensitivity.

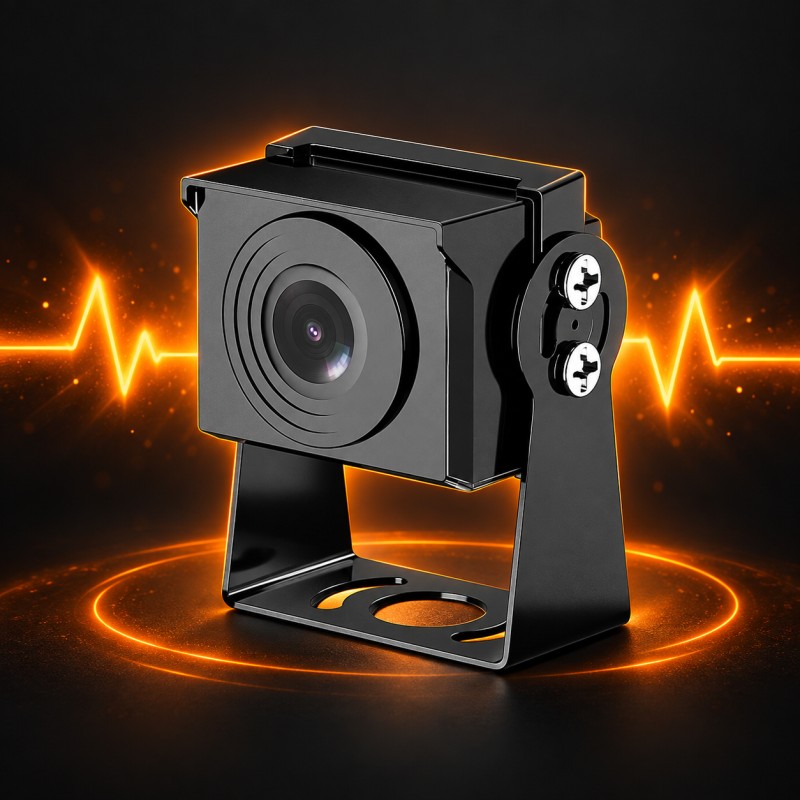

Multi-Directional Metal Bracket & Anti-Vibration Design
Heavy-Duty U-Bracket with Dual Side Lock Screws
- Multi-Directional U-Bracket: Heavy-duty metal bracket allows quick tilt and swivel calibration.
- Dual-Bolt Positive Lock: Heavy side fasteners maintain position under roadway vibration.
- Low Power Draw: 50mA-110mA current draw prevents cab heat and saves battery.

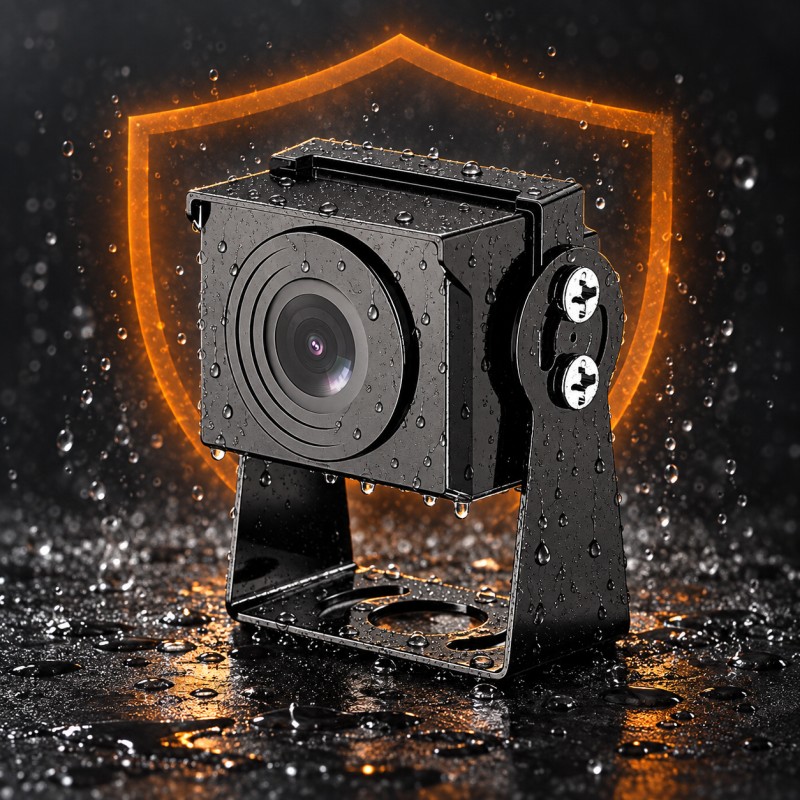

IP68 Ingress Sealing & -30°C to +75°C Extreme Duty
Cast Metal Housing & High-Pressure Washdown Protection
- IP68 Cast Metal Housing: Precision metal body resists direct water jets, mud, and dust.
- -30°C to +75°C Extreme Duty: Operates reliably across arctic cold and desert heat.
- 4-Pin Aviation Port: Industrial locking connector guarantees vibration-proof signal fidelity.
Built for Long-Term Fleet Programs
Factory Direct Supply
Devices ship from our own production line, with engineering support from the team that builds them.
Certified & Lab Tested
CE, UKCA, RoHS and ISO 9001 — every platform is backed by third-party laboratory test reports.
15-Month Warranty
Coverage that goes beyond the standard 12-month term, honored through your dedicated account manager.
OEM & Firmware Support
Logo, packaging, firmware behavior and interface customization for your market and fleet platform.
From Inquiry to Delivery in Four Steps
A clear path from first contact to units running in your fleet — no obligation at the evaluation stage.
Share Your Requirements
Send fleet size, vehicle models and target functions through the inquiry form or to your account manager.
Version & Quotation
Our engineers map your needs to the right CC990 version and issue a formal quotation within one business day.
Sample Evaluation
Sample units are available for road testing before you commit to a bulk order — evaluate first, decide later.
Production & Delivery
Bulk orders ship with factory QC reports, export documents and the 15-month warranty from dispatch.
Documents & Downloads
Everything your engineering and procurement teams need for evaluation.
Product Datasheet
Full specifications and ordering information — request the current CC990 datasheet.
Request DatasheetCertificates & Test Reports
Certification and third-party laboratory reports for the selected version and target market.
Request CertificatesUser Manual & Installation Guide
Wiring, mounting and configuration instructions — provided with sample orders.
Request ManualCMS Software & Demo
Platform access for evaluation — connect supported configurations to a live demo fleet.
Request Demo AccessComplete the In-Vehicle Safety Stack
Product families commonly deployed alongside CC990 in the same fleet stack.
CC998-AHD20 Waterproof Wi-Fi Vehicle Camera
Model CC998-AHD20 — Vehicle Camera for commercial fleets.
CC995-AHD20 IP69K Explosion-Proof Vehicle Camera
Model CC995-AHD20 — Vehicle Camera for commercial fleets.
CC866-AHD20 Starlight Camera for Commercial Fleets
Model CC866-AHD20 — Vehicle Camera for commercial fleets.
Frequently Asked Questions
Can't find your answer? Our engineers reply within one business day — email safety@alwaycare.com or send an inquiry.
Which connectivity options are available?
CC990 supports vehicle-grade connectivity. Map the interfaces to your onboard systems before ordering.
Which warranty applies?
CC990 ships with a 15 Months warranty. Confirm the final terms and regional service coverage in your quotation.
What vehicles does it fit?
Suitable for All Vehicles — mounting positions and camera coverage must be designed for the specific vehicle layout.
Are all listed features standard on every unit?
No. Detection coverage, connectivity and camera options are configuration-dependent. Confirm the exact scope in the quotation — our engineers will recommend the right version for your vehicles.
