DP230-A 7" Quad-Split 4-Channel Commercial Vehicle Monitor
| Share | |
|---|---|
| Categories | Vehicle Monitor |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Model | DP230-A |
| Display size | 7.0 inch |
| Display ratio | 16:9 Widescreen |
| Resolution | 1024x600 HD |
| Brightness | 500 cd/m2 Anti-Glare |
| Operating Voltage | DC 9V - 36V Wide Voltage |
| Video Inputs | 4 Channels (Quad-Split) |
| Video system | PAL / NTSC Auto-Adaptation |
| Enclosure Material | Flame-Retardant PC + ABS |
| Operating Temperature | -20℃ ~ +70℃ |
DP230-A 7" Quad-Split 4-Channel Commercial Vehicle Monitor
7-inch quad-split 4-channel commercial vehicle monitor with flame-retardant PC+ABS housing.
Technical Specifications
Values follow the factory datasheet — your quotation confirms the exact configuration.
| Model | DP230-A |
|---|---|
| Display size | 7.0 inch |
| Display ratio | 16:9 Widescreen |
| Resolution | 1024x600 HD |
| Brightness | 500 cd/m2 Anti-Glare |
| Operating Voltage | DC 9V - 36V Wide Voltage |
| Video Inputs | 4 Channels (Quad-Split) |
| Video system | PAL / NTSC Auto-Adaptation |
| Enclosure Material | Flame-Retardant PC + ABS |
| Operating Temperature | -20℃ ~ +70℃ |
| Screen Size & Aspect Ratio | 7.0 Inch Digital TFT-LCD | 16:9 |
| Native Resolution | 1024 × 600 HD |
| Luminance / Brightness | 500 cd/m² Anti-Glare |
| Operating Voltage | DC 9V – 36V Wide Voltage |
| Power Consumption | ≤ 6.0 Watts (Low Heat Build) |
| Video Input Channels | 4 Channels (Quad-Split) |
| Video Signal System | PAL / NTSC Auto-Detection |
| Enclosure & Protection | Flame-Retardant PC + ABS |
| Operating Temperature | -20℃ ~ +70℃ (-4°F ~ +158°F) |
| Warranty | 18 Months Manufacturer Warranty |

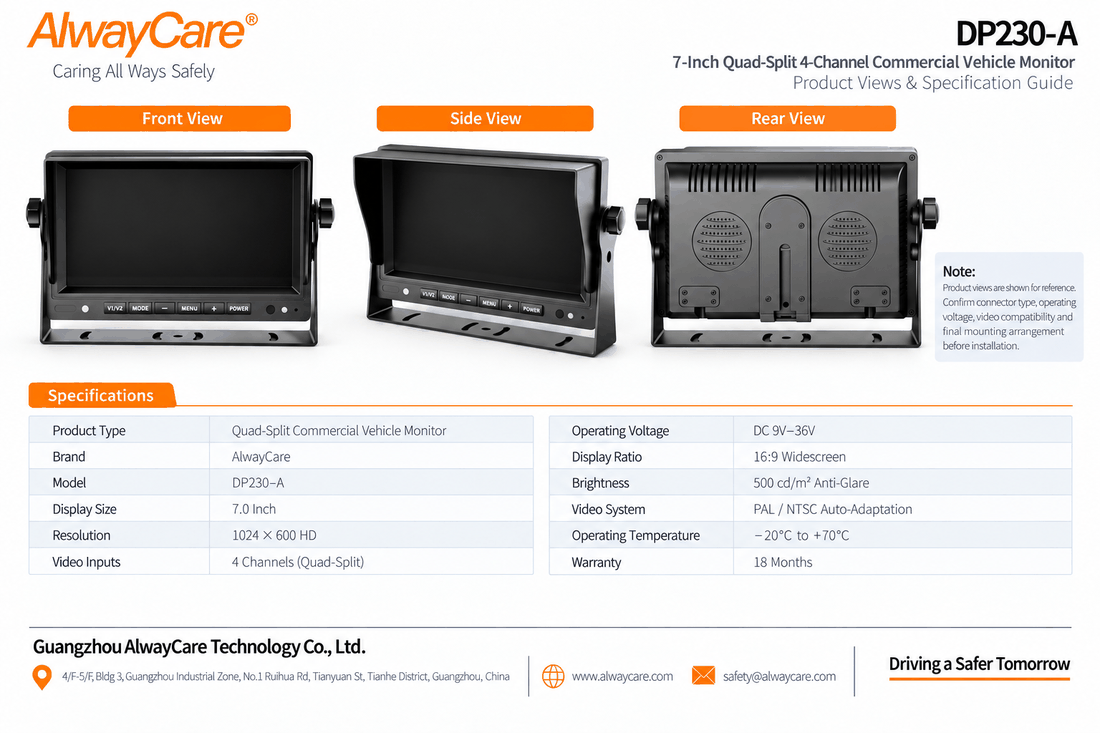

Technical Diagram & Specifications Overview
Factory engineering drawing, wiring pinout, and mechanical form factor for DP230-A.
What DP230-A Delivers
Capability groups verified against the official product record — scope details are confirmed in your quotation.

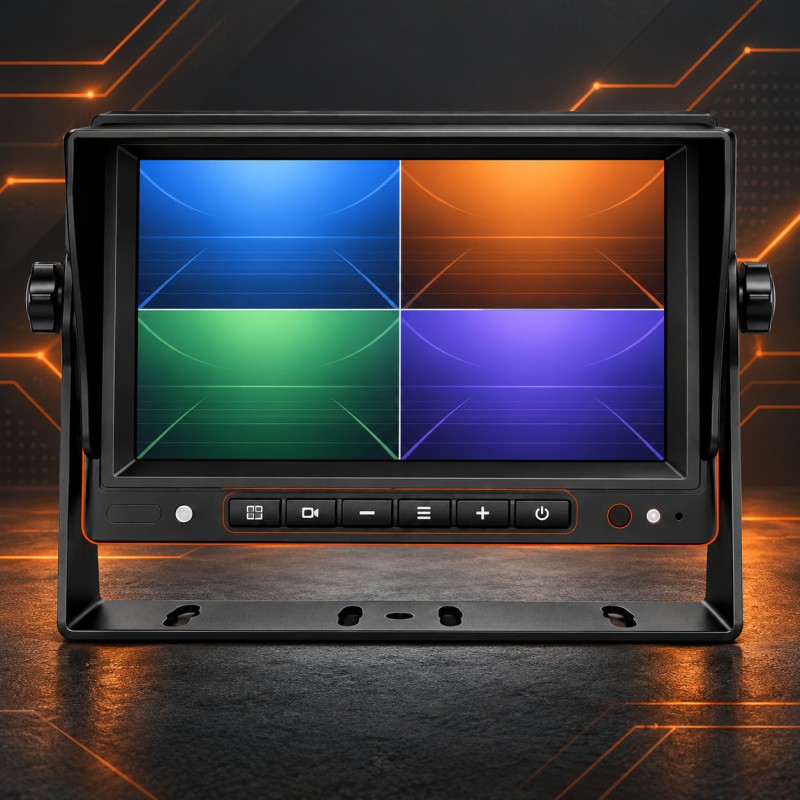

1024x600 HD Display & Recording
4 Channels (Quad-Split)
- Quad-Split 1024×600: 7-inch display renders up to 4 camera angles simultaneously.
- Zero Latency: Real-time visual feedback eliminates blind spots around commercial vehicles.
- Turnkey Integration: Pairs seamlessly with AlwayCare cameras and MDVR harnesses.

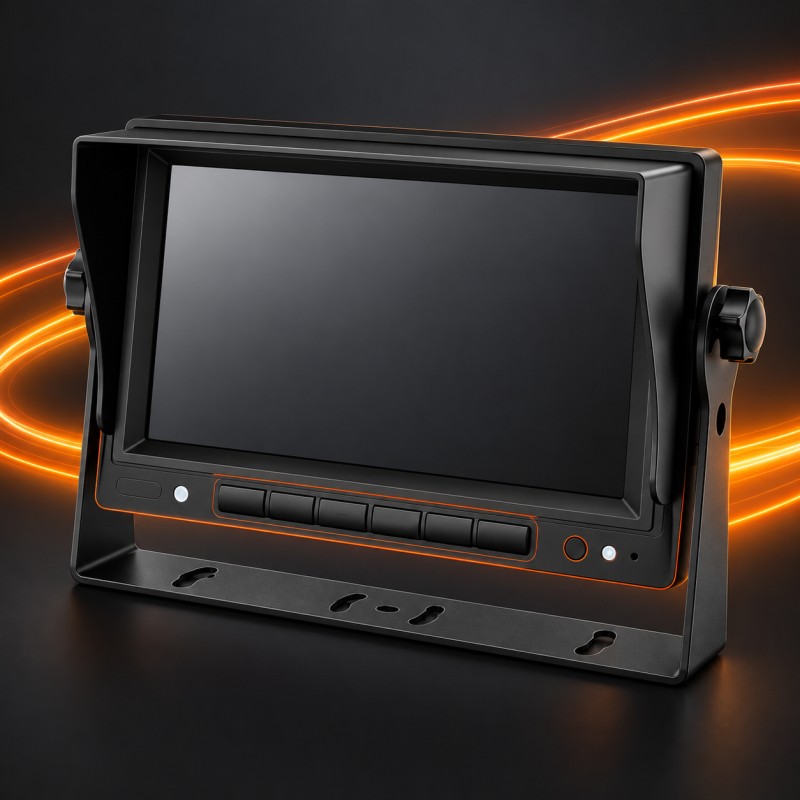

-20℃ ~ +70℃ Power & Operating Range
DC 9V - 36V Wide Voltage
- 9V-36V Wide Voltage: Built-in transient surge suppression for 12V/24V fleet electrical systems.
- Low Power (≤6W): Energy-efficient design prevents thermal buildup during continuous runs.
- Flame-Retardant PC+ABS: Industrial enclosure operates reliably across -20°C to +70°C.

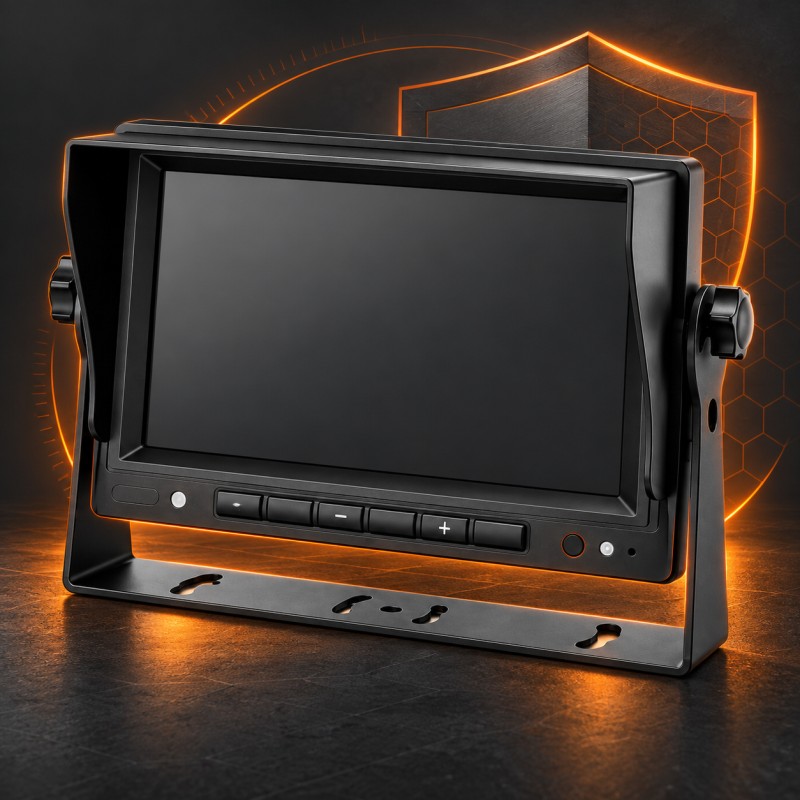

18 Months Warranty & Supply
7.0 inch
- Locking Aviation Ports: Threaded 4-pin connectors eliminate loose cables and vibration dropouts.
- 18-Month Warranty: Direct factory engineering support and guaranteed long-term spare supply.
Built for Long-Term Fleet Programs
Factory Direct Supply
Devices ship from our own production line, with engineering support from the team that builds them.
Certified & Lab Tested
CE, UKCA, RoHS and ISO 9001 — every platform is backed by third-party laboratory test reports.
15-Month Warranty
Coverage that goes beyond the standard 12-month term, honored through your dedicated account manager.
OEM & Firmware Support
Logo, packaging, firmware behavior and interface customization for your market and fleet platform.
From Inquiry to Delivery in Four Steps
A clear path from first contact to units running in your fleet — no obligation at the evaluation stage.
Share Your Requirements
Send fleet size, vehicle models and target functions through the inquiry form or to your account manager.
Version & Quotation
Our engineers map your needs to the right DP230-A version and issue a formal quotation within one business day.
Sample Evaluation
Sample units are available for road testing before you commit to a bulk order — evaluate first, decide later.
Production & Delivery
Bulk orders ship with factory QC reports, export documents and the 15-month warranty from dispatch.
Documents & Downloads
Everything your engineering and procurement teams need for evaluation.
Product Datasheet
Full specifications and ordering information — request the current DP230-A datasheet.
Request DatasheetCertificates & Test Reports
Certification and third-party laboratory reports for the selected version and target market.
Request CertificatesUser Manual & Installation Guide
Wiring, mounting and configuration instructions — provided with sample orders.
Request ManualCMS Software & Demo
Platform access for evaluation — connect supported configurations to a live demo fleet.
Request Demo AccessComplete the In-Vehicle Safety Stack
Product families commonly deployed alongside DP230-A in the same fleet stack.
DP400 AI Mirror Monitor for Extreme Temperatures
Model DP400 — Vehicle Monitor for commercial fleets.
DP230 7-Inch Automatic Vehicle Monitor for Buses
Model DP230 — Vehicle Monitor for commercial fleets.
Frequently Asked Questions
Can't find your answer? Our engineers reply within one business day — email safety@alwaycare.com or send an inquiry.
Which connectivity options are available?
DP230-A supports vehicle-grade connectivity. Map the interfaces to your onboard systems before ordering.
Which warranty applies?
DP230-A ships with a 18 Months Manufacturer Warranty warranty. Confirm the final terms and regional service coverage in your quotation.
What vehicles does it fit?
Suitable for commercial vehicles — mounting positions and camera coverage must be designed for the specific vehicle layout.
Are all listed features standard on every unit?
No. Detection coverage, connectivity and camera options are configuration-dependent. Confirm the exact scope in the quotation — our engineers will recommend the right version for your vehicles.
