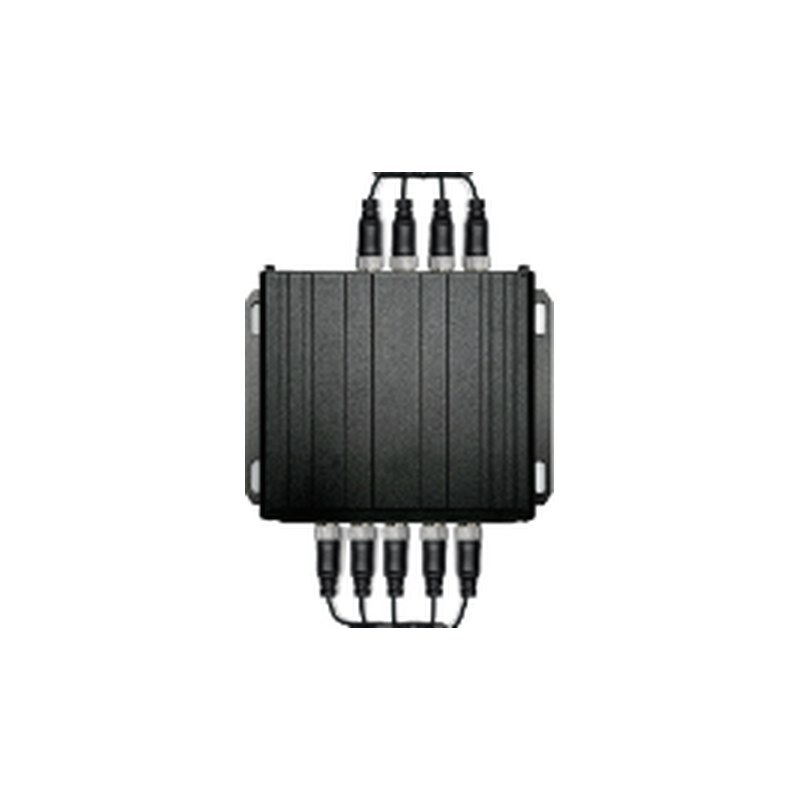

ND180 Hard Disk Vehicle Recorder with Switch, 8 IPC and 4 AHD

ND180 Hard Disk Vehicle Recorder with Switch, 8 IPC and 4 AHD
Share
CategoriesNDVR
BrandAlwayCare Commercial Fleet Safety Manufacturer
Product SpecificationsND180
Channels8 IPC + 4 AHD with network switch
Video EncodingH.265 / H.264, G711a audio
Video / Audio Input4 video and audio inputs, adjustable frame rate and quality
Storage1 x 2.5" HDD/SSD + 1 TF card
Operating Voltage8-36V wide voltage, with overload, short-circuit and reverse-connection protection
Power-Off ProtectionBuilt-in supercapacitor protects recordings
AlarmVideo loss alarm; 8 IO alarm inputs, 2 IO alarm outputs
Serial Ports2 x RS232, 1 x RS485
ShutdownIndependent delayed shutdown, delay time adjustable
IntercomHandset for two-way intercom with the platform
Network4G, GPS, LAN (RJ45)
VersionsND180-1: basic + GPS; -2: GPS, WiFi, 4G (Europe, South America, Africa)
Versions (2)-3: GPS, WiFi, 4G (US, North America)
Warranty15 Months
ND180 is a hard disk vehicle recorder with a network switch for 8 IPC and 4 AHD channels and 8-36V input.
Detail Information
ND180 image 1
NDVR

ND180 Hard Disk Vehicle Recorder with Switch, 8 IPC and 4 AHD

ND180

ND180 is a hard disk vehicle recorder with a network switch for 8 IPC and 4 AHD channels and 8-36V input.

Storage1 x 2.5" HDD/SSD + 1 TF card
Channels8 IPC + 4 AHD with network switch
Video EncodingH.265 / H.264, G711a audio
Power-Off ProtectionBuilt-in supercapacitor protects recordings
Serial Ports2 x RS232, 1 x RS485
IntercomHandset for two-way intercom with the platform
↓ Request datasheet
  • 15-month warranty
  • IATF 16949 certified factory
  • OEM / ODM customization
  • Suitable for all vehicles

Final configuration is confirmed in your quotation.

Overview

What ND180 Delivers

ND180 is a hard disk vehicle recorder with a network switch for 8 IPC and 4 AHD channels and 8-36V input.

ND180 unit
Overview

ND180 Hard Disk Vehicle Recorder with Switch, 8 IPC and 4 AHD

ND180 is a hard disk vehicle recorder with a network switch for 8 IPC and 4 AHD channels and 8-36V input.

  • Channels: 8 IPC + 4 AHD with network switch
  • Video Encoding: H.265 / H.264, G711a audio
  • Video / Audio Input: 4 video and audio inputs, adjustable frame rate and quality
  • Storage: 1 x 2.5" HDD/SSD + 1 TF card
Models

NDVR Models

Compare ND180 with other models in this category. Each model has its own page.

ModelProductKey specVoltage
ND180this pageND180 Hard Disk Vehicle Recorder with Switch, 8 IPC and 4 AHD1 x 2.5" HDD/SSD + 1 TF card8-36V wide voltage, with overload, short-circuit and reverse-connection protection
ND170ND170 4-Channel IPC Hard Disk Vehicle Recorder, No AHD1 SATA HDD up to 4TB + 1 SD card up to 1TB—
ND310ND310 4-Channel AHD Vehicle Recorder with Dual TF CardsBuilt-in GPS / BeiDou / GLONASS (by version)—
ND320ND320 4-Channel AHD Vehicle Recorder with SD Card, 1080PBuilt-in GPS / BeiDou / GLONASS (by version)—
ND380ND380 4-Channel AHD Hard Disk Vehicle RecorderBuilt-in GPS / BeiDou / GLONASS (by version)—
ND381ND381 4-Channel AHD Hard Disk Vehicle Recorder with G-SensorBuilt-in GPS / BeiDou / GLONASS (by version)—
Specifications

Technical Specifications

Values follow the product page. Your quotation confirms the exact configuration.

Video and display

Channels
8 IPC + 4 AHD with network switch
Video Encoding
H.265 / H.264, G711a audio
Video / Audio Input
4 video and audio inputs, adjustable frame rate and quality

Connectivity and interfaces

Alarm
Video loss alarm; 8 IO alarm inputs, 2 IO alarm outputs

Power and hardware

Storage
1 x 2.5" HDD/SSD + 1 TF card
Operating Voltage
8-36V wide voltage, with overload, short-circuit and reverse-connection protection
Power-Off Protection
Built-in supercapacitor protects recordings
Warranty
15 Months

Other specifications

Serial Ports
2 x RS232, 1 x RS485
Shutdown
Independent delayed shutdown, delay time adjustable
Intercom
Handset for two-way intercom with the platform
Network
4G, GPS, LAN (RJ45)
Versions
ND180-1: basic + GPS; -2: GPS, WiFi, 4G (Europe, South America, Africa)
Versions (2)
-3: GPS, WiFi, 4G (US, North America)
Need the full engineering datasheet?Request the datasheet →
Downloads

Documents

Files that exist for this model can be downloaded. The others are available from our engineers on request.

Product datasheetOn request
Request
Certificates and test reportsOn request
Request
User manual and installation guideOn request · provided with sample orders
Request
FAQ

Frequently Asked Questions

Need technical clarification? Email safety@alwaycare.com or send an inquiry.

What storage does ND180 support?

One 2.5-inch HDD or SSD and one TF card.

What happens when the vehicle power is cut?

A built-in supercapacitor protects the recordings, and an independent delayed shutdown keeps the recorder running for a time you set.

Which warranty applies?

ND180 ships with a 15-month manufacturer warranty. Confirm final terms and regional service coverage in your quotation.
