MR920-BSD 8-Channel AI MDVR with 1 to 4-Channel BSD
| Share | |
|---|---|
| Categories | AI MDVR |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Product Specifications | MR920-BSD |
| Channels | 8-channel AHD MDVR |
| Video Input | AHD 1080P, 960P, 720P, D1; H.265 / H.264 encoding |
| Storage | 1 HDD up to 4TB + 1 SD card up to 512GB |
| Video Output | 1 CVBS + 1 VGA |
| Interfaces | 8 IO in, 1 IO out, 1 USB, 1 MIC, 1 RS232, 1 RS485 |
| Networking | GPS and WiFi (4G module optional) |
| AI Functions | BSD: alerts for pedestrians and non-motor vehicles entering the blind spot (1 to 4 channels |
| AI Functions (2) | licensed per channel) |
| Included Cameras | BSD cameras selected per channel |
| Setup | Phone app for installation, recording and alarm settings |
| Warranty | 15 Months |

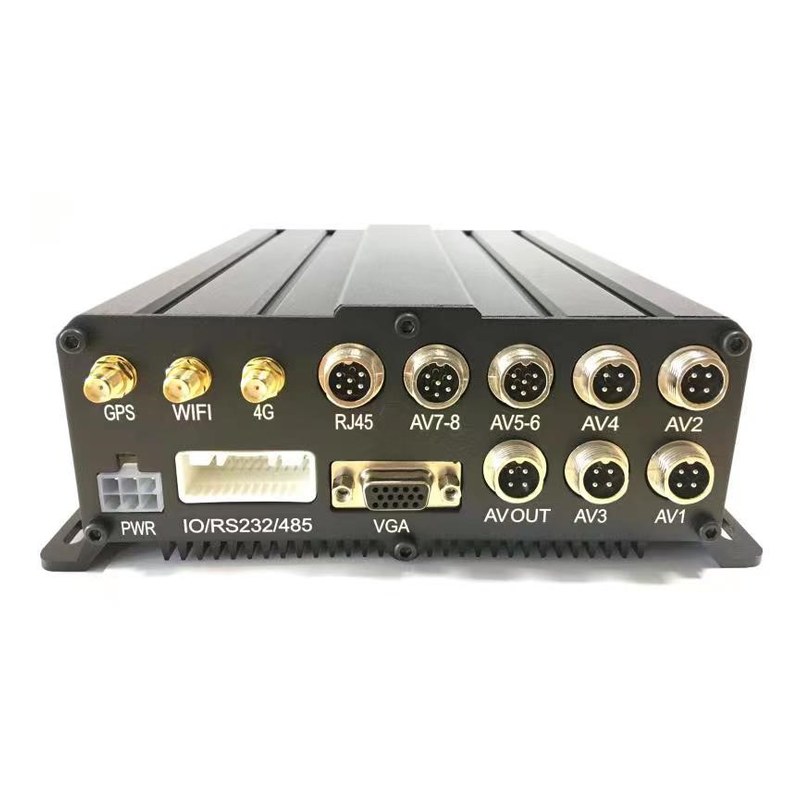

MR920-BSD 8-Channel AI MDVR with 1 to 4-Channel BSD
MR920-BSD is an 8-channel AI MDVR with BSD algorithm licenses for one to four channels, with GPS, WiFi, and HDD plus SD card.
Technical Specifications
Your quotation confirms the exact configuration.
| Model | MR920-BSD |
|---|---|
| Channels | 8-channel AHD MDVR |
| Video Input | AHD 1080P, 960P, 720P, D1; H.265 / H.264 encoding |
| Storage | 1 HDD up to 4TB + 1 SD card up to 512GB |
| Video Output | 1 CVBS + 1 VGA |
| Interfaces | 8 IO in, 1 IO out, 1 USB, 1 MIC, 1 RS232, 1 RS485 |
| Networking | GPS and WiFi (4G module optional) |
| AI Functions | BSD: alerts for pedestrians and non-motor vehicles entering the blind spot (1 to 4 channels |
| AI Functions (2) | licensed per channel) |
| Included Cameras | BSD cameras selected per channel |
| Setup | Phone app for installation, recording and alarm settings |
| Warranty | 15 Months |
AI MDVR Models
Compare MR920-BSD with other AlwayCare models in this category.
| Model | Channels | AI Functions | Storage |
|---|---|---|---|
| MR920-360B | — | — | — |
| MR920-360BA | — | — | — |
| MR920-DAB2 | — | — | — |
| MR920-DA | — | — | — |
| 9-CH AI MDVR MR920 | — | — | 512GB SD Card |
| 5-CH AI MDVR MR910 | — | — | 512GB SD Card |
| MR910-DAB1 | 4-channel AHD MDVR | DSM + ADAS + BSD | 2 SD cards, up to 512GB each |
| MR910-DAB2 | 4-channel AHD MDVR | DSM + ADAS + BSD | 2 SD cards, up to 512GB each |
| MR910-360B | 4-channel AHD MDVR | 360° + BSD | 2 SD cards, up to 512GB each |
| MR920-D | 8-channel AHD MDVR | DSM | 1 HDD up to 4TB + 1 SD card up to 512GB |
| MR920-A | 8-channel AHD MDVR | ADAS | 1 HDD up to 4TB + 1 SD card up to 512GB |
| MR920-AB3 | 8-channel AHD MDVR | ADAS + BSD | 1 HDD up to 4TB + 1 SD card up to 512GB |
| MR920-DB4 | 8-channel AHD MDVR | DSM + BSD | 1 HDD up to 4TB + 1 SD card up to 512GB |
| MR920-360D | 8-channel AHD MDVR | 360° + DSM | 1 HDD up to 4TB + 1 SD card up to 512GB |
| MR920-360DA | 8-channel AHD MDVR | 360° + DSM + ADAS | 1 HDD up to 4TB + 1 SD card up to 512GB |
| MR920-360BD | 8-channel AHD MDVR | 360° + BSD + DSM | 1 HDD up to 4TB + 1 SD card up to 512GB |
| MR920-360EDAB | 8-channel AHD MDVR | 360° + ADAS + DSM + EDSM + BSD | 1 HDD up to 4TB + 1 SD card up to 512GB |
| MR920-360DAB2 | 8-channel AHD MDVR | 360° + ADAS + DSM + BSD | 1 HDD up to 4TB + 1 SD card up to 512GB |
| MR920-BSD (this page) | 8-channel AHD MDVR | BSD | 1 HDD up to 4TB + 1 SD card up to 512GB |
Frequently Asked Questions
Can't find your answer? Our engineers reply within one business day — email safety@alwaycare.com or send an inquiry.
What AI functions does MR920-BSD include?
BSD on one to four channels, licensed per channel.
Does MR920-BSD alert only?
Yes. The AI functions alert the driver and do not control the vehicle.
Does it include 4G?
4G is optional. The standard configuration lists GPS and WiFi.
Which warranty applies?
MR920-BSD ships with a 15-month manufacturer warranty. Confirm final terms and regional service coverage in your quotation.
