Vehicle Blackbox DVR: What It Records and How It Differs From a Dash Cam
Vehicle Recorder Basics

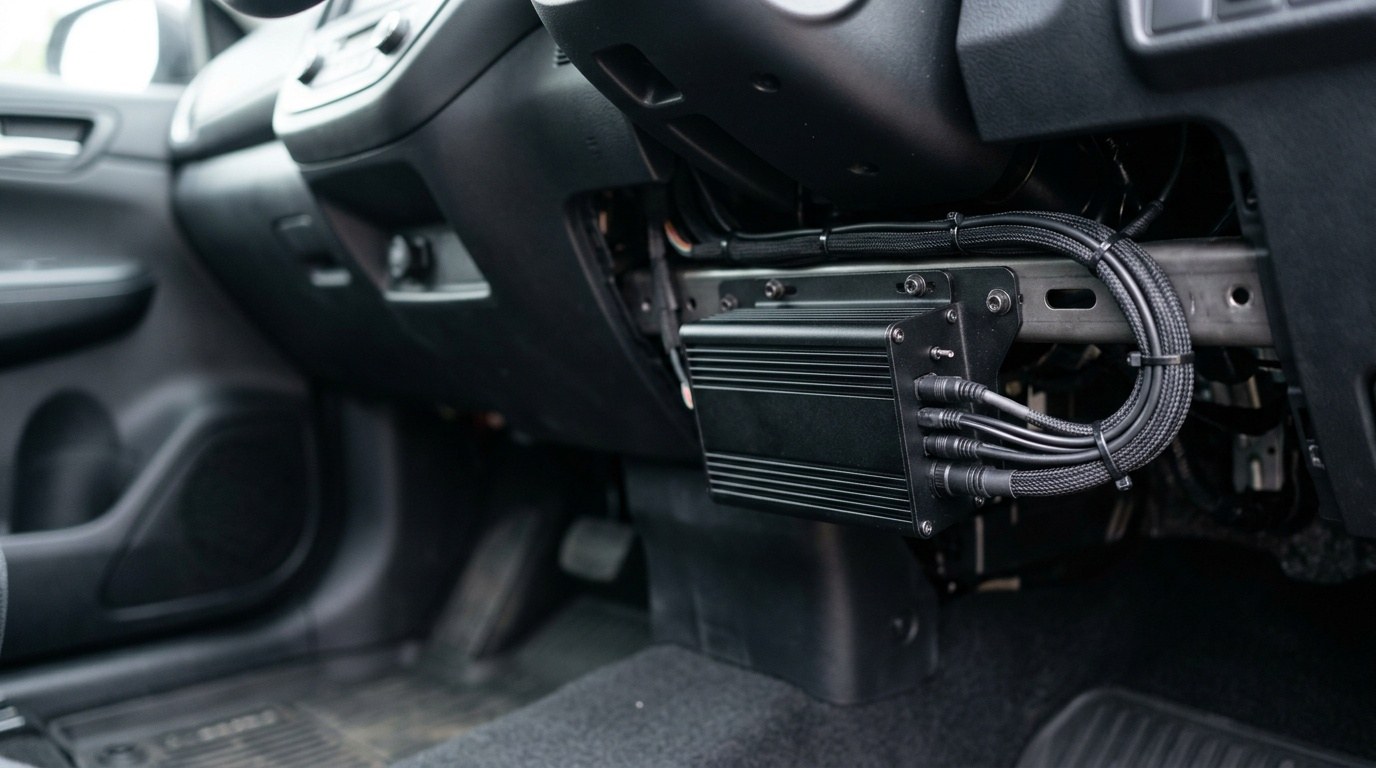

A vehicle blackbox DVR is a recorder fitted in the vehicle that stores video from several cameras together with time, position and event data. The name comes from the flight recorder, but a vehicle unit is a video and data recorder, not a crash-proof flight box. This article explains what it records and how it differs from a dash cam. For the full comparison, read MDVR vs Dash Cam: Which Fits a Commercial Fleet?.
What a vehicle blackbox DVR records
| Data | Where it comes from |
|---|---|
| Video | Several cameras: road, cab, sides and rear |
| Time stamp | The recorder clock, set by satellite or by the platform |
| Position and speed | A GPS or GPS plus BeiDou receiver in the unit |
| Event inputs | Signals such as ignition or alarm inputs, if they are wired |
| Alerts | ADAS, driver monitoring or blind spot alerts on models that include them |
Blackbox DVR, mobile DVR and dash cam
| Device | Typical form | Channels | Fits best when |
|---|---|---|---|
| Dash cam | A small unit on the windshield | One to a few | You need a road view and maybe a cab view |
| Mobile DVR (MDVR) | A box hidden in the cab, with separate cameras | Four to twelve or more | You need several camera views and longer storage |
| Blackbox DVR | Another name for a mobile DVR used as a vehicle recorder | Same as an MDVR | You want a hidden recorder that runs with the vehicle |
What it is not
- It is not an aircraft flight recorder and is not specified as crash-proof.
- It does not brake or steer the vehicle.
- It does not prove who is at fault. Video is one piece of evidence, and rules for its use vary by country.
What to check before buying
- Channel count and the video setting for each channel.
- Storage type and size, and how long a card lasts.
- Supply range and the behaviour on engine start and switch-off.
- Positioning, 4G and Wi-Fi if you want data sent to a platform.
- Operating temperature for the cab where it is fitted.
AlwayCare model to review
| Model | Type | Listed specifications |
|---|---|---|
| MR920 | 9-channel AI mobile DVR | 12/24V; 1920x1080; GPS and BeiDou; 4G or Wi-Fi; 512GB SD card; H.264/H.265; optional I/O or RS232; −20 to 70°C; warranty 15 months |
Specifications come from the product page. Confirm the channel layout and storage in your quotation.
Questions buyers ask about vehicle blackbox DVRs
What is a vehicle blackbox DVR?
It is a recorder fitted in a vehicle that stores video from several cameras along with time, position and event data.
Is a blackbox DVR the same as a dash cam?
Not quite. A dash cam is a small windshield unit. A blackbox or mobile DVR is a hidden box with separate cameras and more channels.
Is a blackbox DVR crash-proof?
It is not specified as a crash-proof flight recorder. It stores video and data on a card.
Does it record when the engine is off?
That depends on the wiring and settings. Ask the supplier how the unit behaves at switch-off.
Do I need 4G on a blackbox DVR?
Only if you want video or events sent to a platform. Without 4G, video stays on the card.
For recorder, camera and monitor packages and example layouts in one place, see the fleet vehicle video and mobile DVR solution.
