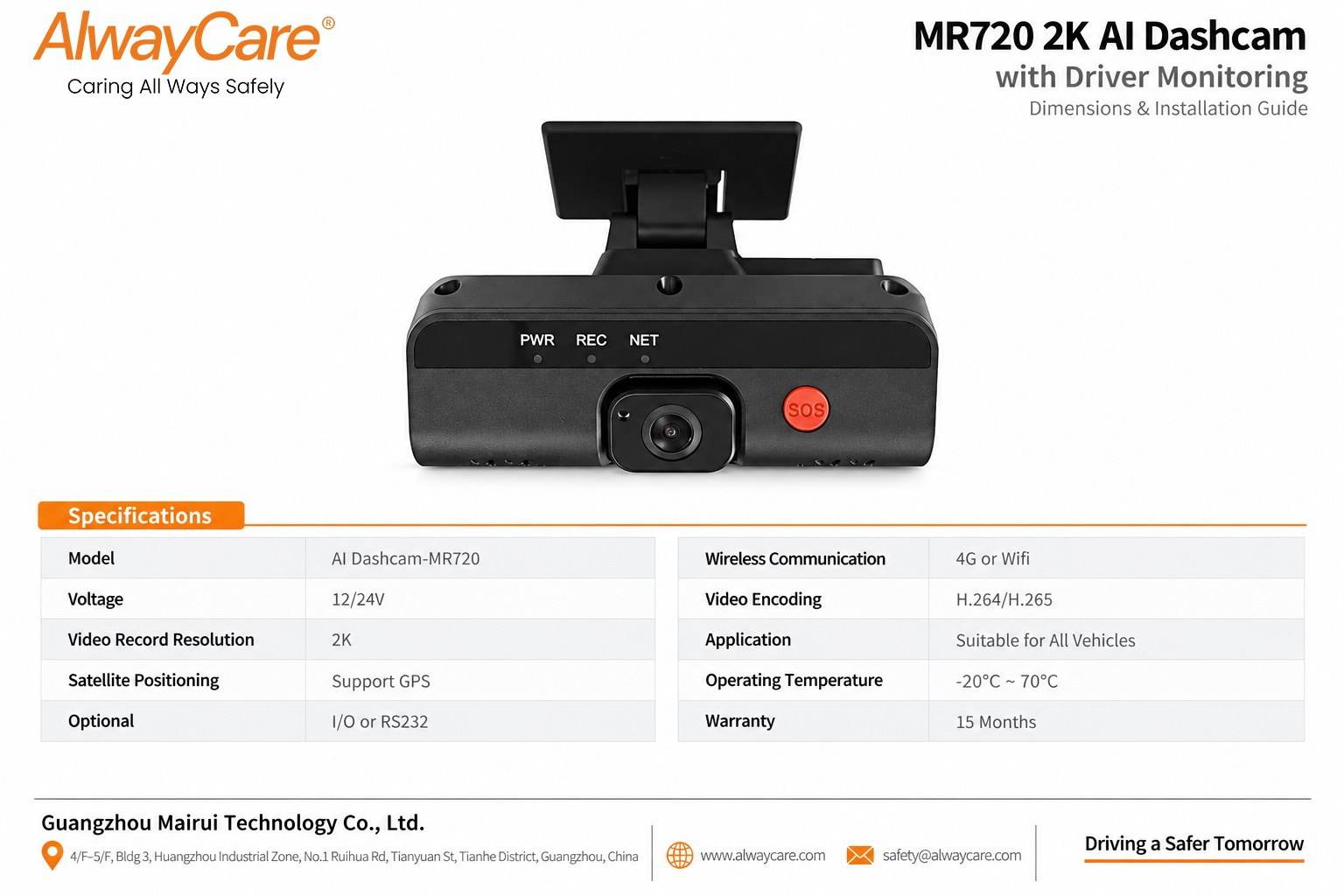

MR720 2K AI Dashcam with Driver Monitoring
| Share | |
|---|---|
| Categories | AI Dashcam |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Model | AI Dashcam-MR720 |
| Voltage | 12/24V |
| Video Record Resolution | 2K |
| Satellite Positioning | Support GPS |
| Optional | I/O or RS232 |
| Wireless Communication | 4G or Wifi |
| Video Encoding | H.264/H.265 |
| Application | Suitable for All Vehicles |
| Operating Temperature | -20℃ ~ 70℃ |
| Warranty | 15 Months |
MR720 2K AI Dashcam Series with 4-Channel Vision & ADAS/DMS/BSD for Fleets
2K 4-channel commercial AI dashcam with flexible 4-choose-2 AI matrix, 1080P driver monitoring, and 1TB storage.
MR720-SV (Standard 4-Channel AI Dashcam)
Recommended for: Light/Medium Fleets, Local Delivery, Vans & Standalone SD Telematics
- Video Architecture: 4 Channels (2K Forward ADAS + 1080P In-Cabin DSM + 2x External AHD Camera Ports)
- AI Algorithm Engine: Standard ADAS (FCW/LDW/HMW/PCW) + In-Cabin DSM (Fatigue/Yawning/Distraction/Phone)
- Telematics Interfaces: 3x IO Signal Inputs (Turn signals/SOS) + 1x IO Output + 2x RS232 Serial Ports
- Storage & Cloud: Micro SD (TF) Card up to 1TB (H.264/H.265) | 4G LTE, Dual-mode GPS/BDS, Wi-Fi 2.4G
MR720-PV (Professional Cloud Platform Edition)
Recommended for: Commercial Fleets, TSPs & Centralized Video Dispatch Operations
- Full Cloud Integration: Bundled with official AlwayCare CMS Fleet Platform license & cloud video dispatch
- Live Remote Telematics: 4G live multi-channel video streaming, historical route tracking & remote video playback
- Driver ID & Attendance: Facial recognition driver verification, dynamic check-in, and centralized alarm statistics
- Hardware Foundation: Complete 4-channel 2K+1080P hub with dual RS232, 3x IO, and 2-way audio intercom
MR720-BSD (Dual Blind Spot Detection Safety Edition)
Recommended for: Heavy Trucks, Mining Tippers, Concrete Mixers, Sanitation & Urban Transit Buses
- Pedestrian Blind Spot Safety: Configured with AI BSD algorithms detecting pedestrians & cyclists in truck blind zones
- Rugged IP68 Cameras Included: Pre-bundled with side-mounted CC950-AHD / CC670-AHD heavy-duty cameras & aviation cables
- I/O Steering Trigger: Automatic full-screen switching & audible buzzer trigger when left/right turn signal is activated
- AI Flexibility: Supports 4-choose-2 algorithm allocation (e.g. ADAS + BSD, DSM + BSD, or Dual Lateral BSD)
MR720-BLE (Wireless Telematics & Sentry Hub Edition)
Recommended for: Hazmat, Cold Chain Logistics, Fuel Theft Prevention & Driver Vital Signs Telemetry
- Wireless BLE 5.0 Gateway: Wirelessly pairs with BLE capacitive fuel rods (5-yr battery) & BLE door magnetic sensors
- All-Time Sentry Radar: Integrated mmWave radar senses human approach within 3m and wakes up dashcam while parked
- Driver Vital Signs Monitoring: Integrates with 60GHz mmWave heart rate & respiration sensor via RS232
- Inertial Dead Reckoning: Optional GPS IMU gyro dead reckoning maintains continuous speed & alerts through tunnels
MR720 Series Version Differences Matrix
Comprehensive comparison across all 4 production configurations — verified against the official AlwayCare factory quotation sheet.
| Parameters & Features |
Standard
MR720-SV
4-CH 2K ADAS + 1080P DSM
|
POPULAR CLOUD FLEET
Full Stack
MR720-PV
Bundled CMS Platform
|
Blind Spot Kit
MR720-BSD
Dual Lateral Pedestrian BSD
|
Wireless Hub
MR720-BLE
Sentry Radar & BLE Sensors
|
|---|---|---|---|---|
| Video Architecture & Channels | ||||
| Total Video Channels | 4 Channels (2K ADAS + 1080P DSM + 2x Ext) |
4 Channels (2K ADAS + 1080P DSM + 2x Ext) |
4 Channels (2K ADAS + 1080P DSM + 2x Ext) |
4 Channels (2K ADAS + 1080P DSM + 2x Ext) |
| Forward Road Camera | 2K Ultra HD (2560x1440) @ 30fps HDR, 140° Wide FOV |
2K Ultra HD (2560x1440) @ 30fps HDR, 140° Wide FOV |
2K Ultra HD (2560x1440) @ 30fps HDR, 140° Wide FOV |
2K Ultra HD (2560x1440) @ 30fps HDR, 140° Wide FOV |
| In-Cabin DSM Camera | 1080P Full HD 940nm Invisible IR Night Vision |
1080P Full HD 940nm Invisible IR Night Vision |
1080P Full HD 940nm Invisible IR Night Vision |
1080P Full HD 940nm Invisible IR Night Vision |
| External Camera Inputs | 2x AHD Ports (1080P/720P) | 2x AHD Ports (1080P/720P) | 2x IP68 Cameras Bundled (CC950 / CC670 included) |
2x AHD Ports (1080P/720P) |
| Storage Capacity | Micro SD up to 1TB | Micro SD up to 1TB | Micro SD up to 1TB | Micro SD up to 1TB |
| AI Safety Algorithms (4-Choose-2 Architecture) | ||||
| Forward ADAS | ✓ Included (FCW, LDW, HMW, PCW) | ✓ Included (FCW, LDW, HMW, PCW) | ✓ Configurable (4-choose-2) | ✓ Included (FCW, LDW, HMW, PCW) |
| In-Cabin DSM | ✓ Included (Fatigue, Phone, Smoke) | ✓ Included (Fatigue, Phone, Smoke) | ✓ Configurable (4-choose-2) | ✓ Included (Fatigue, Phone, Smoke) |
| Blind Spot BSD (Left & Right) | Optional algorithm upgrade | Optional algorithm upgrade | ✓ Active Dual BSD Mode (Pedestrian & Cyclist warning) |
Optional algorithm upgrade |
| Driver Face ID Recognition | ✓ Local attendance match | ✓ Cloud Face DB Sync | ✓ Local attendance match | ✓ Local attendance match |
| Telematics, Sensors & Peripherals | ||||
| RS232 Serial Ports | 2 Channels (MDVR/Sensors) | 2 Channels (MDVR/Sensors) | 2 Channels (MDVR/Sensors) | 2 Channels (Vital Signs/Sensors) |
| IO Signal Inputs | 3 Channels (Turn/Rev/SOS) | 3 Channels (Turn/Rev/SOS) | 3 Channels (Turn/Rev/SOS) | 3 Channels (Turn/Rev/SOS) |
| Bluetooth BLE Gateway | ✕ Optional module | ✕ Optional module | ✕ Optional module | ✓ Built-in BLE 5.0 Gateway (Pairs with fuel rod & door sensor) |
| Sentry mmWave Radar | ✕ Optional accessory | ✕ Optional accessory | ✕ Optional accessory | ✓ 3m Proximity Sentry Radar (Parked incident wake-up recording) |
| GPS Dead Reckoning (IMU) | Optional | Optional | Optional | ✓ High-Precision IMU Option (No signal loss in tunnels) |
| Cloud Telematics & Remote Dispatch | ||||
| AlwayCare CMS Platform | Optional (Open protocol/TSP) | ✓ Official CMS Cloud Bundled (Tracking, video, alarm stats) |
Optional (Open protocol/TSP) | Optional (Open protocol/TSP) |
| 4G Live Video Streaming | Via customer platform / CMS | ✓ Real-time multi-split live | Via customer platform / CMS | Via customer platform / CMS |
| Two-Way Voice Intercom | ✓ Built-in Mic & Speaker | ✓ Built-in Mic & Speaker | ✓ Built-in Mic & Speaker | ✓ Built-in Mic & Speaker |
| Mobile Calibration APP | ✓ iOS & Android Wi-Fi APP | ✓ iOS & Android Wi-Fi APP | ✓ iOS & Android Wi-Fi APP | ✓ iOS & Android Wi-Fi APP |
| Fleet Deployment & Procurement | ||||
| Best Suited For | Light commercial vans, taxis & standalone telematics | Corporate fleets, TSPs, central dispatch hubs | Heavy dump trucks, mining tippers, mixers, transit buses | Cold chain logistics, fuel monitoring, hazmat fleets |
| Official Factory Quotation | Quote MR720-SV | Quote MR720-PV | Quote MR720-BSD | Quote MR720-BLE |
"4-Choose-2" Flexible AI Algorithm Engine
MR720 features four factory-calibrated edge AI safety algorithms. Fleets can selectively deploy any two algorithms concurrently to align with distinct vehicle operational risks without purchasing separate hardware.
1. Forward ADAS
Scans the road ahead using 2K ultra-high-definition optics to prevent multi-vehicle pileups and pedestrian collisions.
2. In-Cabin DSM
Real-time neural monitoring of facial landmarks, pupil dilation, eye closure rate (PERCLOS), and dangerous driving habits.
3. Left Blind Spot BSD
Monitors the near-side blind zone for vulnerable road users, electric scooters, and pedestrians during left turning maneuvers.
4. Right Blind Spot BSD
Monitors the severe heavy-truck blind spot on the passenger side where over 65% of fatal commercial turning collisions occur.
Which MR720 Configuration Fits Your Fleet?
Select by operational risk profile, vehicle chassis dimensions, and peripheral sensor integration needs.
Vans, Taxis & Urban Delivery
When the requirement is high-definition video evidence and driver accountability with straightforward installation.
- 2K Forward ADAS + 1080P DSM built into a single windshield footprint
- No external camera cabling or drilling required
- Up to 1TB TF card storage for extended local video retention
- Lowest total cost of hardware acquisition
Commercial Carriers & TSPs
When integrating real-time 4G live streaming, cloud GPS tracking, and facial recognition driver check-in.
- Official AlwayCare CMS Cloud Fleet Management platform bundled
- Remote live video monitoring, route playback, and geo-fencing
- Driver facial recognition ID verification and cloud dispatch
- Dual RS232 ports for seamless third-party MDVR / gateway integration
Heavy Trucks & Mining Tippers
When large heavy-duty commercial chassis demand active pedestrian & cyclist blind spot intervention.
- Equipped with dual lateral BSD algorithms & IP68 waterproof cameras
- Audible in-cabin buzzer warnings and I/O steering sync
- Heavy-duty 3m BMW-to-aviation conversion cables included
- Eliminates hazardous lateral blind spots during intersection turns
Hazmat & Cold Chain Logistics
When multi-sensor wireless telemetry, parked vehicle sentry, and driver vital health monitoring are paramount.
- Wireless BLE 5.0 gateway connects fuel rods & door sensors with zero drilling
- 3m mmWave Sentry Radar enables parked vehicle surveillance
- 60GHz mmWave heart rate & respiration telemetry via RS232
- Inertial Dead Reckoning prevents speed loss inside mountain tunnels
Tested Peripherals & Sensor Ecosystem
MR720 supports an extensive suite of plug-and-play accessories, high-definition external cameras, and wireless Bluetooth sensors verified for automotive commercial duty.
Starlight Night Vision (CC990-AHD20)
1080P starlight full-color ultra-clear external camera with 10-15m night vision range and IP68 waterproof housing.
Side-View BSD Camera (CC950-AHD20)
Heavy-duty side camera with 10pcs IR LEDs for left/right blind spot detection and pedestrian detection algorithms.
Rear & Forward Camera (CC670-AHD20)
IP68 rugged waterproof camera with 18pcs IR LEDs. Ideal for rear backup view, cargo bay monitoring, or tailboard surveillance.
In-Cabin Camera (CC805-AHD20)
Internal dome camera with 24pcs IR LEDs and optional built-in microphone for passenger area and cargo compartment surveillance.
Wireless BLE Capacitive Fuel Rod
Ultra-low power Bluetooth fuel sensor with 5+ year internal battery. Eliminates cable routing, drilling hazards, and fuel theft.
60GHz mmWave Vital Signs Sensor
Non-contact radar measuring real-time heart rate and respiration. Detects acute driver health crises and extreme exhaustion via RS232.
All-Time Sentry mmWave Radar
Monitors 3m perimeter around parked vehicles. Automatically wakes the MR720 dashcam to record hit-and-runs or cargo tampering.
GPS Inertial Navigation (IMU)
Dead reckoning module simulating speed & trajectory during satellite blackouts (tunnels, underground bays), maintaining ADAS alerts.
General Technical Specifications
Engineering parameters follow the official AlwayCare factory technical datasheet for MR720.
| Hardware Series | AlwayCare AI Dashcam MR720 Series (Flagship 4-Channel) |
|---|---|
| Available Versions | MR720-SV (Standard) | MR720-PV (CMS Cloud) | MR720-BSD (Blind Spot Kit) | MR720-BLE (Wireless Sentry Hub) |
| Video Recording Resolution | Forward ADAS: 2K Ultra HD (2560x1440) @ 30fps HDR | In-Cabin DSM: 1080P (1920x1080) @ 30fps | Ext Cameras: 1080P/720P AHD |
| Video Compression | H.265 / H.264 High Profile, total encoding capacity up to 1080P @ 150fps |
| AI Algorithm Matrix | Built-in ADAS, DSM, Left BSD, and Right BSD (Supports 4-choose-2 concurrent algorithm execution) |
| Storage Medium | 1x Micro SD (TF) Card slot, supports up to 1TB (Class 10 / U3 high endurance recommended) |
| Telematics Connectivity | 4G LTE Cat 4 (EU/AU/NA/Global modules available), Wi-Fi 802.11 b/g/n (2.4GHz) for APP calibration |
| Satellite Positioning | High-precision GPS / BDS dual-mode positioning; Optional GPS Inertial Navigation (IMU Dead Reckoning) |
| Serial Interfaces | 2x RS232 Serial Ports for third-party MDVR, GPS trackers, fuel rods, or vital signs telemetry |
| Vehicle I/O Triggers | 3x IO Signal Inputs (Left Turn, Right Turn, Reverse Gear, SOS Panic Button) + 1x Low-Level IO Output |
| Wireless Gateway (Optional) | Bluetooth BLE 5.0 Gateway for wireless fuel rods, door sensors & speed sensors |
| Sentry Surveillance (Optional) | External mmWave Radar (3m human detection perimeter with parked wake-up video recording) |
| Voice Intercom & Audio | Built-in high-sensitivity microphone & clear speaker; supports 2-way real-time voice intercom with CMS center |
| G-Sensor & Motion | Built-in 6-axis G-sensor (Harsh acceleration, harsh braking, sharp turning, collision, rollover) |
| Operating Voltage | DC 9V – 36V wide automotive power input with reverse polarity & over-voltage protection |
| Operating Temperature | -20°C to +70°C operating temperature; -30°C to +85°C storage range |
| Enclosure & Dimensions | Automotive flame-retardant ABS+PC casing with tamper-resistant security lock cover |
| Factory Packaging | Brown box (30 units/carton, 24kg gross weight, carton dimensions 55 x 48 x 40 cm) |
Why Fleets Choose AlwayCare Direct Supply
Over 25 years of automotive safety electronics manufacturing delivering OEM/ODM stability to commercial fleets worldwide.
IATF 16949 Certified
Manufactured under automotive quality management systems ensuring strict reliability across harsh vibrational environments.
15-Month Warranty
Every MR720 unit undergoes strict 100% burn-in testing, vibration simulation, and optical calibration before factory dispatch.
OEM Firmware & Protocols
Open protocols (JT808/JT1078, standard RS232 telemetry) and custom voice alert localization for overseas fleet integrators.
Rapid Sample Dispatch
Evaluation sample units ship within 3–4 business days with dedicated engineering FAE support for installation and CMS testing.
Share Fleet Profile
Specify your vehicle types, camera channel needs, and preferred algorithm profile (ADAS, DSM, or BSD).
Quotation & Spec Sheet
Receive formal factory quotation tiers, sample pricing, and peripheral accessory bundle recommendations.
Sample Pilot Test
Test sample units on your fleet vehicles with our mobile calibration APP and CMS cloud platform trial.
Volume Batch Delivery
Scheduled volume production, custom firmware branding, and global DDP/FOB logistics dispatch.
Commercial Fleet Documents & Integration Guides
Download technical datasheets, PIN assignment diagrams, and telematics communication protocols.
MR720 Official Datasheet
Detailed hardware PIN definition, wiring harness diagrams, and electrical characteristics.
Request Datasheet PDFCMSV6 Platform Integration
API documentation, JT/T808 communication protocols, and cloud video dispatch specs.
Request CMS ProtocolQuick Calibration Manual
Step-by-step guide for optical ADAS lane line calibration and DSM eye-level alignment via mobile APP.
Request APP ManualCertificates & Lab Reports
CE, UKCA, RoHS, and FCC compliance certificates for commercial fleet deployment.
Request CertificatesComplete the In-Vehicle Safety Stack
Product families commonly deployed alongside MR720 in the same commercial fleet ecosystem.
MR700 AI Dashcam with ADAS & DMS for Fleets
Model MR700 — Compact dual-vision commercial dashcam with forward ADAS and cabin DSM. Supports 2 to 4 channels for light fleets.
MR750 2K 5-Channel AI Dashcam with ADAS/DMS
Model MR750 — Ultra-capacity 5-channel commercial AI hub with 2K forward video, cabin DSM, dual blind-spot cameras, and rear view.
MR830 All-in-One DMS with ADAS, BSD & Fatigue Alerts
Model MR830 — All-in-one active safety terminal integrating advanced DMS driver behavior intervention, road ADAS, and BSD detection.
Frequently Asked Questions
Need engineering clarification? Contact our solution engineers directly at safety@alwaycare.com or send an online inquiry.
What is the key advantage of the MR720 "4-Choose-2" algorithm architecture?
MR720 comes pre-loaded with four automotive edge AI algorithms: Forward ADAS, In-Cabin DSM, Left BSD, and Right BSD. Because edge computing chip resources are dedicated to high-precision neural inference, the device allows fleet operators to activate any two algorithms concurrently. For instance, urban delivery trucks can run ADAS + Right BSD to protect vulnerable road users, while long-haul freight can run ADAS + DSM. This flexibility allows one hardware model to serve diverse fleet operational risks.
How does MR720 differ from the MR700 AI Dashcam?
MR720 is an upgraded flagship 4-channel device: it upgrades the forward ADAS camera to 2K (2560x1440) Ultra HD (MR700 is 1080P), increases maximum TF card storage support from 512GB to 1TB, provides 3 IO inputs and dual RS232 serial interfaces, and supports modular wireless Bluetooth BLE 5.0 peripherals and all-time Sentry mmWave radar.
Can MR720 connect to third-party MDVRs or existing GPS trackers?
Yes. MR720 features dual RS232 serial ports and 3 IO trigger interfaces, fully supporting standard JT808 and JT1078 communication protocols. It can stream video, transfer alarm metadata, and output coordinates to third-party telematics gateways, or run seamlessly on our turnkey AlwayCare CMS cloud platform.
How does the Wireless BLE 5.0 Fuel Sensor work without wiring?
On the MR720-BLE edition, the built-in Bluetooth gateway communicates directly with the wireless capacitive fuel rod using low-power BLE iBeacon broadcasts. The sensor features an internal industrial battery with a lifespan exceeding 5 years, entirely eliminating complex chassis wiring, drilling hazards, and vulnerability to intentional cable cutting.
What does the mmWave Radar Sentry Mode do when the vehicle is parked?
When the ignition is switched off, MR720 enters an ultra-low-power standby mode. The external 3m mmWave radar continuously detects moving objects or individuals approaching the vehicle. When someone lingers near the cabin or fuel tank, the radar instantaneously triggers the MR720 to power on and record high-definition video evidence of the parked event.
What is the warranty and sample lead time for fleet evaluations?
AlwayCare provides a 15-month direct factory warranty on all MR720 hardware, manufactured in our IATF 16949-certified facility. Evaluation samples are dispatched within 3–4 business days with dedicated FAE technical support for mobile app calibration and CMS platform onboarding.
Upgrade Your Commercial Fleet to 2K AI Vision
Consult with our automotive safety engineering team to configure the ideal MR720 algorithm and camera package for your fleet vehicles.
Request Commercial Fleet Quotation →Industry Solutions
Fleet Safety Solutions for Every Industry
From logistics and mining to school buses and public transport, AlwayCare delivers intelligent driving safety solutions tailored to the real operating conditions of each fleet type.
School Bus Fleet
Ensure student safety on every route through AI monitoring and real-time video solutions for school bus fleets.
Explore Solutions →
Logistics Fleet
Advanced fleet driver monitoring systems to ensure driver and vehicle safety while optimizing operational efficiency.
Explore Solutions →
Petroleum & Hazardous Chemicals Fleet
Improve driver safety and regulatory compliance for petroleum and hazardous chemical transport with intelligent monitoring systems.
Explore Solutions →
Mining Fleet
Enhance vehicle safety and driver performance in demanding mining environments with AI monitoring and real-time data.
Explore Solutions →
Public Bus Fleet
Enhance the safety and efficiency of public bus fleets with driver monitoring, intelligent dispatch and comprehensive fleet solutions.
Explore Solutions →
Forklift Fleet
Enhance driver and vehicle safety in warehouses with forklift fleet safety management built on over 24 years of experience.
Explore Solutions →Configuration & Quotation
Configure the right system around your vehicles.
A quotation should confirm the coverage, compatibility with your existing equipment, installation environment and platform workflow for the selected vehicle-safety system.
- What the installation needs to cover
- Compatibility with your existing equipment
- The conditions in which the system will be installed and used
- How footage, alarm events and fleet data are reviewed day to day
