M360-4C3 4-Channel AI 3D 360° Around-View System, 10.1" All-in-One
| Share | |
|---|---|
| Categories | AVM (360° Around View Monitor) |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Product Specifications | M360-4C3 |
| Channels | 4 analog HD camera inputs, 4-camera 360° stitching |
| Output | 1080P |
| Key Functions | 3D stitching algorithm for trucks and special vehicles; BSD detects people and vehicles |
| Additional Functions | external sound-light alarm supported |
| Display | 10.1" IPS all-in-one, 1024x600, 600 cd/m2 |
| Operating Voltage | DC 12-36V (monitor), power 10-30W |
| Camera | 1080P, GC2053 1/2.9" FHD CMOS, 180° horizontal view |
| Camera Power | 12V DC, 70±5mA |
| Camera Temperature | -20℃ ~ 80℃ |
| Included | All-in-one monitor, 4 fisheye cameras, extension cables (5m x1, 10m x2, 15m x1), buzzer |
| Material | ABS + metal |
| Warranty | 15 Months |
M360-4C3 4-Channel AI 3D 360° Around-View System, 10.1" All-in-One

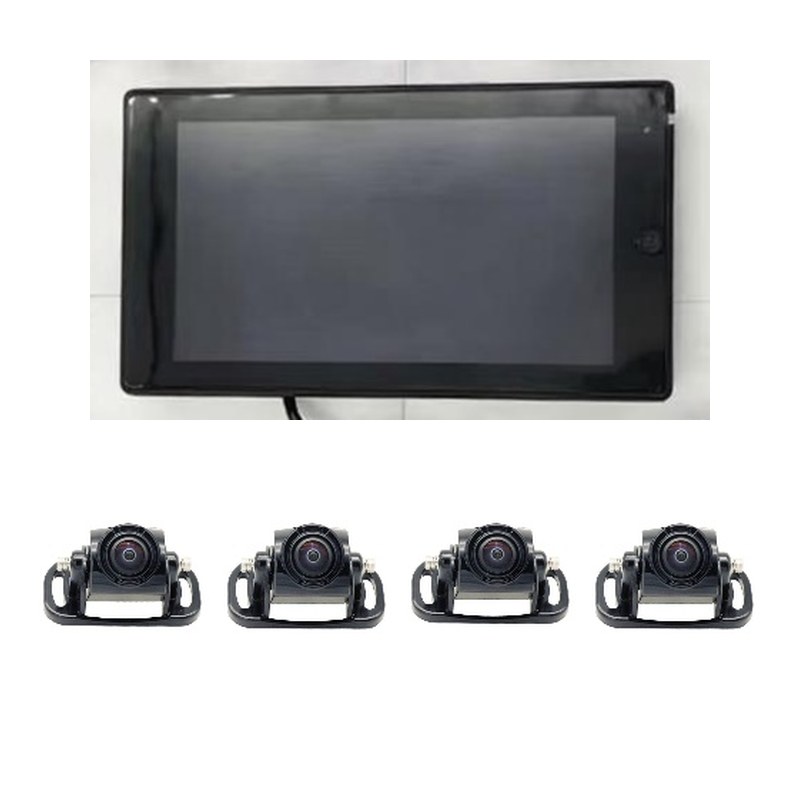

M360-4C3 is a 4-channel AI 3D 360° around-view system with a 10.1-inch all-in-one monitor, four fisheye cameras and BSD.
Technical Specifications
Your quotation confirms the exact configuration.
| Model | M360-4C3 |
|---|---|
| Channels | 4 analog HD camera inputs, 4-camera 360° stitching |
| Output | 1080P |
| Key Functions | 3D stitching algorithm for trucks and special vehicles; BSD detects people and vehicles |
| Additional Functions | external sound-light alarm supported |
| Display | 10.1" IPS all-in-one, 1024x600, 600 cd/m2 |
| Operating Voltage | DC 12-36V (monitor), power 10-30W |
| Camera | 1080P, GC2053 1/2.9" FHD CMOS, 180° horizontal view |
| Camera Power | 12V DC, 70±5mA |
| Camera Temperature | -20℃ ~ 80℃ |
| Included | All-in-one monitor, 4 fisheye cameras, extension cables (5m x1, 10m x2, 15m x1), buzzer |
| Material | ABS + metal |
| Warranty | 15 Months |
AVM Models
Compare M360-4C3 with other AlwayCare models in this category.
| Model | Channels | Display | Voltage |
|---|---|---|---|
| M360-1 | 4 channels | — | 12/24V |
| M360-2 | 4 + 2 BSD channels | — | 12/24V |
| M360-3 | All-in-one | 10.1 inch | 12/24V |
| M360-4C3 (this page) | 4 analog HD camera inputs, 4-camera 360° stitching | 10.1" IPS all-in-one, 1024x600, 600 cd/m2 | DC 12-36V (monitor), power 10-30W |
| M360-4C2 | 4 channels, 720P input, quad-split display | 10" IPS, 800x1280, key and voice control | DC 9-36V |
| M360-6C3 | 6 analog HD camera inputs (AHD 720P/1080P) | 10" AHD display | DC 10V - 36V, <300mA @12V (host) |
| T5 | 6 analog HD 720P camera inputs, combined into one 1080P TS stream (H.264) | — | DC 10V - 36V |
| DP-1028 | 8 AHD inputs; 4 x 1080P@30fps or 8 x 1080P@15fps encoding | 10.1" touchscreen all-in-one | Input 9-36V, output 12V |
Frequently Asked Questions
Can't find your answer? Our engineers reply within one business day — email safety@alwaycare.com or send an inquiry.
What is included in M360-4C3?
A 10.1-inch all-in-one monitor, four fisheye cameras, extension cables and a buzzer.
Does it include blind spot detection?
Yes. It supports a BSD algorithm that detects people and vehicles and can drive an external sound-light alarm. It alerts only and does not control the vehicle.
Which warranty applies?
M360-4C3 ships with a 15-month manufacturer warranty. Confirm final terms and regional service coverage in your quotation.
