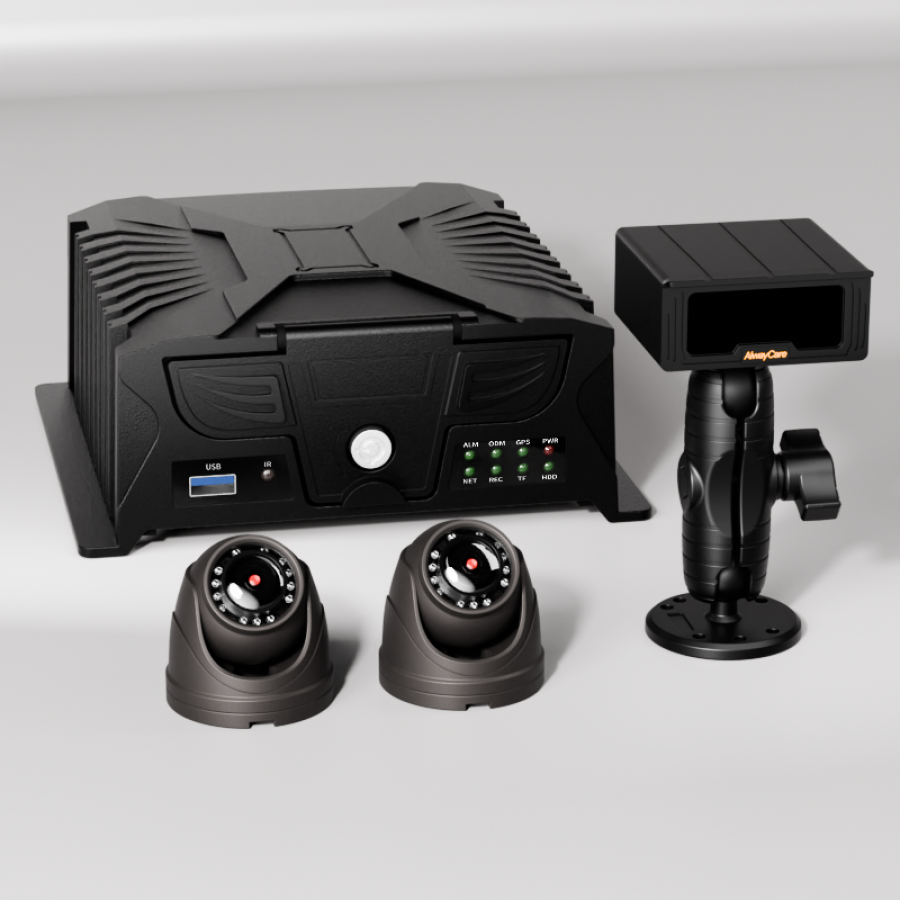

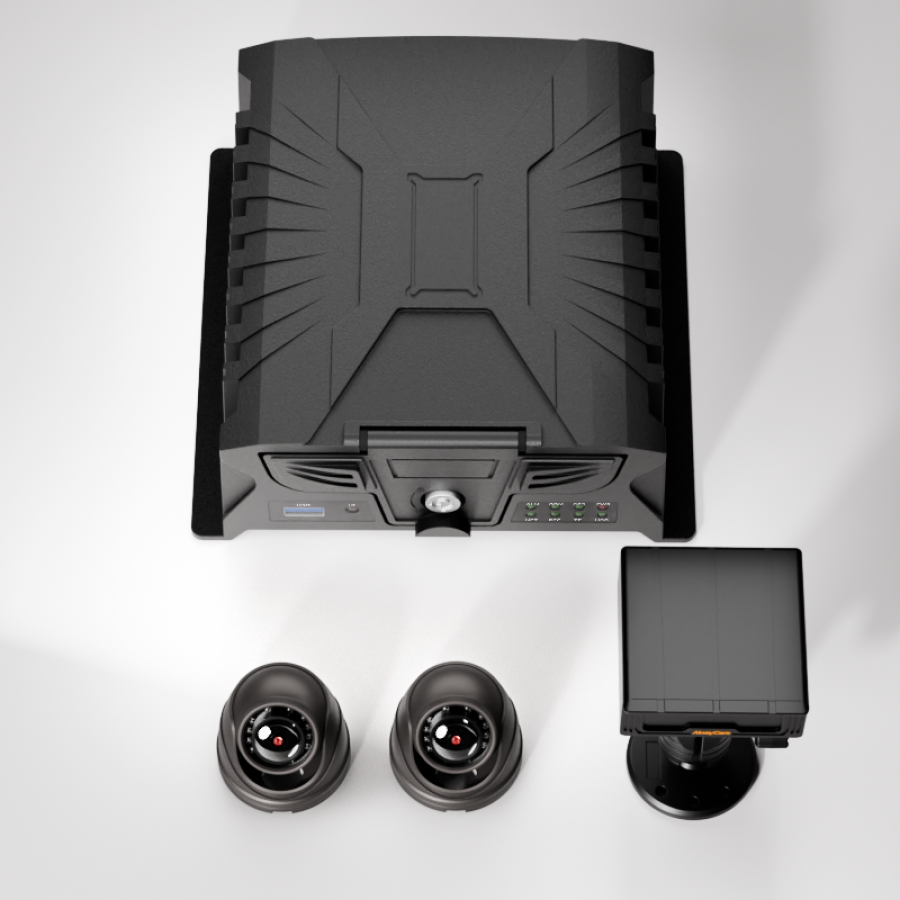

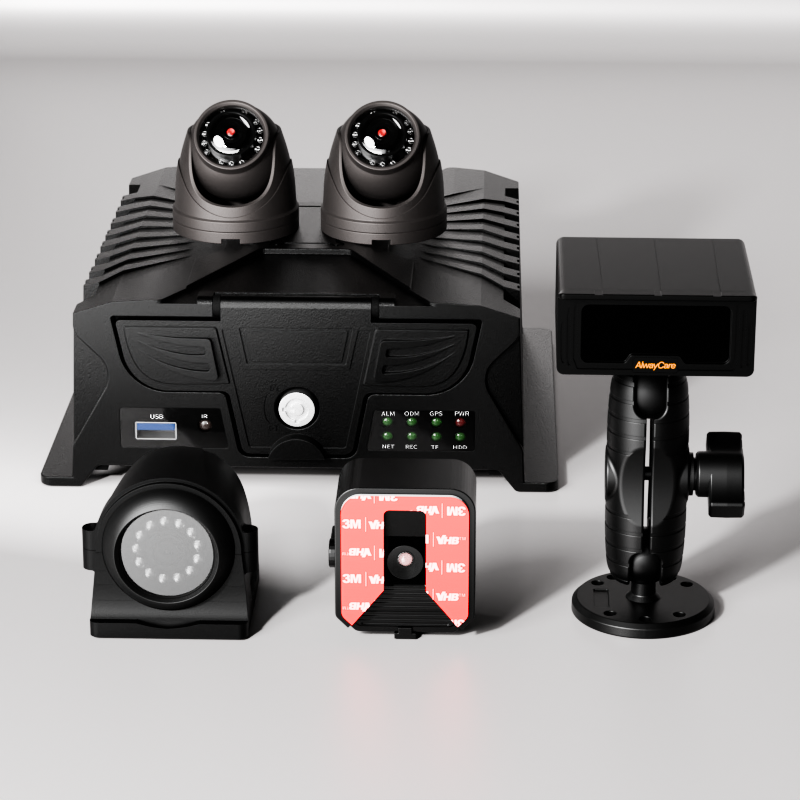

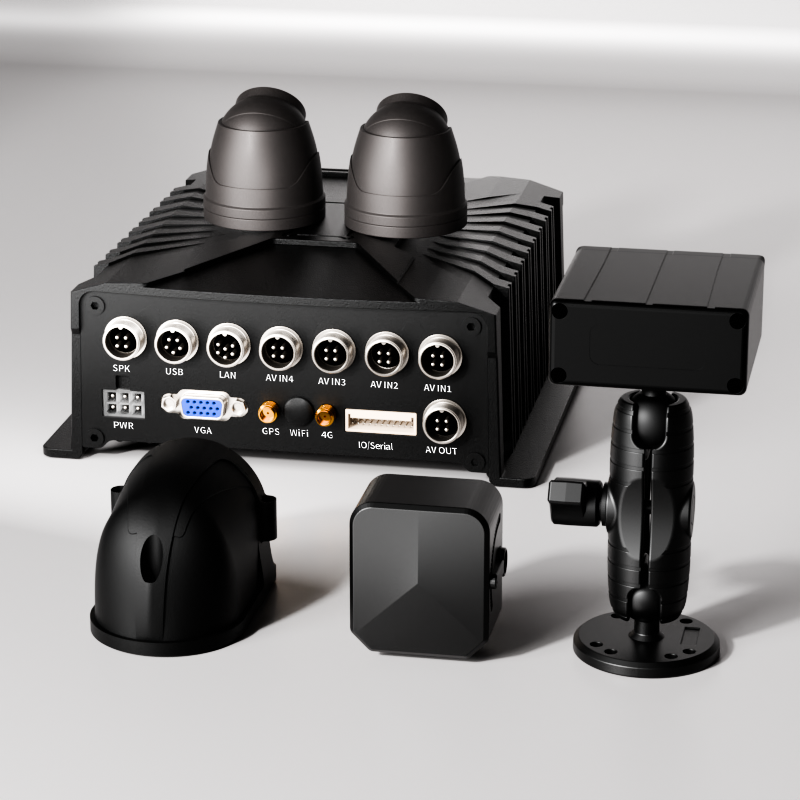

PC36 AI Passenger Counter with 8CH MDVR & DMS
| Share | |
|---|---|
| Categories | APC (AI Passenger Counter) |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Model | PC36 |
| Video Output | VGA |
| Satellite Positioning | Support GPS/ Beidou/ GLONASS |
| Wireless Communication | 4G |
| Storage | 512GB SD Card |
| Video Encoding | H.264/H.265 |
| Operating Temperature | -20℃ ~ 70℃ |
| Warranty | 15 Months |
PC36 AI Passenger Counter with 8CH MDVR & DMS
8-Channel Enterprise Fleet Safety Hub: Dual-Door APC + DMS Fatigue Detection + SOS Emergency Alarm. Combines high-accuracy 3D stereo vision passenger counting (≥98% accuracy) with commercial vehicle telematics, 8-Channel 1080P/720P Hybrid (2x APC Cameras + 1x DMS Camera + 1x SOS Button + 5x Spare CCTV Channels), anti-congestion flow discrimination, and real-time CMSV6 cloud dispatch integration.
AlwayCare PC Series Differences Matrix
Complete technical configuration matrix for all 9 AlwayCare AI Passenger Counter systems — verified against the official factory technical quotation sheet.
| Configuration Spec |
Standalone
1-Door
PC15
PC15 Standalone
|
Standalone
2-Door
PC16
PC16 Dual Standalone
|
4CH MDVR
1-Door

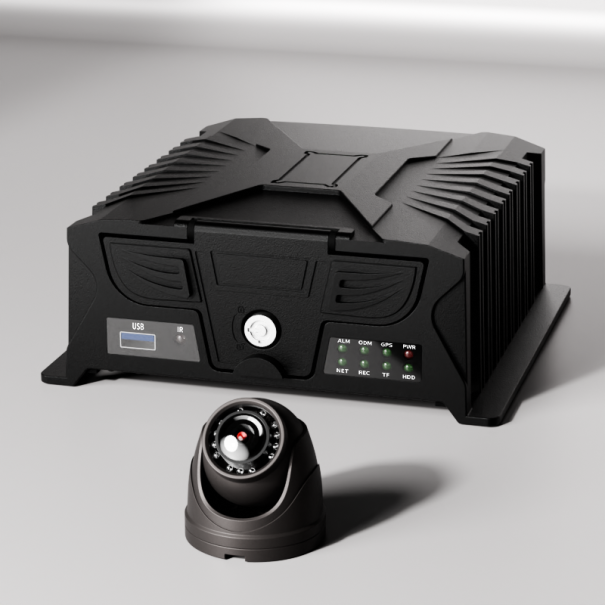

PC22
PC22 4CH MDVR
|
4CH MDVR
1-Door

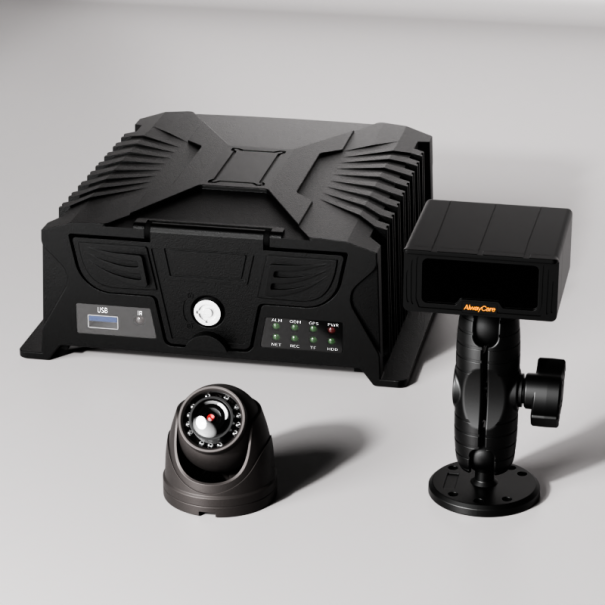

PC25
PC25 4CH + DMS
|
4CH MDVR
2-Door
PC26
PC26 4CH + Dual APC
|
4CH MDVR
1-Door
PC27
PC27 Flagship 4CH
|
4CH MDVR
4-Door
PC28
PC28 4-Door APC
|
CURRENT VIEW
2-Door
PC36
PC36 8CH + Dual APC
|
8CH MDVR
2-Door
PC37
PC37 8CH Active Safety
|
|---|---|---|---|---|---|---|---|---|---|
| 1. Core Architecture & Passenger Counting Channels | |||||||||
| Hardware Architecture | Dual-Lens All-in-One | Dual-Lens All-in-One | 4CH HDD MDVR Hub | 4CH HDD MDVR Hub | 4CH HDD MDVR Hub | 4CH HDD MDVR Hub | 4CH HDD MDVR Hub | 8CH HDD MDVR Hub | 8CH HDD MDVR Hub |
| Doorway Coverage | 1-Door | 2-Door | 1-Door | 1-Door | 2-Door | 1-Door | 4-Door | 2-Door | 2-Door |
| Counting Accuracy |
≥98%
3D Stereo Vision
|
≥98%
3D Stereo Vision
|
≥98%
3D Stereo Vision
|
≥98%
3D Stereo Vision
|
≥98%
3D Stereo Vision
|
≥98%
3D Stereo Vision
|
≥98%
3D Stereo Vision
|
≥98%
3D Stereo Vision
|
≥98%
3D Stereo Vision
|
| 2. Active Safety & In-Cabin AI Detection | |||||||||
| DMS Driver Fatigue | ✕ Optional | ✕ Optional | ✕ Optional | ✓ Yes (AI Camera) | ✓ Yes (AI Camera) | ✓ Yes (AI Camera) | ✕ Optional | ✓ Yes (AI Camera) | ✓ Yes (AI Camera) |
| ADAS Forward Collision | ✕ Optional | ✕ Optional | ✕ Optional | ✕ Optional | ✕ Optional | ✕ Optional | ✕ Optional | ✕ Optional | ✓ Yes (720P ADAS) |
| BSD Blind Spot Detection | ✕ Optional | ✕ Optional | ✕ Optional | ✕ Optional | ✕ Optional | ✕ Optional | ✕ Optional | ✕ Optional | ✓ Yes (Exterior BSD) |
| Voice Intercom & SOS | ✕ Optional | ✕ Optional | ✕ Optional | ✕ Optional | ✕ Optional | ✓ Handset + SOS | ✕ Optional | ✓ Handset + SOS | ✓ Handset + SOS |
| 3. Video Recording, Storage & Connectivity | |||||||||
| Storage Media | 500K Cache | 500K Cache | 2TB + 512GB | 2TB + 512GB | 2TB + 512GB | 2TB + 512GB | 2TB + 512GB | 2TB + 512GB | 2TB + 512GB |
| GNSS Positioning | GPS/BD Dual-Mode | GPS/BD Dual-Mode | GPS/BD Dual-Mode | GPS/BD Dual-Mode | GPS/BD Dual-Mode | GPS/BD Dual-Mode | GPS/BD Dual-Mode | GPS/BD Dual-Mode | GPS/BD Dual-Mode |
| Cellular Upload | 4G Full-Netcom | 4G Full-Netcom | 4G Full-Netcom | 4G Full-Netcom | 4G Full-Netcom | 4G Full-Netcom | 4G Full-Netcom | 4G Full-Netcom | 4G Full-Netcom |
| Cloud Platform | CMSV6 Cloud Dispatch | CMSV6 Cloud Dispatch | CMSV6 Cloud Dispatch | CMSV6 Cloud Dispatch | CMSV6 Cloud Dispatch | CMSV6 Cloud Dispatch | CMSV6 Cloud Dispatch | CMSV6 Cloud Dispatch | CMSV6 Cloud Dispatch |
| Inquiry Action | Quote PC15 | Quote PC16 | Quote PC22 | Quote PC25 | Quote PC26 | Quote PC27 | Quote PC28 | Current Model ✓ | Quote PC37 |
6 Core Passenger Counting Optical Algorithms
Engineered specifically for congested public transit doorways, utilizing high-precision binocular 3D point cloud tracking to deliver field-tested accuracy exceeding 98%.
Bi-Directional Flow Discrimination
Tracks simultaneous boarding and alighting streams across high-density doorways without cross-counting.
- Bi-directional vector separation
- Zero-latency crowd counting
- Independent in/out tallies
Luggage & Object Filter
Maps 3D head-shoulder contours, filtering out rolling luggage, backpacks, and strollers.
- 0.8m to 2.2m height gating
- Anti-luggage false trigger filter
- Child vs adult discrimination
Loitering & U-Turn Rejection
Filters doorway loitering, hesitation steps, and U-turns without false boarding triggers.
- Doorway loitering suppression
- Door leaf occlusion filtering
- Dynamic turn-back verification
6-Axis Anti-Shake Compensation
Compensates for chassis vibration, hard braking, and road dips to eliminate false shifts.
- Chassis vibration dampening
- Braking acceleration filter
- Ramp pitch & roll adaptation
940nm Invisible IR Night Vision
Non-glare 940nm IR array maintains 98%+ precision across direct sunlight and pitch darkness.
- Zero driver glare at night
- Sunlight & reflection suppression
- Tunnel entrance fast adaptation
Real-Time Cloud Heatmaps
Geotagged passenger tallies sync via 4G into CMSV6 for route occupancy and revenue audits.
- Stop-by-stop passenger heatmaps
- Peak-hour dispatch optimization
- Automated farebox revenue audit
Commercial Transit Application Scenarios
Tailored architectures matching specific fleet operational mandates, door configurations, and safety regulatory requirements.
City Buses (10m–12m)
Standard municipal transit buses operating front boarding and rear exit doors, requiring automated passenger counting and driver fatigue safety.
Articulated & BRT Buses
Long 18m high-capacity buses with 3 or 4 wide doorways carrying large passenger volumes during peak rush hours.
Intercity Coaches & Tourism
Single doorway long-distance motorcoaches requiring passenger manifest verification plus comprehensive DMS, ADAS & BSD collision safety.
Airport & Campus Shuttles
Dedicated employee feeder vans and airport apron shuttles needing standalone plug-and-play passenger counters without central MDVR cabling.
Modular Peripherals & Complementary Hardware
All peripherals are manufactured to automotive-grade standards and verified for seamless plug-and-play operation with the AlwayCare PC passenger counting architecture.
PFM-135R-D APC Camera
Dedicated 720P wide-angle door camera engineered for overhead bus entrance mounting, featuring built-in 940nm invisible IR array.
AI DSM Fatigue Camera
Dashboard or A-pillar mounted infrared pupil tracking sensor detecting PERCLOS drowsiness, micro-sleeps, phone calls, and smoking.
Two-Way Intercom Handset
Ruggedized coiled handset microphone enabling crystal-clear two-way voice communication between bus driver and transit operations center.
Cockpit SOS Panic Button
Instant driver-actuated emergency trigger sending prioritized cloud alerts, vehicle coordinates, and live video streaming to headquarters.
ADAS Forward Camera
Windshield-mounted camera analyzing forward roadway traffic, triggering Forward Collision Warning (FCW) and Lane Departure Warning (LDW).
BSD Blind Spot Camera
IP68 waterproof exterior side-mounted camera detecting pedestrians, cyclists, and e-scooters in the dangerous right-turn blind zone.
DP230 7-Inch In-Cab Monitor
High-brightness automotive cockpit display connected to MDVR VGA/AV output for real-time door passenger monitoring and reversing assistance.
Mounting L-Bracket & Antennas
Precision-stamped industrial steel L-bracket ensuring optimal doorway angle alignment, paired with active GPS/BD dual-mode multi-GNSS antenna.

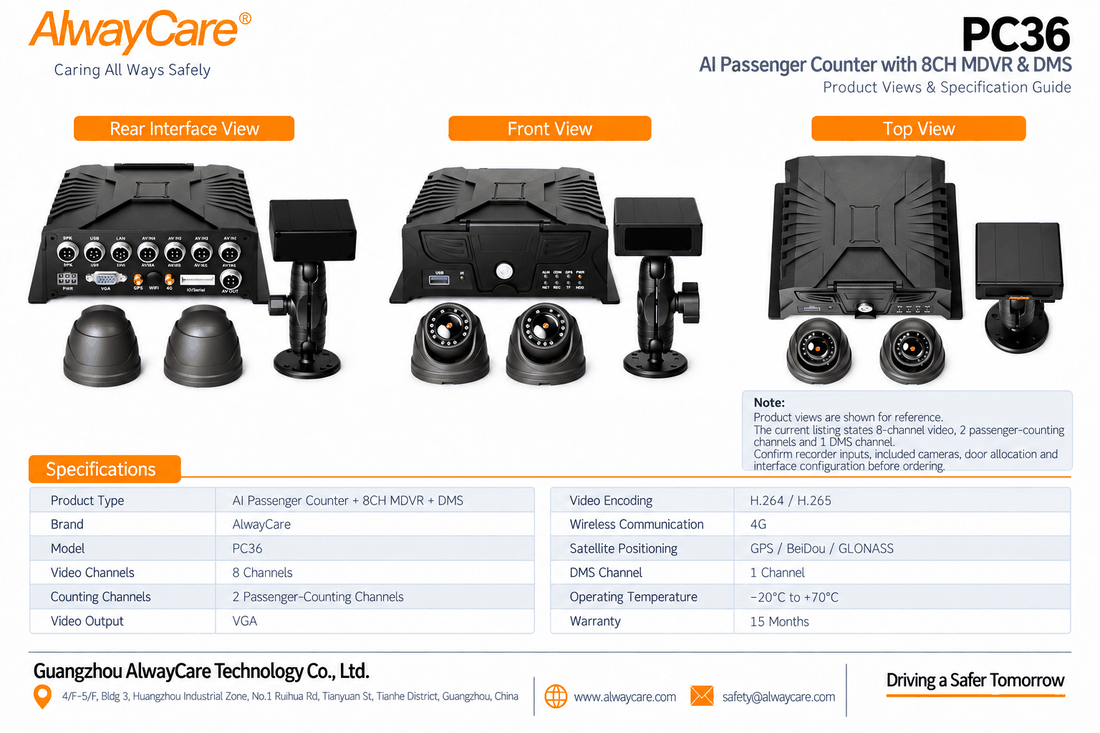

Model PC36 Technical Specifications
Comprehensive parameters strictly verified against factory quality engineering documents and IATF 16949 test benchmarks.
| System Engineering Specifications: AlwayCare PC36 | |
|---|---|
| System Architecture | Industrial 8CH HDD MDVR + 2x PFM-135R-D Cameras + DMS Camera + SOS Button |
| Doorway Channels | 8-Channel 1080P/720P Hybrid (2x APC Cameras + 1x DMS Camera + 1x SOS Button + 5x Spare CCTV Channels) |
| Counting Accuracy | ≥98% Dual-Door Flow Precision + Enterprise-Grade Driver Risk Analytics |
| Optics & Sensors | PFM-135R-D 720P Dedicated APC Camera with 135° Ultra-Wide Distortion-Corrected Lens |
| Night Vision | High-Intensity 940nm Non-Dazzling Infrared Illumination (0 Lux Full Operational Capability) |
| Video Compression | H.265 / H.264 (H.265 saves 50% storage space & 4G transmission bandwidth) |
| Local Storage Capacity | 2TB SATA HDD/SSD + 512GB SD Card Dual High-Capacity Media |
| GNSS Positioning | High-Gain Multi-Mode GPS / BD (BeiDou) / GLONASS Active Positioning |
| Cellular Connectivity | 4G LTE + GPS/BD/GLONASS + 8x I/O In + 2x I/O Out + 2x RS232 + CMSV6 |
| Telematics I/O Interfaces | 8x I/O Trigger Inputs + 2x I/O Alarm Outputs + 2x RS232 (Customizable RS485) |

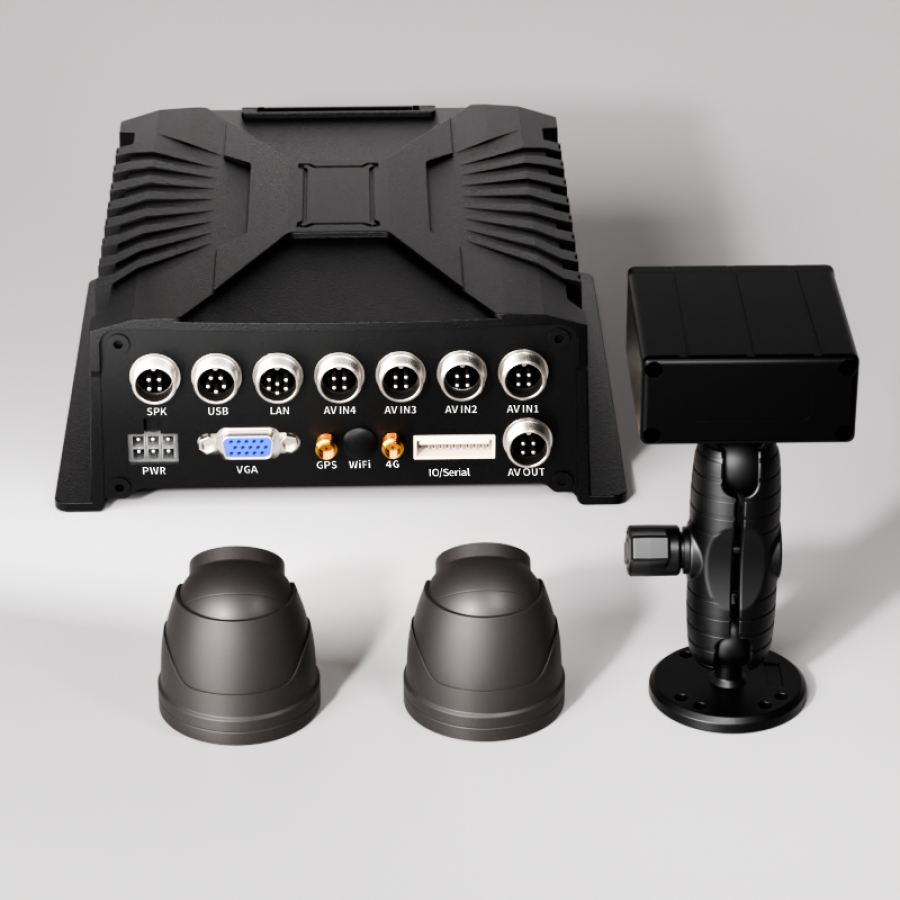

| Operating Voltage | DC 8V–36V Commercial Automotive Wide Input with Power-Off Protection |
| Operating Temperature | -20°C to +70°C (-4°F to +158°F); Storage: -40°C to +85°C |
| Standard Packaging | AlwayCare 8-Channel HDD Mobile DVR Main Host Unit x1; PFM-135R-D 720P Dedicated Passenger Counting Cameras x2 (Front & Rear); Automotive Edge AI Driver Status Monitoring (DMS) Camera x1; Driver Cockpit Emergency Alarm SOS Panic Button (SOS按钮) x1; CMSV6 Cloud Fleet Management Platform Server Authorization |
| Quality Certifications | CE, UKCA, FCC, RoHS Compliant; Produced in IATF 16949 Certified Facility |
Why Fleet Operators Choose AlwayCare
Designed, manufactured, and supported directly by the original automotive electronics engineering factory in Guangzhou, China.
IATF 16949 Production
Manufactured in our state-of-the-art facility operating strictly under automotive quality management standards with complete component traceability.
100% Pre-Shipment Burn-In
Every single unit undergoes rigorous 48-hour continuous thermal chamber burn-in, vibration testing, and optical sensor calibration before dispatch.
15-Month Direct Warranty
Comprehensive factory-backed 15-month warranty with express spare part dispatch and direct senior FAE engineering support.
CMSV6 Open API Integration
Full support for JT/T 808, JT/T 1078 protocols and open RESTful APIs for seamless telemetry ingestion into proprietary municipal transit platforms.
Evaluation & Fleet Deployment Workflow
Structured 4-step framework from evaluation samples to fleet-wide mass deployment.
Requirement Alignment
Our engineers analyze your vehicle fleet types, door widths, cabling pathways, and platform protocol requirements.
Sample Dispatch (3-4 Days)
Factory stock of evaluation sample units dispatched via DHL/FedEx air express with pre-configured cellular SIM profiles.
Pilot Vehicle Testing
Dedicated remote FAE engineer assists your technical team with bracket alignment, angle calibration, and CMSV6 verification.
Volume Fleet Delivery
Scheduled batch manufacturing, customized cable harnesses, and consolidated logistics for municipal bus tenders.
Compatible Fleet Safety Architecture
Pair your passenger counting infrastructure with AlwayCare's broader commercial vehicle active safety and video telematics stack.
AI DASHCAM
MR720 Dual AI Dashcam
Integrated ADAS forward collision warning and DMS driver fatigue monitoring in a sleek automotive windshield form factor.
DMS FATIGUE HUB
MR810 Standalone DMS
Automotive edge AI driver drowsiness and distraction detector with 720P AHD video output and sensory seat vibration support.
MASS RECORDING
Commercial Mobile DVR
Robust 4-channel and 8-channel anti-vibration video telematics recorder supporting high-capacity 2.5" SATA hard drives.
BLIND SPOT SAFETY
Commercial Vehicle BSD
Millimeter-wave radar and AI camera fusion system protecting bus side turn blind zones from collisions with pedestrians.
Frequently Asked Questions
Need engineering clarification? Contact our solutions engineering team directly at safety@alwaycare.com or send an online inquiry.
How does AlwayCare APC achieve ≥98% accuracy in crowded transit conditions?
AlwayCare APC uses dual-lens stereoscopic computer vision to construct real-time 3D depth maps of the doorway zone. By analyzing the 3D contour of human heads and shoulders, the edge AI processor calculates individual trajectory vectors independently. This architecture eliminates the common counting errors of older 2D infrared or single-lens sensors, successfully discriminating simultaneous two-way traffic, passenger hesitation, and crowded rush-hour boardings.
What is the key difference between Standalone APC (PC15/PC16) and MDVR-Integrated APC (PC22–PC37)?
PC15 and PC16 are standalone all-in-one binocular devices featuring built-in 4G, GPS, and local cache. They connect directly via POE or wide-voltage vehicle power and transmit passenger count tallies straight to the cloud without needing a central recording box. PC22 through PC37 integrate the passenger counting algorithm into a high-capacity 4-channel or 8-channel HDD Mobile DVR, allowing simultaneous high-definition CCTV video surveillance recording, active driver fatigue monitoring (DMS), ADAS, and voice intercom within a unified vehicle hardware hub.
Can the passenger counter filter out luggage, backpacks, and strollers?
Yes. The system incorporates intelligent 3D height segmentation algorithms. Users can configure the detection height threshold (standard 0.8m to 2.2m). Objects carried below the threshold (such as wheeled luggage, grocery bags, strollers, or folded umbrellas) do not possess human head-and-shoulder spatial contours and are filtered out, ensuring they do not trigger false passenger counts.
Does the system record video continuously, or only passenger counts?
Standalone models (PC15/PC16) store passenger tally logs (>500,000 cached records) and can upload snapshot verification images upon alarm triggers. The MDVR-integrated models (PC22–PC37) support continuous H.265 high-definition video recording onto a lockable 2.5" SATA hard drive (up to 2TB) and SD card (up to 512GB), providing complete historical video evidence alongside passenger statistics.
How does the system upload passenger data and integrate with third-party transit dispatch software?
The system connects to cellular networks via its built-in 4G LTE modem, pushing real-time passenger counts, GPS coordinates, and timestamps to the CMSV6 cloud server. AlwayCare provides standard JT/T 808, JT/T 1078 protocols and open RESTful HTTP/WebSocket APIs, enabling municipal transit agencies to ingest live passenger counts directly into existing ticketing databases and automated dispatch platforms.
What are the sample evaluation lead times and warranty terms?
Standard evaluation samples of all PC series models are maintained in factory stock and dispatched within 3–4 business days via express air courier. Every device is backed by our direct 15-month factory warranty and supported by our Guangzhou engineering FAE team for remote calibration and API integration.
Modernize Your Transit Fleet with Intelligent Passenger Counting
Consult with our commercial automotive engineering team to configure the ideal PC series passenger counting and video telematics architecture for your bus fleet.
