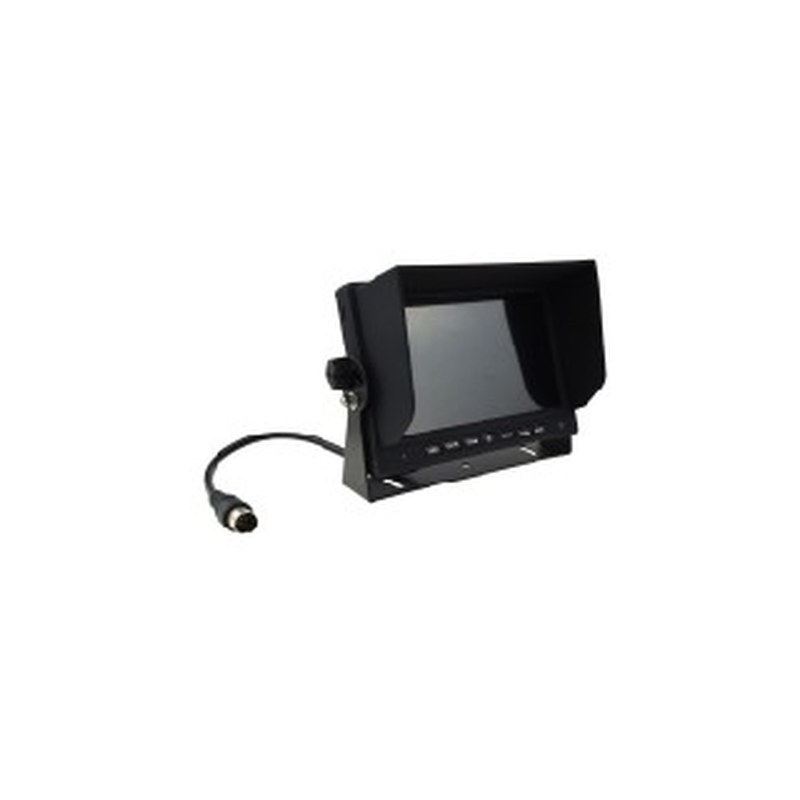

DP230-4 7" Quad-Split CVBS Vehicle Monitor
| Share | |
|---|---|
| Categories | Vehicle Monitor |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Product Specifications | DP230-4 |
| Display size | 7.0 inch |
| Display ratio | 16:9 |
| Resolution | 800x480 |
| Video Inputs | 4 Channels (CVBS only, Quad-Split) |
| Reversing | Automatic display on reverse |
| Power | 5W |
| Operating Voltage | DC 12V - 32V Wide Voltage |
| Connector | 4-pin aviation |
| Screen | Dual IC |
| Enclosure Material | PC + ABS, textured |
| Operating Temperature | -20℃ ~ 65℃ |
| Storage Temperature | -25℃ ~ +70℃ |
| Warranty | 15 Months |
DP230-4 7" Quad-Split CVBS Vehicle Monitor
DP230-4 is a 7-inch 800x480 quad-split vehicle monitor with 4 CVBS inputs, reversing display and DC 12-32V input.
Technical Specifications
Your quotation confirms the exact configuration.
| Model | DP230-4 |
|---|---|
| Display size | 7.0 inch |
| Display ratio | 16:9 |
| Resolution | 800x480 |
| Video Inputs | 4 Channels (CVBS only, Quad-Split) |
| Reversing | Automatic display on reverse |
| Power | 5W |
| Operating Voltage | DC 12V - 32V Wide Voltage |
| Connector | 4-pin aviation |
| Screen | Dual IC |
| Enclosure Material | PC + ABS, textured |
| Operating Temperature | -20℃ ~ 65℃ |
| Storage Temperature | -25℃ ~ +70℃ |
| Warranty | 15 Months |
Vehicle Monitor Models
Compare DP230-4 with other AlwayCare models in this category.
| Model | Type / Resolution | Voltage | Size |
|---|---|---|---|
| DP270 | 1280x800 | DC 12V - 36V Wide Voltage | 10.1 inch IPS full view |
| DP230-7 | 1024x600 IPS full view | DC 15V - 90V (custom wide voltage) | 7.0 inch |
| DP230-D | 1024x600 | DC 12V - 24V Wide Voltage | 7.0 inch |
| DP230-B | 1024x600 | DC 9V - 36V Wide Voltage | 7.0 inch |
| DP230-SD | 800x480 | DC 9V - 36V Wide Voltage | 7.0 inch |
| DP270-A | 1024x600 HD | DC 9V - 36V Wide Voltage | 10.1 inch |
| DP285-A | 1024x600 HD | DC 9V - 36V Wide Voltage | 10.1 inch |
| DP210-C | 800x480 | DC 9V - 36V Wide Voltage | 7.0 inch |
| DP210-B | 1024x600 HD | DC 9V - 36V Wide Voltage | 7.0 inch |
| DP230-A | 1024x600 HD | DC 9V - 36V Wide Voltage | 7.0 inch |
| DP230-C | 1024x600 | DC 12V - 24V Wide Voltage | 7.0 inch |
| DP230-4 (this page) | 800x480 | DC 12V - 32V Wide Voltage | 7.0 inch |
| DP211 | 1024x600 | DC 12V - 32V Wide Voltage | 7.0 inch |
| DP212 | 1024x600 | DC 12V - 32V Wide Voltage | 7.0 inch |
Frequently Asked Questions
Can't find your answer? Our engineers reply within one business day — email safety@alwaycare.com or send an inquiry.
Which cameras can connect?
CVBS cameras only, up to 4 channels.
Does it switch to the reversing camera?
Yes. It shows the reversing view automatically.
Which warranty applies?
DP230-4 ships with a 15-month manufacturer warranty. Confirm final terms and regional service coverage in your quotation.
