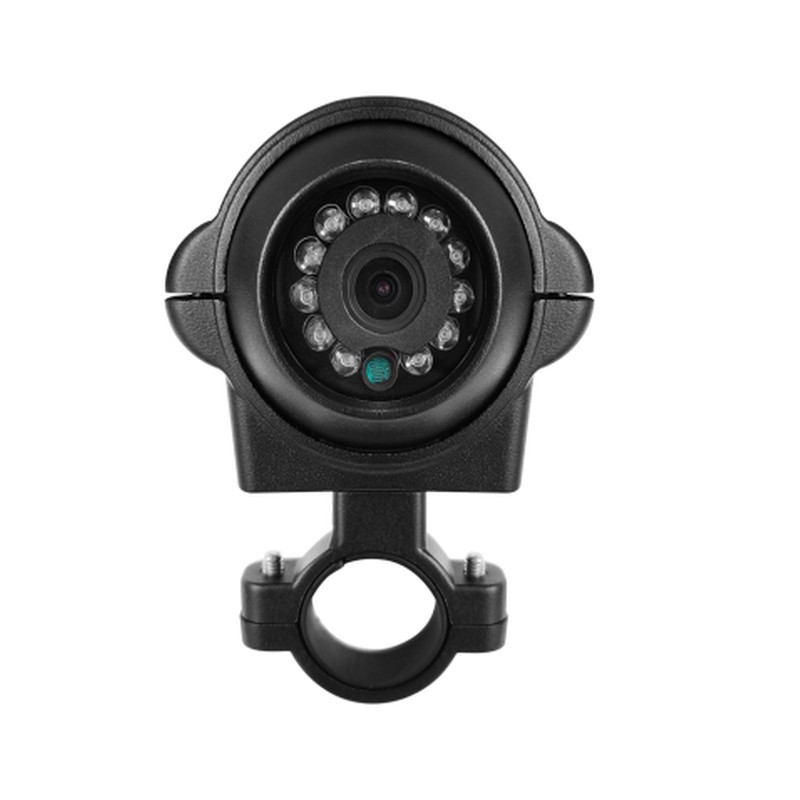

CC940 Overhead-Mount Infrared Vehicle Camera
| Share | |
|---|---|
| Categories | Vehicle Camera |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Product Specifications | CC940 |
| Definition | CVBS / 1920x1080 |
| Image Sensor | 1/2.9" 2.9MP CMOS |
| Lens | 2.8mm |
| Horizontal Angle | 105° |
| Night Vision | 12 IR LEDs, 10-15m |
| Voltage | DC 12V ±6% |
| Working Current | 50-110mA (IR off), 180-280mA (IR on) |
| Waterproof | IP67, high-strength glass |
| Material | Metal |
| Size | L76 x W47 x H66mm |
| Operating Temperature | -20℃ ~ 70℃ |
| Connector | 4-pin aviation connector |
| Application | Mounted above the vehicle front or rear |
| Warranty | 15 Months |
CC940 Overhead-Mount Infrared Vehicle Camera
CC940 is an IP67 metal infrared vehicle camera with 10-15m night vision, 105° view and 12V input, in CVBS and 1080P.
Technical Specifications
Your quotation confirms the exact configuration.
| Model | CC940 |
|---|---|
| Definition | CVBS / 1920x1080 |
| Image Sensor | 1/2.9" 2.9MP CMOS |
| Lens | 2.8mm |
| Horizontal Angle | 105° |
| Night Vision | 12 IR LEDs, 10-15m |
| Voltage | DC 12V ±6% |
| Working Current | 50-110mA (IR off), 180-280mA (IR on) |
| Waterproof | IP67, high-strength glass |
| Material | Metal |
| Size | L76 x W47 x H66mm |
| Operating Temperature | -20℃ ~ 70℃ |
| Connector | 4-pin aviation connector |
| Application | Mounted above the vehicle front or rear |
| Warranty | 15 Months |
| Version | Resolution |
|---|---|
| CC940-CVBS | CVBS |
| CC940-AHD20 | 1080P |
Vehicle Camera Models
Compare CC940 with other AlwayCare models in this category.
| Model | Resolution | Voltage | Size |
|---|---|---|---|
| CC670 | 1920x1080 | 12V | 76*69.5*76.7mm |
| CC930 | 1920x1080 | 12V | 60*60*60mm |
| CC950-33V | CVBS | 12-33V | 84*62.5*57.3mm |
| CC805 | 1920x1080 | 12V | 69*69*56mm |
| CC866-AHD20 | 1920x1080 | 12V | 72.6*37.5*58mm |
| CC980-AHD20 | 1920x1080 | 12V | 23*23*23mm |
| CC940 (this page) | CVBS / 1920x1080 | DC 12V ±6% | L76 x W47 x H66mm |
| CC950 | CVBS / 720P / 1080P | DC 12V ±6% | L84 x W62.5 x H57.3mm |
| CC955-33V / CC956-33V | 720P / 1080P | DC 9V-32V | L84 x W62.5 x H57.3mm |
| CC958-33V | 720P | DC 12-33V ±6% | L84 x W62.5 x H57.3mm |
| CC888-AHD20 | 1080P | DC 12V ±6% | L50 x W40 x H60mm |
| CC970-NTSC | 480 (640x480) | DC 12V | L22 x W23 x H22mm |
| CC985-AHD20 | 1080P (1920x1080) | DC 12V | 23 x 32 x 22mm |
| CC986-AHD20 | 1080P (1920x1080) | DC 12V | 43 x 23 x 32mm |
| CC1003-4GPS | 1080P, 30fps | DC 9V-36V | — |
Frequently Asked Questions
Can't find your answer? Our engineers reply within one business day — email safety@alwaycare.com or send an inquiry.
Where is CC940 usually mounted?
It is mostly installed above the front or rear of the vehicle. The bracket adjusts up and down.
Which resolutions are offered?
CC940 is listed in CVBS and 1080P (AHD 2.0) versions.
Which warranty applies?
CC940 ships with a 15-month manufacturer warranty. Confirm final terms and regional service coverage in your quotation.
