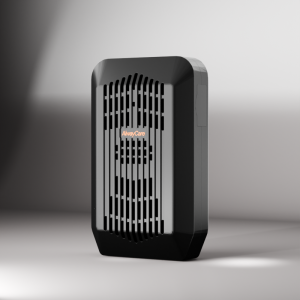

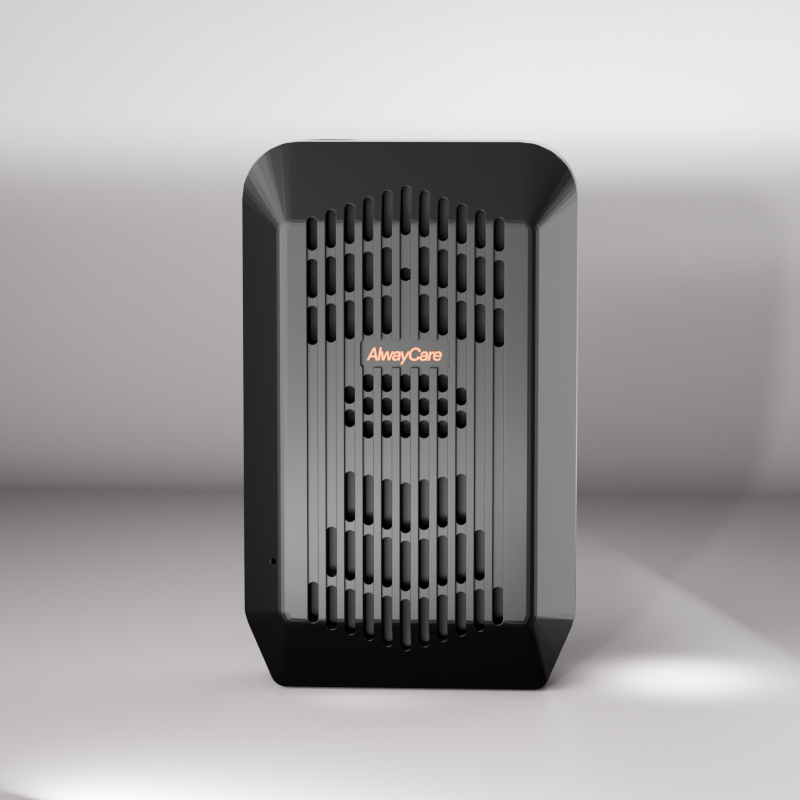

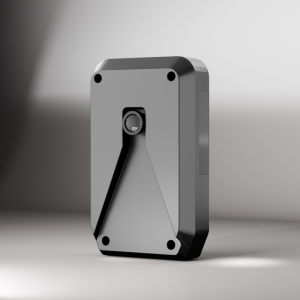

AWS302 ADAS Collision Warning System for Fleets
| Share | |
|---|---|
| Categories | ADAS (Anti-Collision System) |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Model | ADAS-AWS302 |
| Voltage | 12/24V |
| Video Record Resolution | 1280x720 |
| Satellite Positioning | Support GPS and BD (Beidou) dual-mode positioning |
| Optional | I/O or RS232 |
| Wireless Communication | 4G or Wifi |
| Storage | 256GB TF Card |
| Video Encoding | H.264/H.265 |
| Application | Suitable for All Vehicles |
| Operating Temperature | -20℃ ~ 70℃ |
| Warranty | 15 Months |
AWS302 ADAS Collision Warning System for Fleets
Standalone commercial vehicle ADAS system providing real-time Forward Collision Warning (FCW), Pedestrian Hazard Warning (PCW), and Lane Departure Warning (LDW).

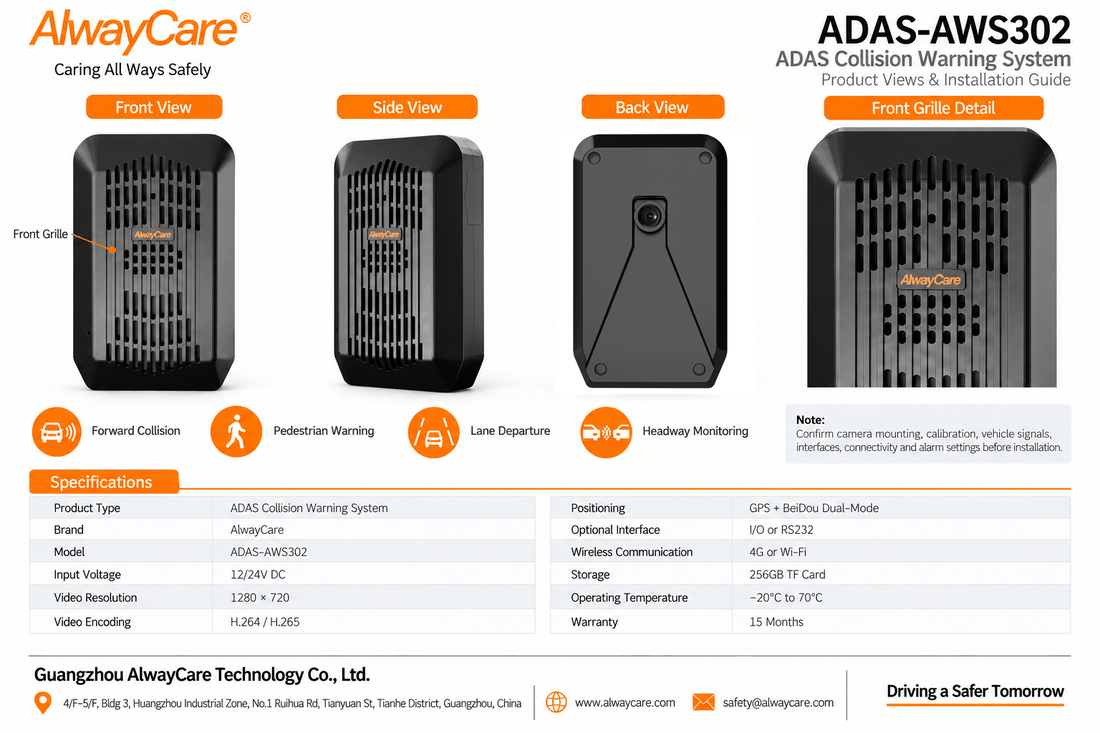

Technical Specifications
Values follow the factory datasheet — your quotation confirms the exact configuration.
| Model | ADAS-AWS302 |
|---|---|
| Voltage | 12/24V |
| Video Record Resolution | 1280x720 |
| Satellite Positioning | Support GPS and BD (Beidou) dual-mode positioning |
| Optional | I/O or RS232 |
| Wireless Communication | 4G or Wifi |
| Storage | 256GB TF Card |
| Video Encoding | H.264/H.265 |
| Application | Suitable for All Vehicles |
| Operating Temperature | -20℃ ~ 70℃ |
| Warranty | 15 Months |
What AWS302 Delivers
Capability groups verified against the official product record — scope details are confirmed in your quotation.
1280x720 Imaging & Recording
H.264/H.265
- 256GB TF Storage: High-endurance storage for multi-day H.264/H.265 incident video.
- Forward-Road AI: Real-time FCW forward collision, PCW pedestrian hazard, and LDW lane departure alerts.
- HD Incident Recording: Continuous 720P road-facing video capture for accident liability protection.
4G or Wifi Connectivity & Positioning
Support GPS and BD (Beidou) dual-mode positioning
- Flexible Interfaces: I/O triggers, RS232 telemetry, or standalone audible warning speaker.
- CMS Integration: Optional 4G/GPS telematics upload real-time collision alerts to fleet servers.
- Modular Deployment: Easily retrofits across commercial trucks, buses, and municipal fleets.
-20℃ ~ 70℃ Power & Operating Range
12/24V
- VRU Pedestrian Protection: High-precision daytime and nighttime pedestrian collision warning.
15 Months Warranty & Supply
Suitable for All Vehicles
- Optional AEB Interlock: Supports vehicle braking signal integration on AWS302-AEB models.
See AWS302 in Context
The official AlwayCare AWS302 product video showing the system in vehicle-operation use.
Verified Commercial Fleet Deployments
AlwayCare commercial ADAS forward collision warning systems are field-proven across high-consequence hazardous cargo haulage and heavy trans-continental logistics operations.
National Energy Petroleum Tanker Fleet
Forward optical machine vision computing real-time TTC and triggering headway warnings integrated with 4-channel networked MDVR telematics across 250 tankers.
Chile Industrial Haulage Fleet
800 heavy transport trucks outfitted with AWS650-RS232 monocular machine vision for headway monitoring and lane departure prevention along steep Andean descents.
Australia Long-Haul Road-Train Fleet
Multi-trailer long-haul road trains deployed with integrated forward collision warning, driver monitoring, and MDVR telematics across Outback freight corridors.
Built for Long-Term Fleet Programs
Factory Direct Supply
Devices ship from our own production line, with engineering support from the team that builds them.
Certified & Lab Tested
CE, UKCA, RoHS and ISO 9001 — every platform is backed by third-party laboratory test reports.
15-Month Warranty
Coverage that goes beyond the standard 12-month term, honored through your dedicated account manager.
OEM & Firmware Support
Logo, packaging, firmware behavior and interface customization for your market and fleet platform.
From Inquiry to Delivery in Four Steps
A clear path from first contact to units running in your fleet — no obligation at the evaluation stage.
Share Your Requirements
Send fleet size, vehicle models and target functions through the inquiry form or to your account manager.
Version & Quotation
Our engineers map your needs to the right AWS302 version and issue a formal quotation within one business day.
Sample Evaluation
Sample units are available for road testing before you commit to a bulk order — evaluate first, decide later.
Production & Delivery
Bulk orders ship with factory QC reports, export documents and the 15-month warranty from dispatch.
Documents & Downloads
Everything your engineering and procurement teams need for evaluation.
Product Datasheet
Full specifications and ordering information — download the official AWS302 datasheet (PDF).
Download DatasheetCertificates & Test Reports
Certification and third-party laboratory reports for the selected version and target market.
Request CertificatesUser Manual & Installation Guide
Wiring, mounting and configuration instructions — provided with sample orders.
Request ManualCMS Software & Demo
Platform access for evaluation — connect supported configurations to a live demo fleet.
Request Demo AccessComplete the In-Vehicle Safety Stack
Product families commonly deployed alongside AWS302 in the same fleet stack.
MR910-A ADAS with 5-Channel MDVR for Tractors
Model MR910-A — ADAS (Anti-Collision System) for commercial fleets.
MR830 All-in-One DMS with ADAS, BSD and Driver Fatig...
Model MR830 — DMS (Driver Monitoring System) for commercial fleets.
Frequently Asked Questions
Need technical definitions for ADAS or UNECE compliance? Consult our Commercial Fleet Safety Engineering Glossary, or contact our engineers — email safety@alwaycare.com or send an inquiry.
How does the AWS302 ADAS camera recognize collision risks and calculate warning timing?
The AWS302 integrates an automotive-grade forward optical camera and an onboard machine-vision processor running deep-learning vehicle and pedestrian trajectory algorithms. It continuously calculates Time-to-Collision (TTC) based on relative distance and approach speed, triggering Forward Collision Warnings (FCW) up to 2.7 seconds before potential impact and Headway Monitoring Warnings (HMW) when following distances drop below safe thresholds.
Can AWS302 operate as a standalone warning system or must it connect to a Mobile DVR or telematics platform?
The AWS302 functions fully as an independent standalone ADAS collision warning system. It includes its own in-cab visual display and acoustic warning buzzer that alert the driver in real time. Additionally, RS232 and I/O alarm output trigger interfaces allow direct integration into third-party Mobile DVRs (MDVR) or GPS tracking terminals for cloud event synchronization.
What vehicle types and windshield angles does the AWS302 camera support?
AWS302 is engineered for commercial vehicles including heavy freight trucks, transit buses, delivery vans, and municipal utility vehicles. The mounting bracket features adjustable mechanical inclination to align with windshield tilt angles ranging from vertical (buses and flat-nose cab-over trucks) to 45° slopes (long-nose trucks and vans), with software calibration taking less than 10 minutes.
How does the system prevent nuisance alerts and false alarms during normal lane changes?
The system connects to the vehicle's turn signal wiring harness via digital inputs. When the driver engages the left or right turn signal before changing lanes, Lane Departure Warning (LDW) alerts are automatically suppressed. Furthermore, low-speed alarm masking prevents alerts in heavy stop-and-go city traffic below configurable speeds (such as 30 km/h).
What electrical protections and power supply ranges are integrated into AWS302?
Built for commercial vehicle duty, the AWS302 operates on DC 9V to 36V wide input voltage with ISO 7637-2 electrical transient suppression, reverse-polarity protection, and over-voltage safeguards. It withstands commercial alternator surges and operates reliably from -20°C to +70°C.
