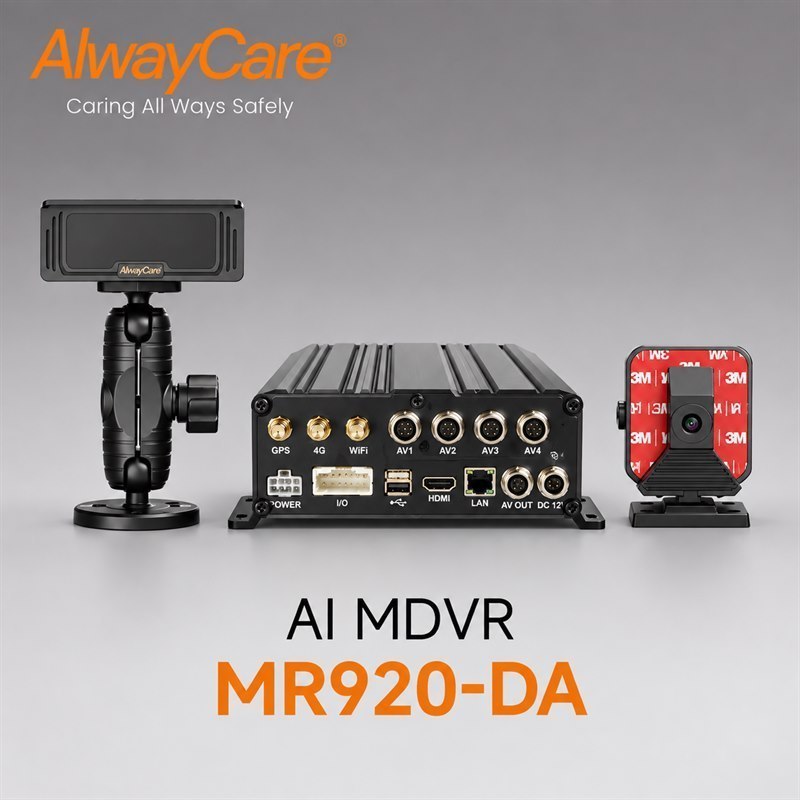

MR920-DA 9-Channel AI MDVR Telematics Terminal (DMS + ADAS Dual AI)
| Share | |
|---|---|
| Categories | AI MDVR |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Model | MR920-DA |
| Channel Capacity | 9 Channels (8 AHD + 1 IPC) |
| AI Algorithm Suite | DMS + ADAS Dual AI |
| Video Compression | H.264 / H.265 High Efficiency |
| Storage Support | 2.5 inch SATA HDD/SSD up to 2TB + SD |
| Wireless Connectivity | 4G LTE + GPS/BDS + Wi-Fi |
| Operating Voltage | DC 9V - 36V Vehicle Power |
| Operating Temperature | -20℃ ~ +70℃ |
| Compliance | CE, FCC, RoHS, UN R151 Ready |
MR920-DA 9-Channel AI MDVR Telematics Terminal (DMS + ADAS Dual AI)
Enterprise 9-channel AI MDVR with concurrent DMS pupil tracking, forward ADAS, 4TB HDD, and 4G telematics.
Technical Specifications
Verified factory technical parameters for the AlwayCare MR920-DA commercial MDVR video recorder platform — defined in accordance with the Fleet Safety Engineering Glossary.
| Operating System & Core | Embedded Linux OS with dedicated dual-core AI NPU vision accelerator |
|---|---|
| AI Capabilities | Integrated Dual AI Vision: Cabin DMS (11 Core Alarms: fatigue, yawn, distraction, phone, smoking, seatbelt) + Forward Roadway ADAS (FCW, LDW, HMW, PCW) |
| Video & Audio Channels | 8 Channels AHD (1080P/720P/D1) + 1 Channel IPC digital network camera input. Video Output: 1 Channel CVBS output (aviation to RCA) standard; optional VGA video output. Audio: 1 Channel MIC input (two-way intercom support) + 1 Channel audio output. |
| Video Encoding & Dual Stream | H.265 (HEVC) and H.264 Main Profile compression; dual streaming architecture |
| Storage & Physical Security | 4TB SATA HDD/SSD + 512GB SDXC dual storage with key-lock tamper-proof front plate |
| Wireless Connectivity & Antennas | 4G LTE all-network cellular module + GPS / BeiDou dual-mode GNSS + 2.4GHz Wi-Fi (802.11b/g/n) |
| Hardware Interfaces | 6× I/O alarm inputs, 2× I/O alarm outputs, 1× USB 2.0 port, 1× RJ45 LAN, 1× RS232, 1× RS485 |
| Power Supply & Protection | DC 8V ~ 36V wide-voltage automotive input with reverse polarity, surge protection, and delay shutdown |
| Environmental & Chassis | Operating Temperature: -20°C to +70°C (-4°F to +158°F); Storage Temperature: -40°C to +85°C |

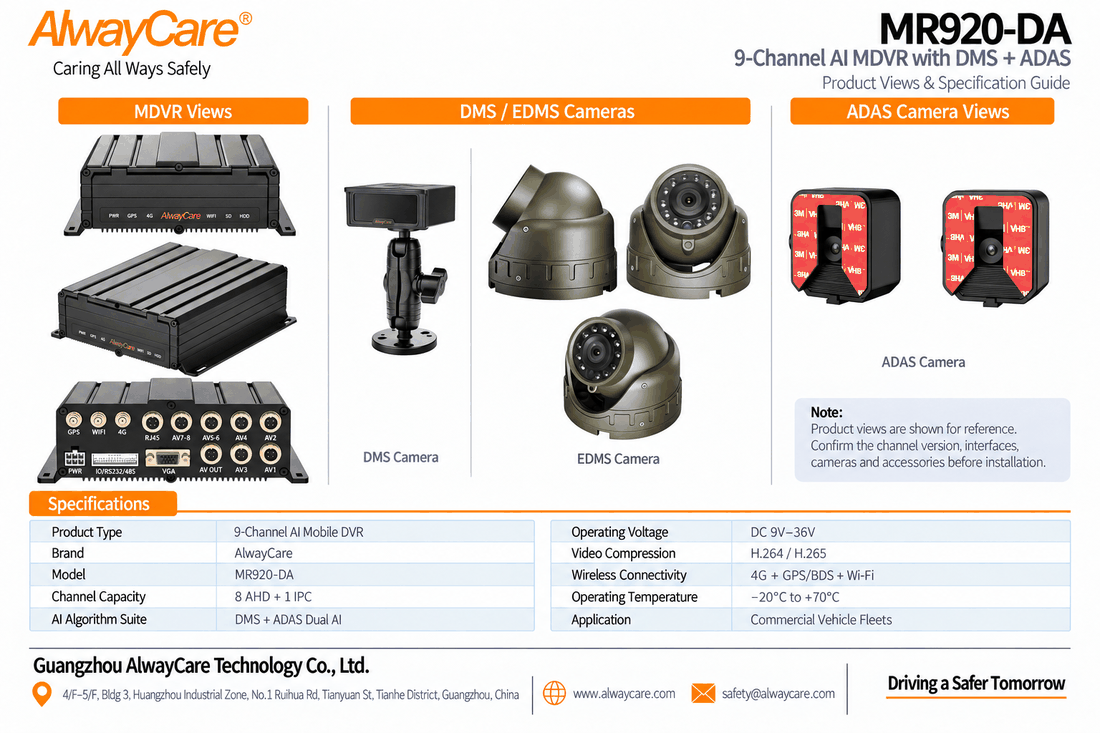

Technical Diagram & Specifications Overview
Factory engineering drawing, wiring pinout, and mechanical form factor for MR920-DA.
Hardware Architecture Selection
MR920 Series Fleet Architecture Selection
Compare AI vision packages, storage architecture, and hardware interfaces across the 8-channel MR920 platform.
| Platform Model | Video Channels | Local Storage | AI Vision Capabilities | Wireless Telematics | Hardware Interfaces |
|---|---|---|---|---|---|
| MR920 (Gateway Edition) Standard 9-channel video recording & CMS live streaming |
8× AHD + 1× IPC | 4TB HDD + 512GB SD | Optional Port | 4G LTE + GPS/BD + Wi-Fi | 6 In / 2 Out + RS232/485 |
| MR920-DA (Dual-AI Edition) Current Model Cabin driver state tracking + forward collision alerts |
8× AHD + 1× IPC | 4TB HDD + 512GB SD | DMS + ADAS | 4G LTE + GPS/BD + Wi-Fi | 6 In / 2 Out + RS232/485 |

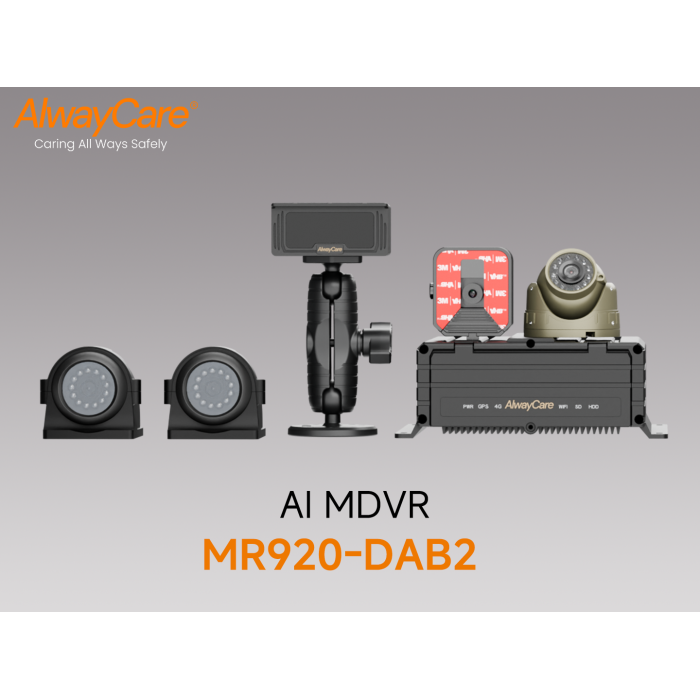

| MR920-DAB2 (Triple-AI Fusion) Driver monitoring + forward roadway + dual side blind spots |
8× AHD + 1× IPC | 4TB HDD + 512GB SD | DMS+ADAS+Dual BSD | 4G LTE + GPS/BD + Wi-Fi | 6 In / 2 Out + RS232/485 |
| MR920-360B (360° Panoramic BSD) Bird-eye panoramic surround view + perimeter pedestrian safety |
8× AHD + 1× IPC | 4TB HDD + 512GB SD | 360° AVM + BSD | 4G LTE + GPS/BD + Wi-Fi | 6 In / 2 Out + RS232/485 |
| MR920-360BA (Quad-AI Flagship) Panoramic surround view + blind zones + forward collision warnings |
8× AHD + 1× IPC | 4TB HDD + 512GB SD | 360°+BSD+ADAS | 4G LTE + GPS/BD + Wi-Fi | 6 In / 2 Out + RS232/485 |
What MR920-DA Delivers for Commercial Fleets
Heavy vehicle evidentiary recording, intelligent telematics surveillance, and active accident prevention.
Concurrent DMS Pupil Tracking & Roadway ADAS Protection
- Concurrent Dual-AI Engine: Hardware NPU executes cabin DMS pupil tracking and forward ADAS in real time.
- Comprehensive DMS Suite: Detects micro-sleep, distraction, phone calls, smoking, and seatbelt status.
- Millisecond ADAS Defense: Forward Collision Warning (FCW), Lane Departure (LDW), and Pedestrian Alert (PCW).
4TB Hard Drive Bay, 512GB SD & Front Physical Key Lock
- Enterprise 4TB Storage: Accommodates extended retention cycles for 9 channels of 1080P evidentiary video.
- Shock-Damped Drive Carrier: Floating silicon suspension shields internal hard drives from rough road shock.
- Tamper-Proof Key Lock: High-security metal tumbler prevents unauthorized removal of HDD and SIM cards.
Automated Cloud Incident Video Offload & CMS Telematics
- Instant Alarm Video Upload: Automatically uploads 15-second pre/post incident clips to cloud CMS via 4G.
- Driver Face ID Verification: Compares active driver face against approved fleet database to prevent misuse.
- Comprehensive I/O Bus: Connects fuel sensors, temperature probes, and vehicle triggers via RS232/RS485.
Compatible Sensors & Peripherals Suite
Compatible Sensors & Peripherals Suite
Modular vehicle hardware components factory-certified with AlwayCare MDVR platforms for turnkey commercial deployment.
Heavy-Duty Waterproof Cameras
Rugged die-cast metal cameras rated IP68/IP69K with night vision infrared LEDs, 1080P/720P AHD output, and vibration-proof 4-pin aviation screw connectors.
In-Cab Commercial Vehicle Monitors
Industrial high-brightness 7-inch and 10.1-inch anti-glare IPS displays (DP210 / DP230 / DP270) featuring auto-dimming ambient light sensors and multi-view split screen.
Surveillance Storage Media
Enterprise 2.5-inch SATA hard drives up to 4TB and high-endurance Class 10 / V30 SDXC memory cards engineered for continuous 24/7 high-temperature loop recording.
DMS & ADAS AI Cameras
Specialized 940nm non-glare interior pupil tracking camera modules and windshield roadway optical units with precision ratchet tilt mounting brackets.
Audio Intercom & Alert Buzzers
Two-way voice communication dispatch handsets, high-decibel acoustic alert speakers, and dashboard visual warning LED indicators.
CMS Telematics Cloud Platform
Centralized fleet supervision platform supporting live multi-channel video streaming, GPS breadcrumb track replay, automated incident video clipping, and JT808/JT1078 protocols.
Built for Long-Term Commercial Fleet Programs
Why leading transport operators, bus transit authorities, and telematics systems integrators choose AlwayCare hardware.
Factory Direct Manufacturing
Direct ISO9001 certified production facility with 100% full batch high-temperature burn-in, vibration stress testing, and component traceability.
Integrated Fleet Safety
Harmonized hardware architecture uniting multi-channel evidentiary recording, AI active vision safety, GNSS telematics, and centralized cloud monitoring.
15-Month Manufacturer Warranty
Every commercial MDVR unit is backed by our direct 15-month quality guarantee from factory dispatch with guaranteed long-term spare component availability.
OEM & Protocol Integration
Custom silkscreen branding, customized packaging, dedicated harness pinouts, and seamless API / JT808 / JT1078 protocol integration with third-party telematics clouds.
From Inquiry to Fleet Deployment in Four Steps
A transparent engineering and procurement path — evaluate hardware on your test vehicles before placing bulk orders.
Share Fleet Requirements
Submit vehicle models, channel counts, target storage retention, and telematics platform specifications through our inquiry form.
Technical Architecture & Quote
Our sales engineers configure the optimal MR920-DA hardware version and provide a detailed technical proposal within one business day.
Sample Road Evaluation
Sample evaluation units are shipped for on-vehicle trial installation, wiring validation, and fleet management software testing.
Production & Global Delivery
Bulk fleet orders are manufactured under strict QA standards, shipped with full factory inspection test records and export documentation.
Engineering Documents & Downloads
Comprehensive technical specifications, dimensions, wiring pinouts, and telematics resources for MR920-DA.
Product Datasheet
Full factory engineering parameters, mechanical dimensions, power requirements, and ordering configurations for MR920-DA.
Request DatasheetCertificates & Lab Reports
Official CE, FCC, RoHS, and automotive environmental vibration test reports for commercial transport compliance.
Request CertificatesUser Manual & Wiring Diagram
Complete connector pinout charts, camera mounting instructions, alarm trigger wire assignments, and configuration guide.
Request ManualCMS Platform Software & Demo
Evaluation access to our cloud fleet surveillance dashboard — real-time GPS tracking, multi-channel live streaming, and API documentation.
Request Demo AccessComplete the Commercial Fleet Safety Stack
Commercial MDVR hardware and vision systems commonly deployed alongside this model in commercial vehicle fleets.
MR920 9-Channel AI Mobile DVR for Fleets
Model MR920 — 8-Channel AHD + 1-Channel IPC MDVR with 4TB HDD + 512GB SD dual storage.
MR930 13-Channel AI MDVR for Fleet Monitoring
Model MR930 — 12-Channel AHD + 1-Channel IPC ultra-high capacity recorder with CAN bus integration.
MR930-DA360B 13-Channel Ultra AI MDVR
Model MR930-DA360B — Four-in-one AI visual hub combining DMS + ADAS + 360° AVM + BSD on 13 video channels.
Frequently Asked Questions
Can't find your answer? Our commercial fleet engineers reply within one business day — email safety@alwaycare.com or send an inquiry.
What camera types and video resolutions are supported by MR920-DA?
This platform supports 8 channels of AHD (1080P/720P) plus 1 channel of IPC, with dedicated DMS and ADAS inputs, accepting 1080P, 960P, 720P, and D1 analog high-definition cameras with backward compatibility for standard CVBS inputs. Selected versions also support digital IPC expansion via aviation network connectors.
What storage capacity and physical security does the unit provide?
The system utilizes 1× 2.5-inch SATA hard drive bay up to 4TB plus 1× SDXC slot up to 512GB with mechanical key lock. High-security physical lock tumbler covers prevent unauthorized removal of memory cards or hard drives by operators, ensuring uninterrupted evidentiary chain of custody.
How does the power protection and delayed shutdown system operate?
Equipped with an industrial DC 8V~36V wide-voltage power module with built-in reverse polarity, overload, and 40V surge suppression. Built-in farad supercapacitors ensure complete write-to-disk protection during abrupt power loss, while programmable delayed shutdown allows recording for up to 24 hours after vehicle ignition off.
What telematics protocols and CMS cloud platforms are supported?
Hardware integrates a 4G LTE cellular transceiver and high-precision GPS/BeiDou dual-mode GNSS receiver. The platform supports standard industry protocols including JT/T 808, JT/T 1078, GB/T 32960, and CMSV6, enabling seamless API integration into third-party fleet management solutions.
Can this MDVR be deployed in extreme vehicle environments?
Yes. The chassis is manufactured from heavy-duty extruded aluminum alloy with external heat dissipation fins. It operates reliably across an extended industrial temperature range of -20°C to +70°C (-4°F to +158°F) and satisfies rigorous automotive shock and vibration standards.
What warranty and engineering customization options are available?
Every AlwayCare commercial MDVR is supplied with a 15-month factory warranty. We support OEM/ODM branding, customized harness pinouts, bespoke firmware triggers, and specialized CMS server protocol mapping for tier-1 fleet contracts.
