Home / All / DMS (Driver Monitor System) / MR830 /

DMS | Driver Fatigue Smoking Calling Alarm | Camera Monitor System | Device Safe Driving Kit for Fleets

Categories	MR830
Brand	AlwayCare Commercial Fleet Safety Manufacturer
Model	DMS-MR830
Voltage	12/24V
Video Record Resolution	1920x1080
Satellite Positioning	Support GPS and BD (Beidou) dual-mode positioning
Optional	I/O or RS232
Wireless Communication	4G or Wifi
Storage	512GB TF Card
Size	10572163mm
Application	Suitable for All Vehicles
Operating Temperature	-20℃ ~ 70℃
Warranty	2 years
Update Time	May 1,2025

Contact Now

Detail Information

Driver Monitoring System MR830

● Driver behavior detection and alarm

Fatigue driving, yawning, distraction, smoking and other abnormal situations will record data and alarm.

● Geographical fence

● Face recognition

● Function integration

Integrated DMS (Driver Monitor System) / ADAS/ driver identification/ GPS/ Beidou/ WIFI/ 4G/ automatic warning/ algorithm, trajectory playback, video playback, 512GB SD card storage.

● Real-time remote

GPS and Beidou dual-mode positioning, video monitoring, voice intercom.

Technical Parameters

Item Type:		Fatigue Warning Alarm Device
Application		Suitable for All Vehicles
Power Input		12V/24V
Power Ouput		15W
Video input		1920x1080
Video Encoding		H.264/H.265
System		APP/Web
Working Temperature:		-20℃-70℃
Satellite Positioning		Support GPS
Optional		I/O or RS232
Wireless Communication		4G or Wifi
Storage		512GB TF Card
Warranty		2 years

Functions

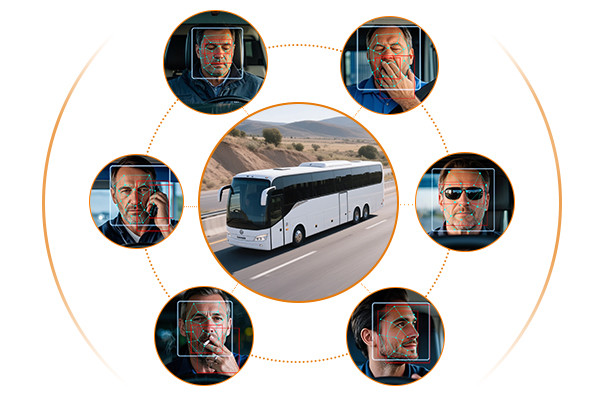

Driver Monitoring System

● Fatigue Alarm

● Yawning Alarm

● Calling Alarm

● Smoking Alarm

● Distraction Alarm

● Infrared Blocking Alarm

● Seat Belt Alarm

● Driver Change Alarm

● Driver Abnormality Alarm

● Driver ID Identification Alarm

● Overspeed Alarm

● Camera Failure Alarm

● Camera Blocking Alarm

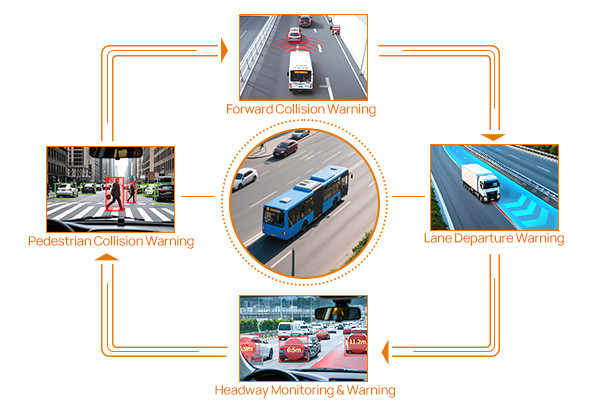

‌Advanced Driving Assistance System

Forward Collision Warning ●

Pedestrian Collision Warning ●

Lane Departure Warning ●

Headway Monitoring&Warning ●

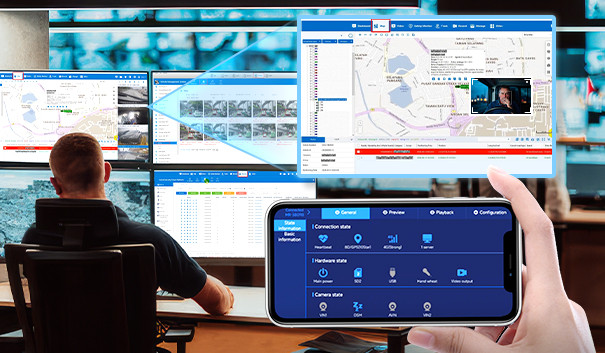

CMS Platform

The CMS platform is available on PC and App for easy fleet management.

● Real-time monitor vehicle's surrounding environment, vehicle location, driver status and emergency alerts；

● Intuitive dashboard, route optimization, video tracking.

Version Differences

Version	Customer Type	Configuration
MR830 Standard Version （MR830-SV）	1. Suitable for individual drivers. 2. Suitable for commercial fleets. ● do not need platform management. ● do not need I/O or RS232 to connect with other devices,only need the voice alarm to remind the driver.	DMS only voice alarm prompt (No need I/O, RS232 or Platform)
MR830 Professional Version （MR830-PV）	● Suitable for commercial fleets, especially for customers who have their own AVL systems (such as MDVR or GPS tracker), which can be integrated into customer's AVL system through I/O port or through RS232 serial port.	DMS+I/O+RS232+Video output (No need CMS Platform)
MR830 Platform Version （MR830-PF）	● Suitable for commercial fleets that do not need I/O or RS232 to connect with other devices.● Just need to monitor drivers' driving behaviors and Platform for fleet management.	DMS+4G+optional CMS platform (No need I/O and RS232)
MR830 Platform Pro Version （MR830-PF-Pro）	● Suitable for commercial fleets that need I/O or RS232 to connect with other devices.● Need to monitor drivers' driving behaviors and Platform for fleet management.	DMS+4G+optional CMS platform+IO+RS232+Video output
MR830 Platform Max Version （MR830-PF-Max）	● Suitable for commercial fleets that do not need I/O or RS232 to connect with other devices. In addition to DMS camera to monitor drivers' driving behaviors, other 1-3 channels cameras also need to be monitored the front, rear, side or cabin of the vehicle.● Need Platform for fleet management.	DMS+4G+optional CMS platform + additional 3 cameras supported (No need I/O and RS232)
MR830 Platform Pro Max Version （MR830-PF-Pro-Max）	● Suitable for commercial fleets that need I/O or RS232 to connect with other devices. In addition to DMS camera to monitor drivers' driving behaviors, other 1-3 channels cameras also need to be monitored the front, rear, side or cabin of the vehicle. ● Need Platform for fleet management.	DMS+4G+optional CMS platform +additional 3 cameras supported +IO+RS232+Video output
MR830 ADAS Platform Version （MR830-AP）	● Suitable for commercial fleets that do not need I/O or RS232 to connect with other devices. In addition to DMS camera to monitor drivers' driving behaviors and ADAS camera to monitor the front road/lanes/pedestrians, other 1-2 channels cameras also need to be monitored the front, rear, side or cabin of the vehicle.● Need Platform for fleet management.	DMS+ADAS+4G+optional CMS platform+additional 2 cameras supported (No need I/O and RS232)

Specification Download

DMS-MR830

We are a remote management and monitoring of active security systems solution provider please tell us your need and then we can send you the most satisfying drawing.: contact us
