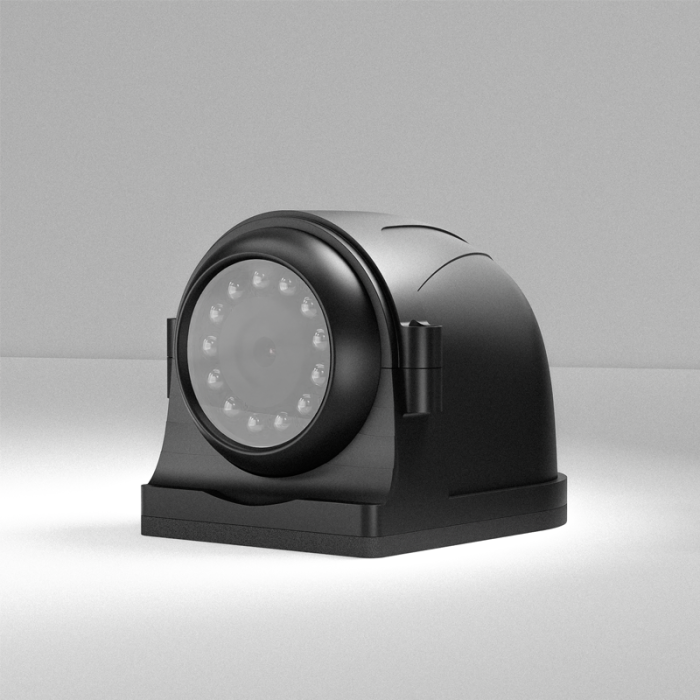

CC1004-BSD 1080p AI Blind Spot Camera

The CC1004-BSD features an embedded deep-learning neural network (edge AI) that processes 1080P video frames at 30 fps directly on the camera. It distinguishes vulnerable road users (VRUs)—including pedestrians, cyclists, e-scooter riders, and motorcyclists—from static roadside objects like guardrails and trash cans, generating real-time bounding box overlays and alert signals.

Yes. The optical coverage and algorithm detection zone are engineered to satisfy the statutory requirements of UN ECE R151 Blind Spot Information Systems (BSIS) and London Direct Vision Standard (DVS) PSS. It monitors the full blind-side corridor along trucks and trailers to prevent turning collisions.

The CC1004-BSD outputs standard 1080P AHD video with dynamic warning boxes, which can display directly on any standard in-cab AHD monitor. In addition, it provides a dedicated alarm trigger wire that connects to external audio-visual buzzers, flashing warning LEDs, or side-pillar warning displays to alert the driver instantly.

The camera is housed in a heavy-duty die-cast aluminum alloy casing with hermetic sealing rated at IP69K. It withstands high-pressure steam jet cleaning (100 bar, 80°C), continuous gravel spray, road salts, and operating temperatures from -20°C to +70°C.

Calibration is performed via a simple calibration mat or software tool. Installers configure near, medium, and far warning zones according to vehicle length, chassis height, and mirror blind spots. Once calibrated, settings are stored in non-volatile onboard memory.
