ADAS (Anti-Collision System)
Commercial Vehicle ADAS Anti-Collision Systems
Proactive forward road hazard detection engineered for heavy commercial trucks, intercity coaches, and transport fleets. Features Forward Collision Warning (FCW), Lane Departure Warning (LDW), and Headway Monitoring (HMW) to assist drivers in reacting before accidents occur.
Compare AlwayCare ADAS Configurations
Side-by-side engineering evaluation between the AWS302 dedicated standalone warning terminal and the MR910-A integrated 5-channel MDVR telematics system.
| System Feature / Parameter |

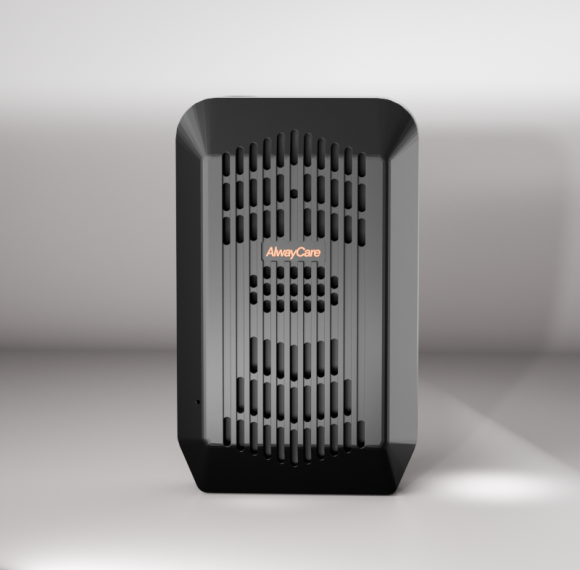

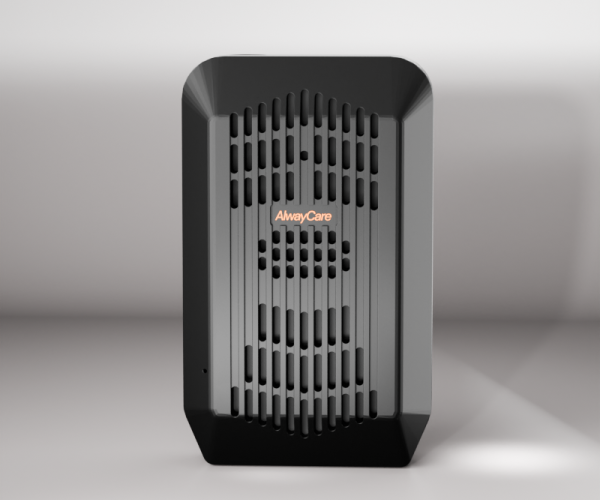

AWS302
STANDALONE ADAS
Forward Vision Terminal
|

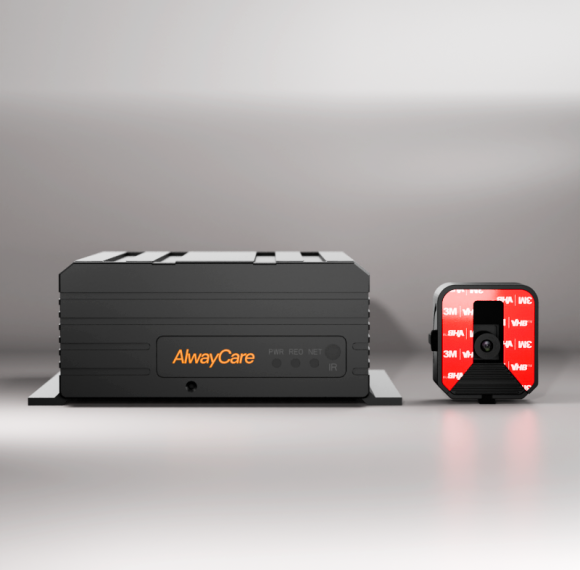

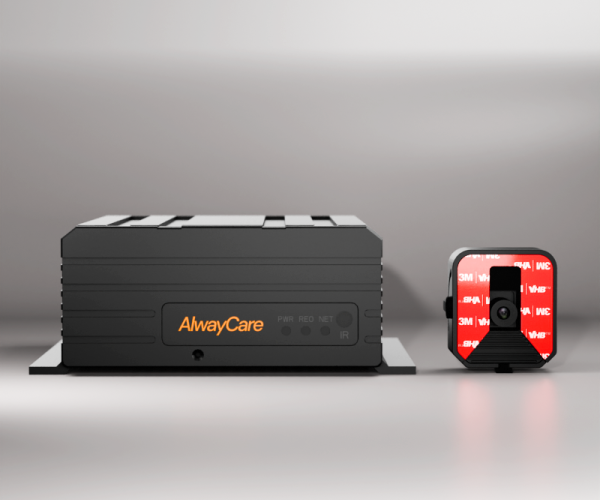

MR910-A
HYBRID TELEMATICS
ADAS + 5-Channel MDVR
|
|---|---|---|
| System Hardware Architecture Core processing unit and form factor | Dedicated Windshield ADAS Unit with integrated display/buzzer | Integrated High-Performance NPU within a 5-Channel Commercial MDVR Host |
| Forward Camera Sensor Optical sensor for road obstacle identification | High-Sensitivity Optical Sensor (Forward Windshield Mount) | 1080P Full HD Forward ADAS Sensor + Wide Dynamic Range (WDR) |
| Video Recording Channels Total simultaneous recorded streams | Event clip & incident log storage | 5 Simultaneous Channels Forward ADAS + In-Cab + Left + Right + Rear |
| Core Active Safety Warnings Real-time in-cab collision alerts |
|
|

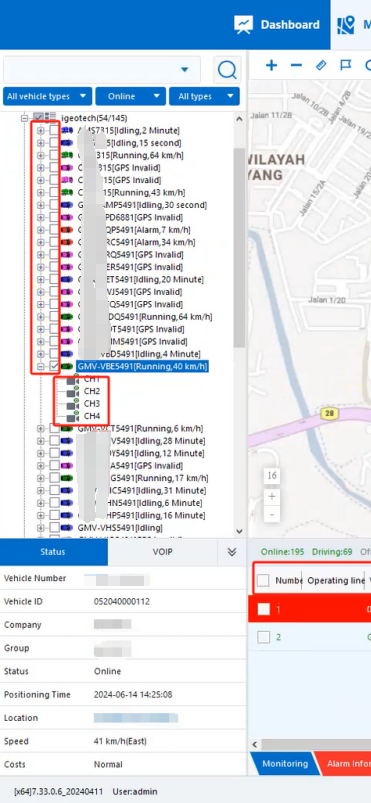

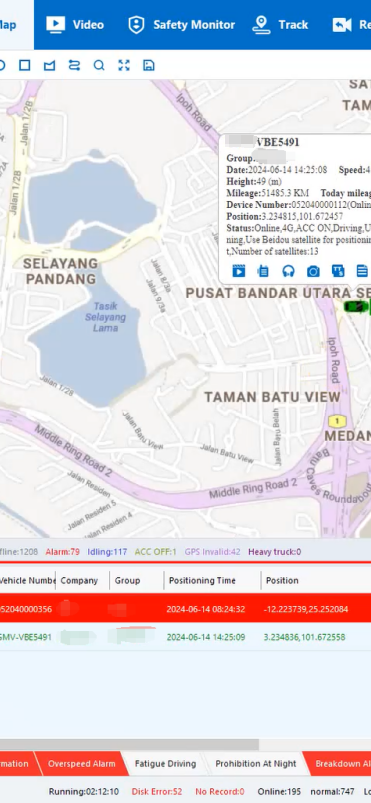

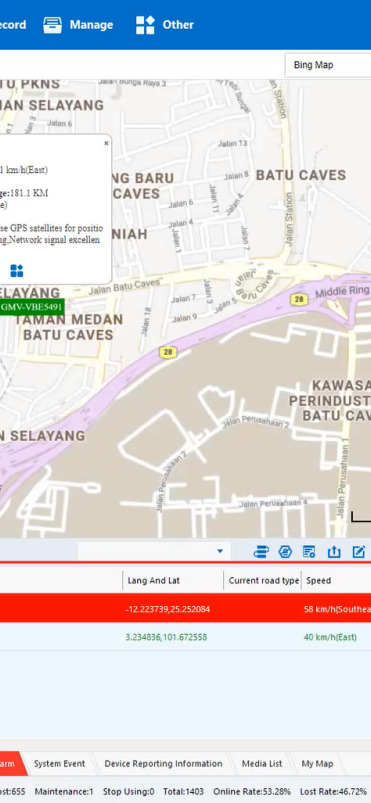

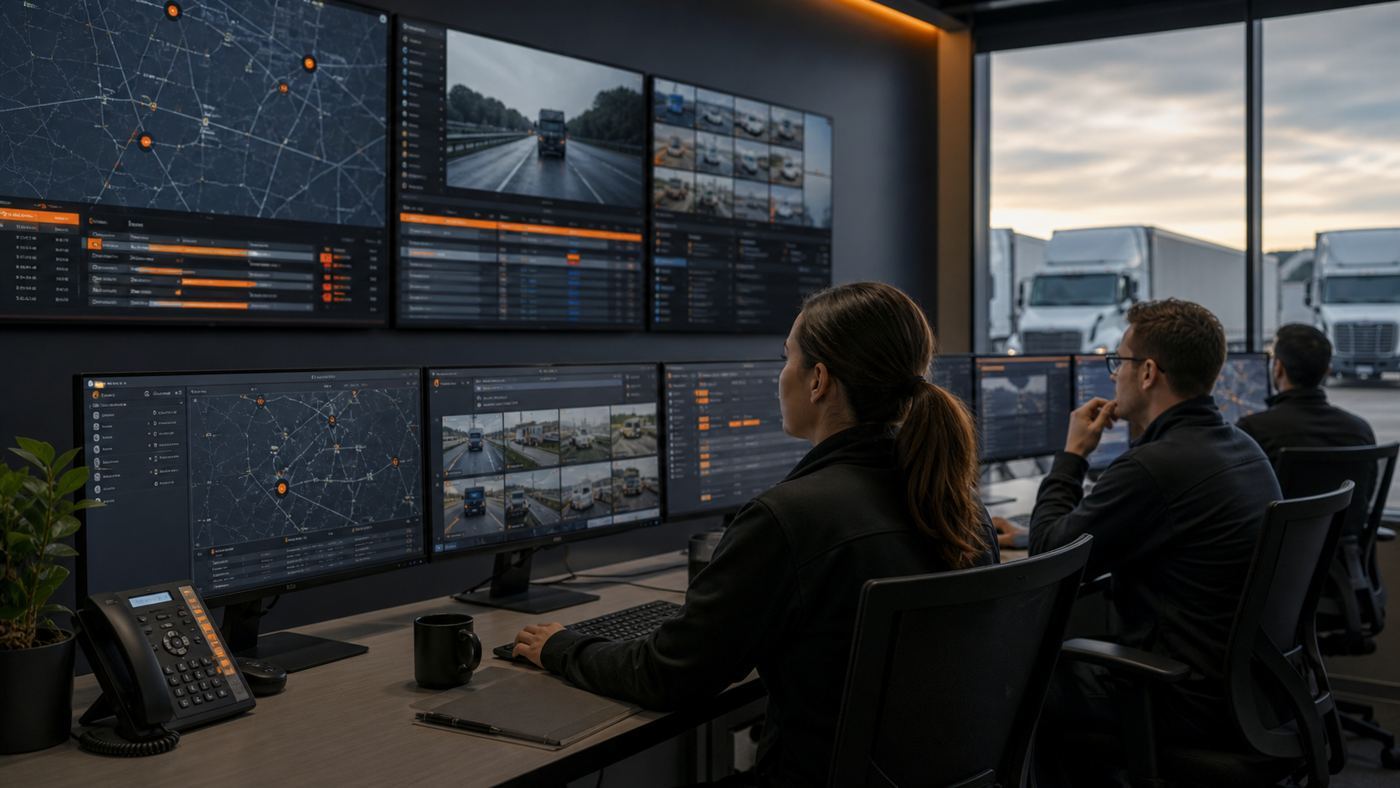

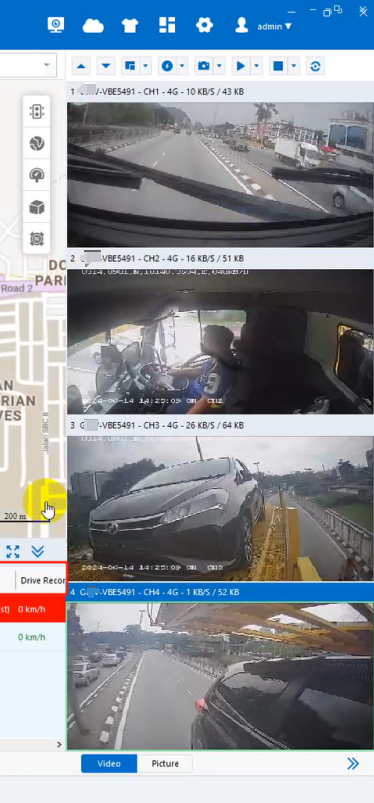

| Telematics & Fleet Connectivity Cloud streaming, GPS & CMSV6 platform | RS232 / CAN Bus Output for third-party GPS trackers | 4G LTE Cat 4, Multi-GNSS (GPS/BDS), Wi-Fi, JT/T 808/1078 & CMSV6 Platform Support |
| Local Video Storage Media Continuous cycle recording capacity | Internal Flash Event Memory | Dual High-Speed Storage (SD Card + Lockable Casing) |
| Operating Voltage & Protection Vehicle electrical input tolerance | 9–36V DC Commercial Input | 9–36V DC Heavy Duty Transient Protection (ISO 7637-2 Standard) |
| Recommended Fleet Application Tailored deployment operational profile | Direct forward safety retrofits on box trucks, municipal vans, and fleets with existing telematics | Intercity freight haulers, logistics tractors, passenger buses needing full multi-angle video evidence + ADAS |
| Product Record | View AWS302 | View MR910-A |

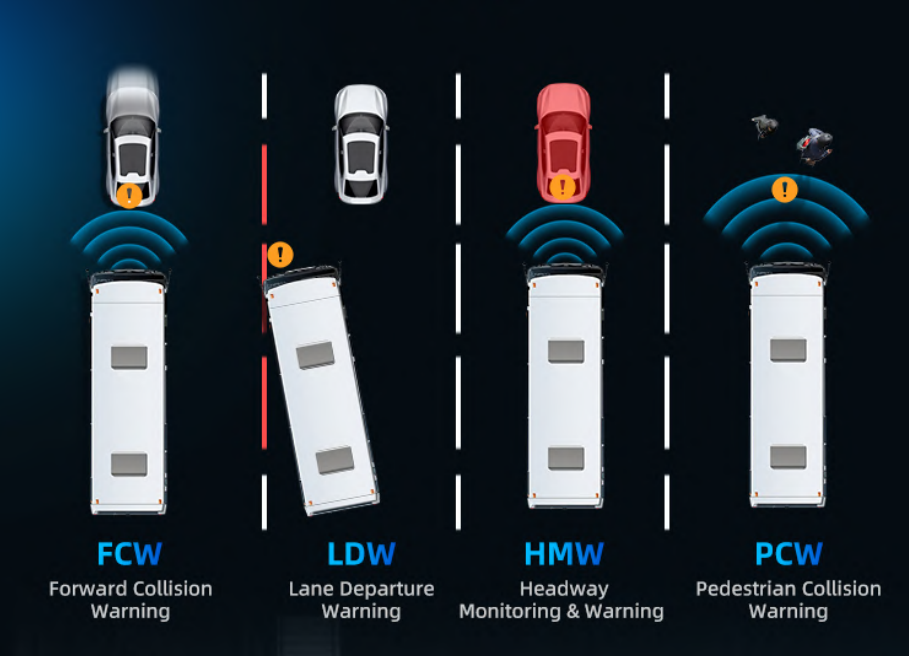

Four Active Driver Protection Mechanisms
Intelligent vision-based risk recognition operating continuously while the commercial vehicle is in transit.

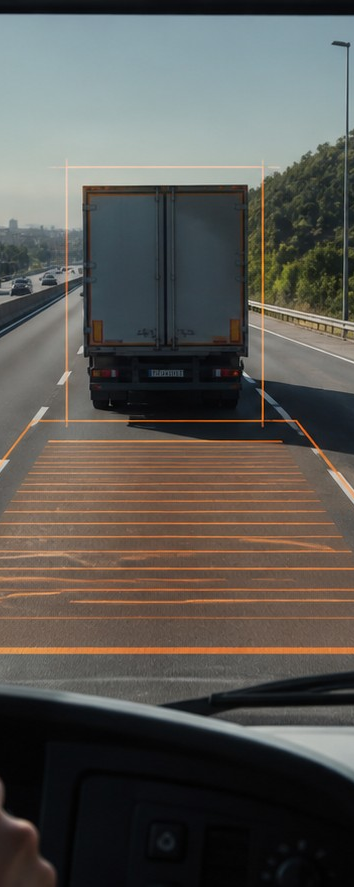

Forward Collision Warning (FCW)
Calculates time-to-collision (TTC) with the vehicle ahead in real time, triggering multi-stage audio-visual alarms if closing speed indicates an imminent hazard.
Lane Departure Warning (LDW)
Monitors road lane markings and alerts the driver immediately if the vehicle departs from its marked lane without an active turn indicator.
Headway Monitoring (HMW)
Continuously evaluates safe following headway in seconds, alerting the driver when tailgating occurs to encourage consistent following distance.

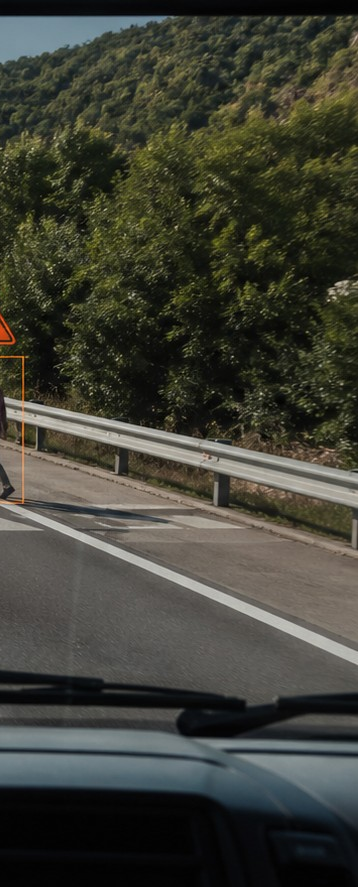

Pedestrian Collision (PCW)
Distinguishes pedestrians and cyclists (VRUs) in front of the commercial vehicle during urban transit and low-speed maneuvering.
Optimized for Commercial Heavy Transit
Tailored to minimize forward impact risk across diverse transport sectors.
Long-Haul Highway Tractors
Long hours on high-speed highways increase risks from momentary distraction and lane drifting. ADAS provides critical seconds for corrective steering and braking.
Intercity Coaches & City Buses
Safeguards passengers and urban road users with pedestrian collision warnings in dense traffic corridors and headway monitoring in highway cruising.
Hazardous Tankers & Vocational Fleets
For fuel tankers, chemical transport, and municipal fleets, active collision prevention helps safeguard high-consequence cargo and company compliance ratings.
AlwayCare ADAS FAQ
Answers to common deployment, calibration, and integration questions.
Can AlwayCare ADAS be integrated with our existing telematics platform?
Yes. The AWS302 provides standard RS232 serial and CAN Bus outputs that easily connect to third-party GPS trackers. The MR910-A includes onboard 4G LTE and fully supports standard JT/T 808, JT/T 1078, and open CMSV6 cloud APIs.
How is optical calibration performed after windshield mounting?
Calibration is performed using AlwayCare's mobile configuration app or PC calibration utility. Technicians measure the camera mounting height and hood distance, align the horizon grid, and configure the vehicle speed pulse signal.
How does the system distinguish intentional lane changes from drift?
The ADAS connects directly to the vehicle's turn signal circuit. When the driver signals before changing lanes, the Lane Departure Warning (LDW) is suppressed automatically, eliminating nuisance alarms during normal lane changes.
What input voltage is supported for commercial trucks?
All AlwayCare ADAS devices support wide 9–36V DC operation, built to meet ISO 7637-2 electrical transient standards for commercial 12V and 24V commercial vehicle batteries.
Upgrade Your Commercial Fleet with AlwayCare ADAS
Speak with our commercial vehicle safety specialists to review your fleet configuration and receive an engineering quotation.
