MR910-DAB1 4-Channel AI MDVR with DSM, ADAS and 1-Channel BSD

MR910-DAB1 4-Channel AI MDVR with DSM, ADAS and 1-Channel BSD
Share
CategoriesAI MDVR
BrandAlwayCare Commercial Fleet Safety Manufacturer
Product SpecificationsMR910-DAB1
Channels4-channel AHD MDVR
Video InputAHD 1080P, 960P, 720P, D1; H.265 / H.264 encoding
Storage2 SD cards, up to 512GB each
Video Output1 CVBS (VGA optional)
Interfaces4 IO in, 1 IO out, 1 USB, 1 MIC, 1 RS232, 1 RS485
NetworkingGPS, 4G (included) and WiFi
AI FunctionsDSM: fatigue, yawning, distraction, no face, smoking, phone use, overspeed, IR blocking
AI Functions (2)camera blocking, camera fault, no mask, driver ID
AI Function 2ADAS: forward collision (FCW), lane departure (LDW), headway (HMW), pedestrian collision (PCW)
AI Function 3BSD: alerts for pedestrians and non-motor vehicles entering the blind spot
Included Cameras1 DSM camera, 1 ADAS camera, 1 BSD camera
SetupPhone app for installation, recording and alarm settings
Warranty15 Months
MR910-DAB1 is a 4-channel AI MDVR with DSM, ADAS and one BSD channel, 4G, GPS, WiFi and dual SD card storage.
Detail Information

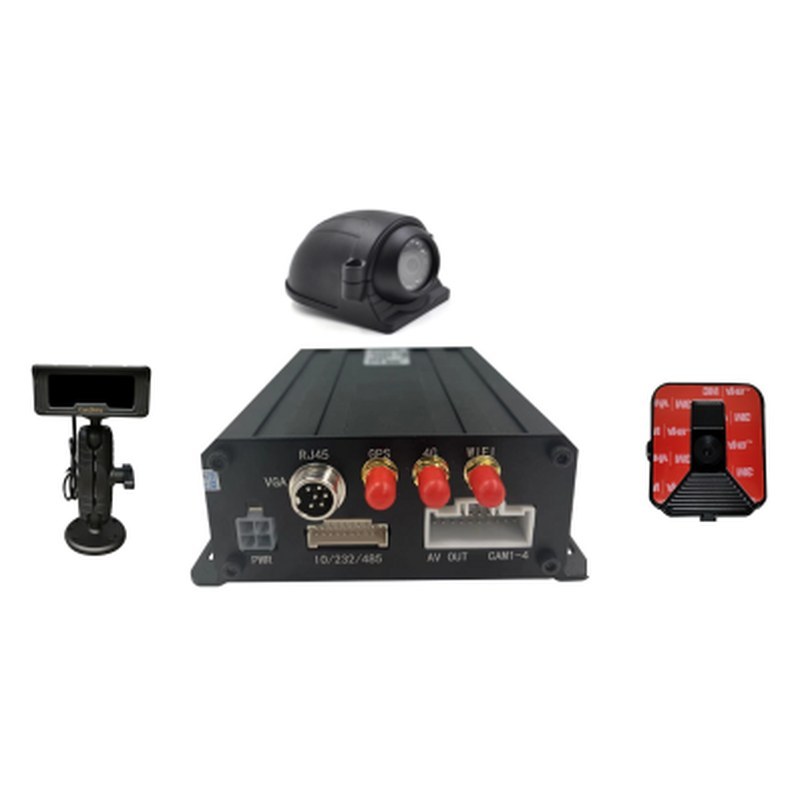

MR910-DAB1 image 1
AI MDVR

MR910-DAB1 4-Channel AI MDVR with DSM, ADAS and 1-Channel BSD

MR910-DAB1

MR910-DAB1 is a 4-channel AI MDVR with DSM, ADAS and one BSD channel, 4G, GPS, WiFi and dual SD card storage.

Storage2 SD cards, up to 512GB each
Channels4-channel AHD MDVR
Video InputAHD 1080P, 960P, 720P, D1; H.265 / H.264 encoding
Video Output1 CVBS (VGA optional)
Interfaces4 IO in, 1 IO out, 1 USB, 1 MIC, 1 RS232, 1 RS485
NetworkingGPS, 4G (included) and WiFi
↓ Request datasheet
  • 15-month warranty
  • IATF 16949 certified factory
  • OEM / ODM customization
  • Suitable for all vehicles

Final configuration is confirmed in your quotation.

Overview

What MR910-DAB1 Delivers

MR910-DAB1 is a 4-channel AI MDVR with DSM, ADAS and one BSD channel, 4G, GPS, WiFi and dual SD card storage.

MR910-DAB1 unit
Overview

MR910-DAB1 4-Channel AI MDVR with DSM, ADAS and 1-Channel BSD

MR910-DAB1 is a 4-channel AI MDVR with DSM, ADAS and one BSD channel, 4G, GPS, WiFi and dual SD card storage.

  • Channels: 4-channel AHD MDVR
  • Video Input: AHD 1080P, 960P, 720P, D1; H.265 / H.264 encoding
  • Storage: 2 SD cards, up to 512GB each
  • Video Output: 1 CVBS (VGA optional)
Models

AI MDVR Models

Compare MR910-DAB1 with other models in this category. Each model has its own page.

ModelProductKey specVoltage
MR910-DAB1this pageMR910-DAB1 4-Channel AI MDVR with DSM, ADAS and 1-Channel BSD2 SD cards, up to 512GB each—
MR910-360BMR910-360B 4-Channel AI MDVR with 4-Channel BSD and 360° Around View2 SD cards, up to 512GB each—
MR910-DAMR910-DA 4-Channel AI MDVR with DSM and ADAS1920x108012/24V
MR910-DAB2MR910-DAB2 4-Channel AI MDVR with DSM, ADAS and 2-Channel BSD2 SD cards, up to 512GB each—
9-CH AI MDVR MR920MR920 9-Channel AI Mobile DVR for Fleets1920x108012/24V
MR920-360BMR920-360B 9-Channel AI MDVR with 360° Panoramic AVM & BSD Monitoring4G LTE + GPS/BDS + Wi-FiDC 9V - 36V Vehicle Power
MR920-360BAMR920-360BA 9-Channel AI MDVR (360° AVM + BSD)4G LTE + GPS/BDS + Wi-FiDC 9V - 36V Vehicle Power
MR920-360BDMR920-360BD 8-Channel AI MDVR with 360° View, 4-Channel BSD and DSM1 HDD up to 4TB + 1 SD card up to 512GB—
Specifications

Technical Specifications

Values follow the product page. Your quotation confirms the exact configuration.

Video and display

Channels
4-channel AHD MDVR
Video Input
AHD 1080P, 960P, 720P, D1; H.265 / H.264 encoding
Video Output
1 CVBS (VGA optional)
Included Cameras
1 DSM camera, 1 ADAS camera, 1 BSD camera

Connectivity and interfaces

Interfaces
4 IO in, 1 IO out, 1 USB, 1 MIC, 1 RS232, 1 RS485

Power and hardware

Storage
2 SD cards, up to 512GB each
Warranty
15 Months

Other specifications

Networking
GPS, 4G (included) and WiFi
AI Functions
DSM: fatigue, yawning, distraction, no face, smoking, phone use, overspeed, IR blocking
AI Functions (2)
camera blocking, camera fault, no mask, driver ID
AI Function 2
ADAS: forward collision (FCW), lane departure (LDW), headway (HMW), pedestrian collision (PCW)
AI Function 3
BSD: alerts for pedestrians and non-motor vehicles entering the blind spot
Setup
Phone app for installation, recording and alarm settings
Need the full engineering datasheet?Request the datasheet →
Downloads

Documents

Files that exist for this model can be downloaded. The others are available from our engineers on request.

Product datasheetOn request
Request
Certificates and test reportsOn request
Request
User manual and installation guideOn request · provided with sample orders
Request
FAQ

Frequently Asked Questions

Need technical clarification? Email safety@alwaycare.com or send an inquiry.

What AI functions does MR910-DAB1 include?

DSM driver monitoring, ADAS road warnings and BSD for one blind spot channel.

Does MR910-DAB1 alert only?

Yes. The AI functions alert the driver and do not control the vehicle.

Does it include 4G?

4G is included.

Which warranty applies?

MR910-DAB1 ships with a 15-month manufacturer warranty. Confirm final terms and regional service coverage in your quotation.
