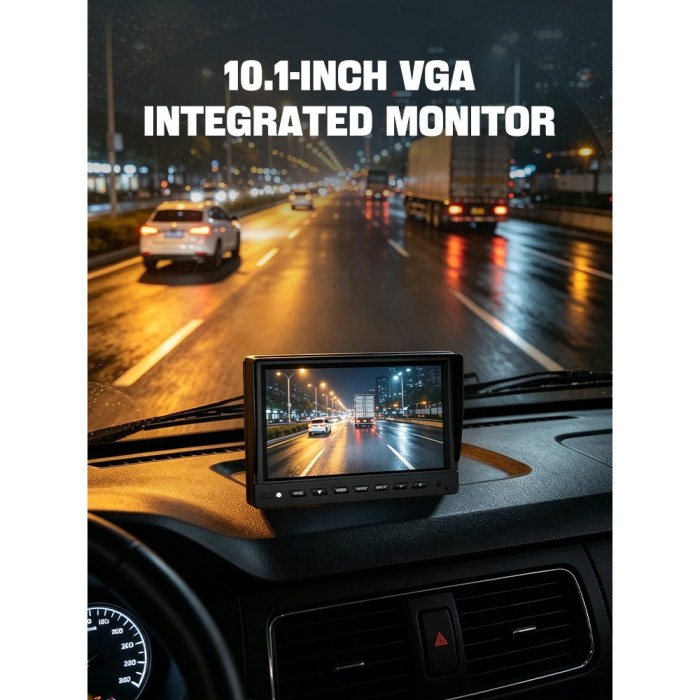

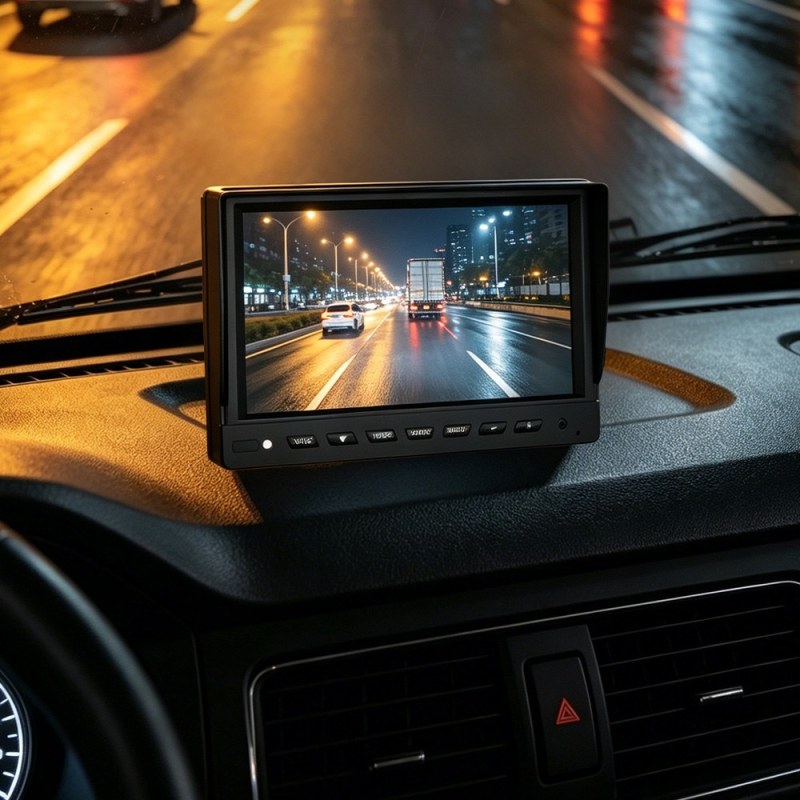

DP270-A 10.1" Single-View High-Clarity In-Cab Vehicle Monitor
| Share | |
|---|---|
| Categories | Vehicle Monitor |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Model | DP270-A |
| Display size | 10.1 inch |
| Display ratio | 16:9 Widescreen |
| Resolution | 1024x600 HD |
| Brightness | 500 cd/m2 Anti-Glare |
| Operating Voltage | DC 9V - 36V Wide Voltage |
| Video Inputs | 4 Channels (Quad-Split) |
| Video system | PAL / NTSC Auto-Adaptation |
| Enclosure Material | Flame-Retardant PC + ABS |
| Operating Temperature | -20℃ ~ +70℃ |
DP270-A 10.1" Single-View High-Clarity In-Cab Vehicle Monitor
10.1-inch IPS full-angle fleet monitor with 1280×800 HD resolution and dedicated MDVR VGA connection.
Technical Specifications
Values follow the factory engineering datasheet — your quotation confirms the exact configuration.
| Model | DP270-A (DP270 Series) |
|---|---|
| Display Screen | 10.1 Inch IPS Full-Viewing Angle LCD Panel |
| Aspect Ratio & Resolution | 16:10 Widescreen | 1280 × 800 HD |
| Backlight Brightness | 400 cd/m² (Sunlight Readable Anti-Glare) |
| Contrast Ratio | 800:1 High Contrast |
| Viewing Angles | 160° Horizontal × 160° Vertical Full Viewing Angle |
| Display Mode & Technology | ASV, Normally Black, Transmissive IPS Display |
| Screen Driver Architecture | Dual-IC Screen Architecture (Low Flicker, High Signal Stability) |
| Video & Data Interface | Dedicated VGA Port + Multi-Pin Fleet Signal Harness (Seamless MDVR / Telematics Link) |
| Video System Compatibility | PAL / NTSC Auto-Detection & High-Definition Signal Rendering |
| Operating Voltage | DC 12V – 36V Wide Input (Automotive Grade; 12V/24V Fleet Compatible) |
| Electrical Safeguards | Integrated over-voltage, reverse polarity, and transient spike suppression |
| Power Consumption | ≤ 6.0 Watts (Optimized Thermal Dissipation) |
| Enclosure Material | Flame-Retardant PC + ABS Housing with Fine Textured Anti-Scratch Finish |
| Operating Temperature | -10°C ~ +60°C (14°F ~ +140°F) |
| Storage Temperature | -20°C ~ +80°C (-4°F ~ +176°F) |
| Mounting Hardware | Heavy-Duty Metal U-Bracket / Dashboard Base with Locking Rotary Knobs |
| Quality Warranty | 18 Months Manufacturer Warranty |
Technical Diagram & Specifications Overview
Factory engineering drawing, wiring pinout, and mechanical form factor for DP270-A.
Wired Fleet Monitor Series Matrix
| DP270 / 270-A (This Model) | 10.1" Single-View High-Clarity IPS Monitor — 1280×800 HD resolution, 160° full viewing angle, VGA port for seamless pairing with MDVR systems and mobile DVR CMS terminals. | 10.1" Single IPS + VGA | DC 12-36V |
|---|---|---|
| DP285-A | 10.1" Large-Format Quad-Split Fleet Monitor — 4-channel AHD input, large display format, reverse auto-trigger, onboard SD card storage up to 256GB. Engineered for heavy semi-trucks, articulated buses, and multi-camera fleet surveillance. | 10.1" Quad-Split + SD Rec | DC 9-36V |
| DP1016 | 10.1" 8-Split Flagship Fleet Monitor — 8-channel simultaneous recording merged into unified files, removable backup battery, clock memory, -30°C to +80°C wide temperature range. Engineered for multi-trailer heavy transports. | 10.1" 8-Split + 8-Ch Rec + Battery | DC 9-36V |
| DP230-D / SD | 7" High / Standard Definition Commercial Monitor — Cost-effective single-view in-cab display supporting AHD/CVBS inputs with reverse auto-switching. Designed for standard delivery vans and light trucks. | 7" Single-View | PC+ABS Housing | DC 9-36V |
| DP230-B | 7" 2-Split Monitor with SD Recording — Dual-channel AHD/CVBS input, auto display on reverse, onboard SD card recording up to 256GB. Ideal for box trucks and urban buses. | 7" Dual-Split + Recording | DC 9-36V |
| DP230-5 / A | 7" 4-Split Quad-View Monitor with Recording — 4-channel AHD video inputs, simultaneous 4-channel cyclic recording up to 256GB, light sensor auto-dimming. Designed for 360° blind spot camera integration. | 7" Quad-Split + 4-Ch Rec | DC 12-36V |
| DP230-7 | 7" High-Voltage Custom Monitor (15V–90V) — Wide 15V–90V input range, 4-channel recording, date/time memory retention, 90V turn/reverse trigger inputs. Specially engineered for electric forklifts and high-voltage industrial equipment. | 7" Quad-Split | 15V-90V Input | Forklifts |
| DP210-B | 7" IP69K Waterproof Heavy-Duty Monitor — All-metal enclosure, 5.9G vibration resistance, 2-channel video + VGA input, reverse trigger, 40V surge protection. Engineered for mining haulers and open-cab equipment. | 7" Dual-Split | IP69K All-Metal | DC 12-36V |
| DP210-C | 7" IP68 Waterproof Dual-Channel Monitor — Sealed metal frame, 2-channel aviation inputs, reverse trigger line. Suitable for municipal sweepers and outdoor utility vehicles. | 7" Dual-Split | IP68 Metal | DC 12-36V |
What DP270-A Delivers
High-definition in-cab display engineering verified against official factory technical records.

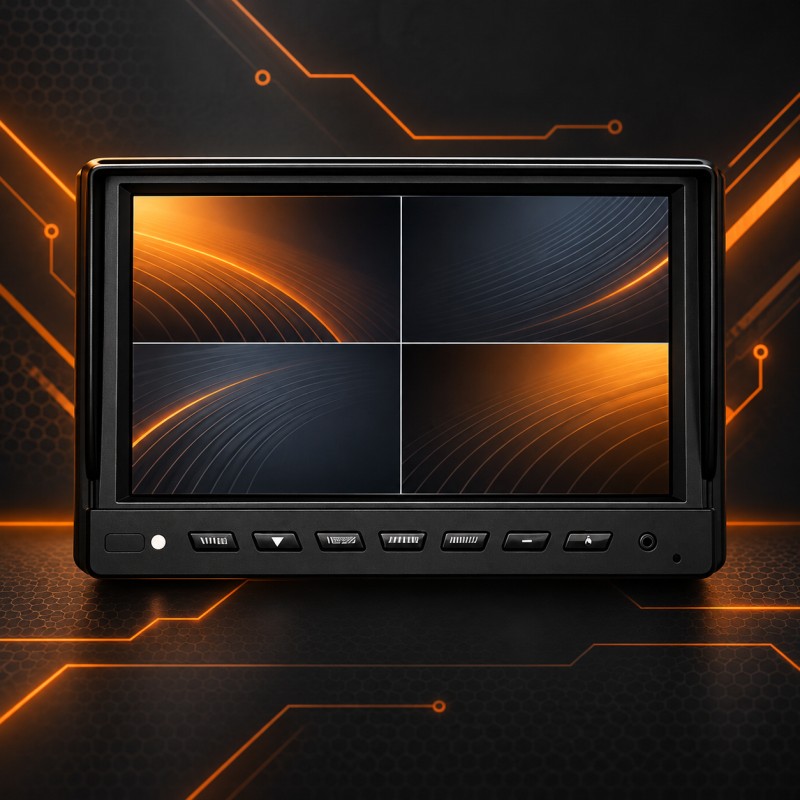

10.1" IPS Full-Viewing Angle Display & Dual-IC Screen
1280×800 HD Resolution & 160° Full View
- 10.1" IPS Panel: 1280×800 HD resolution delivers pin-sharp output from cameras and MDVRs.
- 160° Ultra-Wide View: 800:1 contrast with zero color inversion across horizontal and vertical angles.
- Dual-IC Driver: Commercial architecture guarantees flicker-free video and low latency under heavy vibration.

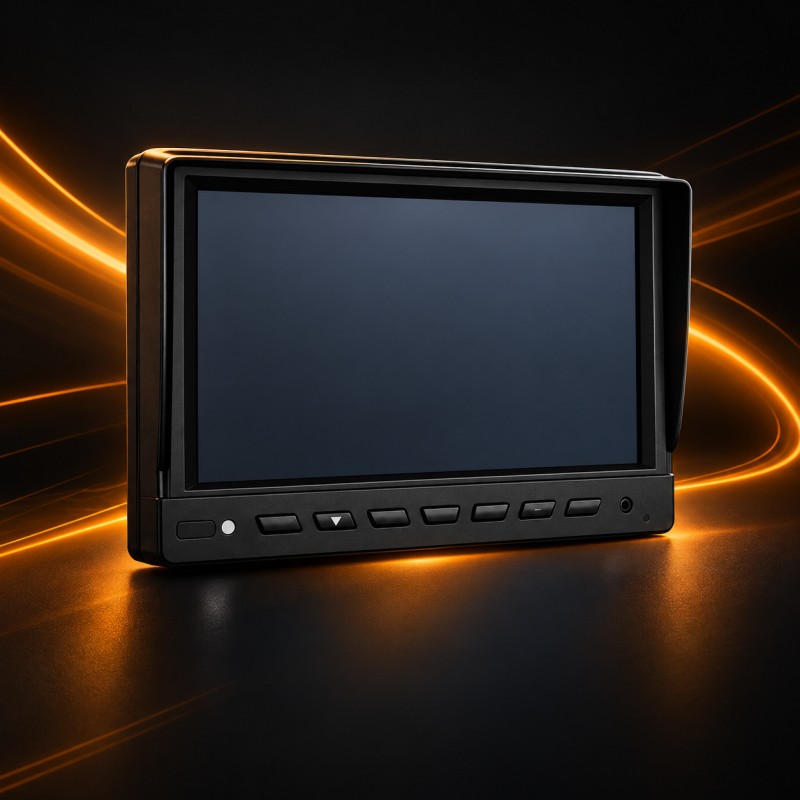

Detachable Anti-Glare Sunshield & Front Tactile Pushbuttons
400 cd/m² Brightness & Flame-Retardant PC+ABS Housing
- Detachable Sunshield: Anti-glare hood eliminates windshield reflections and direct sunlight washouts.
- Tactile Front Keys: 7 physical buttons enable swift in-cab adjustments without driver distraction.
- Rugged PC+ABS Body: Flame-retardant industrial enclosure endures -10°C to +60°C operating conditions.

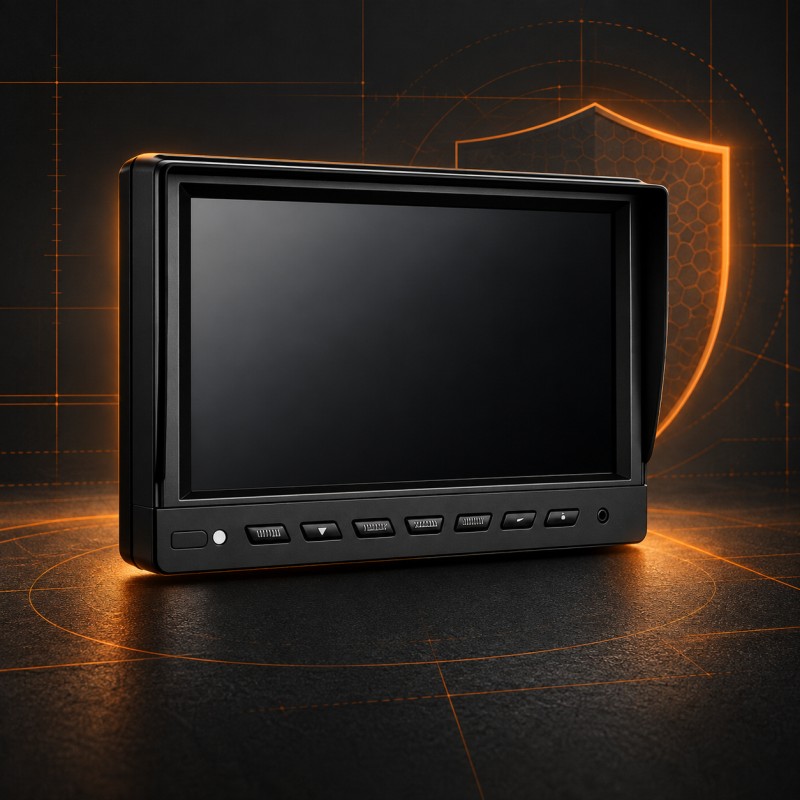

Dedicated MDVR VGA Interface & DC 12V-36V Wide Input
Plug-and-Play Telematics Link & Automotive Transient Suppression
- MDVR VGA Interface: Dedicated uncompressed video link for AlwayCare MR910, MR920, and MR930 MDVRs.
- 12V-36V Fleet Input: Compatible with 12V light vehicles and 24V heavy commercial trucks.
- Low 6W Power: Efficient thermal design ensures continuous 24/7 operation without overheating.
Built for Long-Term Fleet Programs
Factory Direct Supply
Devices ship from our own production line, with engineering support from the team that builds them.
Certified & Lab Tested
CE, UKCA, RoHS and ISO 9001 — every platform is backed by third-party laboratory test reports.
15-Month Warranty
Coverage that goes beyond the standard 12-month term, honored through your dedicated account manager.
OEM & Firmware Support
Logo, packaging, firmware behavior and interface customization for your market and fleet platform.
From Inquiry to Delivery in Four Steps
A clear path from first contact to units running in your fleet — no obligation at the evaluation stage.
Share Your Requirements
Send fleet size, vehicle models and target functions through the inquiry form or to your account manager.
Version & Quotation
Our engineers map your needs to the right DP270-A version and issue a formal quotation within one business day.
Sample Evaluation
Sample units are available for road testing before you commit to a bulk order — evaluate first, decide later.
Production & Delivery
Bulk orders ship with factory QC reports, export documents and the 15-month warranty from dispatch.
Documents & Downloads
Everything your engineering and procurement teams need for evaluation.
Product Datasheet
Full specifications and ordering information — request the current DP270-A datasheet.
Request DatasheetCertificates & Test Reports
Certification and third-party laboratory reports for the selected version and target market.
Request CertificatesUser Manual & Installation Guide
Wiring, mounting and configuration instructions — provided with sample orders.
Request ManualCMS Software & Demo
Platform access for evaluation — connect supported configurations to a live demo fleet.
Request Demo AccessComplete the In-Vehicle Safety Stack
Product families commonly deployed alongside DP270-A in the same fleet stack.
DP400 AI Mirror Monitor for Extreme Temperatures
Model DP400 — Vehicle Monitor for commercial fleets.
DP230 7-Inch Automatic Vehicle Monitor for Buses
Model DP230 — Vehicle Monitor for commercial fleets.
Frequently Asked Questions
Can't find your answer? Our engineers reply within one business day — email safety@alwaycare.com or send an inquiry.
Which connectivity options are available?
DP270-A supports vehicle-grade connectivity. Map the interfaces to your onboard systems before ordering.
Which warranty applies?
DP270-A ships with a 18 Months Manufacturer Warranty warranty. Confirm the final terms and regional service coverage in your quotation.
What vehicles does it fit?
Suitable for commercial vehicles — mounting positions and camera coverage must be designed for the specific vehicle layout.
Are all listed features standard on every unit?
No. Detection coverage, connectivity and camera options are configuration-dependent. Confirm the exact scope in the quotation — our engineers will recommend the right version for your vehicles.
