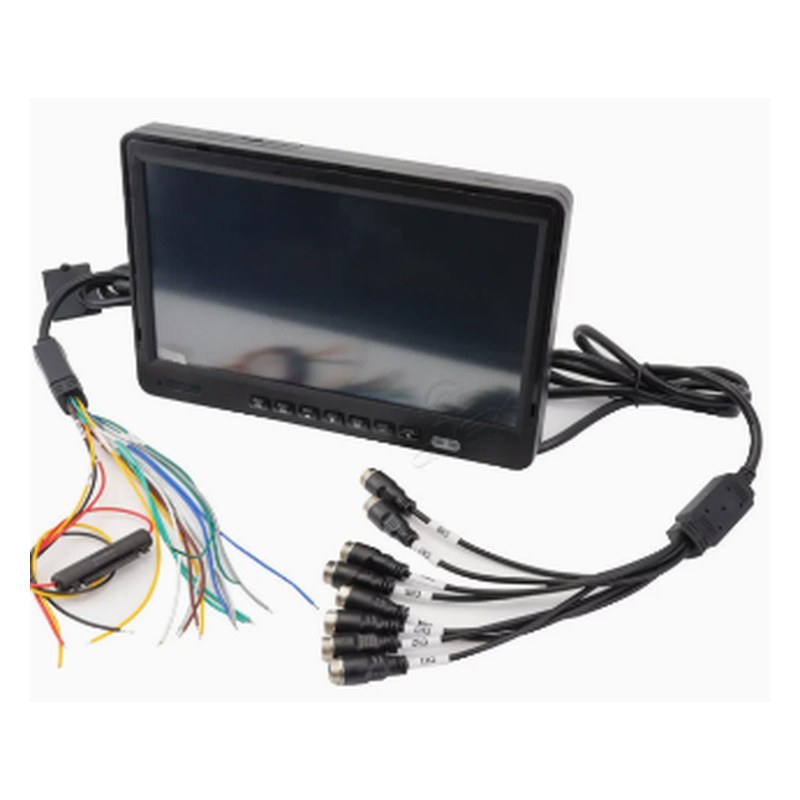

DP-1028 8-Channel AI 360° Around-View System, Touchscreen
| Share | |
|---|---|
| Categories | AVM (360° Around View Monitor) |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Product Specifications | DP-1028 |
| Channels | 8 AHD inputs; 4 x 1080P@30fps or 8 x 1080P@15fps encoding |
| Camera Resolution | 1080P, 720P, D1, with automatic detection |
| Key Functions | 360° around view with switchable split modes; full-screen and 4/9 split; audio output; WiFi, 4G, GPS |
| Display | 10.1" touchscreen all-in-one |
| Storage | One SD card up to 512GB; PCIE SSD up to 2TB |
| Interfaces | 6 I/O alarm inputs, 1 RS232, 1 RS485, RJ45 |
| Operating Voltage | Input 9-36V, output 12V |
| AI Algorithms | Built-in; 360 + BSD included, ADAS and DMS optional, up to 4 at once |
| Included | 10.1" touchscreen all-in-one, power harness, 360 + BSD algorithm license |
| Network | 4G included by default (no standalone version) |
| Warranty | 15 Months |
DP-1028 8-Channel AI 360° Around-View System, Touchscreen
DP-1028 is an 8-channel AI 360° around-view system with a 10.1-inch touchscreen, 4G and optional ADAS, DMS and BSD algorithms.
Technical Specifications
Your quotation confirms the exact configuration.
| Model | DP-1028 |
|---|---|
| Channels | 8 AHD inputs; 4 x 1080P@30fps or 8 x 1080P@15fps encoding |
| Camera Resolution | 1080P, 720P, D1, with automatic detection |
| Key Functions | 360° around view with switchable split modes; full-screen and 4/9 split; audio output; WiFi, 4G, GPS |
| Display | 10.1" touchscreen all-in-one |
| Storage | One SD card up to 512GB; PCIE SSD up to 2TB |
| Interfaces | 6 I/O alarm inputs, 1 RS232, 1 RS485, RJ45 |
| Operating Voltage | Input 9-36V, output 12V |
| AI Algorithms | Built-in; 360 + BSD included, ADAS and DMS optional, up to 4 at once |
| Included | 10.1" touchscreen all-in-one, power harness, 360 + BSD algorithm license |
| Network | 4G included by default (no standalone version) |
| Warranty | 15 Months |
AVM Models
Compare DP-1028 with other AlwayCare models in this category.
| Model | Channels | Display | Voltage |
|---|---|---|---|
| M360-1 | 4 channels | — | 12/24V |
| M360-2 | 4 + 2 BSD channels | — | 12/24V |
| M360-3 | All-in-one | 10.1 inch | 12/24V |
| M360-4C3 | 4 analog HD camera inputs, 4-camera 360° stitching | 10.1" IPS all-in-one, 1024x600, 600 cd/m2 | DC 12-36V (monitor), power 10-30W |
| M360-4C2 | 4 channels, 720P input, quad-split display | 10" IPS, 800x1280, key and voice control | DC 9-36V |
| M360-6C3 | 6 analog HD camera inputs (AHD 720P/1080P) | 10" AHD display | DC 10V - 36V, <300mA @12V (host) |
| T5 | 6 analog HD 720P camera inputs, combined into one 1080P TS stream (H.264) | — | DC 10V - 36V |
| DP-1028 (this page) | 8 AHD inputs; 4 x 1080P@30fps or 8 x 1080P@15fps encoding | 10.1" touchscreen all-in-one | Input 9-36V, output 12V |
Frequently Asked Questions
Can't find your answer? Our engineers reply within one business day — email safety@alwaycare.com or send an inquiry.
Can it run more than 360° view?
Yes. 360 + BSD is included and ADAS and DMS are optional, up to four algorithms at once.
Is 4G included?
Yes. 4G is included by default and there is no standalone version.
Which warranty applies?
DP-1028 ships with a 15-month manufacturer warranty. Confirm final terms and regional service coverage in your quotation.
