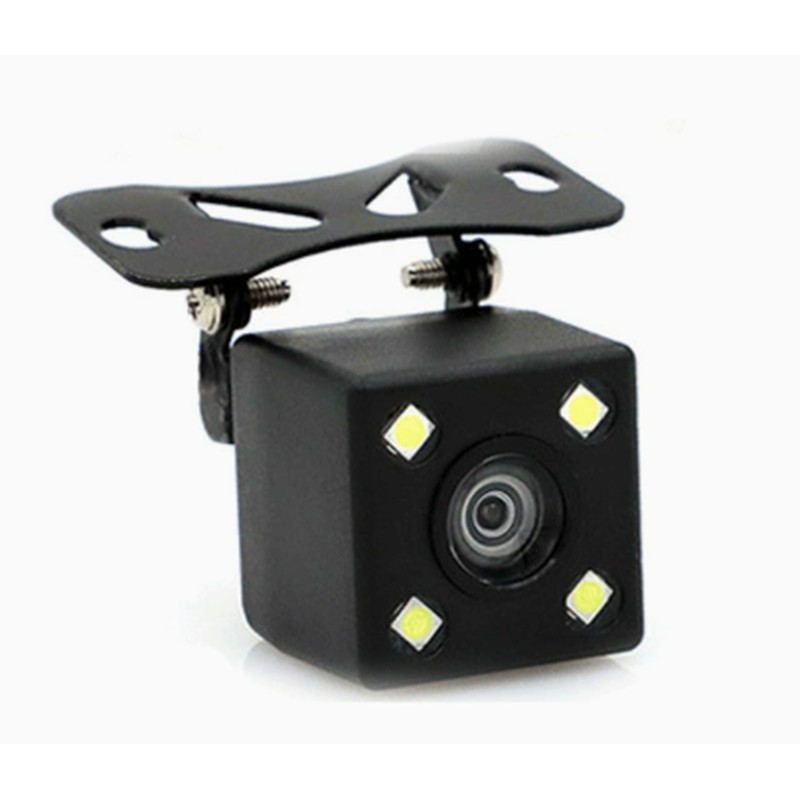

CC970-NTSC Standard-Definition Micro Reversing Camera

CC970-NTSC Standard-Definition Micro Reversing Camera
Share
CategoriesVehicle Camera
BrandAlwayCare Commercial Fleet Safety Manufacturer
Product SpecificationsCC970-NTSC
Definition480 (640x480)
Image SensorXM7031
Horizontal Angle100°
VoltageDC 12V
WaterproofIP67
MaterialMetal
SizeL22 x W23 x H22mm
Operating Temperature-20℃ ~ 70℃
ConnectorAV connector
Video FormatNTSC (default), PAL on request
Minimum Illumination0.8 Lux
Guide LinesRear view with reference lines
Warranty15 Months
CC970-NTSC is a 640x480 micro reversing camera with a 100° view, IP67 rating, reference lines and an AV connector.
Detail Information
CC970-NTSC image 1
Vehicle Camera

CC970-NTSC Standard-Definition Micro Reversing Camera

CC970-NTSC

CC970-NTSC is a 640x480 micro reversing camera with a 100° view, IP67 rating, reference lines and an AV connector.

Recording480 (640x480)
PowerDC 12V
Operating temp.-20℃ ~ 70℃
Image SensorXM7031
Horizontal Angle100°
WaterproofIP67
↓ Request datasheet
  • 15-month warranty
  • IATF 16949 certified factory
  • OEM / ODM customization
  • Suitable for all vehicles

Final configuration is confirmed in your quotation.

Overview

What CC970-NTSC Delivers

CC970-NTSC is a 640x480 micro reversing camera with a 100° view, IP67 rating, reference lines and an AV connector.

CC970-NTSC unit
Overview

CC970-NTSC Standard-Definition Micro Reversing Camera

CC970-NTSC is a 640x480 micro reversing camera with a 100° view, IP67 rating, reference lines and an AV connector.

  • Definition: 480 (640x480)
  • Image Sensor: XM7031
  • Horizontal Angle: 100°
  • Voltage: DC 12V
Models

Vehicle Camera Models

Compare CC970-NTSC with other models in this category. Each model has its own page.

ModelProductKey specVoltage
CC970-NTSCthis pageCC970-NTSC Standard-Definition Micro Reversing Camera480 (640x480)DC 12V
CC1002-4GPSCC1002-4GPS 4G GPS Vehicle Camera for Fleets1920x108012/24V
CC1003-4GPSCC1003-4GPS AI 4G GPS Vehicle Camera1080P, 30fpsDC 9V-36V
CC670CC670 Waterproof Infrared Truck Camera1920x108012V
CC803CC803 Infrared HD Vehicle Camera for Fleets1920x108012V
CC805CC805 IP68 Infrared Vehicle Camera for Fleets1920x108012V
CC866-AHD20CC866-AHD20 IP68 160° Wide-Angle Vehicle Camera1920x108012V
CC877-AHD20CC877-AHD20 IP68 Starlight Truck Camera1920x108012V
Specifications

Technical Specifications

Values follow the product page. Your quotation confirms the exact configuration.

Video and display

Definition
480 (640x480)
Image Sensor
XM7031
Horizontal Angle
100°
Video Format
NTSC (default), PAL on request

Connectivity and interfaces

Connector
AV connector

Power and hardware

Voltage
DC 12V
Waterproof
IP67
Material
Metal
Size
L22 x W23 x H22mm
Operating Temperature
-20℃ ~ 70℃
Warranty
15 Months

Other specifications

Minimum Illumination
0.8 Lux
Guide Lines
Rear view with reference lines
Need the full engineering datasheet?Request the datasheet →
Downloads

Documents

Files that exist for this model can be downloaded. The others are available from our engineers on request.

Product datasheetOn request
Request
Certificates and test reportsOn request
Request
User manual and installation guideOn request · provided with sample orders
Request
FAQ

Frequently Asked Questions

Need technical clarification? Email safety@alwaycare.com or send an inquiry.

Can the video format be changed?

The default is NTSC and it can be changed to PAL.

How big is it?

L22 x W23 x H22mm, with a metal housing.

Which warranty applies?

CC970-NTSC ships with a 15-month manufacturer warranty. Confirm final terms and regional service coverage in your quotation.
