5-Channel AI Mobile DVR for Mining Fleets
| Share | |
|---|---|
| Categories | Mobile DVR |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Model | 5-CH MDVR |
| Voltage | 12/24V |
| Video Record Resolution | 1920x1080 |
| Satellite Positioning | Support GPS and BD (Beidou) dual-mode positioning |
| Wireless Communication | 4G or Wifi |
| Storage | 512GB SD Card |
| Video Encoding | H.264/H.265 |
| Application | Suitable for All Vehicles |
| Operating Temperature | -20℃ ~ 70℃ |
| Warranty | 15 Months |

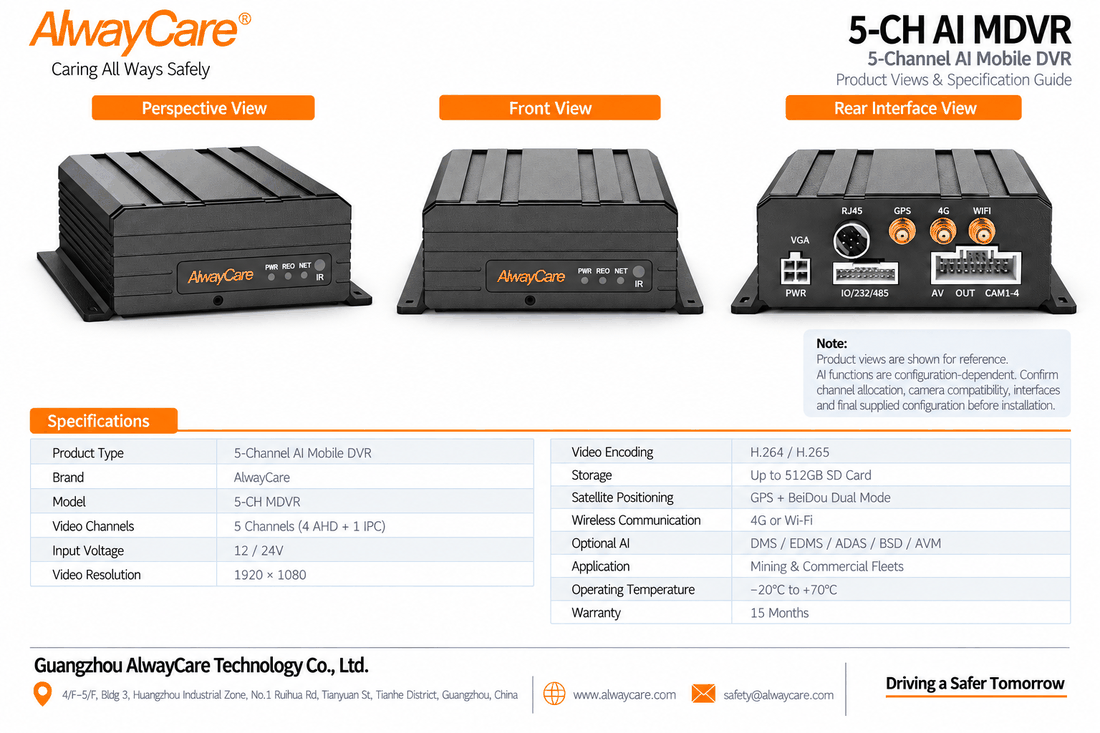

5-Channel AI Mobile DVR for Mining Fleets
Heavy-duty 5-channel vehicle recorder engineered for mining dump trucks, off-highway haulers, and harsh worksites.
Technical Specifications
Verified factory technical parameters for the AlwayCare 5-CH MDVR commercial vehicle video recorder platform.
| Operating System & Core | Embedded Linux OS housed in high-strength extruded aluminum alloy shock-isolated casing |
|---|---|
| AI Capabilities | Industrial vocational recorder supporting external AI vision camera sensors and event triggers |
| Video & Audio Channels | 4 Channels AHD (1080P/720P/D1) + 1 Channel IPC digital expansion channel. Video Output: 1 Channel CVBS output (aviation to RCA) standard; optional VGA video output. Audio: 1 Channel MIC input (two-way intercom support) + 1 Channel audio output. |
| Video Encoding & Dual Stream | H.265 (HEVC) and H.264 Main Profile compression; dual streaming architecture |
| Storage & Physical Security | High-endurance SDXC memory card slot supporting up to 512GB behind a mechanical lock cover |
| Wireless Connectivity & Antennas | 4G LTE all-network cellular module + GPS / BeiDou dual-mode GNSS + 2.4GHz Wi-Fi (802.11b/g/n) |
| Hardware Interfaces | 6× I/O alarm inputs, 2× I/O alarm outputs, 1× USB 2.0 port, 1× RJ45 LAN, 1× RS232, 1× RS485 |
| Power Supply & Protection | DC 9V ~ 36V wide-voltage input with heavy-duty 40V surge suppression and delay power-off |
| Environmental & Chassis | Operating Temperature: -20°C to +70°C (-4°F to +158°F); reinforced anti-vibration damping chassis |
Hardware Architecture Selection
Commercial Mobile DVR Fleet Capacity Matrix
Select the ideal channel count and storage architecture across the AlwayCare commercial vehicle recorder family.
| Series Model | Video Channels | Storage Architecture | Power & Protection | Wireless Connectivity |
|---|---|---|---|---|
| 4-CH MDVR (Light Commercial) Vans, delivery pickups, taxis, and compact commercial vehicles |
4 Channels AHD | Dual SD / TF (Up to 512GB) | DC 9V ~ 36V | 4G LTE + GPS/BD + Wi-Fi |
| 5-CH MDVR (Industrial & Mining) Current Model Heavy off-highway haulers, mining dump trucks, and construction equipment |
4× AHD + 1× IPC | 512GB SDXC Card | DC 9V ~ 36V Ruggedized | 4G LTE + GPS/BD + Wi-Fi |
| 8-CH MDVR (Heavy Haulage) Long-haul freight tractors, intercity logistics, and tank trucks |
8 Channels AHD | 4TB SATA HDD + 512GB SD | DC 8V ~ 36V | 4G LTE + GPS/BD + Wi-Fi |
| 9-CH MDVR (Logistics Special) Distribution fleets requiring cabin, cargo, and full perimeter coverage |
8× AHD + 1× IPC | 4TB SATA HDD + 512GB SD | DC 8V ~ 36V | 4G LTE + GPS/BD + Wi-Fi |
| 12-CH MDVR (Public Transit) Public buses, luxury coaches, double-deckers, and passenger shuttles |
12× AHD + 1× IPC | 4TB SATA HDD + 512GB SD | DC 8V ~ 36V | 4G LTE (5G Opt) + GPS/BD |
What 5-CH MDVR Delivers for Commercial Fleets
Heavy vehicle evidentiary recording, intelligent telematics surveillance, and active accident prevention.

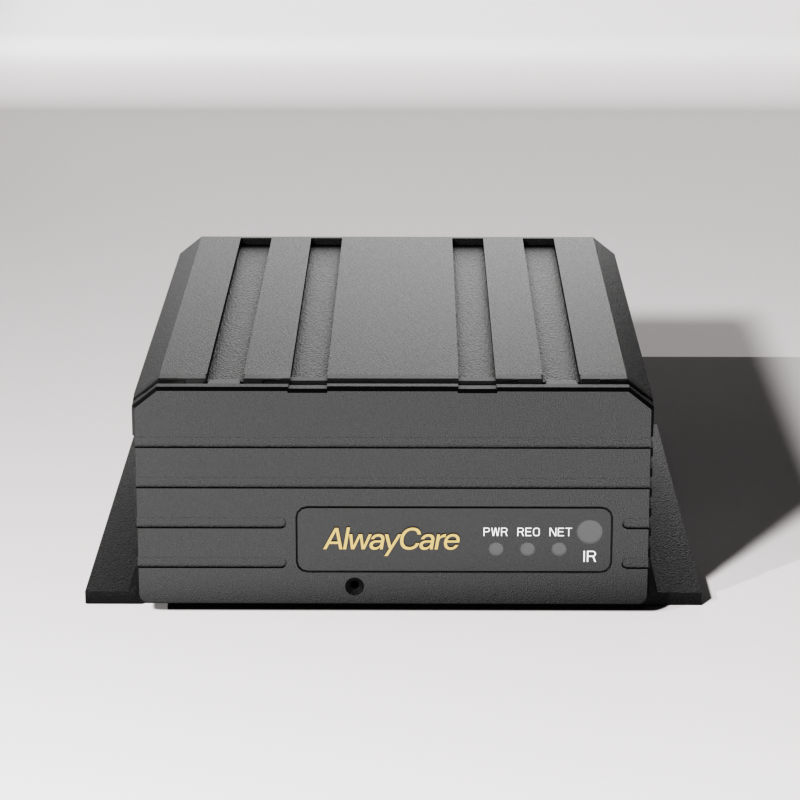

4× AHD + 1× IPC Digital Channel for Heavy Off-Highway Haulers
- Dedicated 4× AHD + 1× IPC Inputs: Captures operator cab, front blade area, blind apron, and rear dumping zone.
- IPC Digital Expansion: Additional digital channel connects high-resolution IP cameras or crane feeds.
- Watertight Aviation Ports: Threaded metal connectors resist heavy worksite mud, dust, and continuous shock.

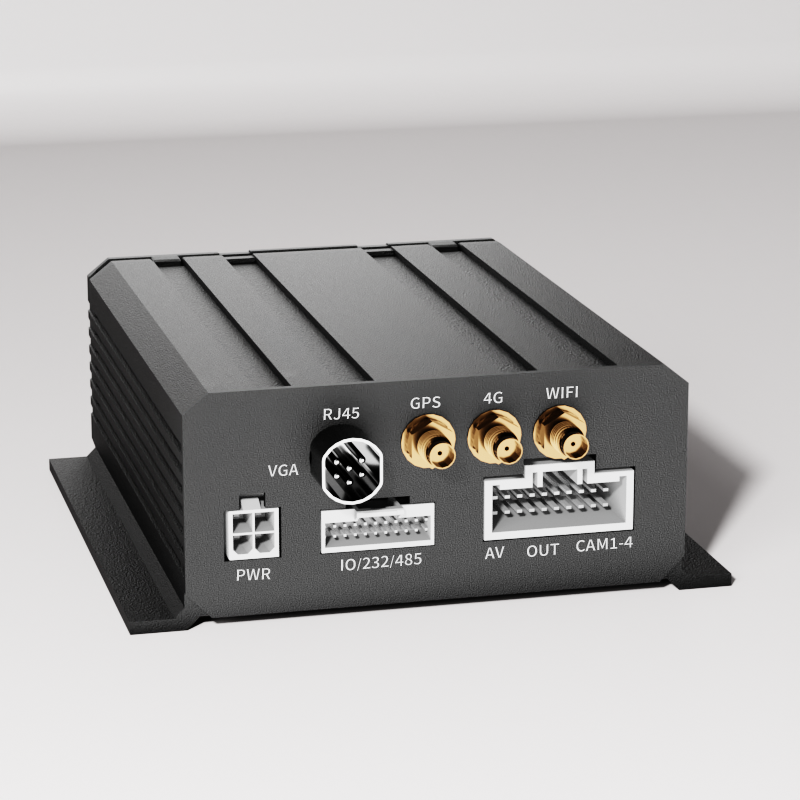

Heavy-Duty Anti-Vibration Damping Chassis & IP-Rated Enclosure
- Severe Shock Isolation: Damping mounting brackets isolate internal electronics from heavy mining impacts.
- Sealed Aluminum Alloy Body: Fanless finned heatsink chassis dissipates heat and seals out mineral dust.
- 40V Heavy Surge Defense: Withstands massive electrical voltage spikes common in large diesel generators.

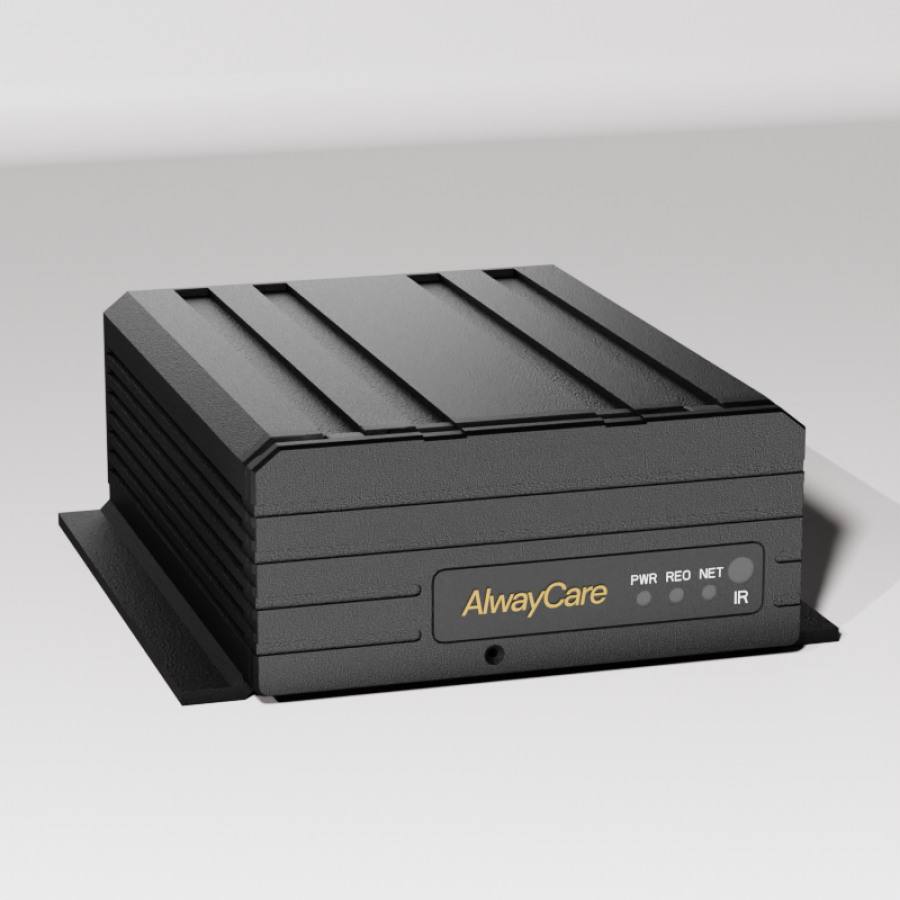

4G LTE Telematics, GPS/BeiDou & 512GB Key-Locked Storage
- Key-Locked 512GB SD Storage: Heavy metal lock tumbler guards the SD card and SIM slot against tampering.
- Remote Mining Dispatch Link: 4G LTE cellular connectivity enables real-time worksite tracking and SOS alerts.
- Dual-Stream H.265: High-definition local recording with low-bandwidth live preview streaming.
Compatible Sensors & Peripherals Suite
Compatible Sensors & Peripherals Suite
Modular vehicle hardware components factory-certified with AlwayCare MDVR platforms for turnkey commercial deployment.
Heavy-Duty Waterproof Cameras
Rugged die-cast metal cameras rated IP68/IP69K with night vision infrared LEDs, 1080P/720P AHD output, and vibration-proof 4-pin aviation screw connectors.
In-Cab Commercial Vehicle Monitors
Industrial high-brightness 7-inch and 10.1-inch anti-glare IPS displays (DP210 / DP230 / DP270) featuring auto-dimming ambient light sensors and multi-view split screen.
Surveillance Storage Media
Enterprise 2.5-inch SATA hard drives up to 4TB and high-endurance Class 10 / V30 SDXC memory cards engineered for continuous 24/7 high-temperature loop recording.
DMS & ADAS AI Cameras
Specialized 940nm non-glare interior pupil tracking camera modules and windshield roadway optical units with precision ratchet tilt mounting brackets.
Audio Intercom & Alert Buzzers
Two-way voice communication dispatch handsets, high-decibel acoustic alert speakers, and dashboard visual warning LED indicators.
CMS Telematics Cloud Platform
Centralized fleet supervision platform supporting live multi-channel video streaming, GPS breadcrumb track replay, automated incident video clipping, and JT808/JT1078 protocols.
Built for Long-Term Commercial Fleet Programs
Why leading transport operators, bus transit authorities, and telematics systems integrators choose AlwayCare hardware.
Factory Direct Manufacturing
Direct ISO9001 certified production facility with 100% full batch high-temperature burn-in, vibration stress testing, and component traceability.
Integrated Fleet Safety
Harmonized hardware architecture uniting multi-channel evidentiary recording, AI active vision safety, GNSS telematics, and centralized cloud monitoring.
15-Month Manufacturer Warranty
Every commercial MDVR unit is backed by our direct 15-month quality guarantee from factory dispatch with guaranteed long-term spare component availability.
OEM & Protocol Integration
Custom silkscreen branding, customized packaging, dedicated harness pinouts, and seamless API / JT808 / JT1078 protocol integration with third-party telematics clouds.
From Inquiry to Fleet Deployment in Four Steps
A transparent engineering and procurement path — evaluate hardware on your test vehicles before placing bulk orders.
Share Fleet Requirements
Submit vehicle models, channel counts, target storage retention, and telematics platform specifications through our inquiry form.
Technical Architecture & Quote
Our sales engineers configure the optimal 5-CH MDVR hardware version and provide a detailed technical proposal within one business day.
Sample Road Evaluation
Sample evaluation units are shipped for on-vehicle trial installation, wiring validation, and fleet management software testing.
Production & Global Delivery
Bulk fleet orders are manufactured under strict QA standards, shipped with full factory inspection test records and export documentation.
Engineering Documents & Downloads
Comprehensive technical specifications, dimensions, wiring pinouts, and telematics resources for 5-CH MDVR.
Product Datasheet
Full factory engineering parameters, mechanical dimensions, power requirements, and ordering configurations for 5-CH MDVR.
Request DatasheetCertificates & Lab Reports
Official CE, FCC, RoHS, and automotive environmental vibration test reports for commercial transport compliance.
Request CertificatesUser Manual & Wiring Diagram
Complete connector pinout charts, camera mounting instructions, alarm trigger wire assignments, and configuration guide.
Request ManualCMS Platform Software & Demo
Evaluation access to our cloud fleet surveillance dashboard — real-time GPS tracking, multi-channel live streaming, and API documentation.
Request Demo AccessComplete the Commercial Fleet Safety Stack
Commercial MDVR hardware and vision systems commonly deployed alongside this model in commercial vehicle fleets.
MR920 9-Channel AI Mobile DVR for Fleets
Model MR920 — 8-Channel AHD + 1-Channel IPC MDVR with 4TB HDD + 512GB SD dual storage.

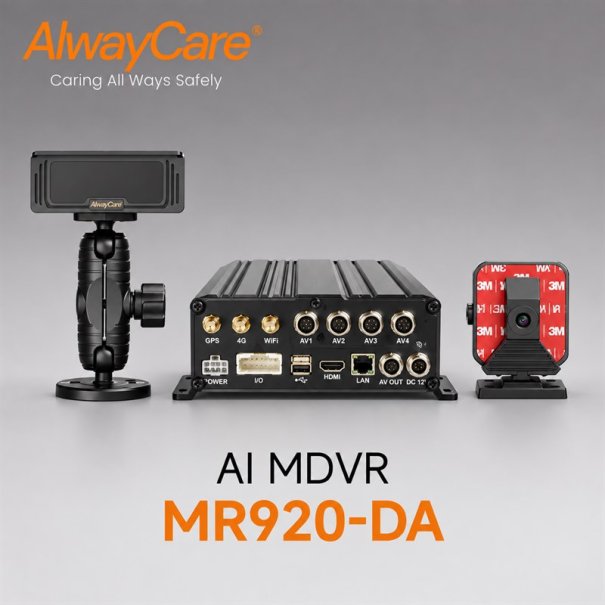

MR920-DA 9-Channel AI MDVR Telematics Terminal
Model MR920-DA — Dual-AI flagship combining inside DMS driver tracking with outside ADAS roadway warnings.
MR930 13-Channel AI MDVR for Fleet Monitoring
Model MR930 — 12-Channel AHD + 1-Channel IPC ultra-high capacity recorder with CAN bus integration.
Frequently Asked Questions
Can't find your answer? Our commercial fleet engineers reply within one business day — email safety@alwaycare.com or send an inquiry.
What camera types and video resolutions are supported by 5-CH MDVR?
This platform supports 4 channels of AHD plus 1 channel of IPC digital camera expansion, accepting 1080P, 960P, 720P, and D1 analog high-definition cameras with backward compatibility for standard CVBS inputs. Selected versions also support digital IPC expansion via aviation network connectors.
What storage capacity and physical security does the unit provide?
The system utilizes High-endurance SDXC memory card slot supporting up to 512GB behind a mechanical key-lock cover. High-security physical lock tumbler covers prevent unauthorized removal of memory cards or hard drives by operators, ensuring uninterrupted evidentiary chain of custody.
How does the power protection and delayed shutdown system operate?
Equipped with an industrial DC 8V~36V wide-voltage power module with built-in reverse polarity, overload, and 40V surge suppression. Built-in farad supercapacitors ensure complete write-to-disk protection during abrupt power loss, while programmable delayed shutdown allows recording for up to 24 hours after vehicle ignition off.
What telematics protocols and CMS cloud platforms are supported?
Hardware integrates a 4G LTE cellular transceiver and high-precision GPS/BeiDou dual-mode GNSS receiver. The platform supports standard industry protocols including JT/T 808, JT/T 1078, GB/T 32960, and CMSV6, enabling seamless API integration into third-party fleet management solutions.
Can this MDVR be deployed in extreme vehicle environments?
Yes. The chassis is manufactured from heavy-duty extruded aluminum alloy with external heat dissipation fins. It operates reliably across an extended industrial temperature range of -20°C to +70°C (-4°F to +158°F) and satisfies rigorous automotive shock and vibration standards.
What warranty and engineering customization options are available?
Every AlwayCare commercial MDVR is supplied with a 15-month factory warranty. We support OEM/ODM branding, customized harness pinouts, bespoke firmware triggers, and specialized CMS server protocol mapping for tier-1 fleet contracts.
