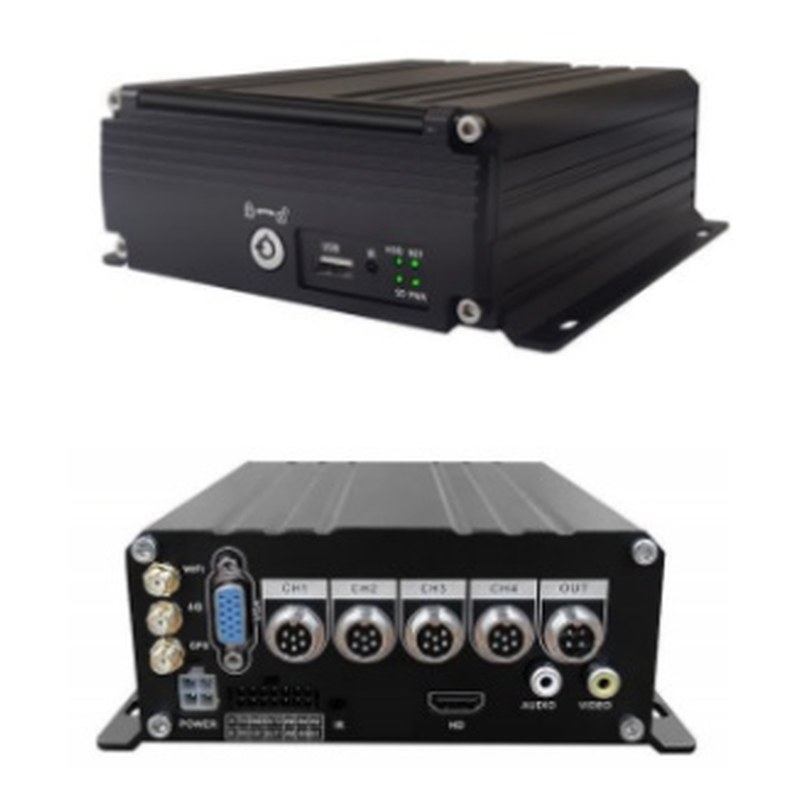

ND170 4-Channel IPC Hard Disk Vehicle Recorder, No AHD
| Share | |
|---|---|
| Categories | NDVR |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Product Specifications | ND170 |
| Channels | 4-channel IPC input, no AHD |
| Video Input | 2MP IPC, GX12-6 interface; 1MP IPC can be mixed in |
| Video Encoding | H.264 / H.265 (HiSilicon processor, Linux) |
| Storage | 1 SATA HDD up to 4TB + 1 SD card up to 1TB |
| Video Output | HDMI, VGA, CVBS or AHD |
| Alarm I/O | 4 alarm inputs, 2 switch outputs |
| Interfaces | USB 2.0, RS232 / RS485 / CAN expansion |
| Camera Control | ONVIF PTZ control |
| Sensor | Built-in G-sensor |
| Protocol | JT808 / JT1078, GB/T32960 |
| Key Functions | Multi-stream recording up to 1080P; local playback; remote intercom |
| Options | Built-in 4G/5G, GPS/BDS/GLONASS, WiFi, HDD heating sensor |
| Versions | ND170-1: basic + GPS; -2: GPS, WiFi, 4G (Europe, South America, Africa) |
| Versions (2) | -3: GPS, WiFi, 4G (US, North America) |
| Warranty | 15 Months |
ND170 4-Channel IPC Hard Disk Vehicle Recorder, No AHD
ND170 is a 4-channel IPC hard disk vehicle recorder for 2MP IP cameras, with a G-sensor and serial port expansion.
Technical Specifications
Your quotation confirms the exact configuration.
| Model | ND170 |
|---|---|
| Channels | 4-channel IPC input, no AHD |
| Video Input | 2MP IPC, GX12-6 interface; 1MP IPC can be mixed in |
| Video Encoding | H.264 / H.265 (HiSilicon processor, Linux) |
| Storage | 1 SATA HDD up to 4TB + 1 SD card up to 1TB |
| Video Output | HDMI, VGA, CVBS or AHD |
| Alarm I/O | 4 alarm inputs, 2 switch outputs |
| Interfaces | USB 2.0, RS232 / RS485 / CAN expansion |
| Camera Control | ONVIF PTZ control |
| Sensor | Built-in G-sensor |
| Protocol | JT808 / JT1078, GB/T32960 |
| Key Functions | Multi-stream recording up to 1080P; local playback; remote intercom |
| Options | Built-in 4G/5G, GPS/BDS/GLONASS, WiFi, HDD heating sensor |
| Versions | ND170-1: basic + GPS; -2: GPS, WiFi, 4G (Europe, South America, Africa) |
| Versions (2) | -3: GPS, WiFi, 4G (US, North America) |
| Warranty | 15 Months |
NDVR Models
Compare ND170 with other AlwayCare models in this category.
| Model | Channels | Recording / Encoding | Storage |
|---|---|---|---|
| ND310 | 4-channel AHD vehicle recorder | 720P (1280x720) | 2 TF cards, up to 512GB each |
| ND320 | 4-channel AHD vehicle recorder | 1080P (1920x1080) | 1 SD card, up to 512GB |
| ND380 | 4-channel AHD vehicle recorder | 1080P (1920x1080) | SD card up to 512GB + 4TB SSD |
| ND381 | 4-channel AHD vehicle recorder | 1080P (1920x1080) | SD card up to 512GB + 4TB SSD |
| ND170 (this page) | 4-channel IPC input, no AHD | H.264 / H.265 (HiSilicon processor, Linux) | 1 SATA HDD up to 4TB + 1 SD card up to 1TB |
| ND180 | 8 IPC + 4 AHD with network switch | H.265 / H.264, G711a audio | 1 x 2.5" HDD/SSD + 1 TF card |
Frequently Asked Questions
Can't find your answer? Our engineers reply within one business day — email safety@alwaycare.com or send an inquiry.
Does ND170 take AHD cameras?
No. It takes four IPC (IP camera) inputs only.
Which versions are available?
ND170-1 is the basic version with GPS. ND170-2 and ND170-3 add WiFi and 4G for different regions.
Which warranty applies?
ND170 ships with a 15-month manufacturer warranty. Confirm final terms and regional service coverage in your quotation.
