WP210-B 7" Waterproof Wireless Quad-View System (4-Camera Package)
| Share | |
|---|---|
| Categories | Wireless Camera |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Model | WP210-B |
| Wireless Frequency | 2.4GHz Digital Frequency Hopping |
| Transmission Range | 100M+ Industrial Digital |
| Monitor Size | 7.0 inch |
| Resolution | 1024x600 HD |
| Camera Included | 4x 720P IP68 Night Vision Cameras |
| Camera Waterproof | IP68 / IP69K All-Weather |
| Operating Voltage | DC 9V - 35V / 36V Wide Voltage |
| Storage Support | SD Card Loop Recording up to 128GB |
| Operating Temperature | -20℃ ~ +70℃ |

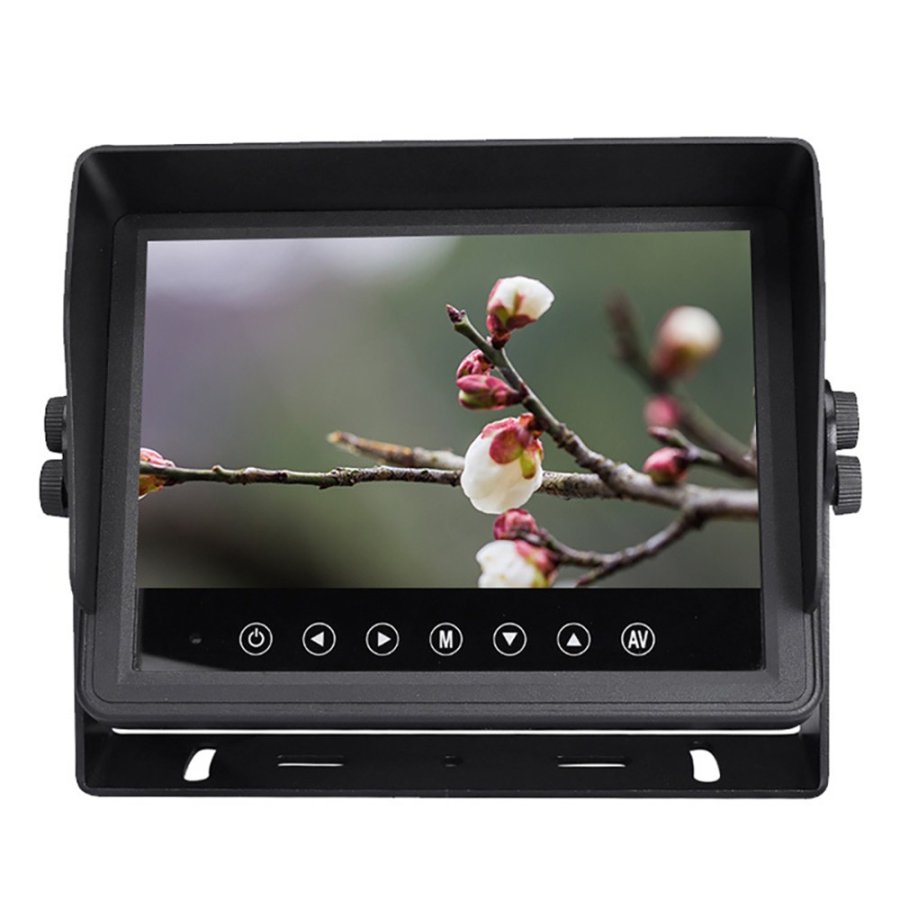

WP210-B 7" Waterproof Wireless Quad-View System (4-Camera Package)
7-inch IP69K waterproof quad-split wireless display with stainless U-bracket and 4-camera coverage.
Technical Specifications
Values follow the factory engineering datasheet — your quotation confirms the exact configuration.
| Model | WP210-B (Waterproof Wireless System) |
|---|---|
| Display Screen | 7.0 Inch Digital TFT-LCD High-Brightness Panel |
| Aspect Ratio & Resolution | 16:9 Widescreen | 1024 × 600 HD |
| Backlight Brightness | 500 cd/m² (Sunlight Readable Anti-Glare Display) |
| Ingress Protection Rating | IP68 / IP69K Certified Waterproof (Monitor & Cameras) |
| Wireless Frequency & Protocol | 2.4GHz Digital Frequency Hopping (FHSS Anti-Interference) |
| Transmission Range | 100M+ Industrial Line-of-Sight Range (Stable Point-to-Point) |
| Camera Package Included | 4× Heavy-Duty 720P IP68 Night Vision Wireless Cameras |
| Night Vision Capability | Infrared Night Vision up to 15 Meters (Auto IR-Cut Filter) |
| Storage & Cyclic Recording | Built-in SD Card Slot, Supports Cyclic Recording up to 128GB |
| Video Latency | ≤ 120ms Low-Latency Real-Time Transmission |
| Operating Voltage | DC 9V – 36V Wide Input (Automotive Grade; 12V/24V Fleet Compatible) |
| Electrical Safeguards | Built-in over-voltage, reverse polarity, and transient spike suppression |
| Operating Temperature | -20°C ~ +70°C (-4°F ~ +158°F) |
| Storage Temperature | -30°C ~ +80°C (-22°F ~ +176°F) |
| Enclosure Material | Heavy-Duty Metal Alloy Body with Rugged Weatherproof Bezel |
| Mounting Hardware | Heavy-Gauge Stainless Steel U-Bracket with Dual Side Lock Screws |
| Quality Warranty | 18 Months Manufacturer Warranty |
Wireless Fleet Monitor Kit Series Matrix
| WP210-B (This System) | 7" Waterproof Wireless Quad-View System (4-Camera Package) — IP69K all-weather waterproof monitor & 4 heavy-duty wireless cameras. Built for mining haulers, open-cab excavators, and agricultural combines. | 7" IP69K Quad-View + 4 Cams | DC 9-36V |
|---|---|---|
| WP240-B | 7" Digital Wireless Quad-Split Monitor Kit (4-Camera Package) — 4-channel simultaneous quad-split wireless display with 4 wireless cameras, SD recording up to 128GB. Designed for commercial transport fleets and articulated trucks. | 7" Quad-Split + 4 Cams | DC 9-36V |
| WP240-A | 7" Digital Wireless Dual-Split Monitor Kit (2-Camera Package) — Dual-channel digital wireless display with 2 wireless cameras, instant pairing, 400m transmission range. Ideal for box trucks, RVs, and horse trailers. | 7" Dual-Split + 2 Cams | DC 9-36V |
| WP230 | 7" Touch-Button Digital Wireless Commercial Vehicle Monitor Kit — Capacitive touch-button controls, 1 wireless camera, plug-and-play installation without vehicle cab rewiring. Designed for delivery vans and utility fleets. | 7" Touch-Button + 1 Cam | DC 9-36V |
| WP220 | 7" Digital Wireless Dual-Channel Monitor & Reversing Camera Kit — Compact dual-channel commercial display with 1 heavy-duty wireless rear camera and automated reverse trigger guidelines. | 7" Dual-Channel + 1 Cam | DC 9-36V |
What WP210-B Delivers
Heavy-duty wireless fleet vision engineered for severe commercial and industrial environments.

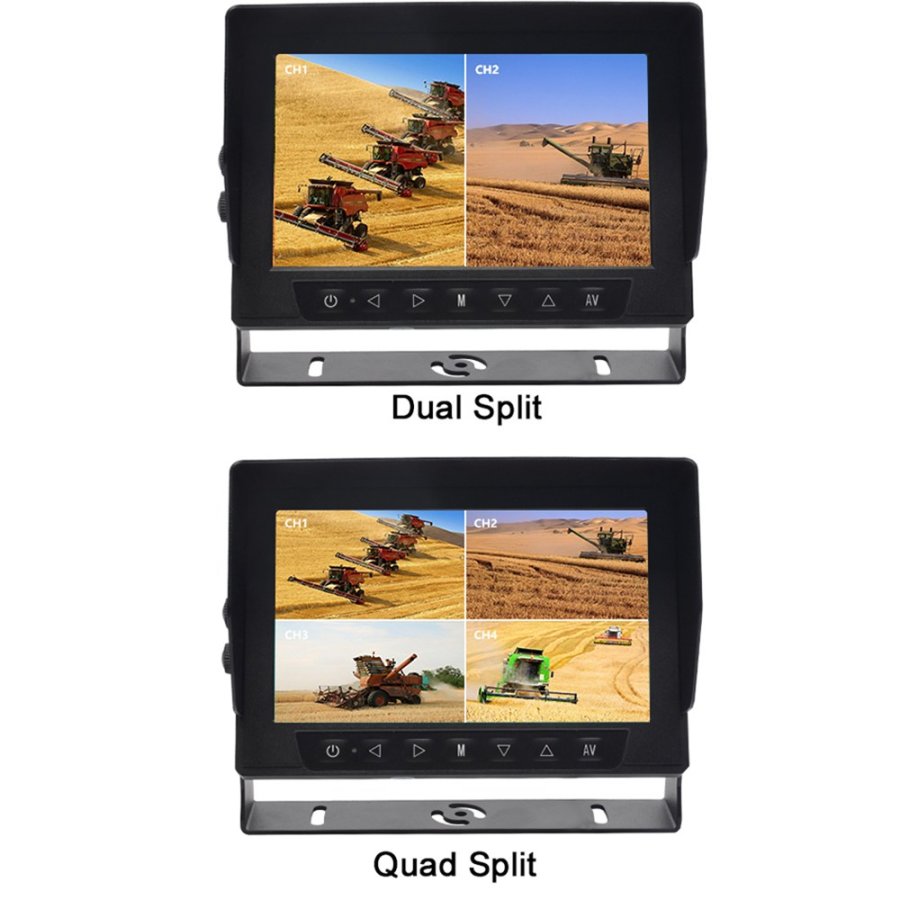

7" Quad-Split Wireless Display & Real-Time Monitoring
1024×600 HD Resolution & ≤120ms Low-Latency Video
- Quad-Split Screen: 7.0-inch display renders up to 4 camera angles, eliminating blind spots.
- 500 cd/m² Sunlight Readable: Anti-glare panel with sun visor ensures sharp visibility in bright daylight.
- Low-Latency Feed: Digital latency under 120ms enables instant driver reaction during docking.

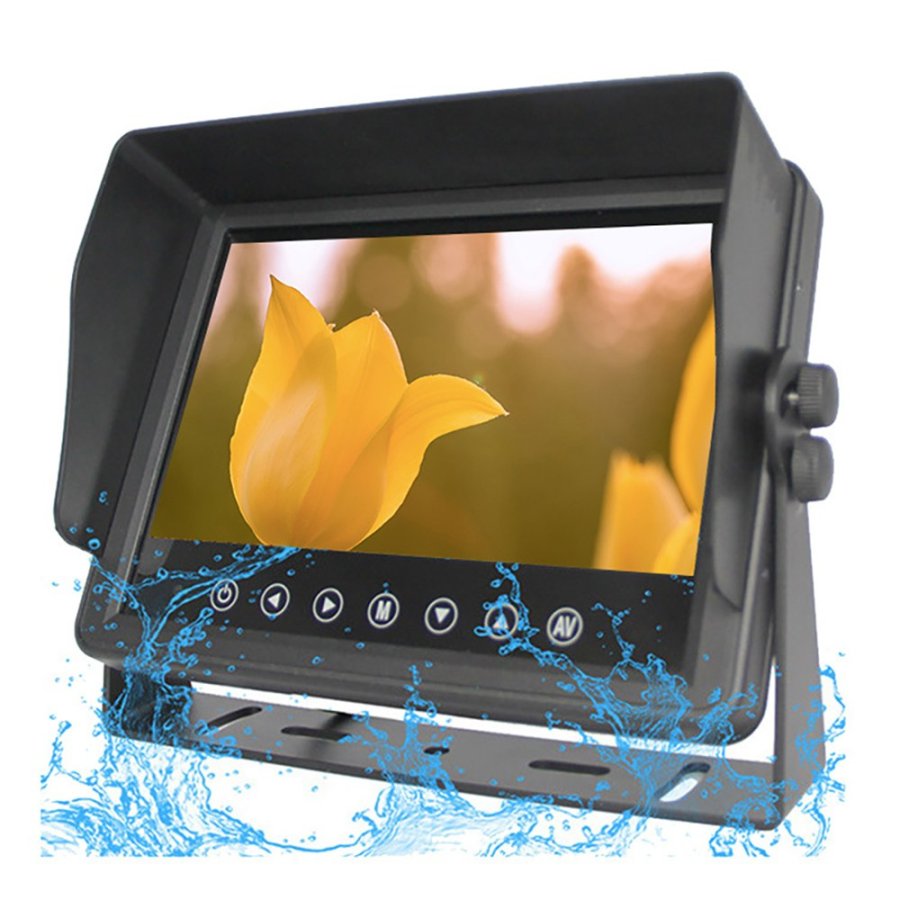

IP69K Waterproof Ingress Sealing & Stainless U-Bracket
All-Weather Submersion Protection & Corrosion-Resistant Mount
- IP69K Waterproof Ingress: Completely sealed monitor and camera housings withstand hot washdowns and mud.
- Stainless U-Bracket: Heavy-gauge bracket with knurled knobs resists roadway vibration and corrosion.
- Glove-Friendly Buttons: Sealed front pushbuttons allow easy menu navigation in harsh work environments.
4-Camera Industrial Package & 2.4GHz FHSS Transmission
100M+ Industrial Line-of-Sight & Point-to-Point Anti-Interference
- 4-Camera Package: Includes four 720P IR night-vision cameras for full 360° vehicle coverage.
- FHSS Wireless: Digital pairing eliminates RF interference and crosstalk from neighboring fleets.
- Zero Cable Pulling: Bypasses trailer-to-cab cabling, cutting fleet installation time by hours.
DC 9V-36V Wide Input & Onboard SD Card Cyclic Recording
Automotive Transient Suppression & Up to 128GB Storage
- 9V-36V Fleet Compatibility: Operates on 12V/24V chassis with over-voltage and reverse polarity safeguards.
- 128GB Loop Recording: MicroSD slot provides continuous cyclic recording for trip evidence.
- -20°C to +70°C Duty: Industrial-grade components withstand harsh winter freezes and desert heat.
Built for Long-Term Fleet Programs
Factory Direct Supply
Devices ship from our own production line, with engineering support from the team that builds them.
Certified & Lab Tested
CE, UKCA, RoHS and ISO 9001 — every platform is backed by third-party laboratory test reports.
15-Month Warranty
Coverage that goes beyond the standard 12-month term, honored through your dedicated account manager.
OEM & Firmware Support
Logo, packaging, firmware behavior and interface customization for your market and fleet platform.
From Inquiry to Delivery in Four Steps
A clear path from first contact to units running in your fleet — no obligation at the evaluation stage.
Share Your Requirements
Send fleet size, vehicle models and target functions through the inquiry form or to your account manager.
Version & Quotation
Our engineers map your needs to the right WP210-B version and issue a formal quotation within one business day.
Sample Evaluation
Sample units are available for road testing before you commit to a bulk order — evaluate first, decide later.
Production & Delivery
Bulk orders ship with factory QC reports, export documents and the 15-month warranty from dispatch.
Documents & Downloads
Everything your engineering and procurement teams need for evaluation.
Product Datasheet
Full specifications and ordering information — request the current WP210-B datasheet.
Request DatasheetCertificates & Test Reports
Certification and third-party laboratory reports for the selected version and target market.
Request CertificatesUser Manual & Installation Guide
Wiring, mounting and configuration instructions — provided with sample orders.
Request ManualCMS Software & Demo
Platform access for evaluation — connect supported configurations to a live demo fleet.
Request Demo AccessComplete the In-Vehicle Safety Stack
Product families commonly deployed alongside WP210-B in the same fleet stack.
CC981-W Solar-Powered Wireless Vehicle Camera
Model CC981-W — Wireless Camera for commercial fleets.
CC982-W IP68 Wireless Camera with Laser Guide
Model CC982-W — Wireless Camera for commercial fleets.
DP240-1 Wireless Monitor and Night-Vision Camera Kit
Model DP240-1 — Wireless Camera for commercial fleets.
Frequently Asked Questions
Can't find your answer? Our engineers reply within one business day — email safety@alwaycare.com or send an inquiry.
Which connectivity options are available?
WP210-B supports vehicle-grade connectivity. Map the interfaces to your onboard systems before ordering.
Which warranty applies?
WP210-B ships with a 18 Months Manufacturer Warranty warranty. Confirm the final terms and regional service coverage in your quotation.
What vehicles does it fit?
Suitable for commercial vehicles — mounting positions and camera coverage must be designed for the specific vehicle layout.
Are all listed features standard on every unit?
No. Detection coverage, connectivity and camera options are configuration-dependent. Confirm the exact scope in the quotation — our engineers will recommend the right version for your vehicles.
