WP230 7" Touch-Button Digital Wireless Commercial Vehicle Monitor Kit
| Share | |
|---|---|
| Categories | Wireless Camera |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Model | WP230 |
| Wireless Frequency | 2.4GHz Digital Frequency Hopping |
| Transmission Range | 100M+ Industrial Digital |
| Monitor Size | 7.0 inch |
| Resolution | 1024x600 HD |
| Camera Included | 1x 720P IP68 Night Vision Camera |
| Camera Waterproof | IP68 / IP69K All-Weather |
| Operating Voltage | DC 9V - 35V / 36V Wide Voltage |
| Storage Support | SD Card Loop Recording up to 128GB |
| Operating Temperature | -20℃ ~ +70℃ |
WP230 7" Touch-Button Digital Wireless Commercial Vehicle Monitor Kit
Solar-powered magnetic wireless kit with 7-inch touch-button display and instant reverse trigger.
Technical Specifications
Values follow the factory engineering datasheet — your quotation confirms the exact configuration.
| Model | WP230 (Digital Wireless Touch Series) |
|---|---|
| Display Screen | 7.0 Inch Digital TFT-LCD High-Resolution Panel |
| Aspect Ratio & Resolution | 16:9 Widescreen | 1024 × 600 HD |
| Backlight Brightness | 500 cd/m² (Sunlight Readable Anti-Glare Display) |
| Contrast Ratio | 500:1 High Contrast |
| User Control Interface | Sleek Capacitive Touch Pushbuttons (Flush Front Bezel) |
| Wireless Frequency & Protocol | 2.4GHz Digital Frequency Hopping (FHSS Anti-Interference) |
| Wireless Transmission Range | Up to 400M Barrier-Free / 100M+ Industrial Heavy-Vehicle Range |
| Transmission Bandwidth | 20Mbps (Max) High-Throughput Wireless Stream |
| Camera Package Included | 1× Heavy-Duty 720P IP68 Night Vision Wireless Camera |
| Night Vision Capability | Infrared Night Vision up to 15 Meters (Integrated Auto IR-Cut Filter) |
| Camera Lens Angle | 100° Horizontal Wide-Angle Field of View |
| Video Latency | ≤ 120ms Low-Latency Real-Time Transmission |
| Storage & Loop Recording | Integrated SD Card Slot, Supports Cyclic Recording up to 128GB |
| Operating Voltage | DC 9V – 35V / 36V Wide Input (Automotive Grade; 12V/24V Fleet Compatible) |
| Electrical Safeguards | Built-in over-voltage, reverse polarity, and transient spike suppression |
| Operating Temperature | -20°C ~ +70°C (-4°F ~ +158°F) |
| Storage Temperature | -30°C ~ +80°C (-22°F ~ +176°F) |
| Enclosure Material | Flame-Retardant ABS / PC+ABS Housing with Fine Textured Finish |
| Mounting Hardware | Heavy-Duty Metal U-Bracket with Dual Side Lock Knobs |
| Quality Warranty | 18 Months Manufacturer Warranty |

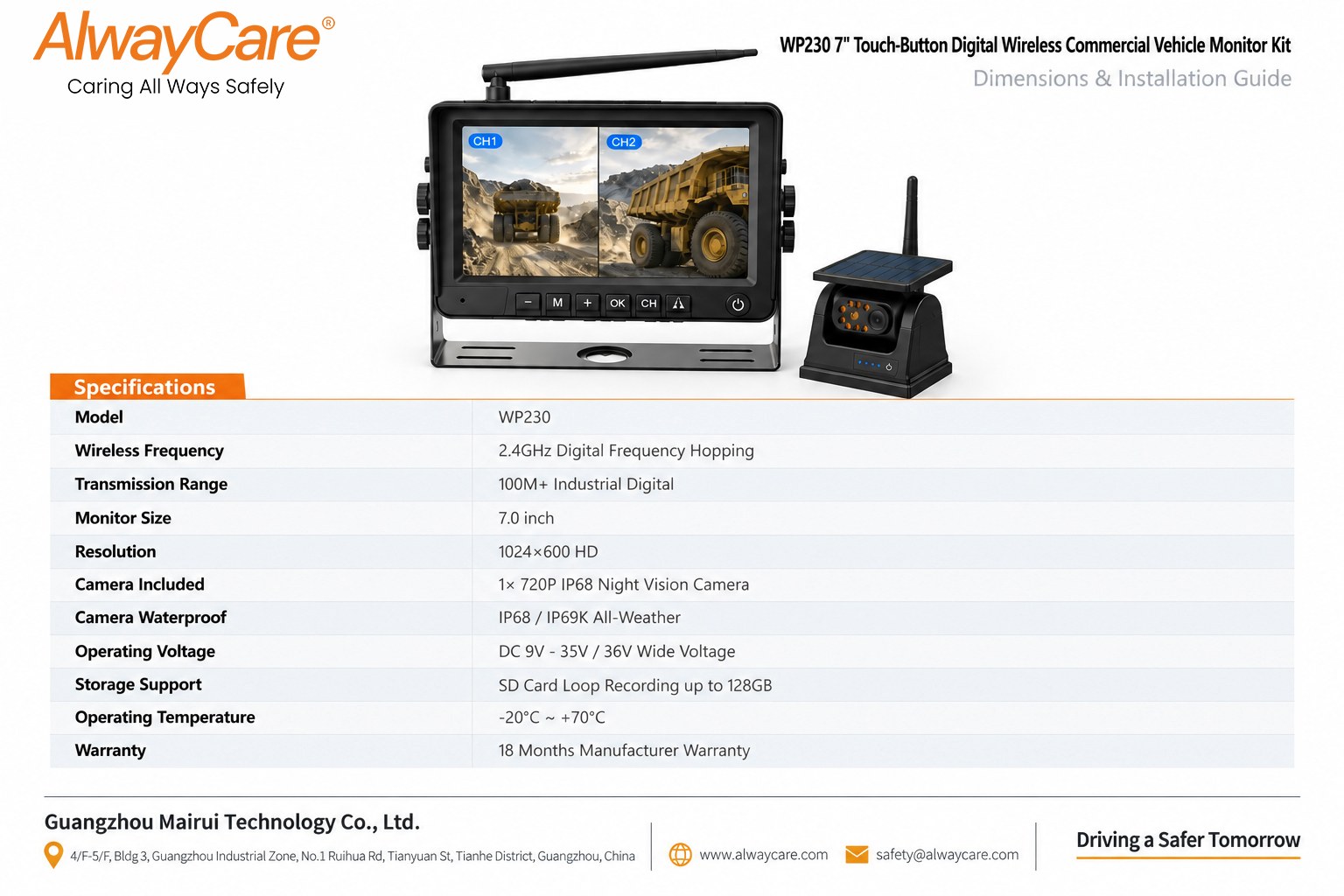

Technical Diagram & Specifications Overview
Factory engineering drawing, wiring pinout, and mechanical form factor for WP230.
Wireless Fleet Monitor Kit Series Matrix
| WP230 (This System) | 7" Touch-Button Digital Wireless Commercial Vehicle Monitor Kit — Capacitive touch-button controls, 1 wireless camera, plug-and-play installation without vehicle cab rewiring. Designed for delivery vans and utility fleets. | 7" Touch-Button + 1 Cam | DC 9-36V |
|---|---|---|
| WP220 | 7" Digital Wireless Dual-Channel Monitor & Reversing Camera Kit — Compact dual-channel commercial display with 1 heavy-duty wireless rear camera and automated reverse trigger guidelines. | 7" Dual-Channel + 1 Cam | DC 9-36V |
| WP240-A | 7" Digital Wireless Dual-Split Monitor Kit (2-Camera Package) — Dual-channel digital wireless display with 2 wireless cameras, instant pairing, 400m transmission range. Ideal for box trucks, RVs, and horse trailers. | 7" Dual-Split + 2 Cams | DC 9-36V |
| WP240-B | 7" Digital Wireless Quad-Split Monitor Kit (4-Camera Package) — 4-channel simultaneous quad-split wireless display with 4 wireless cameras, SD recording up to 128GB. Designed for commercial transport fleets and articulated trucks. | 7" Quad-Split + 4 Cams | DC 9-36V |

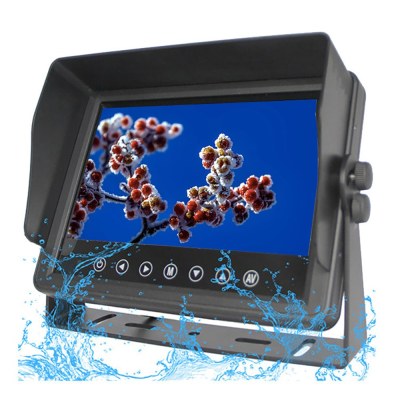

| WP210-B | 7" Waterproof Wireless Quad-View System (4-Camera Package) — IP69K all-weather waterproof monitor & 4 heavy-duty wireless cameras. Built for mining haulers, open-cab excavators, and agricultural combines. | 7" IP69K Quad-View + 4 Cams | DC 9-36V |
What WP230 Delivers
Touch-controlled commercial wireless monitoring engineered for effortless operation and rapid vehicle retrofits.
Solar-Powered & Magnetic Rapid Deployment
Zero Cab Rewiring & 9600mAh High-Capacity Battery
- Magnetic Mount: Heavy-duty neodymium base snaps onto chassis in seconds without drilling.
- Solar Recharging: Built-in solar panel and 9600mAh battery supplemented by 5V USB fast charging.
- Zero Cable Pulling: Eliminates cab-to-trailer wiring runs, cutting deployment downtime by 90%.
7" Touch-Button Wireless Display & 400m Transmission
Capacitive Front Keys & Point-to-Point Anti-Interference
- Capacitive Touch Controls: Responsive front touch keys allow instant channel switching.
- 400m FHSS Range: Digital frequency hopping guarantees stable transmission without crosstalk.
- Low Latency (≤120ms): Real-time video stream provides instantaneous visual feedback during docking.
IP68 Waterproof Sealing & 15m Infrared Night Vision
-20°C to +70°C Harsh Environment Duty & Dynamic Parking Grid
- IP68 Ingress Rating: Sealed camera bodies withstand torrential rain, mud, and high-pressure washdowns.
- 15m IR Night Vision: High-output infrared LEDs and auto IR-Cut deliver crisp video in 0 Lux darkness.
- Parking Guidelines: Dynamic distance overlay aids tight maneuvering and dock positioning.
Universal Fleet Deployment & Onboard SD Card Storage
DC 9V-36V Wide Input & 128GB Cyclic Video Recording
- Fleet Adaptability: Plug-and-play fit for trucks, semi-trailers, delivery vans, and heavy equipment.
- 9V-36V Protection: Wide operating voltage with surge suppression, load dump, and reverse polarity defense.
- 128GB Loop Recording: Onboard SD card slot auto-overwrites oldest files for continuous video evidence.
Built for Long-Term Fleet Programs
Factory Direct Supply
Devices ship from our own production line, with engineering support from the team that builds them.
Certified & Lab Tested
CE, UKCA, RoHS and ISO 9001 — every platform is backed by third-party laboratory test reports.
15-Month Warranty
Coverage that goes beyond the standard 12-month term, honored through your dedicated account manager.
OEM & Firmware Support
Logo, packaging, firmware behavior and interface customization for your market and fleet platform.
From Inquiry to Delivery in Four Steps
A clear path from first contact to units running in your fleet — no obligation at the evaluation stage.
Share Your Requirements
Send fleet size, vehicle models and target functions through the inquiry form or to your account manager.
Version & Quotation
Our engineers map your needs to the right WP230 version and issue a formal quotation within one business day.
Sample Evaluation
Sample units are available for road testing before you commit to a bulk order — evaluate first, decide later.
Production & Delivery
Bulk orders ship with factory QC reports, export documents and the 15-month warranty from dispatch.
Documents & Downloads
Everything your engineering and procurement teams need for evaluation.
Product Datasheet
Full specifications and ordering information — request the current WP230 datasheet.
Request DatasheetCertificates & Test Reports
Certification and third-party laboratory reports for the selected version and target market.
Request CertificatesUser Manual & Installation Guide
Wiring, mounting and configuration instructions — provided with sample orders.
Request ManualCMS Software & Demo
Platform access for evaluation — connect supported configurations to a live demo fleet.
Request Demo AccessComplete the In-Vehicle Safety Stack
Product families commonly deployed alongside WP230 in the same fleet stack.
CC981-W Solar-Powered Wireless Vehicle Camera
Model CC981-W — Wireless Camera for commercial fleets.
CC982-W IP68 Wireless Camera with Laser Guide
Model CC982-W — Wireless Camera for commercial fleets.
DP240-1 Wireless Monitor and Night-Vision Camera Kit
Model DP240-1 — Wireless Camera for commercial fleets.
Frequently Asked Questions
Can't find your answer? Our engineers reply within one business day — email safety@alwaycare.com or send an inquiry.
Which connectivity options are available?
WP230 supports vehicle-grade connectivity. Map the interfaces to your onboard systems before ordering.
Which warranty applies?
WP230 ships with a 18 Months Manufacturer Warranty warranty. Confirm the final terms and regional service coverage in your quotation.
What vehicles does it fit?
Suitable for commercial vehicles — mounting positions and camera coverage must be designed for the specific vehicle layout.
Are all listed features standard on every unit?
No. Detection coverage, connectivity and camera options are configuration-dependent. Confirm the exact scope in the quotation — our engineers will recommend the right version for your vehicles.
