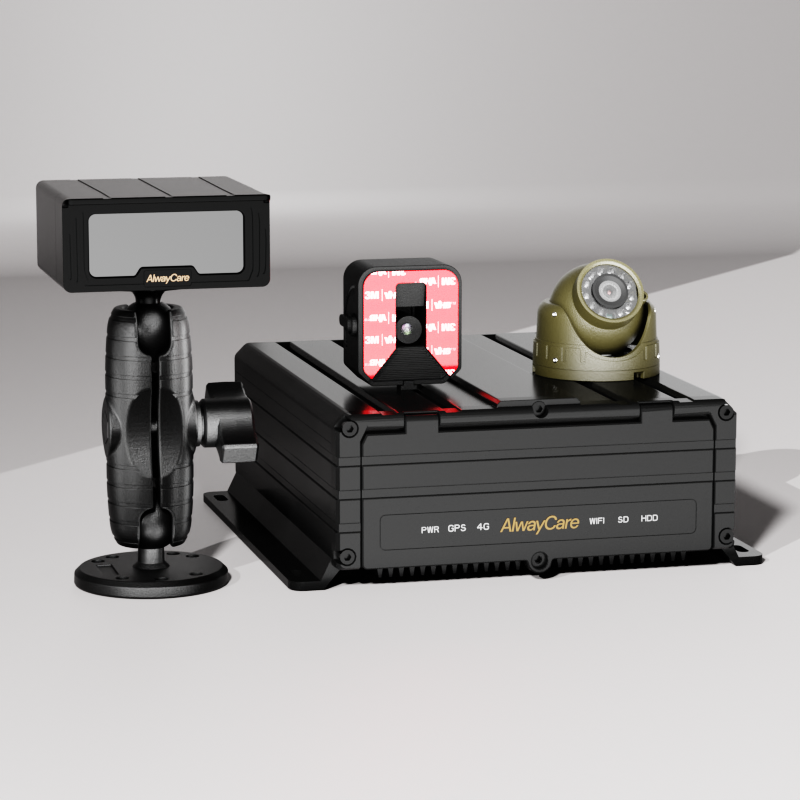

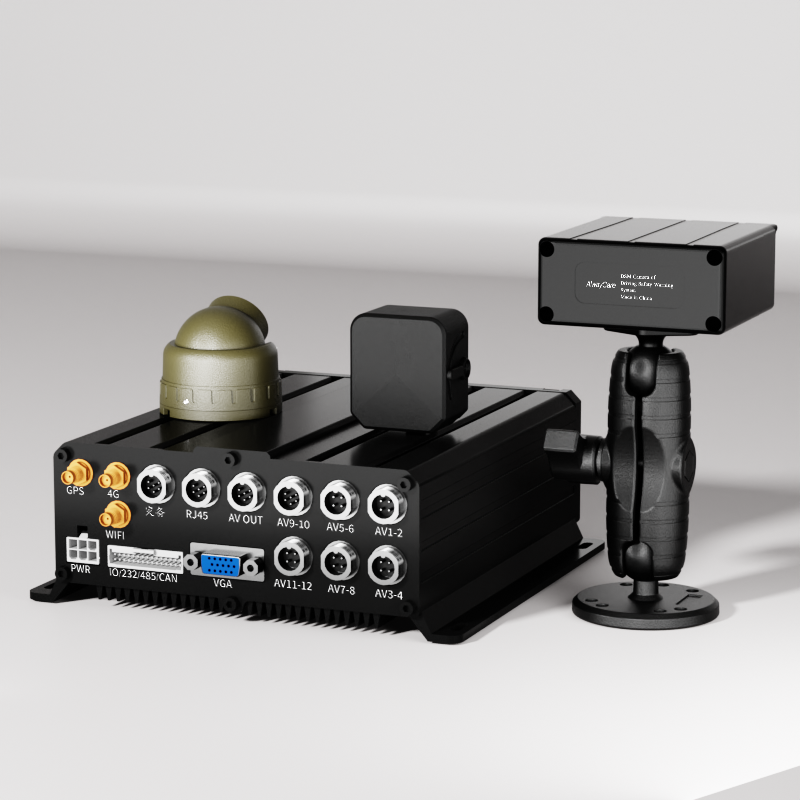

MR930 13-Channel AI MDVR for Fleet Monitoring
| Share | |
|---|---|
| Categories | AI MDVR |
| Brand | AlwayCare Commercial Fleet Safety Manufacturer |
| Model | 13-CH AI MDVR MR930 |
| Voltage | 12/24V |
| Video Record Resolution | 1920x1080 |
| Satellite Positioning | Support GPS and BD (Beidou) dual-mode positioning |
| Optional | I/O or RS232 |
| Wireless Communication | 4G or Wifi |
| Storage | 512GB SD Card |
| Video Encoding | H.264/H.265 |
| Application | Suitable for All Vehicles |
| Operating Temperature | -20℃ ~ 70℃ |
| Warranty | 15 Months |
MR930 13-Channel AI MDVR for Fleet Monitoring
High-Capacity 13-Channel Commercial AI MDVR with 12-Channel AHD + 1-Channel IPC Input, 4TB SATA HDD + 512GB SD Storage, CAN Bus Telematics, and Optional Multi-AI Packages

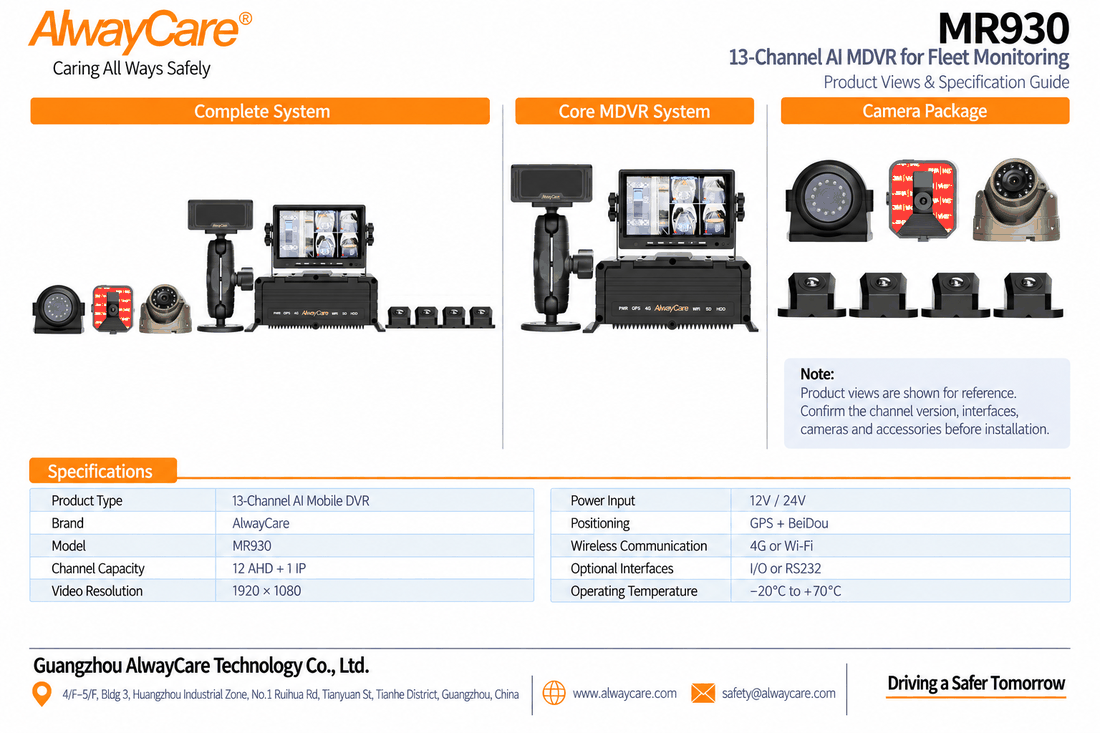

Technical Specifications
Verified factory technical parameters for the AlwayCare MR930 commercial vehicle video recorder platform.
| Operating System & Core | High-throughput embedded Linux OS with enterprise multi-channel encoding processor |
|---|---|
| AI Capabilities | Standard 13-channel transit recorder; optional coprocessor supporting concurrent DMS, ADAS, BSD, and 360° AVM algorithms |
| Video & Audio Channels | 12 Channels AHD (1080P/720P/D1) + 1 Channel IPC digital network camera input. Video Output: 1× CVBS standard output + 1× VGA high-resolution video output. Audio: 1 Channel MIC input (two-way intercom support) + 1 Channel audio output. |
| Video Encoding & Dual Stream | H.265 (HEVC) and H.264 Main Profile compression; dual streaming architecture |
| Storage & Physical Security | Dual Storage Architecture: 1× 2.5-inch SATA hard drive bay (up to 4TB) + 1× SDXC memory card slot (up to 512GB) with front mechanical key lock |
| Wireless Connectivity & Antennas | 4G LTE all-network cellular module (optional 5G) + GPS / BeiDou dual-mode GNSS + 2.4GHz Wi-Fi (802.11b/g/n) |
| Hardware Interfaces | 8× I/O alarm inputs, 2× I/O alarm outputs, 1× USB 2.0 port, 1× RJ45 LAN, 2× RS232, 1× RS485, and 1× CAN bus interface |
| Power Supply & Protection | DC 8V ~ 36V wide-voltage automotive input with reverse polarity, surge protection, and delay shutdown |
| Environmental & Chassis | Operating Temperature: -20°C to +70°C (-4°F to +158°F); Storage Temperature: -40°C to +85°C |
Hardware Architecture Selection
MR930 Series High-Capacity Fleet Architecture Selection
Multi-channel deployment matrix for heavy passenger transport, articulated transit buses, and special logistics vehicles.
| Platform Model | Video Channels | Local Storage | AI Vision Capabilities | Wireless Telematics | Hardware Interfaces |
|---|---|---|---|---|---|
| MR930 (13-CH Gateway) Current Model Enterprise 13-channel comprehensive transit surveillance |
12× AHD + 1× IPC | 4TB HDD + 512GB SD | Optional Port | 4G LTE (5G Opt) + GPS/BD + Wi-Fi | 8 In / 2 Out + 2× RS232 + CAN |
| MR930-DA (Dual-AI Transit) Driver vigilance supervision + forward roadway collision warnings |
12× AHD + 1× IPC | 4TB HDD + 512GB SD | DMS + ADAS | 4G LTE (5G Opt) + GPS/BD + Wi-Fi | 8 In / 2 Out + 2× RS232 + CAN |
| MR930-DA360B (All-in-One Flagship) Ultimate four-in-one visual AI telematics center for coaches & articulated buses |
12× AHD + 1× IPC | 4TB HDD + 512GB SD | DMS+ADAS+360°+BSD | 4G LTE (5G Opt) + GPS/BD + Wi-Fi | 8 In / 2 Out + 2× RS232 + CAN |
What MR930 Delivers for Commercial Fleets
Heavy vehicle evidentiary recording, intelligent telematics surveillance, and active accident prevention.
12-CH AHD + 1-CH IPC Transit Surveillance
- Full 360° Interior & Exterior: Records forward road, cab, entry doors, aisles, luggage bays, and reversing angles.
- Mixed Resolution Input: Flexible channels support 1080P, 720P, and D1 cameras with auto-signal detection.
- Dual Independent Outputs: Drives driver dashboard monitor via CVBS while feeding passenger screens via VGA.
Commercial Telematics with CAN Bus & 8 I/O
- Vehicle CAN Bus Integration: Reads engine RPM, speed, braking, and fuel consumption for deep telematics analysis.
- 8x Alarm Trigger Inputs: Connects door sensors, panic buttons, turn signals, and reverse triggers.
- Dual RS232 & RS485 Ports: Seamlessly links passenger counters, RFID card readers, and TPMS sensors.

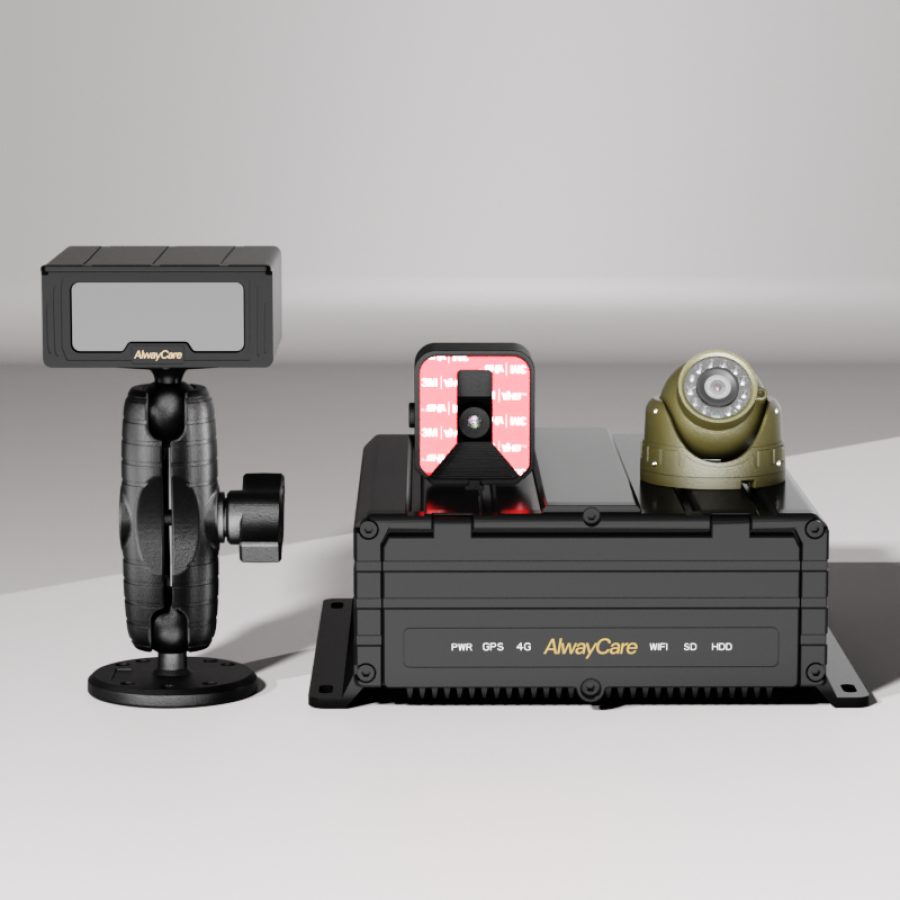

4TB Hard Drive Storage & 4G/5G Enterprise Cloud Fleet Control
- Industrial 4TB Storage: Massive volume retains long-term records for high-frequency municipal transit fleets.
- High-Speed 4G/5G Link: Real-time video streaming, route breadcrumbs, automated alarm pushes, and JT808/JT1078 support.
- Key-Locked Chassis & UPS: Key-locked metal body with supercapacitor safe-shutdown during sudden power loss.
Compatible Sensors & Peripherals Suite
Compatible Sensors & Peripherals Suite
Modular vehicle hardware components factory-certified with AlwayCare MDVR platforms for turnkey commercial deployment.
Heavy-Duty Waterproof Cameras
Rugged die-cast metal cameras rated IP68/IP69K with night vision infrared LEDs, 1080P/720P AHD output, and vibration-proof 4-pin aviation screw connectors.
In-Cab Commercial Vehicle Monitors
Industrial high-brightness 7-inch and 10.1-inch anti-glare IPS displays (DP210 / DP230 / DP270) featuring auto-dimming ambient light sensors and multi-view split screen.
Surveillance Storage Media
Enterprise 2.5-inch SATA hard drives up to 4TB and high-endurance Class 10 / V30 SDXC memory cards engineered for continuous 24/7 high-temperature loop recording.
DMS & ADAS AI Cameras
Specialized 940nm non-glare interior pupil tracking camera modules and windshield roadway optical units with precision ratchet tilt mounting brackets.
Audio Intercom & Alert Buzzers
Two-way voice communication dispatch handsets, high-decibel acoustic alert speakers, and dashboard visual warning LED indicators.
CMS Telematics Cloud Platform
Centralized fleet supervision platform supporting live multi-channel video streaming, GPS breadcrumb track replay, automated incident video clipping, and JT808/JT1078 protocols.
Built for Long-Term Commercial Fleet Programs
Why leading transport operators, bus transit authorities, and telematics systems integrators choose AlwayCare hardware.
Factory Direct Manufacturing
Direct ISO9001 certified production facility with 100% full batch high-temperature burn-in, vibration stress testing, and component traceability.
Integrated Fleet Safety
Harmonized hardware architecture uniting multi-channel evidentiary recording, AI active vision safety, GNSS telematics, and centralized cloud monitoring.
15-Month Manufacturer Warranty
Every commercial MDVR unit is backed by our direct 15-month quality guarantee from factory dispatch with guaranteed long-term spare component availability.
OEM & Protocol Integration
Custom silkscreen branding, customized packaging, dedicated harness pinouts, and seamless API / JT808 / JT1078 protocol integration with third-party telematics clouds.
From Inquiry to Fleet Deployment in Four Steps
A transparent engineering and procurement path — evaluate hardware on your test vehicles before placing bulk orders.
Share Fleet Requirements
Submit vehicle models, channel counts, target storage retention, and telematics platform specifications through our inquiry form.
Technical Architecture & Quote
Our sales engineers configure the optimal MR930 hardware version and provide a detailed technical proposal within one business day.
Sample Road Evaluation
Sample evaluation units are shipped for on-vehicle trial installation, wiring validation, and fleet management software testing.
Production & Global Delivery
Bulk fleet orders are manufactured under strict QA standards, shipped with full factory inspection test records and export documentation.
Engineering Documents & Downloads
Comprehensive technical specifications, dimensions, wiring pinouts, and telematics resources for MR930.
Product Datasheet
Full factory engineering parameters, mechanical dimensions, power requirements, and ordering configurations for MR930.
Request DatasheetCertificates & Lab Reports
Official CE, FCC, RoHS, and automotive environmental vibration test reports for commercial transport compliance.
Request CertificatesUser Manual & Wiring Diagram
Complete connector pinout charts, camera mounting instructions, alarm trigger wire assignments, and configuration guide.
Request ManualCMS Platform Software & Demo
Evaluation access to our cloud fleet surveillance dashboard — real-time GPS tracking, multi-channel live streaming, and API documentation.
Request Demo AccessComplete the Commercial Fleet Safety Stack
Commercial MDVR hardware and vision systems commonly deployed alongside this model in commercial vehicle fleets.
MR920 9-Channel AI Mobile DVR for Fleets
Model MR920 — 8-Channel AHD + 1-Channel IPC MDVR with 4TB HDD + 512GB SD dual storage.
MR920-DA 9-Channel AI MDVR Telematics Terminal
Model MR920-DA — Dual-AI flagship combining inside DMS driver tracking with outside ADAS roadway warnings.

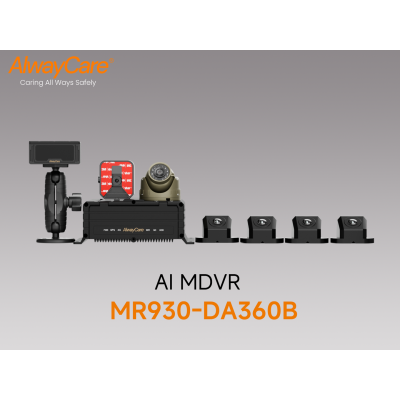

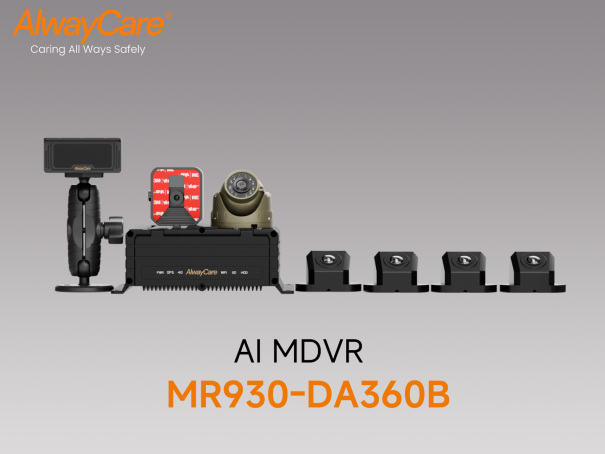

MR930-DA360B 13-Channel Ultra AI MDVR
Model MR930-DA360B — Four-in-one AI visual hub combining DMS + ADAS + 360° AVM + BSD on 13 video channels.
Frequently Asked Questions
Can't find your answer? Our commercial fleet engineers reply within one business day — email safety@alwaycare.com or send an inquiry.
What camera types and video resolutions are supported by MR930?
This platform supports 12 channels of AHD (1080P/720P) plus 1 channel of IPC digital expansion, accepting 1080P, 960P, 720P, and D1 analog high-definition cameras with backward compatibility for standard CVBS inputs. Selected versions also support digital IPC expansion via aviation network connectors.
What storage capacity and physical security does the unit provide?
The system utilizes 1× 2.5-inch SATA hard drive bay up to 4TB plus 1× SDXC slot up to 512GB with mechanical key lock. High-security physical lock tumbler covers prevent unauthorized removal of memory cards or hard drives by operators, ensuring uninterrupted evidentiary chain of custody.
How does the power protection and delayed shutdown system operate?
Equipped with an industrial DC 8V~36V wide-voltage power module with built-in reverse polarity, overload, and 40V surge suppression. Built-in farad supercapacitors ensure complete write-to-disk protection during abrupt power loss, while programmable delayed shutdown allows recording for up to 24 hours after vehicle ignition off.
What telematics protocols and CMS cloud platforms are supported?
Hardware integrates a 4G LTE cellular transceiver and high-precision GPS/BeiDou dual-mode GNSS receiver. The platform supports standard industry protocols including JT/T 808, JT/T 1078, GB/T 32960, and CMSV6, enabling seamless API integration into third-party fleet management solutions.
Can this MDVR be deployed in extreme vehicle environments?
Yes. The chassis is manufactured from heavy-duty extruded aluminum alloy with external heat dissipation fins. It operates reliably across an extended industrial temperature range of -20°C to +70°C (-4°F to +158°F) and satisfies rigorous automotive shock and vibration standards.
What warranty and engineering customization options are available?
Every AlwayCare commercial MDVR is supplied with a 15-month factory warranty. We support OEM/ODM branding, customized harness pinouts, bespoke firmware triggers, and specialized CMS server protocol mapping for tier-1 fleet contracts.
